The FNIRSI SG-002 is a handheld digital multimeter / DC signal generator designed for measuring and setting DC voltages and currents. Supports active and passive modes and 2/3/4-wire configurations. Measurement features include preset voltage ranges (including ±12 V, ±5 V, 0–10 V, 2–10 V, 0–5 V,...
More
Fnirsi Digital Multimeter SG-002 (DC Measurement)
Product Code: 1167687501
Available in 4 - 10 days
27,92 €
With the purchase of this product you earn 84 Bytes
Quantity:
Add
Need Help? Fill in your details so we can call you immediately!
TBI Bank
Buy Now Pay Later.
4 installments 0% επιτόκιο, 20€ έως 300€
3 to 60 installments 300€ έως 100.00€
- 1. Ship with ACS Courier
- 2. Αποστολές με μεταφορικές εταιρίες για ογκώδη αντικείμενα
-
3. Pickup from BoxNow automated machine:
Με την BoxNow μπορείς να παραλάβεις το δέμα σου από Αυτόματο Μηχάνημα Παραλαβής που βρίσκεται κοντά σου, όλες τις ώρες της ημέρας 24/7. Η υπηρεσία έχει χρέωση 3€. Υπάρχει δυνατότητα αντικαταβολής με επιπλέον χρέωση 1€.
-
4. Pickup from the store:
Leof. El. Venizelou 73 (former Theseos), Kallithea
Συμπληρώστε τον ταχυδρομικό κωδικό για να λάβετε εκτίμηση τρόπου και κόστους μεταφορικών.
The FNIRSI SG-002 is a handheld digital multimeter / DC signal generator designed for measuring and setting DC voltages and currents. Supports active and passive modes and 2/3/4-wire configurations. Measurement features include preset voltage ranges (including ±12 V, ±5 V, 0–10 V, 2–10 V, 0–5 V, 1–5 V, 0–3.3 V, 0–2.5 V, 0–1 V, -10–0 V) and current output/measurement 0–24 mA (with 0–20 mA and 4–20 mA support). Provides coarse and fine adjustment via a rotary encoder, a 4-digit LED display with 8 brightness levels, removable terminal strips for quick and safe connections, and memory for storing settings. Power options: external 15–30 V DC, micro-USB 5 V, or built-in rechargeable Li-ion 1100 mAh / 3.7 V battery. Device dimensions: 89 × 69 × 28 mm. Brand: FNIRSI. Casing material not specified.
-
ModelFNIRSI SG-002
-
Device typeHandheld digital multimeter / DC signal generator
-
Supported signal typesDC voltage and DC current (active and passive modes)
-
Voltage preset ranges±12 V, ±5 V, 0–10 V, 2–10 V, 0–5 V, 1–5 V, 0–3.3 V, 0–2.5 V, 0–1 V, -10–0 V
-
Current measurement/output ranges0–24 mA (supports 0–20 mA and 4–20 mA)
-
Accuracy after calibration0.05 V / 0.05 mA
-
Resolution0.05 V / 0.05 mA
-
Display4-digit LED display with 8 brightness levels
-
Adjustment controlRotary encoder with coarse and fine adjustment
-

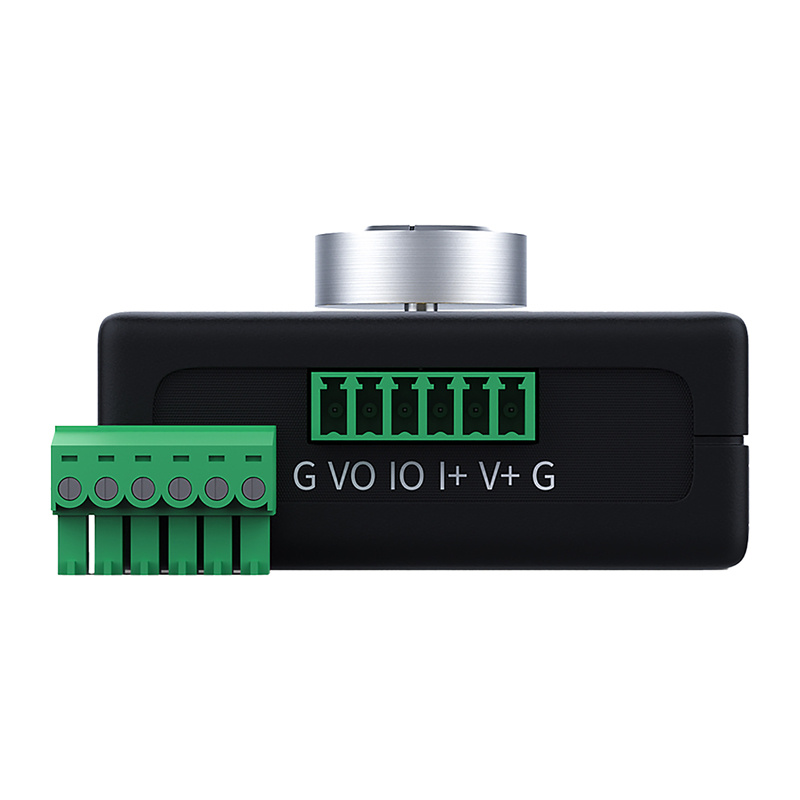

Connection typeRemovable terminal strips for quick and safe connection
-
Power supply optionsExternal 15–30 V DC; micro-USB 5 V; built-in rechargeable Li-ion 1100 mAh / 3.7 V
-
Dimensions (device)89 × 69 × 28 mm
-
MemoryStores user settings (configuration memory)
-
Casing materialNot specified
-
ManufacturerFNIRSI
Ratings
Description
The FNIRSI SG-002 is a handheld digital multimeter / DC signal generator designed for measuring and setting DC voltages and currents. Supports active and passive modes and 2/3/4-wire configurations. Measurement features include preset voltage ranges (including ±12 V, ±5 V, 0–10 V, 2–10 V, 0–5 V, 1–5 V, 0–3.3 V, 0–2.5 V, 0–1 V, -10–0 V) and current output/measurement 0–24 mA (with 0–20 mA and 4–20 mA support). Provides coarse and fine adjustment via a rotary encoder, a 4-digit LED display with 8 brightness levels, removable terminal strips for quick and safe connections, and memory for storing settings. Power options: external 15–30 V DC, micro-USB 5 V, or built-in rechargeable Li-ion 1100 mAh / 3.7 V battery. Device dimensions: 89 × 69 × 28 mm. Brand: FNIRSI. Casing material not specified.
Technical Specifications
-
ModelFNIRSI SG-002
-
Device typeHandheld digital multimeter / DC signal generator
-
Supported signal typesDC voltage and DC current (active and passive modes)
-
Voltage preset ranges±12 V, ±5 V, 0–10 V, 2–10 V, 0–5 V, 1–5 V, 0–3.3 V, 0–2.5 V, 0–1 V, -10–0 V
-
Current measurement/output ranges0–24 mA (supports 0–20 mA and 4–20 mA)
-
Accuracy after calibration0.05 V / 0.05 mA
-
Resolution0.05 V / 0.05 mA
-
Display4-digit LED display with 8 brightness levels
-
Adjustment controlRotary encoder with coarse and fine adjustment
-
Connection typeRemovable terminal strips for quick and safe connection
-
Power supply optionsExternal 15–30 V DC; micro-USB 5 V; built-in rechargeable Li-ion 1100 mAh / 3.7 V
-
Dimensions (device)89 × 69 × 28 mm
-
MemoryStores user settings (configuration memory)
-
Casing materialNot specified
-
ManufacturerFNIRSI
