The FNIRSI DPS150 PD is a compact bench DC power supply intended for electronics workbench and DIY applications. It features a single output channel with a maximum voltage of 30 V, maximum current of 5 A and maximum power of 150 W. Supports constant voltage (CV) and constant current (CC) modes with...
More

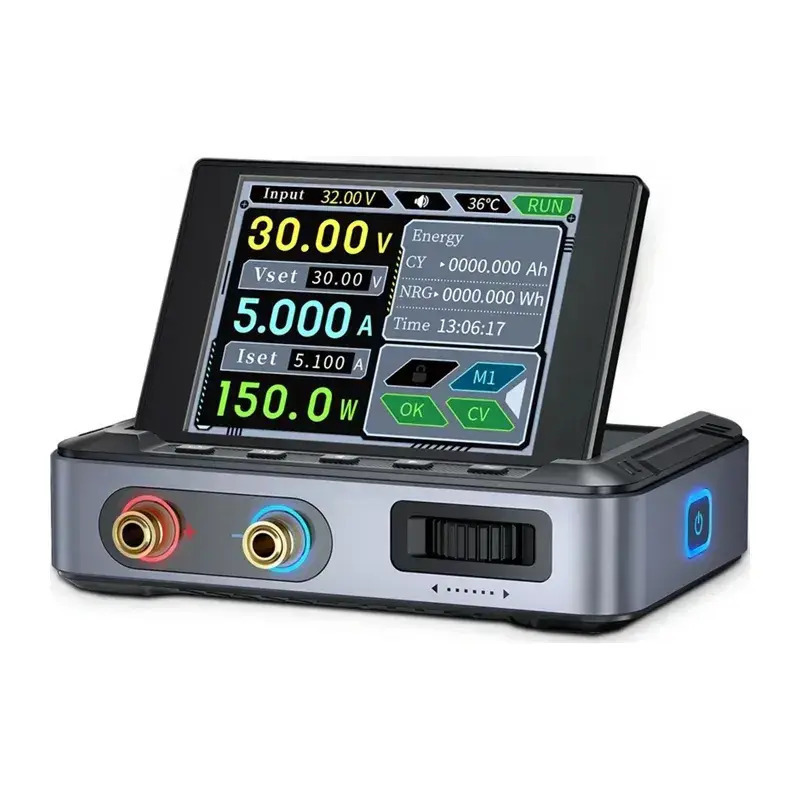

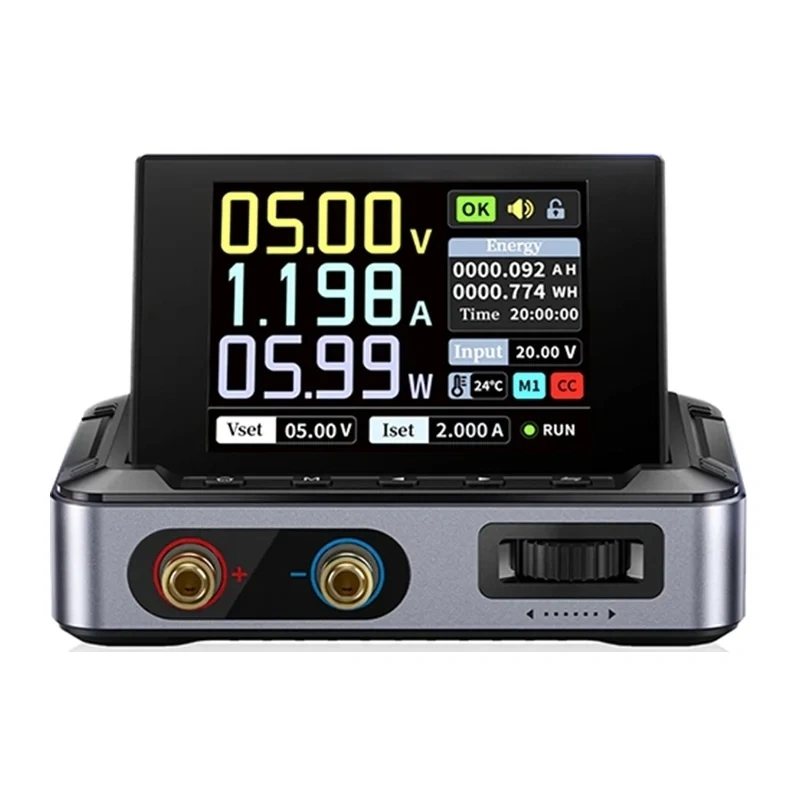

Fnirsi Bench Power Supply 1 Channel 30V 5A 150W (DPS150 PD)
Product Code: 1167733847
Available in 4 - 6 days
117,28 €
or
3,66€ / month
εως 36 δόσεις με πιστωτική κάρτα
With the purchase of this product you earn 352 Bytes
Quantity:
Add
Need Help? Fill in your details so we can call you immediately!
Έως 36 Δόσεις. Δείτε το πλάνο δόσεων:
TBI Bank
Buy Now Pay Later.
4 installments 0% επιτόκιο, 20€ έως 300€
3 to 60 installments 300€ έως 100.00€
- 1. Ship with ACS Courier
- 2. Αποστολές με μεταφορικές εταιρίες για ογκώδη αντικείμενα
-
3. Pickup from BoxNow automated machine:
Με την BoxNow μπορείς να παραλάβεις το δέμα σου από Αυτόματο Μηχάνημα Παραλαβής που βρίσκεται κοντά σου, όλες τις ώρες της ημέρας 24/7. Η υπηρεσία έχει χρέωση 3€. Υπάρχει δυνατότητα αντικαταβολής με επιπλέον χρέωση 1€.
-
4. Pickup from the store:
Leof. El. Venizelou 73 (former Theseos), Kallithea
Συμπληρώστε τον ταχυδρομικό κωδικό για να λάβετε εκτίμηση τρόπου και κόστους μεταφορικών.
The FNIRSI DPS150 PD is a compact bench DC power supply intended for electronics workbench and DIY applications. It features a single output channel with a maximum voltage of 30 V, maximum current of 5 A and maximum power of 150 W. Supports constant voltage (CV) and constant current (CC) modes with voltage resolution of 0.01 V and current resolution of 0.001 A. Equipped with a 2.8-inch IPS color display with four-digit readout and tilt up to 90°. Outputs via 4 mm banana terminals and additional connectors. Includes safety protections (over-voltage, over-current, short-circuit, over-temperature). Unit dimensions: 106 x 76 x 28 mm. Product weight approx. 178 g. Operating conditions: 0°C to 40°C, 0%–75% RH.
-
BrandFnirsi
-
ModelDPS150 PD
-
Product TypeBench DC Power Supply
-
Channels1 Channel
-
Maximum Voltage30 V
-
Maximum Current5 A
-
Maximum Power150 W
-
Voltage Resolution0.01 V
-
Current Resolution0.001 A
-
Operating ModesConstant Voltage (CV), Constant Current (CC)
-
Voltage Ripple≤20 mV
-
Display2.8 inch IPS color, four-digit readout
-
Display TiltUp to 90°
-
Output Connectors4 mm banana terminals and screw-type connections
-
Dimensions106 x 76 x 28 mm
-
Product Weight178 g
-
Operating Temperature0°C to 40°C
-
Operating Humidity0% to 75% RH
-
ProtectionsOver-voltage, Over-current, Short-circuit, Over-temperature
-
Additional FeaturesProgrammable/store settings and energy/usage logging (as supported by device firmware)
Ratings
Description
The FNIRSI DPS150 PD is a compact bench DC power supply intended for electronics workbench and DIY applications. It features a single output channel with a maximum voltage of 30 V, maximum current of 5 A and maximum power of 150 W. Supports constant voltage (CV) and constant current (CC) modes with voltage resolution of 0.01 V and current resolution of 0.001 A. Equipped with a 2.8-inch IPS color display with four-digit readout and tilt up to 90°. Outputs via 4 mm banana terminals and additional connectors. Includes safety protections (over-voltage, over-current, short-circuit, over-temperature). Unit dimensions: 106 x 76 x 28 mm. Product weight approx. 178 g. Operating conditions: 0°C to 40°C, 0%–75% RH.
Technical Specifications
-
BrandFnirsi
-
ModelDPS150 PD
-
Product TypeBench DC Power Supply
-
Channels1 Channel
-
Maximum Voltage30 V
-
Maximum Current5 A
-
Maximum Power150 W
-
Voltage Resolution0.01 V
-
Current Resolution0.001 A
-
Operating ModesConstant Voltage (CV), Constant Current (CC)
-
Voltage Ripple≤20 mV
-
Display2.8 inch IPS color, four-digit readout
-
Display TiltUp to 90°
-
Output Connectors4 mm banana terminals and screw-type connections
-
Dimensions106 x 76 x 28 mm
-
Product Weight178 g
-
Operating Temperature0°C to 40°C
-
Operating Humidity0% to 75% RH
-
ProtectionsOver-voltage, Over-current, Short-circuit, Over-temperature
-
Additional FeaturesProgrammable/store settings and energy/usage logging (as supported by device firmware)
