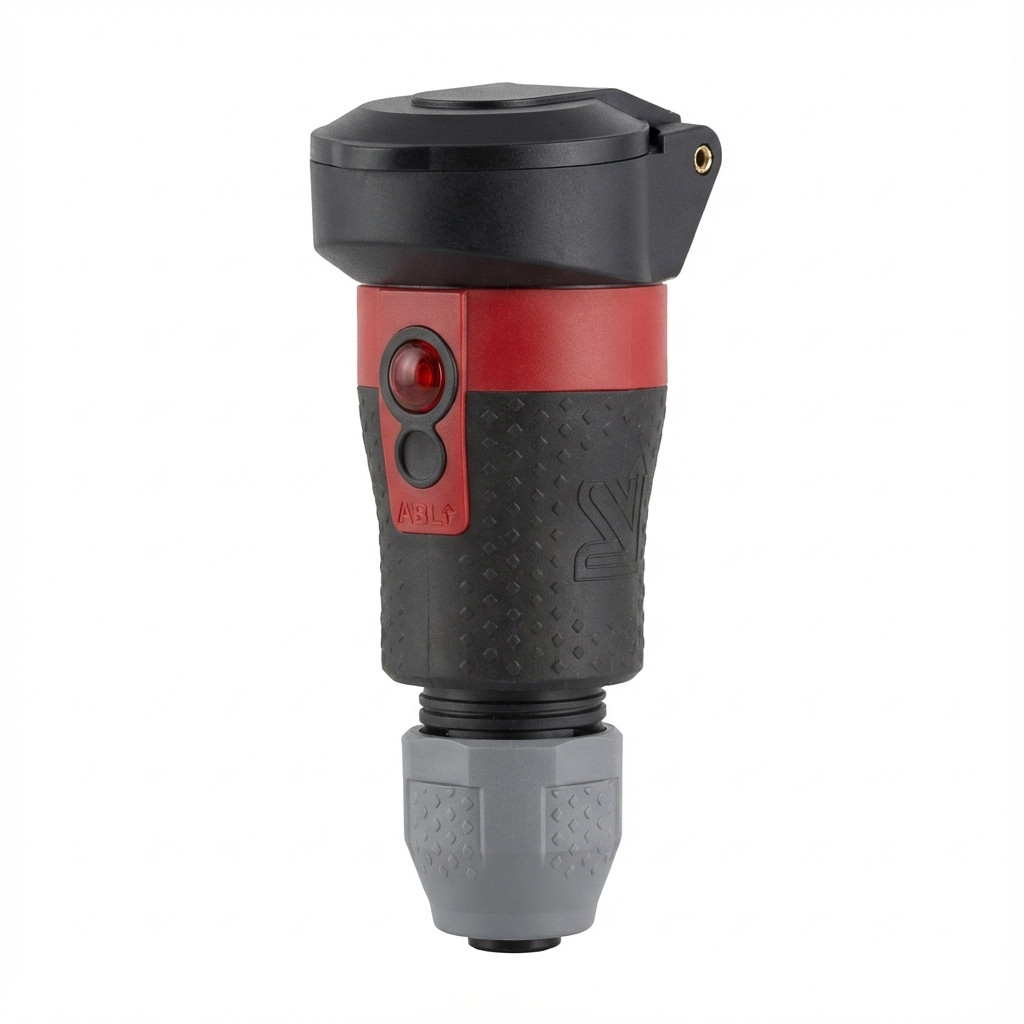

Φις Ρεύματος ABL 100000106 Professional SCHUKO. Elamid-2K. rot. sv. IP54. Typ 1590

The ABL 100000106 Professional Kupplung is a durable SCHUKO electrical coupler designed for industrial and trade applications. Built from high-performance Elamid-2K thermoplastic, it features a striking red housing. Key Features: Material and Durability: Enhanced robustness with 2-component Elamid...

Φις Ρεύματος ABL 100000106 Professional SCHUKO. Elamid-2K. rot. sv. IP54. Typ 1590

Name: Φις Ρεύματος ABL 100000106 Professional SCHUKO. Elamid-2K. rot. sv. IP54. Typ 1590
Brand: ABL
SKU: 1173623276
Price: 60.07 EUR
Availability: OutOfStock

Product Code: 1173623276

Available in 4 - 10 days

60,07 €

1,88€ / month

εως 36 δόσεις με πιστωτική κάρτα

Quantity:

Add

Need Help? Fill in your details so we can call you immediately!

Έως 36 Δόσεις. Δείτε το πλάνο δόσεων:

The ABL 100000106 Professional Kupplung is a durable SCHUKO electrical coupler designed for industrial and trade applications. Built from high-performance Elamid-2K thermoplastic, it features a striking red housing.

Key Features:

Material and Durability: Enhanced robustness with 2-component Elamid technology.
Protection: IP54 rating guards against splashing water.
Convenience: Features a self-closing hinged lid with an integrated voltage indicator.

Electrical Specifications:

Current	16 A
Voltage	250 V
Poles	2P + PE (SCHUKO standard)
Cable Cross-Section	3 × 1.0 mm² to 3 × 2.5 mm²
Cable Diameter	6–12 mm
Sheath Stripping Length	42–44 mm
Core Stripping Length	8–10 mm
Terminal Torque (L-N/PE)	Max. 0.5 Nm
Housing Screw Torque	1.5 Nm
Strain Relief	Turn clamp for cables ≤8 mm

This coupler is perfect for creating custom extension cables in demanding environments.

Current

16 A
Voltage

250 V
Poles

2P + PE (SCHUKO standard)
Cable Cross-Section

3 × 1.0 mm² to 3 × 2.5 mm²
Cable Diameter

6–12 mm
Sheath Stripping Length

42–44 mm
Core Stripping Length

8–10 mm
Terminal Torque (L-N/PE)

Max. 0.5 Nm
Housing Screw Torque

1.5 Nm
Strain Relief

Turn clamp for cables ≤8 mm

Ratings

How do you rate this product?

0/5

Description

Key Features:

Material and Durability: Enhanced robustness with 2-component Elamid technology.
Protection: IP54 rating guards against splashing water.
Convenience: Features a self-closing hinged lid with an integrated voltage indicator.

Electrical Specifications:

Current	16 A
Voltage	250 V
Poles	2P + PE (SCHUKO standard)
Cable Cross-Section	3 × 1.0 mm² to 3 × 2.5 mm²
Cable Diameter	6–12 mm
Sheath Stripping Length	42–44 mm
Core Stripping Length	8–10 mm
Terminal Torque (L-N/PE)	Max. 0.5 Nm
Housing Screw Torque	1.5 Nm
Strain Relief	Turn clamp for cables ≤8 mm

This coupler is perfect for creating custom extension cables in demanding environments.

Technical Specifications

Current

16 A
Voltage

250 V
Poles

2P + PE (SCHUKO standard)
Cable Cross-Section

3 × 1.0 mm² to 3 × 2.5 mm²
Cable Diameter

6–12 mm
Sheath Stripping Length

42–44 mm
Core Stripping Length

8–10 mm
Terminal Torque (L-N/PE)

Max. 0.5 Nm
Housing Screw Torque

1.5 Nm
Strain Relief

Turn clamp for cables ≤8 mm
