Φις Ρεύματος ABL 100000105 Professional SCHUKO. Elamid-2K. Black. sv. IP54. Typ 1

The ABL 100000105 Professional Kupplung is a robust SCHUKO female coupling designed for demanding environments.Made from high-performance Elamid 2K technology, it is built to handle mechanical loads up to 4 tonnes and offers exceptional splash-proof protection.Key Features:Electrical Ratings: 16 A...

Φις Ρεύματος ABL 100000105 Professional SCHUKO. Elamid-2K. Black. sv. IP54. Typ 1

Name: Φις Ρεύματος ABL 100000105 Professional SCHUKO. Elamid-2K. Black. sv. IP54. Typ 1
Brand: ABL
SKU: 1173623275
Price: 92.46 EUR
Availability: OutOfStock

Product Code: 1173623275

Available in 4 - 10 days

92,46 €

2,89€ / month

εως 36 δόσεις με πιστωτική κάρτα

Quantity:

Add

Need Help? Fill in your details so we can call you immediately!

Έως 36 Δόσεις. Δείτε το πλάνο δόσεων:

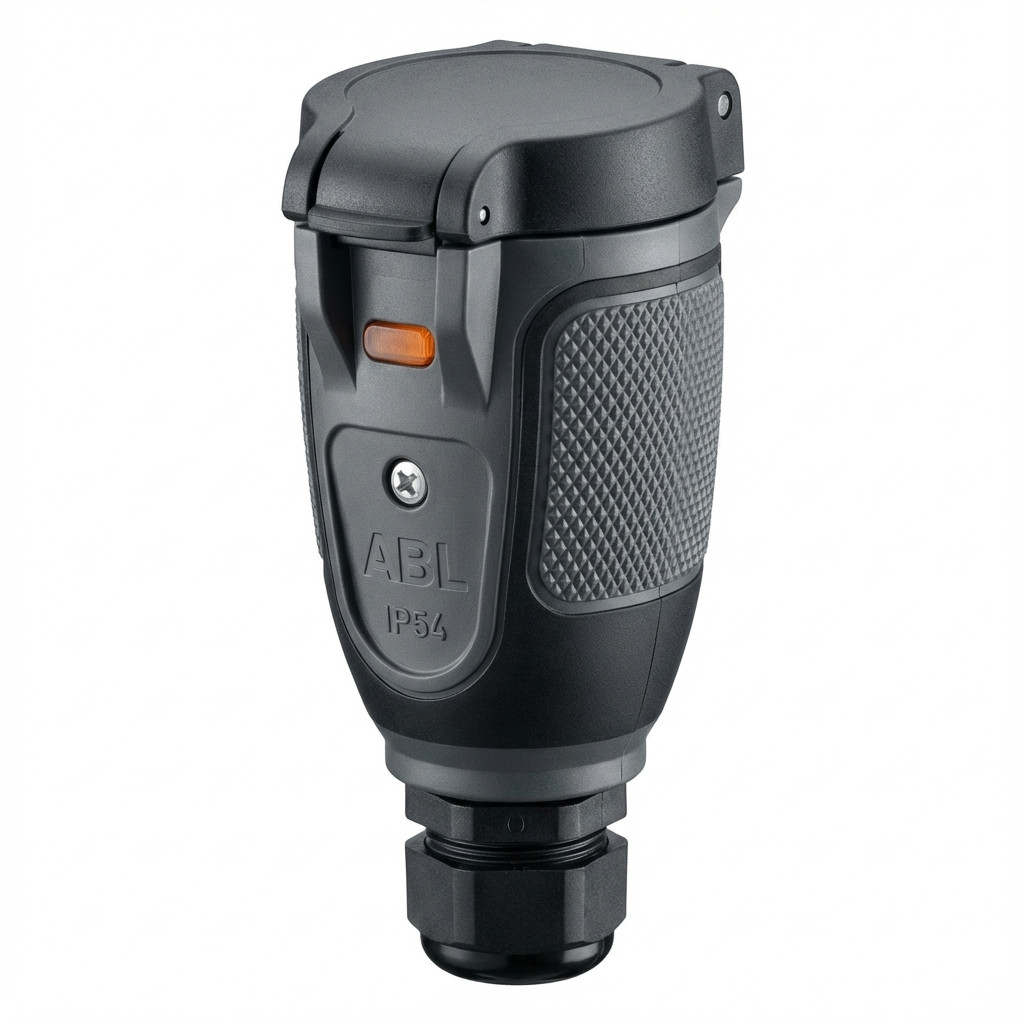

The ABL 100000105 Professional Kupplung is a robust SCHUKO female coupling designed for demanding environments.

Made from high-performance Elamid 2K technology, it is built to handle mechanical loads up to 4 tonnes and offers exceptional splash-proof protection.

Key Features:

Electrical Ratings: 16 A nominal current, 250 V nominal voltage.
Connections: Includes screw terminals with maximum torque specifications for easy wiring.
Mechanical Design: Features a quick-release closure for efficient handling.

Its durability and user-friendly design make it ideal for use in trade, industry, construction, and agriculture.

With an operational temperature range of -30°C to +40°C, this coupling is suitable for varied environmental conditions.

Nominal Current

16 A
Nominal Voltage

250 V
Cable Compatibility

3 × 1.0 mm² to 3 × 2.5 mm²
Cable Diameter

6–12 mm
Sheath Stripping Length

42–44 mm
Core Stripping Length

8–10 mm
Max Torque (screw terminals)

0.5 Nm
Max Torque (housing screws)

1.5 Nm
Operating Temperature

-30°C to +40°C
Standard

SCHUKO
Color

Black

Ratings

How do you rate this product?

0/5

Description

The ABL 100000105 Professional Kupplung is a robust SCHUKO female coupling designed for demanding environments.

Made from high-performance Elamid 2K technology, it is built to handle mechanical loads up to 4 tonnes and offers exceptional splash-proof protection.

Key Features:

Electrical Ratings: 16 A nominal current, 250 V nominal voltage.
Connections: Includes screw terminals with maximum torque specifications for easy wiring.
Mechanical Design: Features a quick-release closure for efficient handling.

Its durability and user-friendly design make it ideal for use in trade, industry, construction, and agriculture.

With an operational temperature range of -30°C to +40°C, this coupling is suitable for varied environmental conditions.

Technical Specifications

Nominal Current

16 A
Nominal Voltage

250 V
Cable Compatibility

3 × 1.0 mm² to 3 × 2.5 mm²
Cable Diameter

6–12 mm
Sheath Stripping Length

42–44 mm
Core Stripping Length

8–10 mm
Max Torque (screw terminals)

0.5 Nm
Max Torque (housing screws)

1.5 Nm
Operating Temperature

-30°C to +40°C
Standard

SCHUKO
Color

Black
