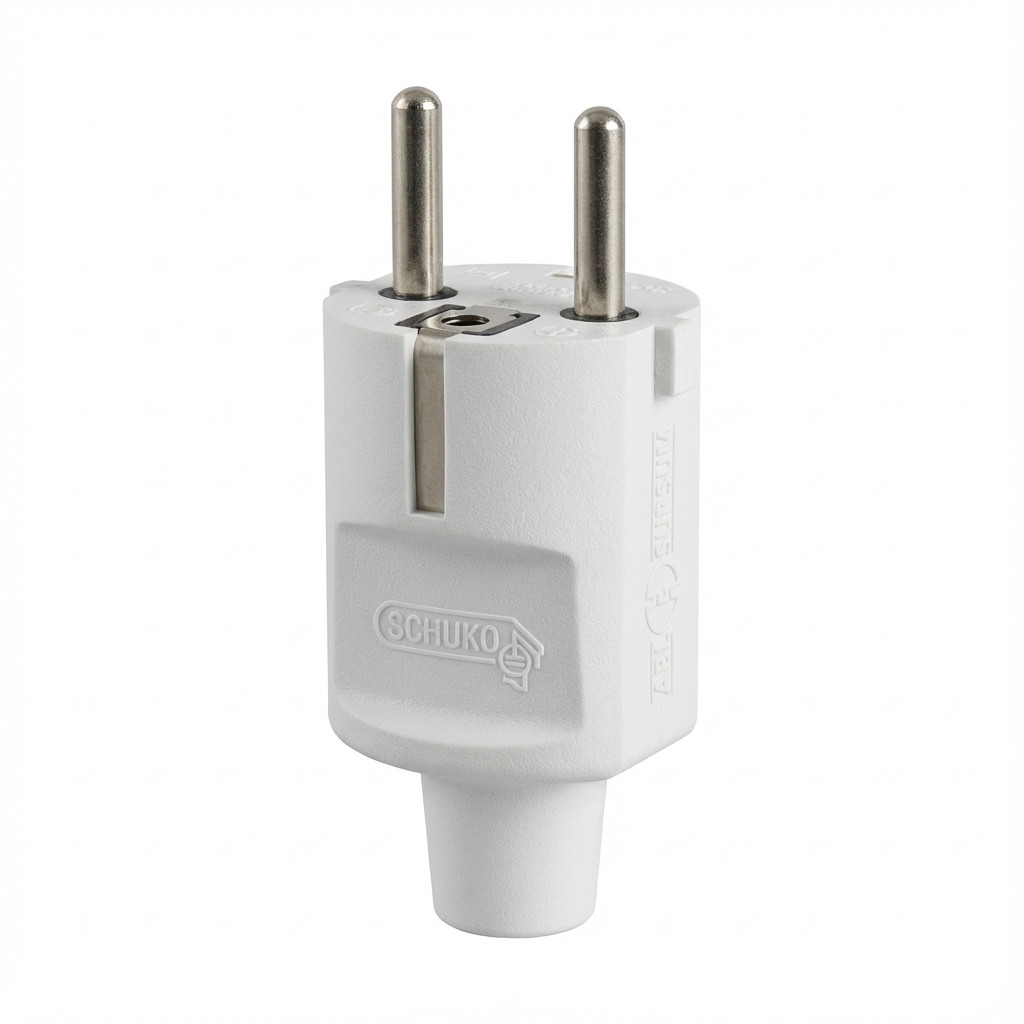

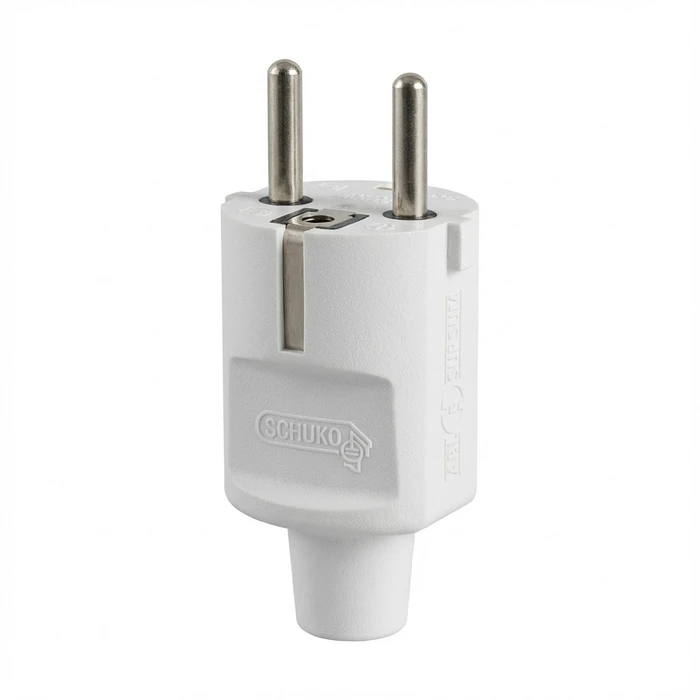

Φις Ρεύματος ABL 100000046 Compact SCHUKO & fr-be. TPE. Gray. IP20. Typ 1505

The ABL Compact Stecker 1505 is a versatile and efficient dual-grounding electrical plug designed for use in dry indoor environments with low mechanical stress, such as household and office applications.This product is built to meet the needs of users seeking reliability and safety in their...

Φις Ρεύματος ABL 100000046 Compact SCHUKO & fr-be. TPE. Gray. IP20. Typ 1505

Name: Φις Ρεύματος ABL 100000046 Compact SCHUKO & fr-be. TPE. Gray. IP20. Typ 1505
Brand: ABL
SKU: 1173623264
Price: 13.88 EUR
Availability: OutOfStock

Product Code: 1173623264

Available in 4 - 10 days

13,88 €

Quantity:

Add

Need Help? Fill in your details so we can call you immediately!

The ABL Compact Stecker 1505 is a versatile and efficient dual-grounding electrical plug designed for use in dry indoor environments with low mechanical stress, such as household and office applications.

This product is built to meet the needs of users seeking reliability and safety in their electrical connections.

Technical Specifications

Specification	Details
Type/Standard	Hybrid CEE 7/7 (Type E/F) - SCHUKO & French-Belgian
Rated Voltage	250 V
Rated Current	16 A
Protection Class	IP20
Material	TPE (Thermoplastic Elastomer)
Color	Grey
Grounding System	Dual earthing system with grounding clips
Connection Method	Screw terminals
Cable Accommodation	Up to 1.5 mm² with a diameter range of 6.5–10.4 mm
Pole Count	2P + E
Plug Direction	Straight

Key Features

Cable strain relief for protection against cable bending
Lost-cap attachment screw for convenience
Single-direction, single-screwdriver connection with open terminal screws for easy installation
Made in Germany

This plug is ideal for those looking to enhance their safety standards and reliability in electrical connections within their space.

Type/Standard

Hybrid CEE 7/7 (Type E/F) - SCHUKO & French-Belgian
Rated Voltage

250 V
Rated Current

16 A
Protection Class

IP20
Material

TPE
Color

Grey
Grounding System

Dual earthing system with grounding clips
Connection Method

Screw terminals
Cable Accommodation

Up to 1.5 mm² with diameter range of 6.5–10.4 mm
Pole Count

2P + E
Plug Direction

Straight

Ratings

How do you rate this product?

0/5

Description

This product is built to meet the needs of users seeking reliability and safety in their electrical connections.

Technical Specifications

Specification	Details
Type/Standard	Hybrid CEE 7/7 (Type E/F) - SCHUKO & French-Belgian
Rated Voltage	250 V
Rated Current	16 A
Protection Class	IP20
Material	TPE (Thermoplastic Elastomer)
Color	Grey
Grounding System	Dual earthing system with grounding clips
Connection Method	Screw terminals
Cable Accommodation	Up to 1.5 mm² with a diameter range of 6.5–10.4 mm
Pole Count	2P + E
Plug Direction	Straight

Key Features

Cable strain relief for protection against cable bending
Lost-cap attachment screw for convenience
Single-direction, single-screwdriver connection with open terminal screws for easy installation
Made in Germany

This plug is ideal for those looking to enhance their safety standards and reliability in electrical connections within their space.

Technical Specifications

Type/Standard

Hybrid CEE 7/7 (Type E/F) - SCHUKO & French-Belgian
Rated Voltage

250 V
Rated Current

16 A
Protection Class

IP20
Material

TPE
Color

Grey
Grounding System

Dual earthing system with grounding clips
Connection Method

Screw terminals
Cable Accommodation

Up to 1.5 mm² with diameter range of 6.5–10.4 mm
Pole Count

2P + E
Plug Direction

Straight
