Φις Ρεύματος ABL 100000040 Original Angled, SCHUKO & fr-be, Gummi (TPE), Black, IP44

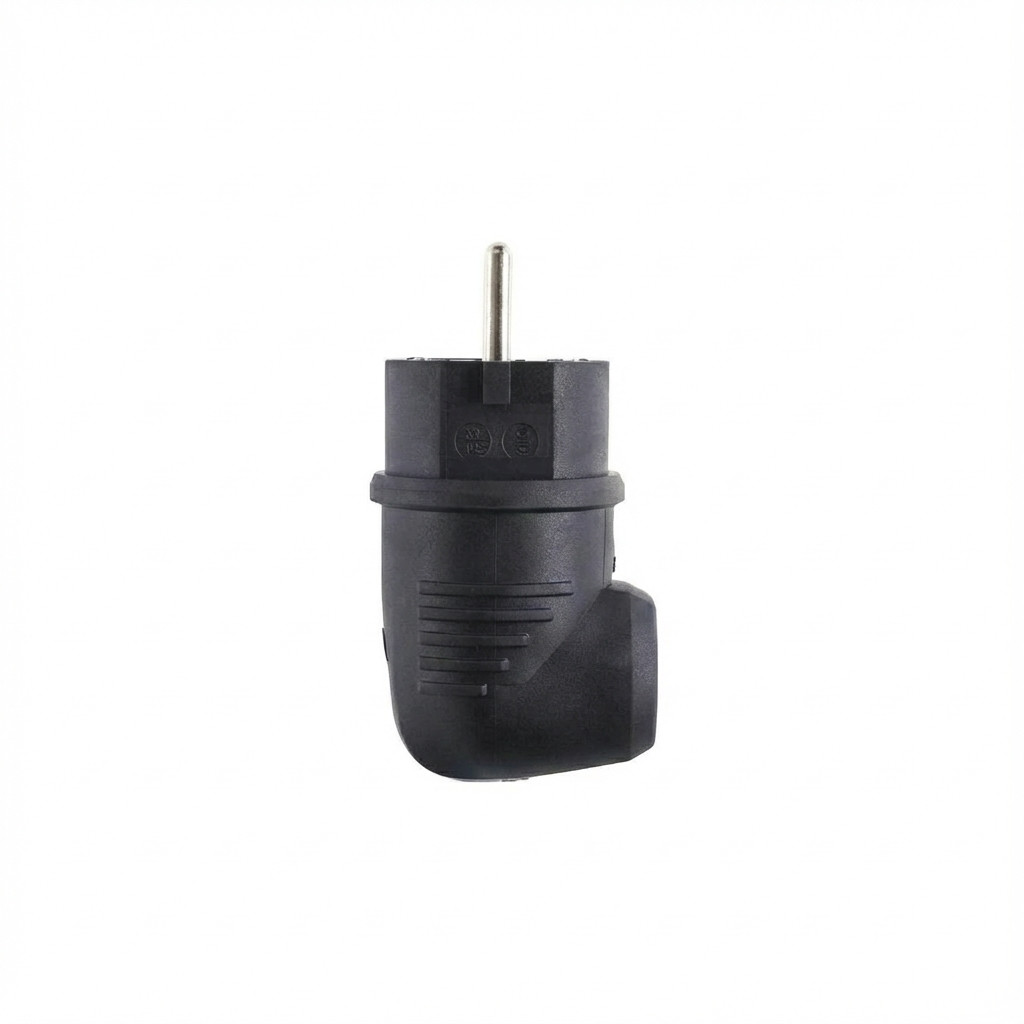

The ABL 100000040 is a high-quality black angled rubber plug designed specifically for heavy mechanical loads and indoor smart home applications. This innovative plug features SCHUKO and fr-be compatibility, ensuring versatility in use. Equipped with IP44 splash water protection, the ABL 100000040...

Φις Ρεύματος ABL 100000040 Original Angled, SCHUKO & fr-be, Gummi (TPE), Black, IP44

Name: Φις Ρεύματος ABL 100000040 Original Angled, SCHUKO & fr-be, Gummi (TPE), Black, IP44
Brand: ABL
SKU: 1173623263
Price: 41.24 EUR
Availability: OutOfStock

Product Code: 1173623263

Available in 4 - 10 days

41,24 €

1,29€ / month

εως 36 δόσεις με πιστωτική κάρτα

Quantity:

Add

Need Help? Fill in your details so we can call you immediately!

Έως 36 Δόσεις. Δείτε το πλάνο δόσεων:

The ABL 100000040 is a high-quality black angled rubber plug designed specifically for heavy mechanical loads and indoor smart home applications. This innovative plug features SCHUKO and fr-be compatibility, ensuring versatility in use.

Equipped with IP44 splash water protection, the ABL 100000040 is suitable for environments where moisture exposure is a concern.

Technical Specifications

Current rating: 16 A
Voltage: 250 V
Poles: 2P + PE (dual pole with protective earth)
Standards: DIN VDE 0620, NF C61-314, NBN C61-112
Protection class: IP44

Physical Characteristics

Material: Rubber (TPE – thermoplastic elastomer)
Connector type: Hybrid plug CEE 7/7 (Type E/F)
Earthing system: Double earthing system with protective contacts
Connection capacity: Supports cable cross-sections from 3×0.75 mm² to 3×2.5 mm²
Recommended cable diameter: 6–12 mm
Maximum screw torque: 0.5 Nm

Design Features

Space-saving angled cable outlet for flexible installation
Large connection space with screw clamps for easy wiring
Durable materials with comfortable grip

Current rating

16 A
Voltage

250 V
Poles

2P + PE
Protection class

IP44
Material

Rubber (TPE)
Connector type

Hybrid plug CEE 7/7
Connection capacity

3×0.75 mm² to 3×2.5 mm²
Recommended cable diameter

6–12 mm
Maximum screw torque

0.5 Nm

Ratings

How do you rate this product?

0/5

Description

Equipped with IP44 splash water protection, the ABL 100000040 is suitable for environments where moisture exposure is a concern.

Technical Specifications

Current rating: 16 A
Voltage: 250 V
Poles: 2P + PE (dual pole with protective earth)
Standards: DIN VDE 0620, NF C61-314, NBN C61-112
Protection class: IP44

Physical Characteristics

Material: Rubber (TPE – thermoplastic elastomer)
Connector type: Hybrid plug CEE 7/7 (Type E/F)
Earthing system: Double earthing system with protective contacts
Connection capacity: Supports cable cross-sections from 3×0.75 mm² to 3×2.5 mm²
Recommended cable diameter: 6–12 mm
Maximum screw torque: 0.5 Nm

Design Features

Space-saving angled cable outlet for flexible installation
Large connection space with screw clamps for easy wiring
Durable materials with comfortable grip

Technical Specifications

Current rating

16 A
Voltage

250 V
Poles

2P + PE
Protection class

IP44
Material

Rubber (TPE)
Connector type

Hybrid plug CEE 7/7
Connection capacity

3×0.75 mm² to 3×2.5 mm²
Recommended cable diameter

6–12 mm
Maximum screw torque

0.5 Nm
