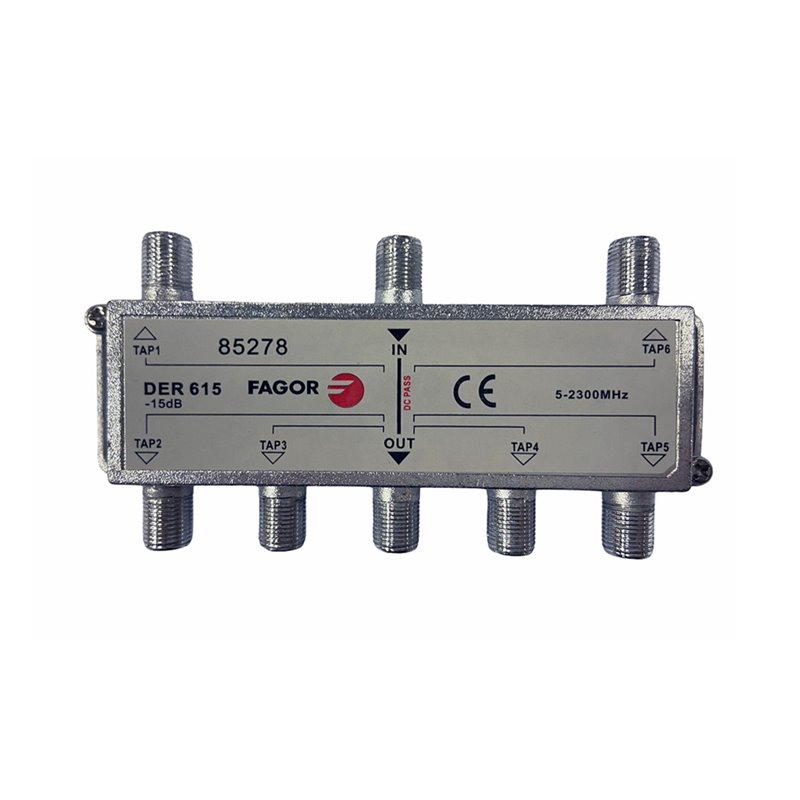

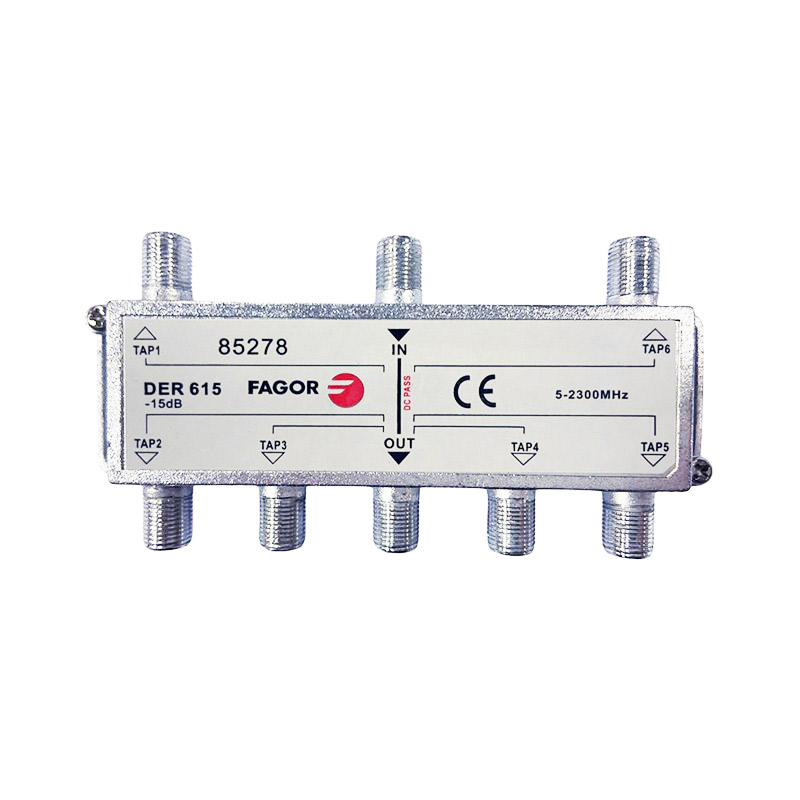

The Fagor DER 615 (SKU: 85278, EAN: 8432589852787) is a 6-way tap-off splitter for coaxial TV/SAT distribution with F-type connectors. Tap loss is 15 dB ±0.5 dB. Frequency coverage is 5–2300 MHz. DC pass is provided on the main input/output. The unit is totally shielded to minimize interference and...
More
Fagor DER 615 Tap-off 6-way 15 dB (F-type)
Product Code: 1143722857
Available in 4 - 6 days
14,97 €
With the purchase of this product you earn 45 Bytes
Quantity:
Add
Need Help? Fill in your details so we can call you immediately!
TBI Bank
Buy Now Pay Later.
4 installments 0% επιτόκιο, 20€ έως 300€
3 to 60 installments 300€ έως 100.00€
- 1. Ship with ACS Courier
- 2. Αποστολές με μεταφορικές εταιρίες για ογκώδη αντικείμενα
-
3. Pickup from BoxNow automated machine:
Με την BoxNow μπορείς να παραλάβεις το δέμα σου από Αυτόματο Μηχάνημα Παραλαβής που βρίσκεται κοντά σου, όλες τις ώρες της ημέρας 24/7. Η υπηρεσία έχει χρέωση 3€. Υπάρχει δυνατότητα αντικαταβολής με επιπλέον χρέωση 1€.
-
4. Pickup from the store:
Leof. El. Venizelou 73 (former Theseos), Kallithea
Συμπληρώστε τον ταχυδρομικό κωδικό για να λάβετε εκτίμηση τρόπου και κόστους μεταφορικών.
The Fagor DER 615 (SKU: 85278, EAN: 8432589852787) is a 6-way tap-off splitter for coaxial TV/SAT distribution with F-type connectors. Tap loss is 15 dB ±0.5 dB. Frequency coverage is 5–2300 MHz. DC pass is provided on the main input/output. The unit is totally shielded to minimize interference and provide high isolation between ports. Suitable for professional and residential signal distribution installations.
-
BrandFagor
-
ModelDER 615
-
SKU / Catalog number85278
-
MPNIKU-85278
-
EAN8432589852787
-
Product typeTap-off (6-way)
-
Number of outputs6
-
Connector typeF-type
-
Frequency range5–2300 MHz
-
Tap loss15 dB ±0.5 dB
-
Insertion loss 5–47 MHz3.5 dB
-
Insertion loss 47–862 MHz1.5 dB
-
Insertion loss 950–2150 MHz0.5 dB
-
Insertion loss 2150–2300 MHz0.5 dB
-
DC passYes (on main line input/output)
-
ShieldingTotally shielded
-
SeriesREP / DER
-
Impedance75 ohm
-
Intended useTV/SAT coaxial signal distribution
Ratings
Description
The Fagor DER 615 (SKU: 85278, EAN: 8432589852787) is a 6-way tap-off splitter for coaxial TV/SAT distribution with F-type connectors. Tap loss is 15 dB ±0.5 dB. Frequency coverage is 5–2300 MHz. DC pass is provided on the main input/output. The unit is totally shielded to minimize interference and provide high isolation between ports. Suitable for professional and residential signal distribution installations.
Technical Specifications
-
BrandFagor
-
ModelDER 615
-
SKU / Catalog number85278
-
MPNIKU-85278
-
EAN8432589852787
-
Product typeTap-off (6-way)
-
Number of outputs6
-
Connector typeF-type
-
Frequency range5–2300 MHz
-
Tap loss15 dB ±0.5 dB
-
Insertion loss 5–47 MHz3.5 dB
-
Insertion loss 47–862 MHz1.5 dB
-
Insertion loss 950–2150 MHz0.5 dB
-
Insertion loss 2150–2300 MHz0.5 dB
-
DC passYes (on main line input/output)
-
ShieldingTotally shielded
-
SeriesREP / DER
-
Impedance75 ohm
-
Intended useTV/SAT coaxial signal distribution
