The VIDOS 2IP S204 external panel is an IP outdoor station for VIDOS 2IP video intercom systems. It features a 2.1 MP CMOS Full HD camera (1080p) with a 125° viewing angle, IR night illumination and LED lighting, two-way duplex audio with adjustable volume, a backlit keypad for PIN access, built-in...
More

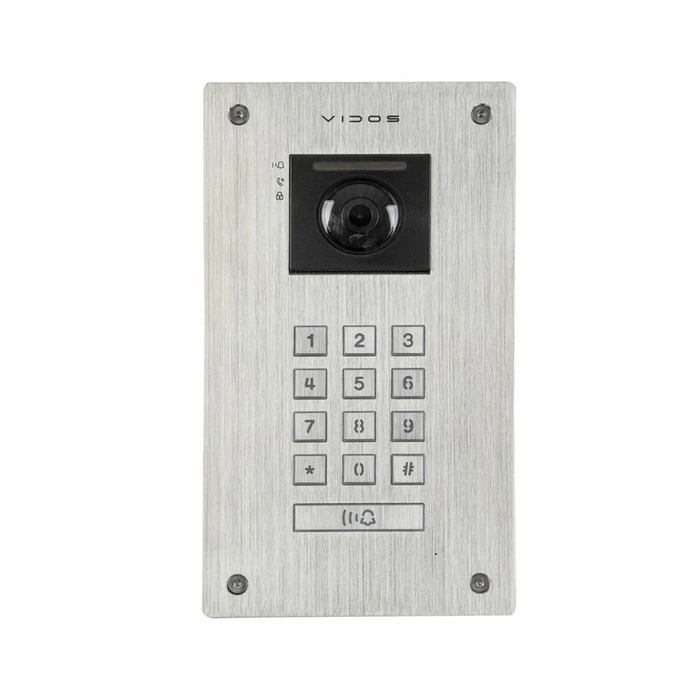

External Panel VIDOS 2IP S204
Product Code: 1127675844
Upon Order
250,72 €
or
7,83€ / month
εως 36 δόσεις με πιστωτική κάρτα
Quantity:
Add
Need Help? Fill in your details so we can call you immediately!
Έως 36 Δόσεις. Δείτε το πλάνο δόσεων:
TBI Bank
Buy Now Pay Later.
4 installments 0% επιτόκιο, 20€ έως 300€
3 to 60 installments 300€ έως 100.00€
- 1. Ship with ACS Courier
- 2. Αποστολές με μεταφορικές εταιρίες για ογκώδη αντικείμενα
-
3. Pickup from BoxNow automated machine:
Με την BoxNow μπορείς να παραλάβεις το δέμα σου από Αυτόματο Μηχάνημα Παραλαβής που βρίσκεται κοντά σου, όλες τις ώρες της ημέρας 24/7. Η υπηρεσία έχει χρέωση 3€. Υπάρχει δυνατότητα αντικαταβολής με επιπλέον χρέωση 1€.
-
4. Pickup from the store:
Leof. El. Venizelou 73 (former Theseos), Kallithea
Συμπληρώστε τον ταχυδρομικό κωδικό για να λάβετε εκτίμηση τρόπου και κόστους μεταφορικών.
The VIDOS 2IP S204 external panel is an IP outdoor station for VIDOS 2IP video intercom systems. It features a 2.1 MP CMOS Full HD camera (1080p) with a 125° viewing angle, IR night illumination and LED lighting, two-way duplex audio with adjustable volume, a backlit keypad for PIN access, built-in proximity/contactless reader and QR-code access (when used with M200-X monitor). Communication uses a non-polarized 2-wire IP connection compatible with UTP and OMY cables. The unit provides one relay output and can control an electric strike or automatic gate, supports an exit-button input and supplies DC 12 V up to 300 mA for low-current electric strikes. The housing is vandal-resistant metal (stainless steel or aluminum alloy depending on source), rated IP54 for ingress protection, and intended for flush (under-plaster) mounting. Approximate panel dimensions: 220 × 120 × 47 mm; flush box: ~202 × 102 × 45 mm. Product weight ~800 g. Supports RTSP streaming and integration with VIDOS 2IP monitors and compatible mobile app workflows.
-
BrandVIDOS
-
Model / MPNS204
-
SKUWLONONWCRMT05
-
EAN5907281201759
-
CategoryExternal panel / outdoor station for video intercom
-
System compatibilityVIDOS 2IP
-
Communication2-wire IP (non-polarized)
-
Wiring compatibilityUTP, OMY
-
Camera resolution2.1 Mpx (1080p)
-
Sensor typeCMOS Full HD
-
Viewing angle125°
-
Night visionIR night illumination, LED illuminator
-
AudioTwo-way duplex audio; adjustable volume
-
Access methodsPIN code; QR code (with M200-X monitor); built-in proximity/contactless reader
-
KeypadBacklit keypad
-
OutputsOne relay output (controls electric lock / automatic gate)
-
Lock power supplyDC 12 V up to 300 mA for low-current strikes
-
InputsExit button support
-
Protection ratingIP54
-
HousingVandal-resistant metal housing (stainless steel or aluminum alloy referenced)
-
MountingFlush-mounted (under-plaster)
-
Panel dimensions220 × 120 × 47 mm (source variation 48 mm)
-
Flush box dimensions~202 × 102 × 45 mm (source variation 202 × 103 × 46 mm)
-
Weight800 g
-
ColorMetallic / silver (typical finish)
-
StreamingRTSP streaming supported
-
CompatibilityCompatible with VIDOS 2IP monitors (e.g., M200-X) and mobile app integration
-
Operating temperaturenull
Ratings
Description
The VIDOS 2IP S204 external panel is an IP outdoor station for VIDOS 2IP video intercom systems. It features a 2.1 MP CMOS Full HD camera (1080p) with a 125° viewing angle, IR night illumination and LED lighting, two-way duplex audio with adjustable volume, a backlit keypad for PIN access, built-in proximity/contactless reader and QR-code access (when used with M200-X monitor). Communication uses a non-polarized 2-wire IP connection compatible with UTP and OMY cables. The unit provides one relay output and can control an electric strike or automatic gate, supports an exit-button input and supplies DC 12 V up to 300 mA for low-current electric strikes. The housing is vandal-resistant metal (stainless steel or aluminum alloy depending on source), rated IP54 for ingress protection, and intended for flush (under-plaster) mounting. Approximate panel dimensions: 220 × 120 × 47 mm; flush box: ~202 × 102 × 45 mm. Product weight ~800 g. Supports RTSP streaming and integration with VIDOS 2IP monitors and compatible mobile app workflows.
Technical Specifications
-
BrandVIDOS
-
Model / MPNS204
-
SKUWLONONWCRMT05
-
EAN5907281201759
-
CategoryExternal panel / outdoor station for video intercom
-
System compatibilityVIDOS 2IP
-
Communication2-wire IP (non-polarized)
-
Wiring compatibilityUTP, OMY
-
Camera resolution2.1 Mpx (1080p)
-
Sensor typeCMOS Full HD
-
Viewing angle125°
-
Night visionIR night illumination, LED illuminator
-
AudioTwo-way duplex audio; adjustable volume
-
Access methodsPIN code; QR code (with M200-X monitor); built-in proximity/contactless reader
-
KeypadBacklit keypad
-
OutputsOne relay output (controls electric lock / automatic gate)
-
Lock power supplyDC 12 V up to 300 mA for low-current strikes
-
InputsExit button support
-
Protection ratingIP54
-
HousingVandal-resistant metal housing (stainless steel or aluminum alloy referenced)
-
MountingFlush-mounted (under-plaster)
-
Panel dimensions220 × 120 × 47 mm (source variation 48 mm)
-
Flush box dimensions~202 × 102 × 45 mm (source variation 202 × 103 × 46 mm)
-
Weight800 g
-
ColorMetallic / silver (typical finish)
-
StreamingRTSP streaming supported
-
CompatibilityCompatible with VIDOS 2IP monitors (e.g., M200-X) and mobile app integration
-
Operating temperaturenull
