EngoLink ETR-868 wireless relay kit (transmitter + receiver) for radio-controlled switching of 230 V AC devices using the 868 MHz band. Ideal for controlling circulation pumps, boilers, lighting, fans and gates without additional wiring. Factory paired, with LED status indication, screw terminal...
More

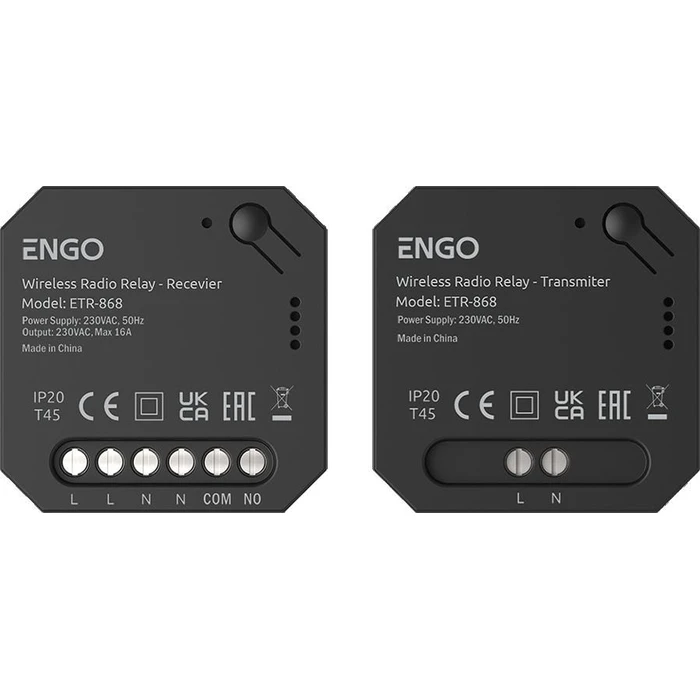

EngoLink ETR-868 Wireless Relay Kit (Transmitter + Receiver)
Product Code: 1127717908
Upon Order
87,75 €
or
2,74€ / month
εως 36 δόσεις με πιστωτική κάρτα
With the purchase of this product you earn 264 Loyalty Points
Quantity:
Add
Need Help? Fill in your details so we can call you immediately!
Έως 36 Δόσεις. Δείτε το πλάνο δόσεων:
TBI Bank
Buy Now Pay Later.
4 installments 0% επιτόκιο, 20€ έως 300€
3 to 60 installments 300€ έως 100.00€
- 1. Ship with ACS Courier
- 2. Αποστολές με μεταφορικές εταιρίες για ογκώδη αντικείμενα
-
3. Pickup from BoxNow automated machine:
Με την BoxNow μπορείς να παραλάβεις το δέμα σου από Αυτόματο Μηχάνημα Παραλαβής που βρίσκεται κοντά σου, όλες τις ώρες της ημέρας 24/7. Η υπηρεσία έχει χρέωση 3€. Υπάρχει δυνατότητα αντικαταβολής με επιπλέον χρέωση 1€.
-
4. Pickup from the store:
Leof. El. Venizelou 73 (former Theseos), Kallithea
Συμπληρώστε τον ταχυδρομικό κωδικό για να λάβετε εκτίμηση τρόπου και κόστους μεταφορικών.
EngoLink ETR-868 wireless relay kit (transmitter + receiver) for radio-controlled switching of 230 V AC devices using the 868 MHz band. Ideal for controlling circulation pumps, boilers, lighting, fans and gates without additional wiring. Factory paired, with LED status indication, screw terminal connectors and normally open voltage-free output (NO/COM). Rated 16(5) A. Compact units 46 × 46 × 24 mm; indoor use. Transmitter includes a super-capacitor backup. Mountable in flush installation box or on DIN rail (brackets included).
-
BrandENGO
-
Model / MPNETR-868
-
SKUWLONONWCRS276
-
EAN / Barcode5905481996741
-
Product TypeWireless relay kit (Transmitter + Receiver)
-
Frequency868 MHz
-
Power Supply230 V AC, 50 Hz (both units mains powered)
-
Transmitter BackupSuper-capacitor (backup)
-
Max Current Load16(5) A
-
Output TypeVoltage-free NO/COM (Normally Open / Common)
-
Connector TypeScrew terminals
-
Operating RangeUp to 300 m in open space (sources cite 200 m–300 m depending on environment)
-
Dimensions (each unit)46 × 46 × 24 mm
-
MountingFlush-mount installation box or DIN rail (brackets included)
-
LED IndicatorYes (status LED on both units)
-
PairingFactory-paired; additional receivers can be paired to same transmitter
-
Contact TypeNormally Open (NO)
-
Usage EnvironmentIndoor use only
-
PackagingCompact retail box containing transmitter, receiver, DIN-rail bracket(s), mounting accessories and quick guide
Ratings
Description
EngoLink ETR-868 wireless relay kit (transmitter + receiver) for radio-controlled switching of 230 V AC devices using the 868 MHz band. Ideal for controlling circulation pumps, boilers, lighting, fans and gates without additional wiring. Factory paired, with LED status indication, screw terminal connectors and normally open voltage-free output (NO/COM). Rated 16(5) A. Compact units 46 × 46 × 24 mm; indoor use. Transmitter includes a super-capacitor backup. Mountable in flush installation box or on DIN rail (brackets included).
Technical Specifications
-
BrandENGO
-
Model / MPNETR-868
-
SKUWLONONWCRS276
-
EAN / Barcode5905481996741
-
Product TypeWireless relay kit (Transmitter + Receiver)
-
Frequency868 MHz
-
Power Supply230 V AC, 50 Hz (both units mains powered)
-
Transmitter BackupSuper-capacitor (backup)
-
Max Current Load16(5) A
-
Output TypeVoltage-free NO/COM (Normally Open / Common)
-
Connector TypeScrew terminals
-
Operating RangeUp to 300 m in open space (sources cite 200 m–300 m depending on environment)
-
Dimensions (each unit)46 × 46 × 24 mm
-
MountingFlush-mount installation box or DIN rail (brackets included)
-
LED IndicatorYes (status LED on both units)
-
PairingFactory-paired; additional receivers can be paired to same transmitter
-
Contact TypeNormally Open (NO)
-
Usage EnvironmentIndoor use only
-
PackagingCompact retail box containing transmitter, receiver, DIN-rail bracket(s), mounting accessories and quick guide
