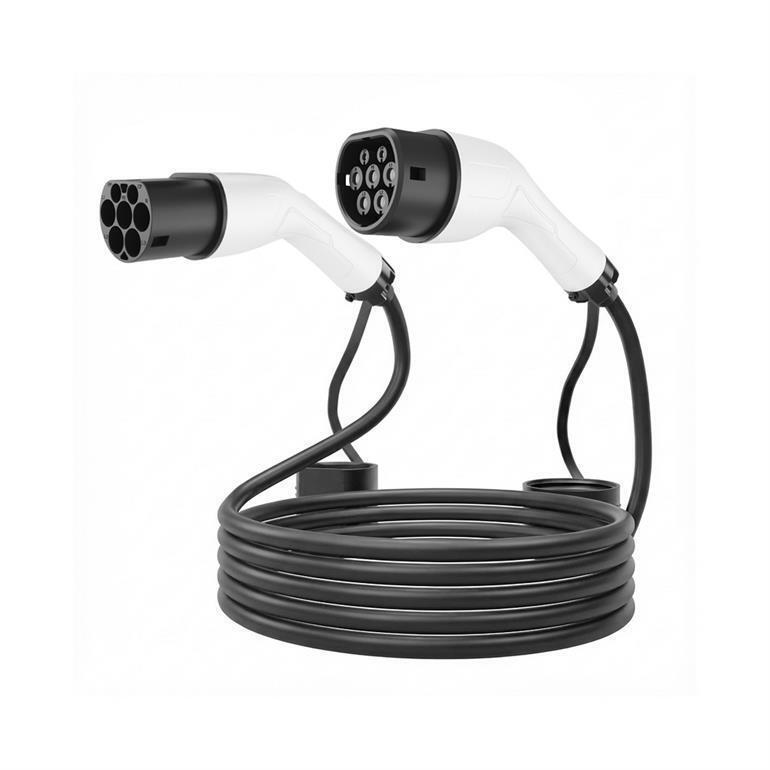

ENERGENIE Type 2 to Type 2 EV charging cable designed for Mode 3 AC charging with 3-phase support up to 22 kW at 32A. The cable length is 8 meters, making it suitable for everyday use at public charging stations and private wallboxes equipped with a Type 2 socket. It uses IEC 62196-2 connectors...
More
ENERGENIE Charging Cable Type 2 32A 3 Phase 22 kW 8m
Product Code: 3000630477
Available in 1 - 3 days
202,80 €
or
6,33€ / month
εως 36 δόσεις με πιστωτική κάρτα
Quantity:
Add
Need Help? Fill in your details so we can call you immediately!
Έως 36 Δόσεις. Δείτε το πλάνο δόσεων:
TBI Bank
Buy Now Pay Later.
4 installments 0% επιτόκιο, 20€ έως 300€
3 to 60 installments 300€ έως 100.00€
- 1. Ship with ACS Courier
- 2. Αποστολές με μεταφορικές εταιρίες για ογκώδη αντικείμενα
-
3. Pickup from BoxNow automated machine:
Με την BoxNow μπορείς να παραλάβεις το δέμα σου από Αυτόματο Μηχάνημα Παραλαβής που βρίσκεται κοντά σου, όλες τις ώρες της ημέρας 24/7. Η υπηρεσία έχει χρέωση 3€. Υπάρχει δυνατότητα αντικαταβολής με επιπλέον χρέωση 1€.
-
4. Pickup from the store:
Leof. El. Venizelou 73 (former Theseos), Kallithea
Συμπληρώστε τον ταχυδρομικό κωδικό για να λάβετε εκτίμηση τρόπου και κόστους μεταφορικών.
Related Products
Καλώδιο Φόρτισης Αυτοκινήτου Kabelmeister E-Auto-Mode 3, 3-ph. 16A 11kW 5m
Available in 1 - 3 days
239,48 €
Καλώδιο Φόρτισης Ηλεκτρικού Αυτοκινήτου Nedis Τριφασικό Type2 11KW 16A 5.00m Black
Available in 1 - 3 days
191,27 €
Καλώδιο φόρτισης ηλεκτρικού αυτοκινήτου Digitus 5 m, type 2 to type 2
Available in 1 - 3 days
213,96 €
ENERGENIE Type 2 to Type 2 EV charging cable designed for Mode 3 AC charging with 3-phase support up to 22 kW at 32A. The cable length is 8 meters, making it suitable for everyday use at public charging stations and private wallboxes equipped with a Type 2 socket. It uses IEC 62196-2 connectors with 5 power contacts and 2 signal contacts, supporting safe and reliable charging for compatible electric vehicles. Technical construction details include a black TPE-U outer sheath, conductor structure of 5 x 6.0 mm² + 2 x 0.5 mm², approximate outer diameter of 17 mm, and a minimum bending radius of 255 mm. The cable is rated for operating temperatures from -30°C to +50°C and is built for durability with over 10,000 insertion and withdrawal cycles. It is intended for 3-phase EV charging up to 22 kW and can also be used at lower charging powers depending on vehicle and charging station capability.
-
BrandENERGENIE
-
Product TypeEV Charging Cable
-
Charging ModeMode 3
-

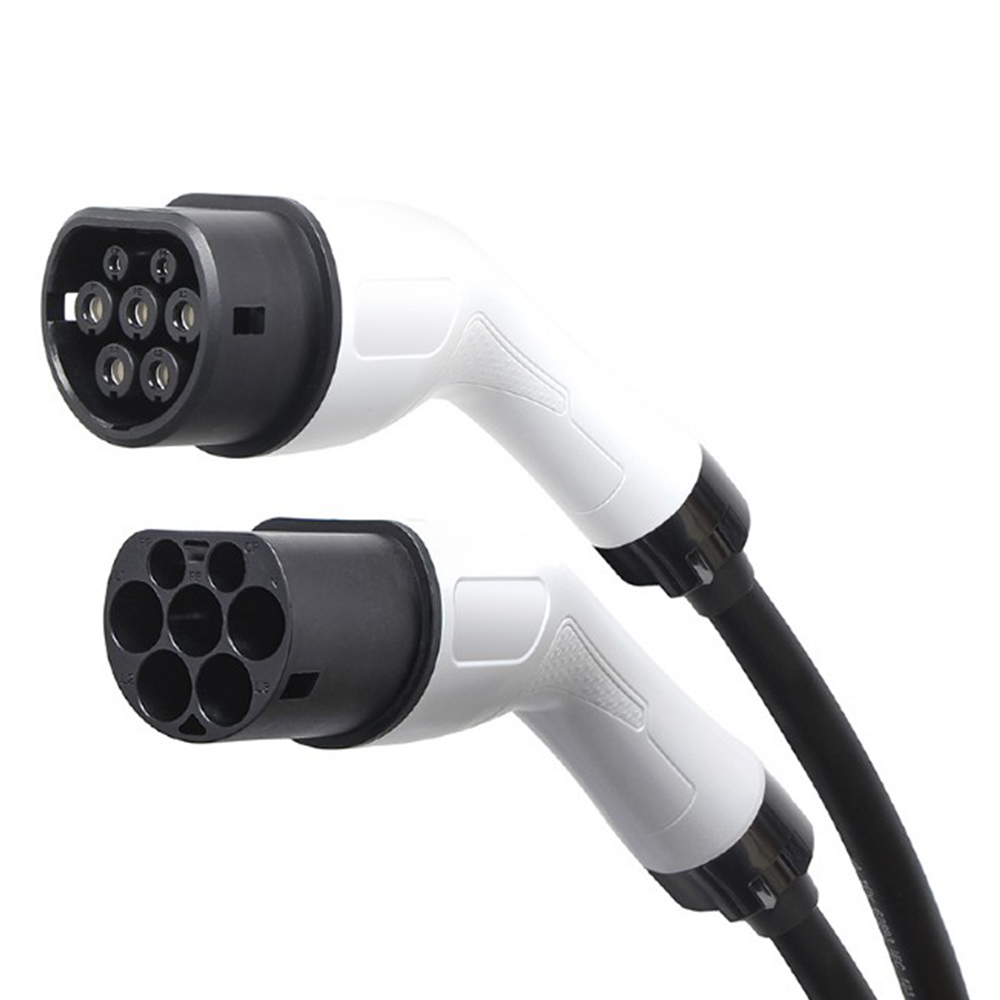

Connector TypeType 2 to Type 2
-
StandardIEC 62196-2
-
Phases3 Phase
-
Maximum Power22 kW
-
Rated Current32A
-
Rated Voltage480 V AC
-
Signal Voltage30 V AC
-
Cable Length8 m
-
Conductor Structure5 x 6.0 mm² + 2 x 0.5 mm²
-
Outer Sheath MaterialTPE-U
-
Outer Sheath ColorBlack
-
Outer Diameter17 mm ±0.4 mm
-
Minimum Bending Radius255 mm
-
Operating Temperature-30°C to +50°C
-
Insertion and Withdrawal CyclesMore than 10,000
-

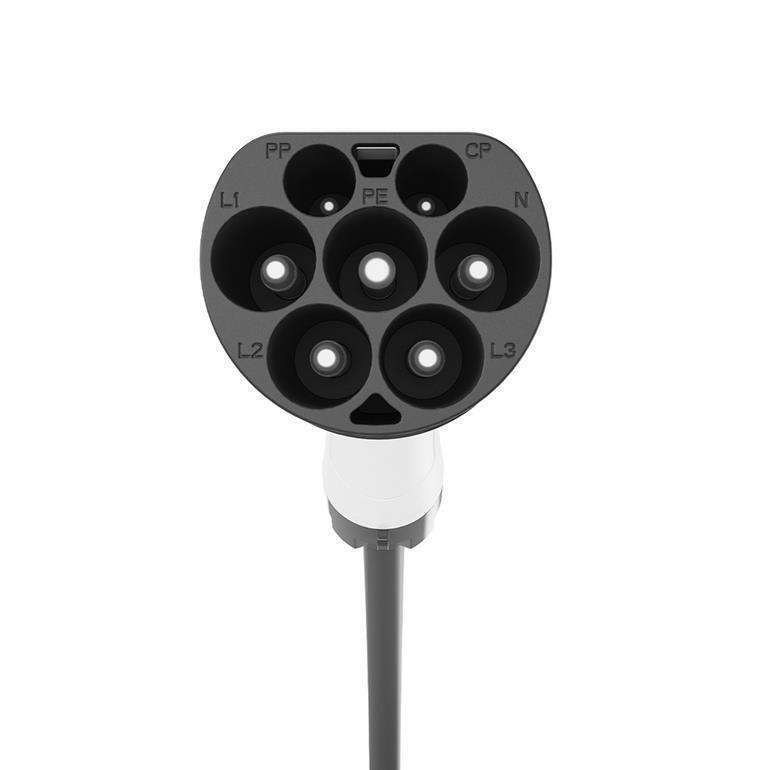

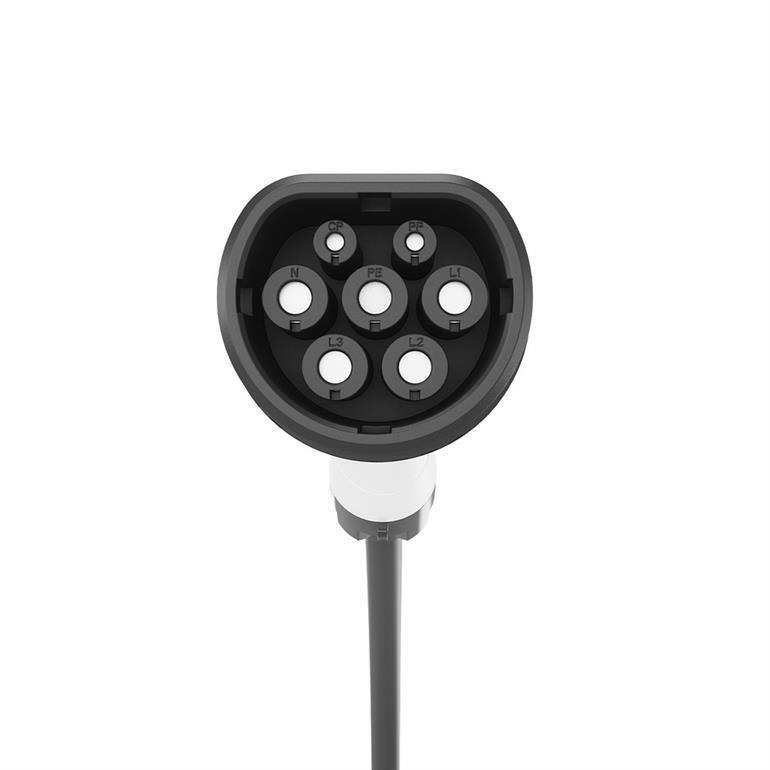

Contacts5 power contacts and 2 signal contacts
-
Signal FunctionCP and PP
-
Contact SurfaceSilver
-
Cable TypeStraight conductors
-
UsageEV charging cable for Type 2 charging stations and compatible electric vehicles
-
WeightApproximately 5 kg
Ratings
Description
ENERGENIE Type 2 to Type 2 EV charging cable designed for Mode 3 AC charging with 3-phase support up to 22 kW at 32A. The cable length is 8 meters, making it suitable for everyday use at public charging stations and private wallboxes equipped with a Type 2 socket. It uses IEC 62196-2 connectors with 5 power contacts and 2 signal contacts, supporting safe and reliable charging for compatible electric vehicles. Technical construction details include a black TPE-U outer sheath, conductor structure of 5 x 6.0 mm² + 2 x 0.5 mm², approximate outer diameter of 17 mm, and a minimum bending radius of 255 mm. The cable is rated for operating temperatures from -30°C to +50°C and is built for durability with over 10,000 insertion and withdrawal cycles. It is intended for 3-phase EV charging up to 22 kW and can also be used at lower charging powers depending on vehicle and charging station capability.
Technical Specifications
-
BrandENERGENIE
-
Product TypeEV Charging Cable
-
Charging ModeMode 3
-
Connector TypeType 2 to Type 2
-
StandardIEC 62196-2
-
Phases3 Phase
-
Maximum Power22 kW
-
Rated Current32A
-
Rated Voltage480 V AC
-
Signal Voltage30 V AC
-
Cable Length8 m
-
Conductor Structure5 x 6.0 mm² + 2 x 0.5 mm²
-
Outer Sheath MaterialTPE-U
-
Outer Sheath ColorBlack
-
Outer Diameter17 mm ±0.4 mm
-
Minimum Bending Radius255 mm
-
Operating Temperature-30°C to +50°C
-
Insertion and Withdrawal CyclesMore than 10,000
-
Contacts5 power contacts and 2 signal contacts
-
Signal FunctionCP and PP
-
Contact SurfaceSilver
-
Cable TypeStraight conductors
-
UsageEV charging cable for Type 2 charging stations and compatible electric vehicles
-
WeightApproximately 5 kg
