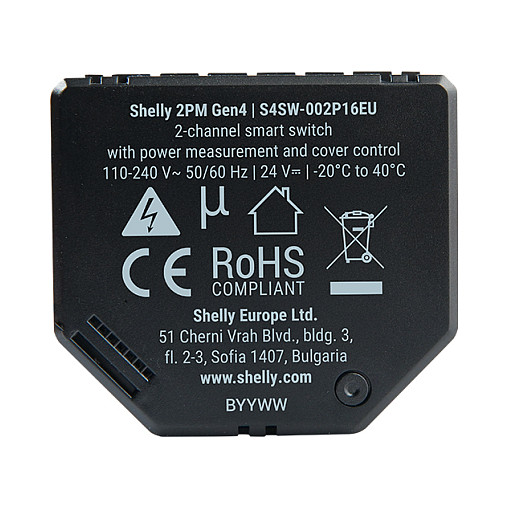

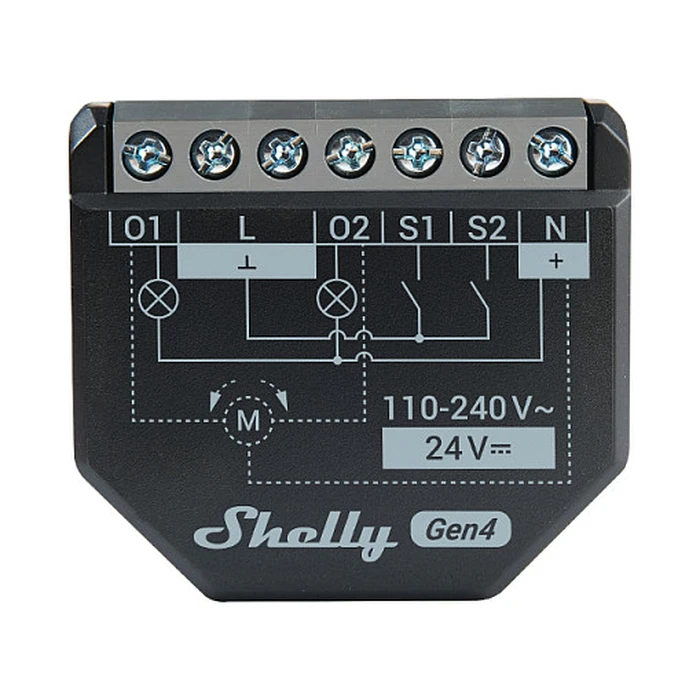

The Shelly 2PM Gen4 is an innovative device that allows you to control your electric appliances seamlessly. With its compact design, it fits perfectly behind wall boxes, making it convenient for various applications.
This product offers 2 channels per device, enabling single-phase operation. Additionally, it comes with independent power metering, allowing you to monitor energy usage effectively. The internal temperature sensor adds an extra layer of functionality, ensuring safety during operation.
One of the key features is the support for obstacle detection and safety switch modes, particularly beneficial for roller shutter operations. The connectivity options include:
- Wi-Fi: 802.11 b/g/n/ax, range up to 30m indoors, 50m outdoors
- Bluetooth 5.0: effective range of 10m indoors, 30m outdoors
- Zigbee: range up to 100m indoors, 300m outdoors
- Compatibility with Matter: ensuring interoperability with various smart home devices
To ensure robust performance, the microcontroller is an ESP-Shelly-C68F CPU with 8 MB flash, which supports up to 20 schedules and webhooks.
-
Power Supply110-240 V~ / 24 VDC ±10%
-
Power Consumption<1.4 W
-
Switching (AC)Max 10 A per channel, 16 A total, 18 A peak; 240 V~ max voltage
-
Switching (DC)Max 10 A; 30 V max voltage
-
External ProtectionTripping characteristic B or C, 16 A max
-

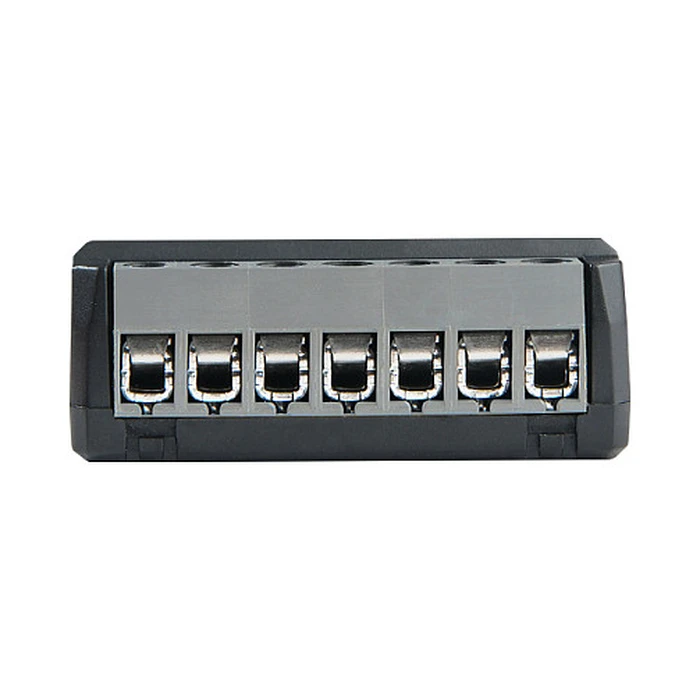

TerminalsMax torque 0.4 Nm / 3.5 lbf-in; stripped length 6-7 mm; wire 0.2-2.5 mm² (24-14 AWG)
-
MountingWall box
-
Environmental-20°C to 40°C; 30-70% RH; max altitude 2000 m
Ratings
Description
The Shelly 2PM Gen4 is an innovative device that allows you to control your electric appliances seamlessly. With its compact design, it fits perfectly behind wall boxes, making it convenient for various applications.
This product offers 2 channels per device, enabling single-phase operation. Additionally, it comes with independent power metering, allowing you to monitor energy usage effectively. The internal temperature sensor adds an extra layer of functionality, ensuring safety during operation.
One of the key features is the support for obstacle detection and safety switch modes, particularly beneficial for roller shutter operations. The connectivity options include:
- Wi-Fi: 802.11 b/g/n/ax, range up to 30m indoors, 50m outdoors
- Bluetooth 5.0: effective range of 10m indoors, 30m outdoors
- Zigbee: range up to 100m indoors, 300m outdoors
- Compatibility with Matter: ensuring interoperability with various smart home devices
To ensure robust performance, the microcontroller is an ESP-Shelly-C68F CPU with 8 MB flash, which supports up to 20 schedules and webhooks.
Technical Specifications
-
Power Supply110-240 V~ / 24 VDC ±10%
-
Power Consumption<1.4 W
-
Switching (AC)Max 10 A per channel, 16 A total, 18 A peak; 240 V~ max voltage
-
Switching (DC)Max 10 A; 30 V max voltage
-
External ProtectionTripping characteristic B or C, 16 A max
-
TerminalsMax torque 0.4 Nm / 3.5 lbf-in; stripped length 6-7 mm; wire 0.2-2.5 mm² (24-14 AWG)
-
MountingWall box
-
Environmental-20°C to 40°C; 30-70% RH; max altitude 2000 m
