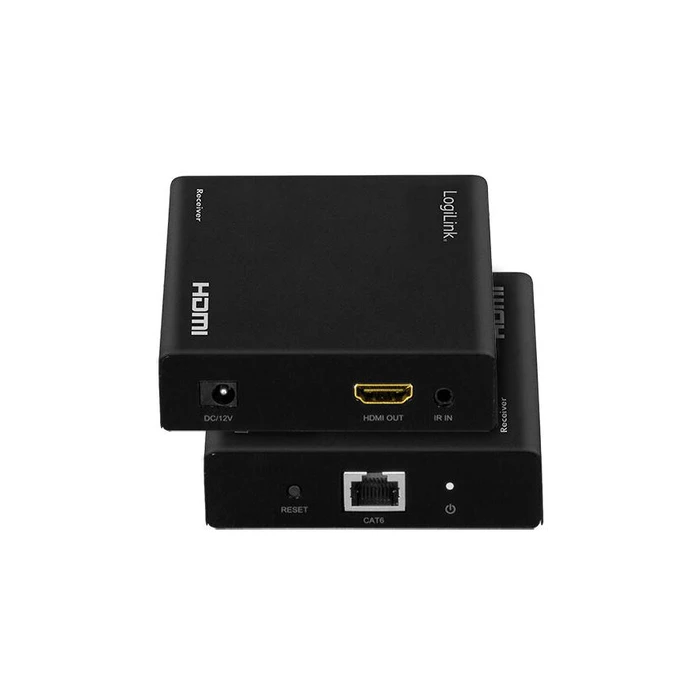

HDMI Extender Logilink Splitter-Set over IP,70m,1x2-Port

Technical Specifications

• Type
  AV Transmitter & Receiver
• supported cable types
  Cat5e,Cat6,Cat7,Cat8.1
• Maximum possible transmission distance
  70 m
• Supported audio formats
  DTS,LPCM
• LED indicators
  yes
• material
  metal
• 3D
  yes
• bandwidth
  6 Gbps
• bandwidth
  600MHz
• product color
  Black
• Receiver dimensions (W x D x H)
  100 x 88 x 23mm
• receiver weight
  200 g
• Transmitter dimensions (WxDxH)
  100 x 88 x 23mm
• weight transmitter
  200 g
• transmission technology
  wired
• Built-in Ethernet port
  yes
• RJ-45 input connectors
  1
• RJ-45 output connectors
  1
• HDMI in
  1
• Number of HDMI outputs
  2
• HDMI version
  2.0
• Remote control (IR) input
  1
• Remote control (IR) output
  1
• Direct current connection (DC)
  yes
• AC input voltage
  100 - 240V
• AC input frequency
  50/60Hz
• working voltage
  12v
• input current
  0.4A
• output current
  1A
• Power consumption (transmitter) (max.)
  1.3W
• Power consumption (receiver) (max.)
  1.6W
• Storage temperature range
  -10 - 80?
• Operating relative humidity
  10 - 85%
• operating temperatur
  0 - 70 °C
• humidity during storage
  5 - 90%
