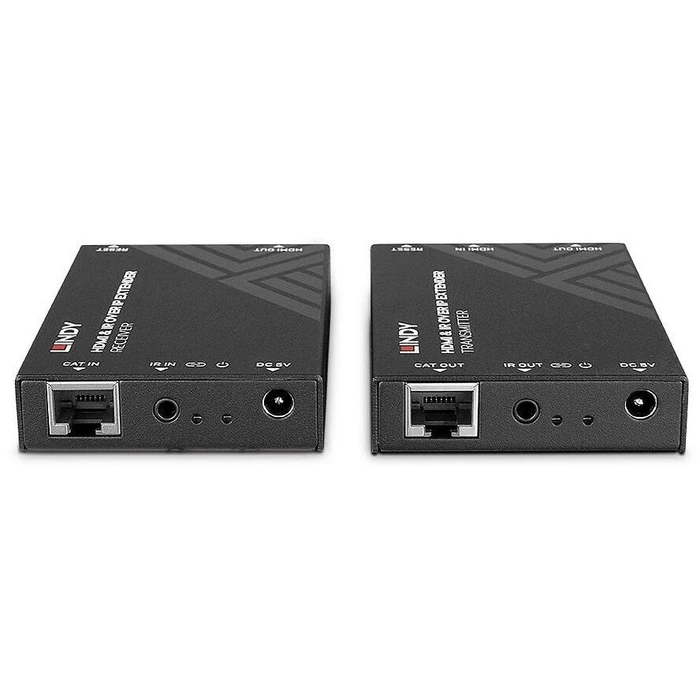

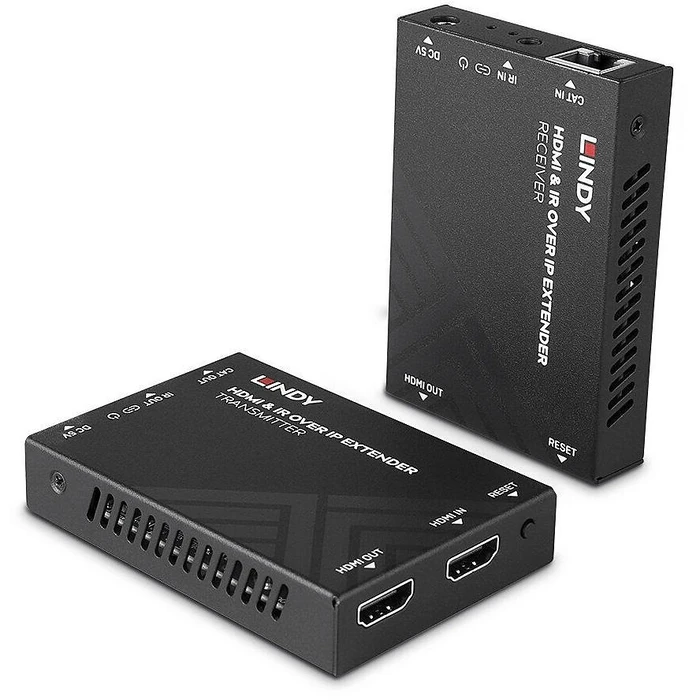

Extender Lindy HDMI & IR ?ber IP

Technical Specifications

• AV interface
  HDMI
• interface standard
  HDMI1.3
• Supported Bandwidth
  6.75 Gbps
• Maximum range
  150m (492.12ft)
• Maximum resolution
  1920x1080@60Hz 4:4:4 8bit
• HDCP support
  1.4
• EDID pass through
  -
• Audio
  2 channel PCM
• Separate audio ports
  -
• IR support
  20-60Hz
• CEC support
  -
• Serial interface
  -
• transfer protocol
  IP (H.265 video compression)
• transmission medium
  1 x Cat.5e/6
• Laser class (only for fiber optics)
  -
• Wavelength (only with fiber optics)
  -
• chipset
  SSC337DE - SSD203D
• Featured
  HDMI loop out port
• Transmitter inputs
  HDMI (female)
• Transmitter outputs
  HDMI (Female), RJ45 (Female), IR (Female)
• receiver inputs
  RJ45 (female), IR (female)
• Receiver outputs
  HDMI (female)
• Bidirectional ports
  -
• Power supply / power pack
  5.5/2.1mm
