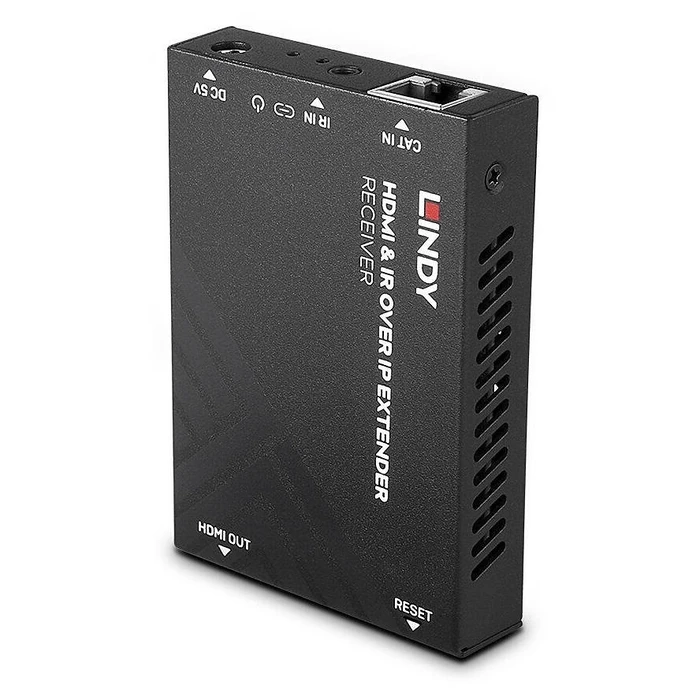

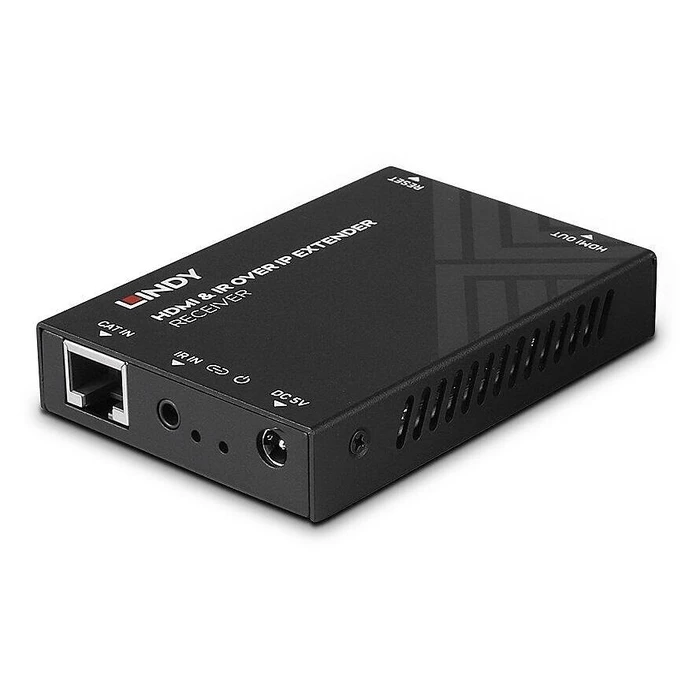

Extender Lindy HDMI & IR ?ber IP Receiver

Technical Specifications

• AV interface
  HDMI
• interface standard
  HDMI1.3
• Supported Bandwidth
  6.75 Gbps
• Maximum range
  150m (492.12ft)
• Maximum resolution
  1920x1080@60Hz 4:4:4 8bit
• HDCP support
  1.4
• EDID Pass Through
  -
• Audio
  2 channel PCM
• Separate audio ports
  -
• IR support
  20-60Hz
• CEC support
  -
• serial interface
  -
• transfer protocol
  IP (H.265 video compression)
• transmission medium
  1 x Cat.5e/6
• Laser class (only for fiber optics)
  -
• Wavelength (only with fiber optics)
  -
• chipset
  SSD203D
• Featured
  -
• Transmitter inputs
  -
• Transmitter outputs
  -
• receiver inputs
  RJ45 (female), IR (female)
• Receiver outputs
  HDMI (female)
• Bidirectional ports
  -
• Power supply / power pack
  5.5/2.1mm
• Housing dimensions WxDxH
  88x61.2x16.5mm (3.46x2.41x0.65in) per unit
• housing material
  metal
• net weight devices
  0.236kg (0.52lb) per unit
• operating temperatur
  -10°C - 50°C (14°F -122°F)
• storage temperature
  -20°C - 60°C (-4°F - 140°F)
• humidity
  20-90% RH (non-condensing)
• power consumption
  5VDC 1A
• Color
  Black
• packaging type
  Cardboard
• packaging dimensions
  146x105x65mm (5.75x4.13x2.56in)
• total weight
  0.357kg (0.79lb)
• product compliance
  CE, UKCA, FCC, RoHS, REACH & California Proposition 65
• scope of delivery
  Receiver / IR Receiver Cable, 1.5m / Multi-Country Power Adapter (EU, UK, US & AUS) / Lindy Manual
