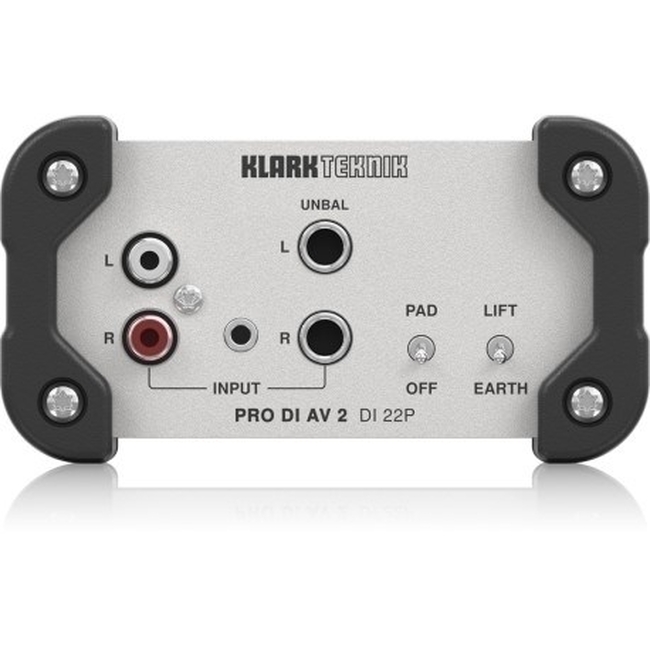

The Klark Teknik DI 22P is a versatile, passive stereo direct box designed to accommodate a wide range of audio signals. This compact and rugged device is built to handle the demands of professional audio and multimedia applications, featuring a robust aluminum extrusion that protects the electronics and sturdy rubber corner bumpers for added durability.

Key Features

• Inputs: The DI 22P accepts a variety of input signals, including:
• 2 x 1/4" TS connectors for instrument and line level inputs.
• 2 x RCA connectors for line level inputs.
• 1 x 1/8" TRS connector for stereo high-impedance instruments or other low-level signals.

Outputs: The device provides balanced Neutrik XLR outputs, ensuring clean and reliable signal transmission to your mixer or processing device.

Technical Specifications:

• Frequency Response: 20 Hz to 30 kHz (±1 dB), providing a ruler-flat frequency response.
• THD + N (Distortion): 0.01% @ 1 kHz, 0 dBu, ensuring minimal distortion.
• Signal-to-Noise Ratio: 105 dBu, offering high signal integrity.
• Impedance: 600 Ω, suitable for balanced XLR outputs.
• Max. Output Level: 8.5 dBu @ 1 kHz.
• Input Pad: Switchable -15 dB input pad for adjusting signal levels.
• Power Requirement: Passive, requiring no external power source.

Additional Features

• Midas Transformers: Equipped with custom-built MIDAS transformers, known for their high headroom and dynamic response, ensuring outstanding signal integrity and clarity.
• Ground-Lift Switch: Included to help eliminate hum and noise caused by ground loops.
• Compact Design: Measuring 118 x 112 x 64 mm (4.6 x 4.4 x 2.5 inches) and weighing 0.53 kg (1.2 lbs).

Applications

• Professional Audio: Suitable for live performances, studio recordings, and post-production work.
• Multimedia: Accommodates signals from MP3 players, CD players, keyboards, and drum submixers.
• Instrumentation: Captures the character of electric and acoustic instruments with high fidelity.

In summary, the Klark Teknik DI 22P passive stereo direct box offers unparalleled versatility, technical specifications, and durability, making it an essential tool for any audio engineer or professional audio setup.
