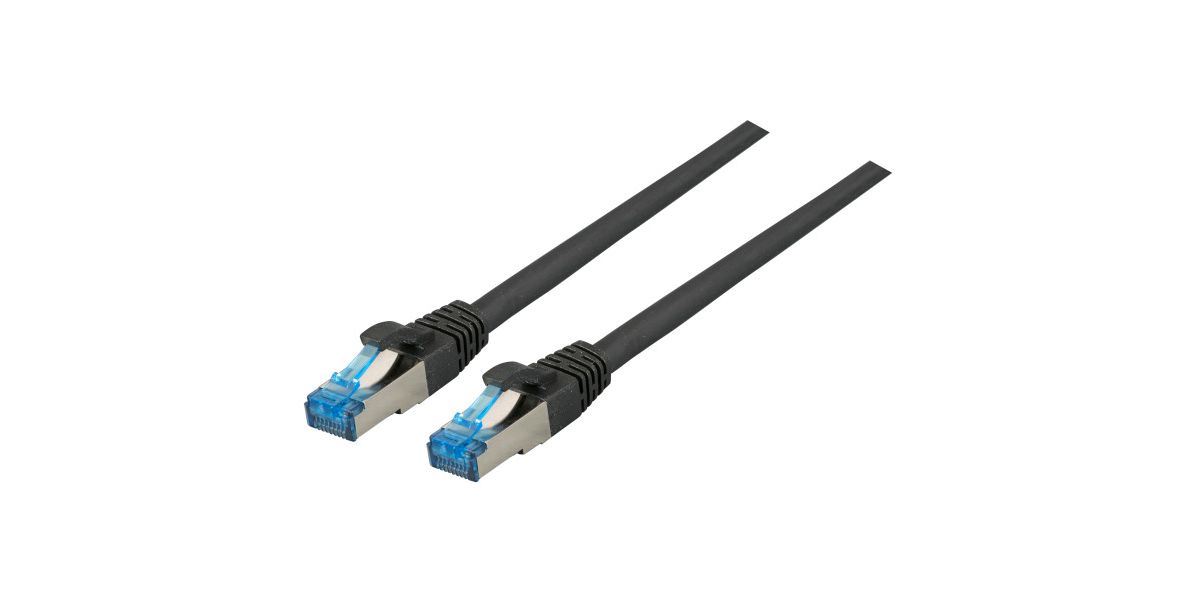

EFB RJ45 Patch Cable S/FTP Cat.6A (Cat.7 raw cable) TPE Superflex 1 m Black (K5525FSW.1)
Need Help? Fill in your details so we can call you immediately!
TBI Bank
Buy Now Pay Later.
4 installments 0% επιτόκιο, 20€ έως 300€
3 to 60 installments 300€ έως 100.00€
- 1. Ship with ACS Courier
- 2. Αποστολές με μεταφορικές εταιρίες για ογκώδη αντικείμενα
-
3. Pickup from BoxNow automated machine:
Με την BoxNow μπορείς να παραλάβεις το δέμα σου από Αυτόματο Μηχάνημα Παραλαβής που βρίσκεται κοντά σου, όλες τις ώρες της ημέρας 24/7. Η υπηρεσία έχει χρέωση 3€. Υπάρχει δυνατότητα αντικαταβολής με επιπλέον χρέωση 1€.
-
4. Pickup from the store:
Leof. El. Venizelou 73 (former Theseos), Kallithea
Συμπληρώστε τον ταχυδρομικό κωδικό για να λάβετε εκτίμηση τρόπου και κόστους μεταφορικών.
-
BrandEFB-Elektronik GmbH
-
Model / MPNK5525FSW.1
-
SKU262373
-
EAN/Barcode4049759187576
-
Product TypeRJ45 Ethernet Patch Cable
-
Category RatingCat.6A (based on Cat.7 raw cable)
-
Length1.0 m
-
ColorBlack
-
Cable Construction4 x 2 S/FTP (foil per pair + overall foil)
-
ConductorCopper, AWG 26/7 stranded
-
Jacket MaterialTPE superflex (halogen-free / low smoke as per series)
-
Outer Diameter~6.2 mm (approx.)
-
BandwidthUp to 500 MHz (series specification)
-
Max Data Rate10 Gbit/s (10GBase-T)
-
ConnectorsRJ45 (8P8C) gold-plated contacts
-
Wiring1:1 straight-through, T568B
-
Contact Resistance≤30 mΩ (typical series spec)
-
Mating Cycles≥750 (connector durability, series spec)
-
Bending RadiusMinimal recommended >20 mm (superflex design)
-
Operating Temperature~0–60 °C (typical series range)
-
Flame/Fire RatingFlame-retardant, halogen-free (LSZH characteristics per series)
-
Silicone-FreeYes
-
StandardsISO/IEC 11801, EN50173-1, TIA/EIA-568B, IEC 60603-7-51
-
CertificationGHMT component certification referenced for series
-
Typical UseOffice/network racks, data centers, patch panels, workstations
-
PackagingRetail blister / small folded packaging (single cable) - approximate retail box/blister dimensions provided
Ratings
Description
Technical Specifications
-
BrandEFB-Elektronik GmbH
-
Model / MPNK5525FSW.1
-
SKU262373
-
EAN/Barcode4049759187576
-
Product TypeRJ45 Ethernet Patch Cable
-
Category RatingCat.6A (based on Cat.7 raw cable)
-
Length1.0 m
-
ColorBlack
-
Cable Construction4 x 2 S/FTP (foil per pair + overall foil)
-
ConductorCopper, AWG 26/7 stranded
-
Jacket MaterialTPE superflex (halogen-free / low smoke as per series)
-
Outer Diameter~6.2 mm (approx.)
-
BandwidthUp to 500 MHz (series specification)
-
Max Data Rate10 Gbit/s (10GBase-T)
-
ConnectorsRJ45 (8P8C) gold-plated contacts
-
Wiring1:1 straight-through, T568B
-
Contact Resistance≤30 mΩ (typical series spec)
-
Mating Cycles≥750 (connector durability, series spec)
-
Bending RadiusMinimal recommended >20 mm (superflex design)
-
Operating Temperature~0–60 °C (typical series range)
-
Flame/Fire RatingFlame-retardant, halogen-free (LSZH characteristics per series)
-
Silicone-FreeYes
-
StandardsISO/IEC 11801, EN50173-1, TIA/EIA-568B, IEC 60603-7-51
-
CertificationGHMT component certification referenced for series
-
Typical UseOffice/network racks, data centers, patch panels, workstations
-
PackagingRetail blister / small folded packaging (single cable) - approximate retail box/blister dimensions provided
