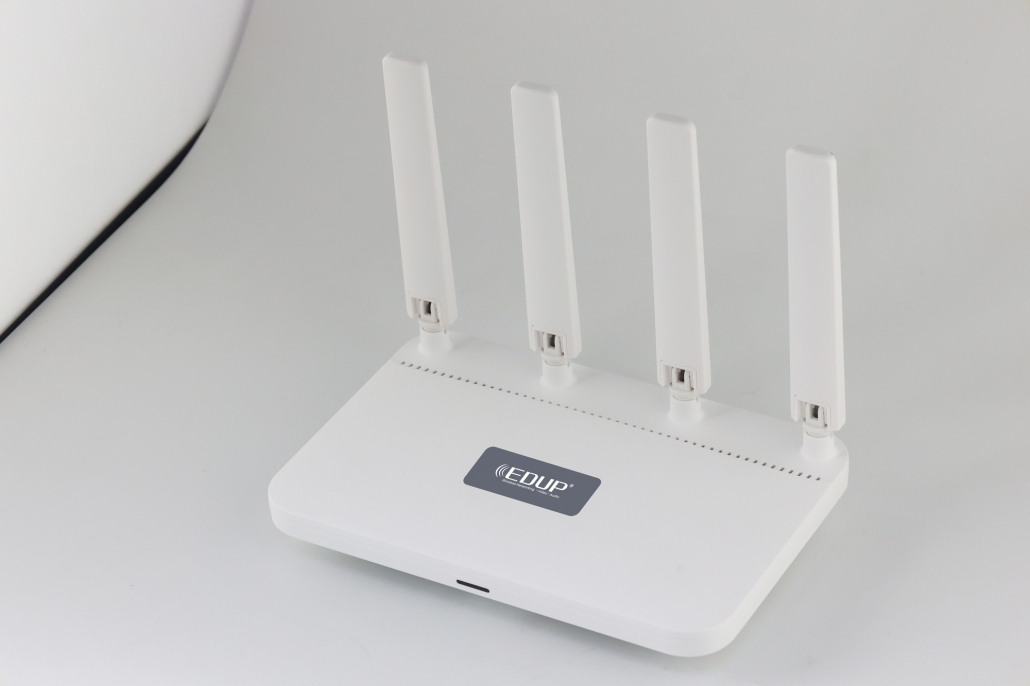

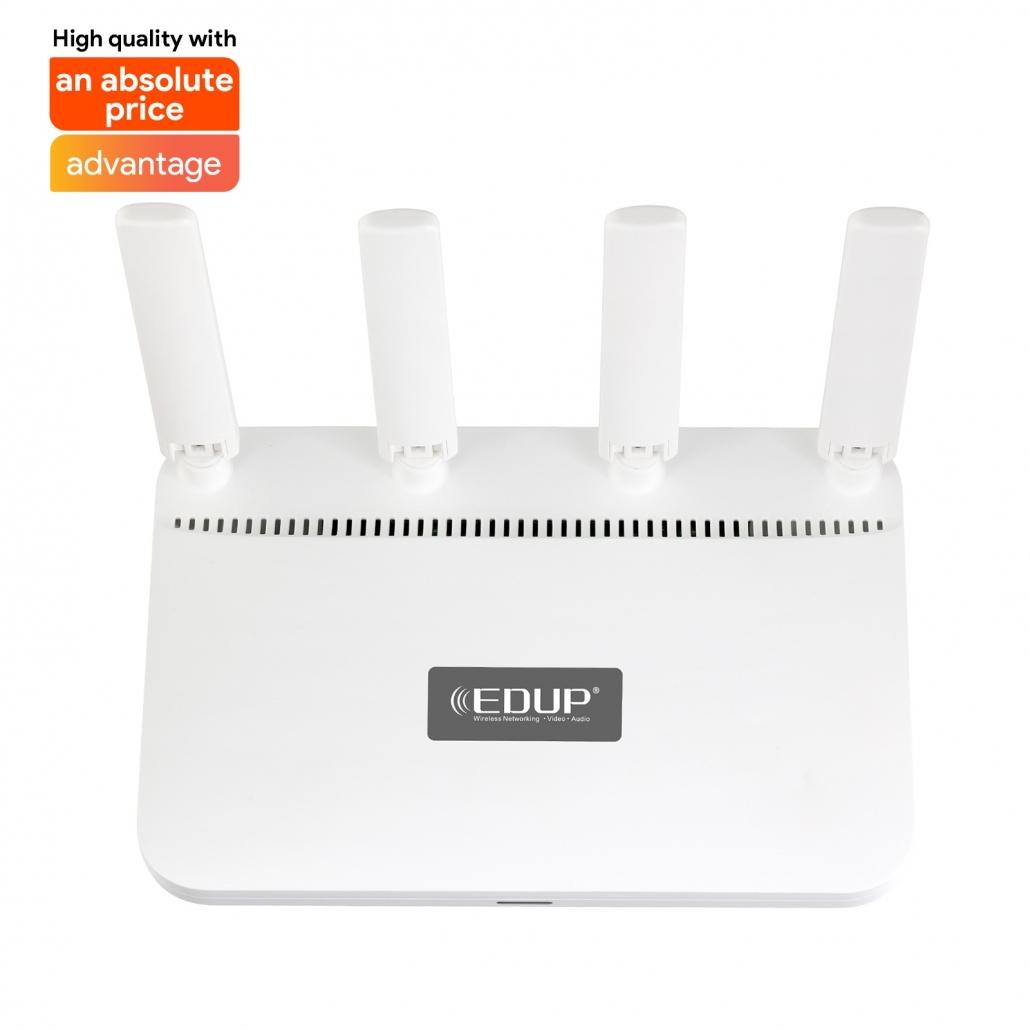

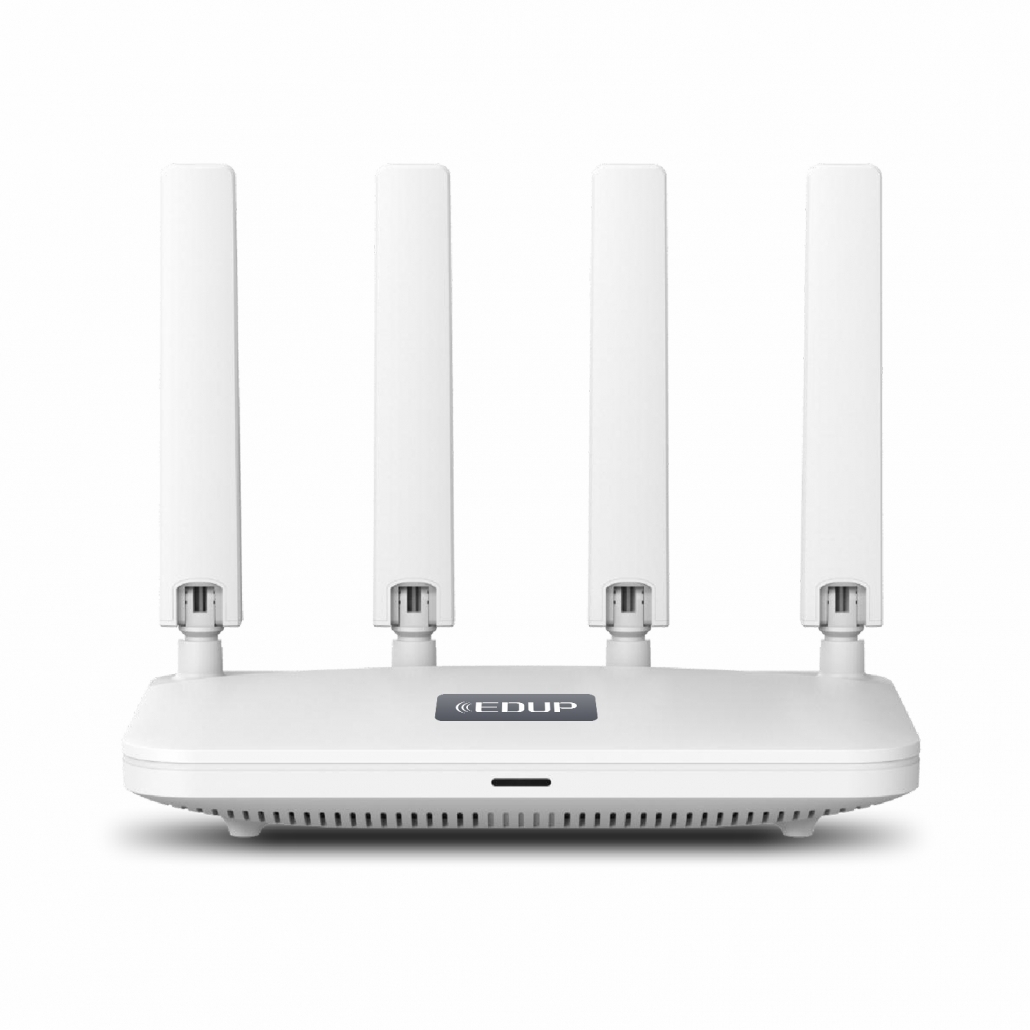

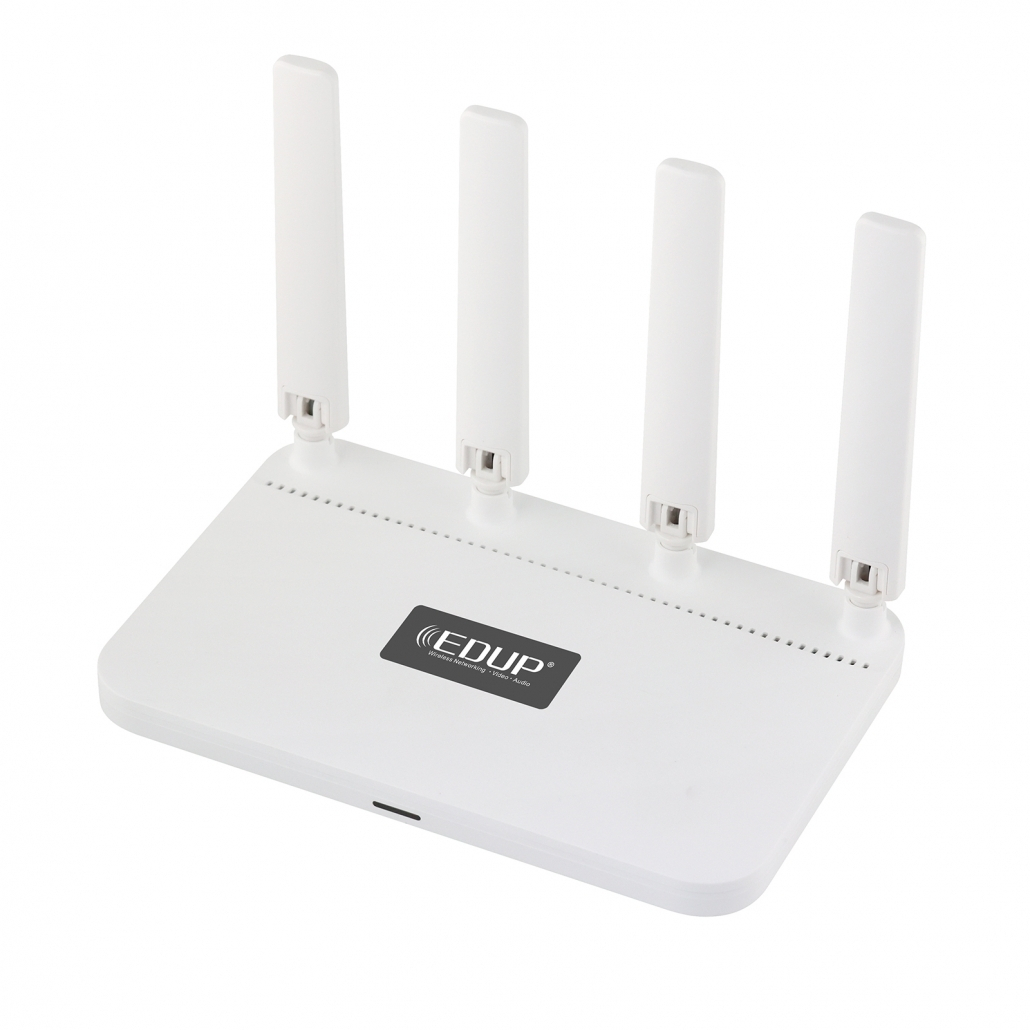

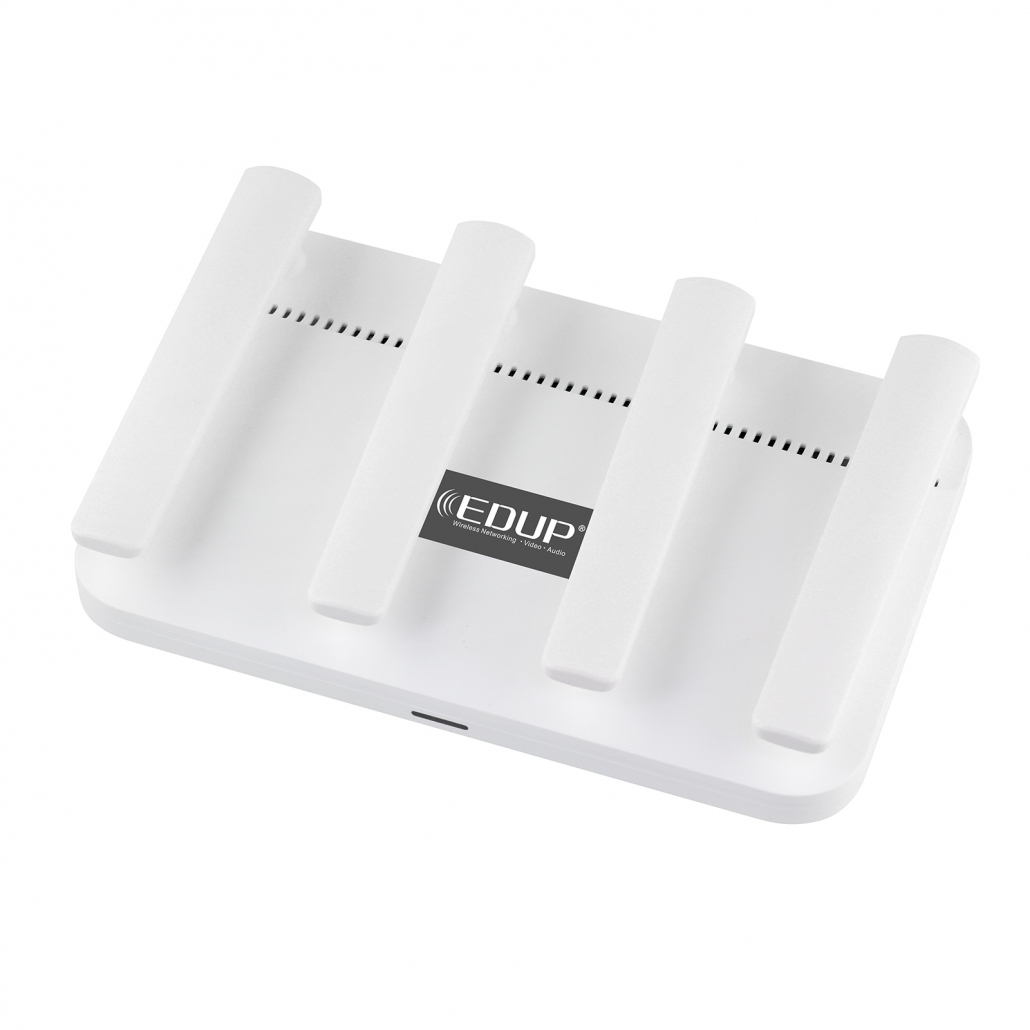

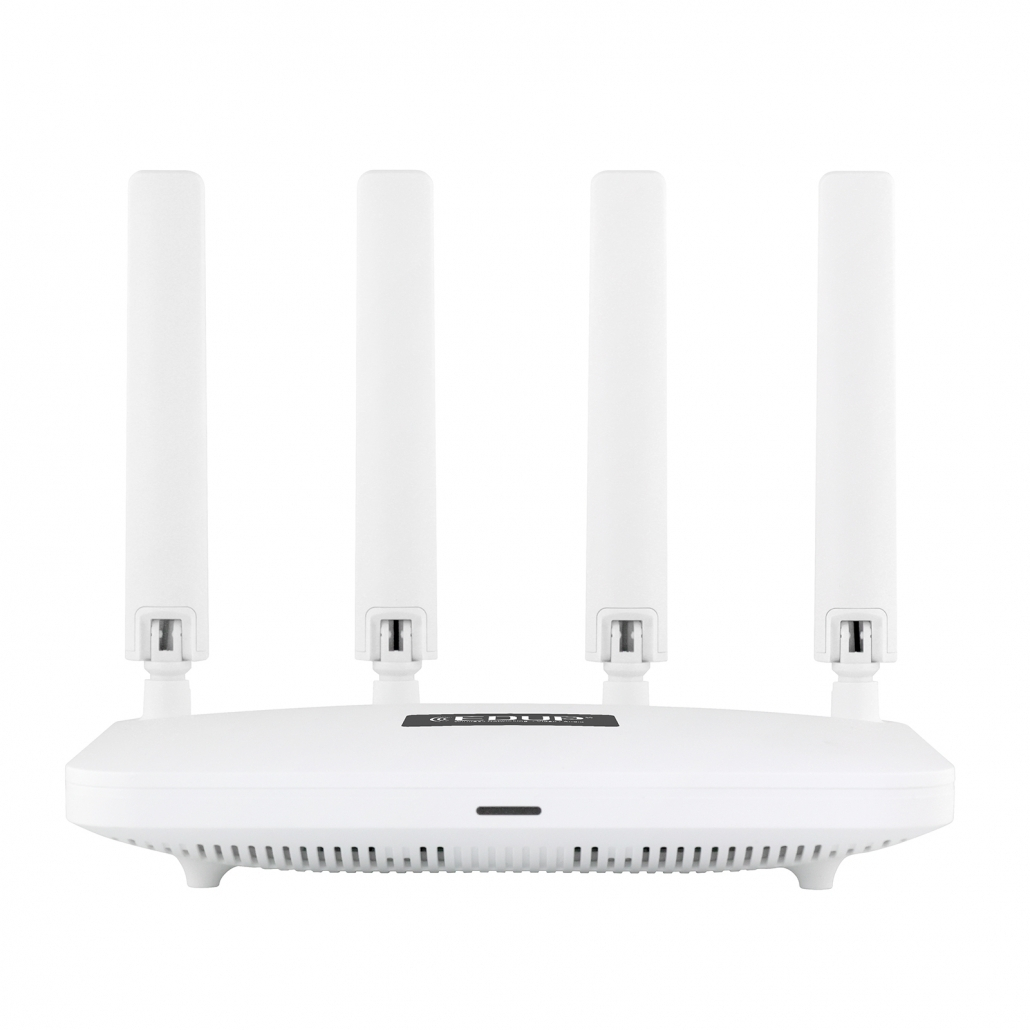

EDUP AX1800 WiFi 6 Router

Description

Technical Specifications

• Brand
  Edup
• Model / Name
  AX1800 WiFi 6 Router
• SKU
  30.007.0003
• EAN
  6955690009335
• Chipset
  MT7621 + MT7905 + MT7975
• Flash / NAND
  128 MB (noted) / DDR3 256 MB
• RAM
  256 MB DDR3
• Wireless Standard
  IEEE 802.11a/b/g/n/ac/ax (Wi‑Fi 6)
• Maximum Wireless Throughput
  1800 Mbps (combined)
• Wi‑Fi Bands
  Dual Band (2.4 GHz & 5 GHz)
• 2.4 GHz Configuration
  2T2R (2x2)
• 5 GHz Configuration
  2T2R (2x2)
• MU‑MIMO
  Yes (supports MU‑MIMO)
• Mesh Support
  Yes (WiFi 6 + Mesh compatible)
• Antennae
  4 external detachable antennas, 5 dBi each

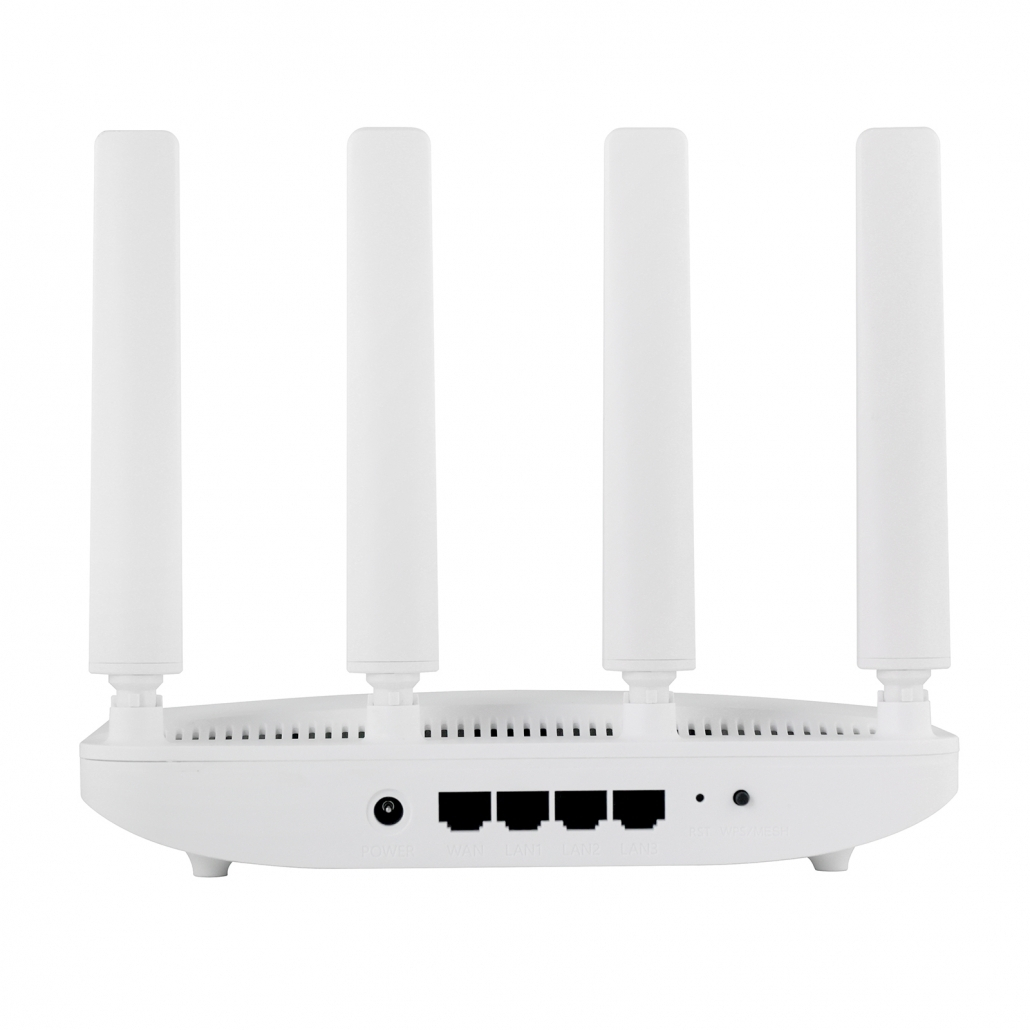

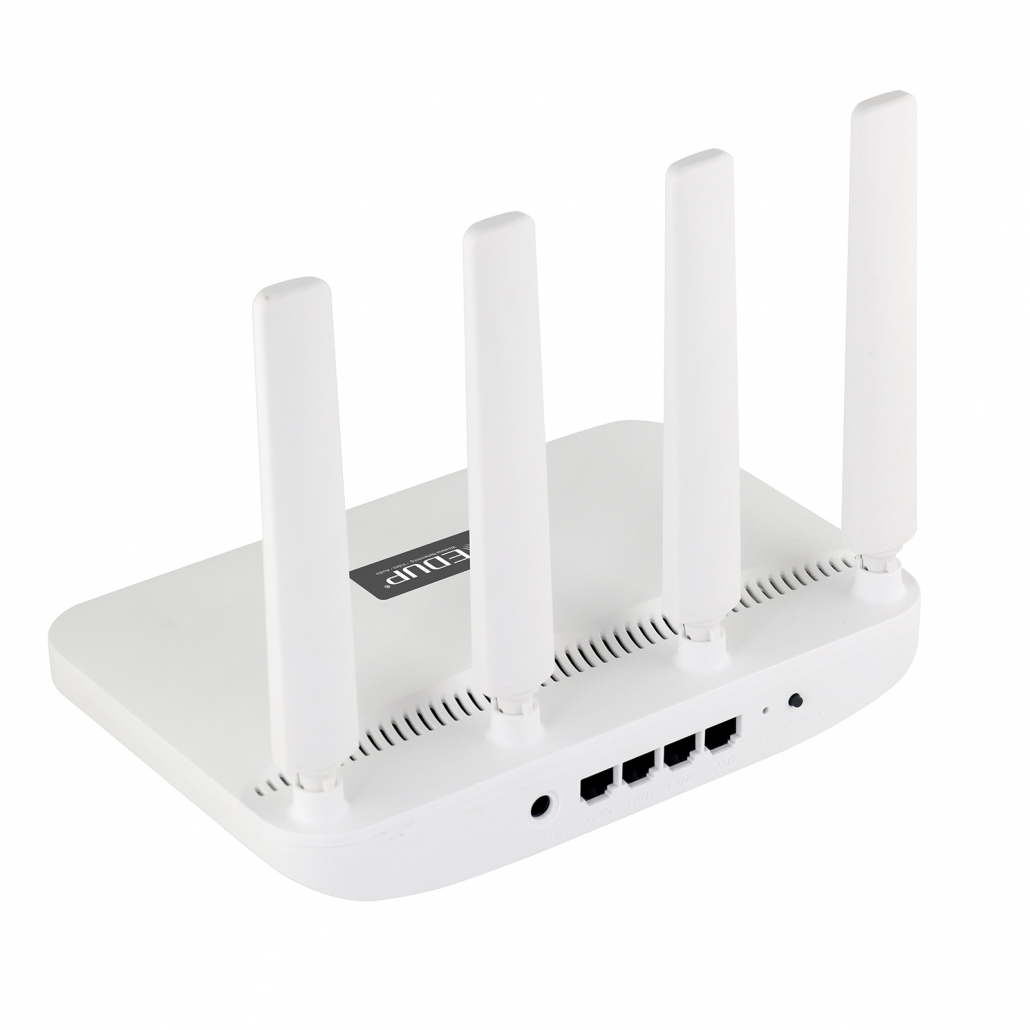

• Ethernet Ports
  4 × 10/100/1000 Mbps RJ45 (1 WAN + 3 LAN)
• WAN Ports Detail
  1 × Gigabit WAN
• LAN Ports Detail
  3 × Gigabit LAN
• Buttons / Controls
  RESET, WPS / Mesh
• Power Input
  12V / 1.0A
• Operating Frequencies
  2.4 ~ 2.4835 GHz; 5.150 ~ 5.850 GHz
• 2.4 GHz Channels Supported
  1–13
• 5 GHz Channels Supported
  36, 40, 44, 48, 149, 153, 157, 161, 165
• Supported Protocols
  IEEE 802.11 a/b/g/n/ac/ax; IEEE 802.3ab; IEEE 802.3/3u
• Hotspot Capability
  No (not a mobile router)
• SIM Slot
  No
• VPN
  No (not indicated)
• VoIP
  No (not indicated)
• ISDN
  No
• USB
  No (not indicated)
• Security Features
  WPS (button); standard Wi‑Fi security (specific protocols not listed)
• Physical Dimensions
  21 x 14 x 3 cm (device)
• Product Weight
  220 g (approx.)
• Package Weight
  500 g (approx.)
• Included Features
  MU‑MIMO, Mesh compatibility, detachable antennas, RESET/WPS button, gigabit Ethernet
• Use Case
  Home and small office Wi‑Fi 6 router for multiple devices
• Notes
  Chipset and memory values provided by manufacturer text; flash listing includes 128MB NAND and also references 256MB DDR3 memory
