Industrial residual current device (RCD) Type A, 2-pole, rated current 40 A, residual operating current 30 mA. DIN-rail mountable (DIN), IP20 protection. Short-circuit withstand 6 kA, insulation voltage Ui 440 V, rated operating voltage 230 V. Minimum conductor cross-section 1.5 mm² (solid and...
More

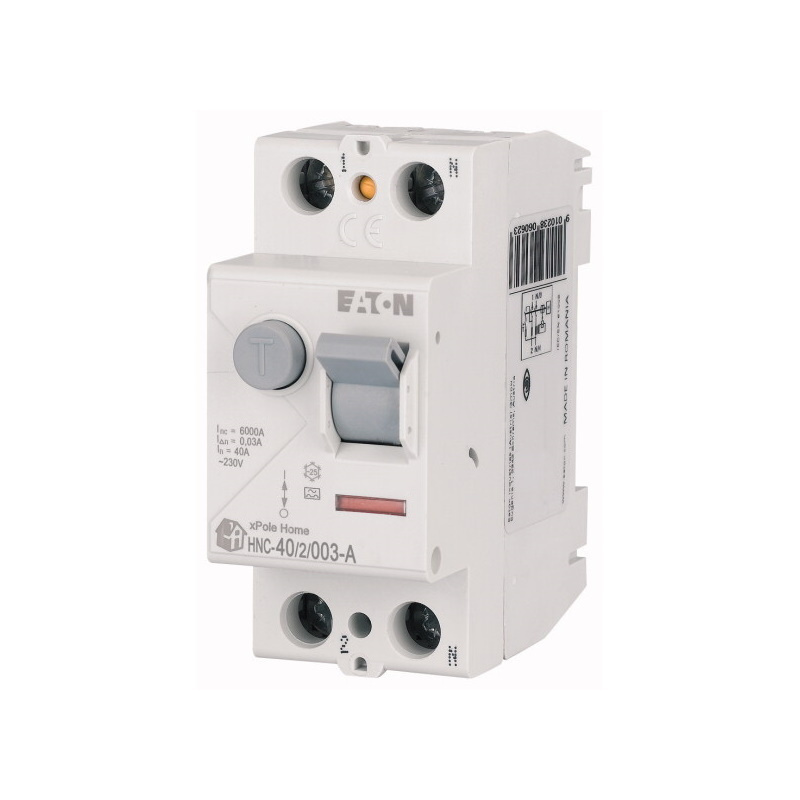

Eaton Industrial Residual Current Device 194685 - RCD 2P 40A 30mA
Product Code: 1127680361
Available in 4 - 10 days
76,60 €
or
2,39€ / month
εως 36 δόσεις με πιστωτική κάρτα
Quantity:
Add
Need Help? Fill in your details so we can call you immediately!
Έως 36 Δόσεις. Δείτε το πλάνο δόσεων:
TBI Bank
Buy Now Pay Later.
4 installments 0% επιτόκιο, 20€ έως 300€
3 to 60 installments 300€ έως 100.00€
- 1. Ship with ACS Courier
- 2. Αποστολές με μεταφορικές εταιρίες για ογκώδη αντικείμενα
-
3. Pickup from BoxNow automated machine:
Με την BoxNow μπορείς να παραλάβεις το δέμα σου από Αυτόματο Μηχάνημα Παραλαβής που βρίσκεται κοντά σου, όλες τις ώρες της ημέρας 24/7. Η υπηρεσία έχει χρέωση 3€. Υπάρχει δυνατότητα αντικαταβολής με επιπλέον χρέωση 1€.
-
4. Pickup from the store:
Leof. El. Venizelou 73 (former Theseos), Kallithea
Συμπληρώστε τον ταχυδρομικό κωδικό για να λάβετε εκτίμηση τρόπου και κόστους μεταφορικών.
Industrial residual current device (RCD) Type A, 2-pole, rated current 40 A, residual operating current 30 mA. DIN-rail mountable (DIN), IP20 protection. Short-circuit withstand 6 kA, insulation voltage Ui 440 V, rated operating voltage 230 V. Minimum conductor cross-section 1.5 mm² (solid and stranded). Operating temperature down to -25 °C, impulse withstand Uimp 4 kV, frequency 50 Hz. Product identifiers: EAN 9010238061866, MPN 194685, product code 1586877. Manufacturer/brand per specification: NEW ELECTRIC.
-
Device TypeA (Type A residual current device)
-
Poles2
-
Rated current (In)40 A
-
Rated residual operating current (IΔn)30 mA
-
Rated operating voltage (Un)230 V
-
Insulation voltage (Ui)440 V
-
Short-circuit withstand (Icw)6 kA
-
Impulse / surge current withstand0.25 kA
-
Number of modules (width)2
-
MountingDIN rail
-
Protection rating (IP)IP20
-
Installation depth45 mm
-
Minimum conductor cross-section (solid)1.5 mm²
-
Minimum conductor cross-section (flexible)1.5 mm²
-
Rated impulse withstand voltage (Uimp)4 kV
-
Operating frequency50 Hz
-
Operating temperature (min)-25 °C
-
Tripping characteristicType A
-
Manufacturer / BrandNEW ELECTRIC
-
EAN9010238061866
-
MPN194685
-
SKUWLONONWCR7370
-
Product code1586877
Ratings
Description
Industrial residual current device (RCD) Type A, 2-pole, rated current 40 A, residual operating current 30 mA. DIN-rail mountable (DIN), IP20 protection. Short-circuit withstand 6 kA, insulation voltage Ui 440 V, rated operating voltage 230 V. Minimum conductor cross-section 1.5 mm² (solid and stranded). Operating temperature down to -25 °C, impulse withstand Uimp 4 kV, frequency 50 Hz. Product identifiers: EAN 9010238061866, MPN 194685, product code 1586877. Manufacturer/brand per specification: NEW ELECTRIC.
Technical Specifications
-
Device TypeA (Type A residual current device)
-
Poles2
-
Rated current (In)40 A
-
Rated residual operating current (IΔn)30 mA
-
Rated operating voltage (Un)230 V
-
Insulation voltage (Ui)440 V
-
Short-circuit withstand (Icw)6 kA
-
Impulse / surge current withstand0.25 kA
-
Number of modules (width)2
-
MountingDIN rail
-
Protection rating (IP)IP20
-
Installation depth45 mm
-
Minimum conductor cross-section (solid)1.5 mm²
-
Minimum conductor cross-section (flexible)1.5 mm²
-
Rated impulse withstand voltage (Uimp)4 kV
-
Operating frequency50 Hz
-
Operating temperature (min)-25 °C
-
Tripping characteristicType A
-
Manufacturer / BrandNEW ELECTRIC
-
EAN9010238061866
-
MPN194685
-
SKUWLONONWCR7370
-
Product code1586877
