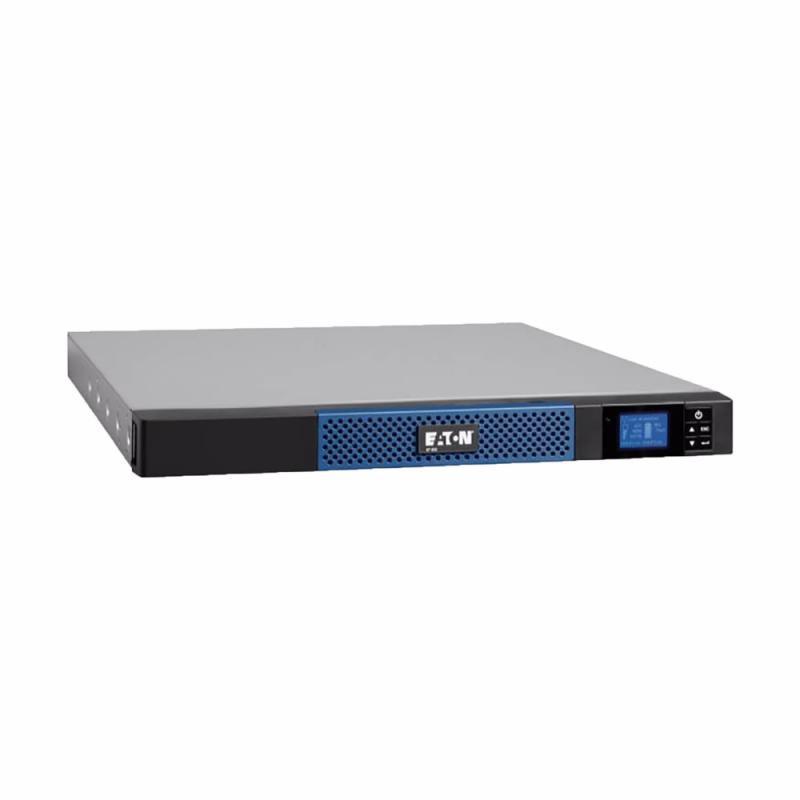

Eaton 5P 1550G Rack 1U Lithium‑Ion UPS 5P1550GR-L (1550 VA / 1100 W)

Description

Technical Specifications

• Brand
  EATON
• Model
  5P1550GR-L (5P1550GRL / 5P1550GR-L)
• MPN
  5P1550GR-L
• SKU
  164165
• EAN / UPC
  0743172090409 (UPC: 743172090409)
• Category
  Unterbrechungsfreie Stromversorgung (UPS)
• Form Factor
  1U Rackmount / Wallmount
• Topology
  Line-interactive
• Battery Type
  Lithium‑ion (LFP - Lithium Iron Phosphate)
• Battery Configuration
  12 × 3.2V, 6 Ah
• Battery Management
  Integrated BMS (temperature regulation & lifecycle monitoring)

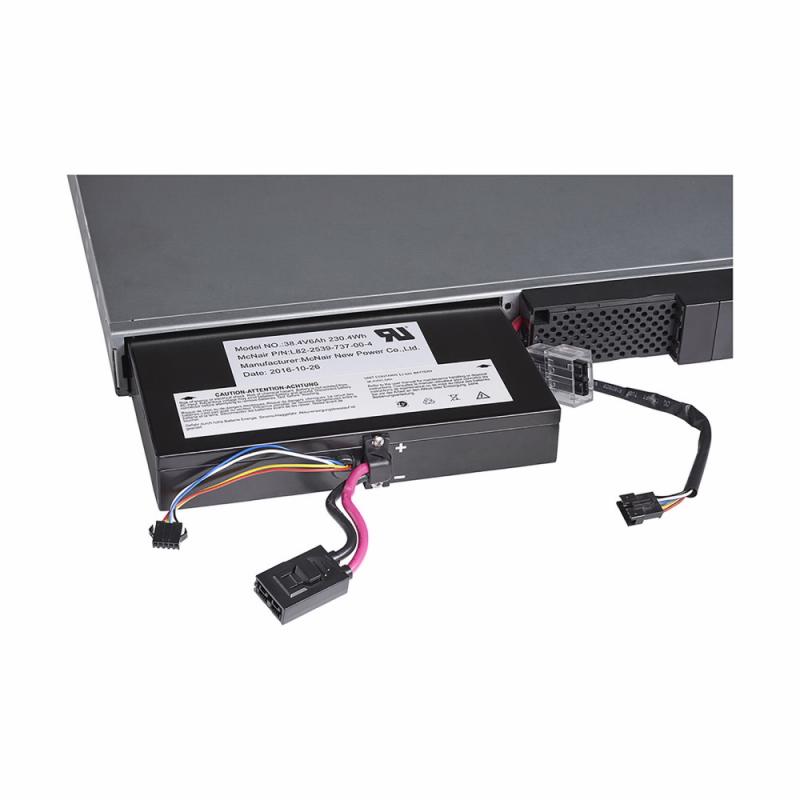

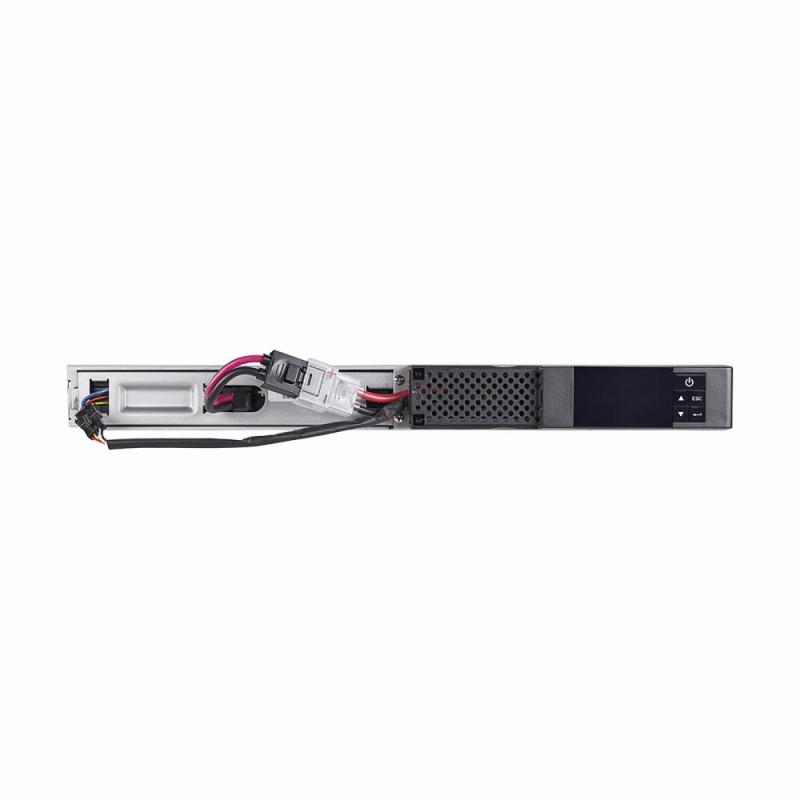

• Battery Replaceable
  User‑replaceable battery module
• Battery Life
  Up to 8 years (design life)
• Warranty
  5 years (UPS + batteries, with product registration)
• Output Power (VA)
  1550 VA
• Output Power (W)
  1100 W (at 230V)
• Output Power @208V / 200V
  1395 VA / 990 W
• Output Voltage (nominal)
  230 V (adjustable: 200/208/220/230/240 V)
• Output Frequency
  50 / 60 Hz (±0.1 Hz on battery)
• Output Waveform
  True sine wave
• Output Voltage Regulation (Utility)
  230V: 184–256 V (−20% / +15%)
• Output Voltage Regulation (Battery)
  ±10% / +6% nominal
• Efficiency (Line Mode)
  ≥97% (above 60% load)
• Input Voltage Range
  230V: 160–294 V (adjustable)
• Input Frequency Range
  50 Hz: 47–70 Hz; 60 Hz: 56.5–70 Hz
• Input Power Factor
  1

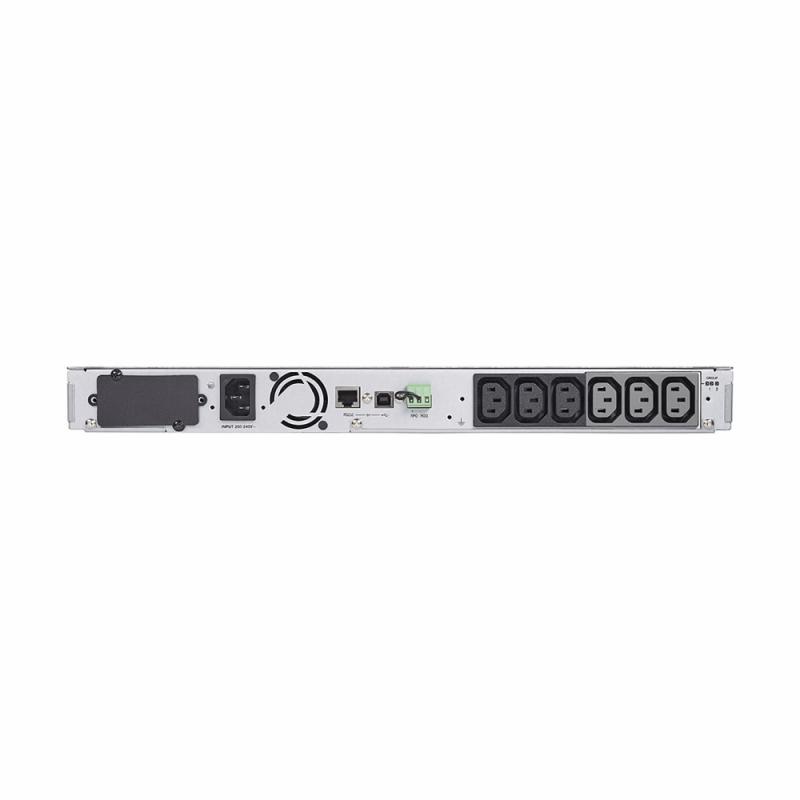

• Input Connection
  (1) IEC C14
• Output Connections
  (6) IEC C13
• Phase
  Single‑phase
• Communication Ports
  RS‑232 (RJ45), USB (HID)
• Included Cables
  6 ft RS‑232 and USB cables
• Network Management
  Optional Gigabit network card slot (Network‑M3 or equivalent)
• Relay Contact
  Potential‑free switch contact present
• Display
  Graphical LCD + 3 status LEDs
• Diagnostics
  Full system self‑test at startup
• Dimensions (L×W×H)
  55.4 × 43.7 × 4.3 cm (21.8 × 17.2 × 1.7 in)
• Weight
  16.3 kg (36 lb)
• Noise Level
  <45 dB @ 1 m
• Operating Temperature
  5 °C to 40 °C
• Storage Temperature
  −15 °C to 40 °C
• Humidity
  0–90% non‑condensing
• Maximum Altitude
  10,000 ft (≈3000 m) without de‑rating
• Safety & EMC Certifications
  UL 1778, IEC 62040‑2, IEC 62040‑3, FCC Part 15, CE, RoHS, cUL/cULus, EN 55024, CISPR22 Class B
• Key Features
  True sine wave output; high efficiency; compact 1U design; long‑life Li‑ion LFP battery; integrated BMS; user‑replaceable battery module; graphical LCD; optional network card slot; 5‑year warranty with registration
• Included Accessories
  RS‑232 cable, USB cable, mounting hardware (rack ears) commonly supplied
• Packaging (typical)
  Retail carton with foam inserts; includes UPS, battery module installed, cables, quick start guide
