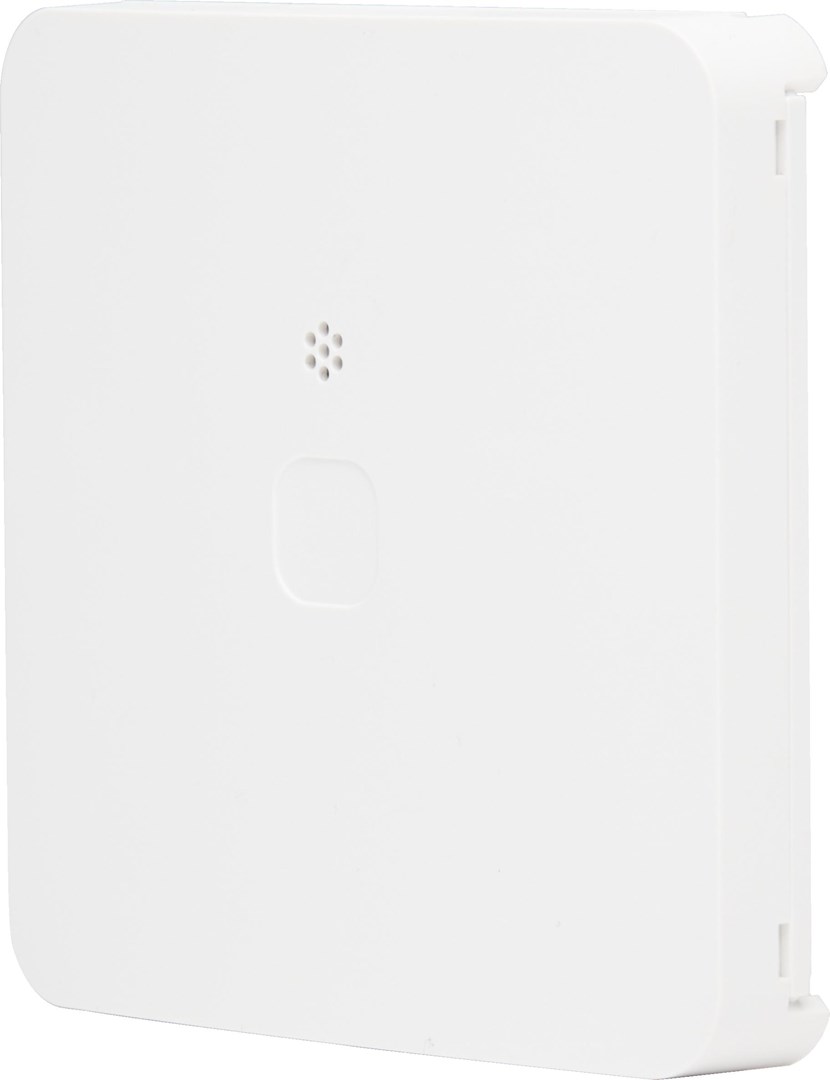

DSC PGP8986 PowerG+ Wireless Water Leak Detector with Freeze Detection

Description

Technical Specifications

• Model
  PGP8986 (PGP9986 / PGPx986 family)
• Brand
  DSC
• Device Type
  Wireless Water Leak Detector (Water Tile) with Freeze Detection
• Communication Protocol
  PowerG / PowerG+ (FHSS & TDMA, two-way)
• Frequencies
  ~912–919 MHz (NA) or 868–869 MHz (EU) depending on region
• Maximum RF Power
  +20 dBm @ 915 MHz (typical), +14 dBm @ 868 MHz (typical)
• Dimensions
  65 × 65 × 11 mm (2.6 × 2.6 × 0.43 in)
• Weight
  48 g (including batteries)
• Ingress Protection
  IP65
• Power Supply
  2 × 3V Lithium CR2450 (nominal 6V)
• Battery Life
  Up to 5 years (typical use at 25°C / 77°F)
• Operating Temperature
  -10°C to 55°C (14°F to 131°F)
• Freeze Alert Threshold
  ~5°C (41°F)
• Audible Alert
  Yes (built-in sounder for water detection)
• External Probe Support
  Yes (compatible external sensing cables/probes sold separately)
• Tamper Detection
  Cover/mount/probe tamper detection supported
• LED Indicators
  Yes (signal strength and status indications)
• Low Battery Reporting
  Yes (low battery threshold reporting, typical indication when battery <4.3V)
• Firmware Updates
  Over-the-air (OTA) supported
• Compatibility
  PowerG+ enabled panels (IQ Panel 4, IQ4 NS, IQ Hub 4.6.0). PowerG legacy panels supported in fallback mode (freeze detection not available in legacy mode)
• Range
  PowerG long-range (up to ~2000 m open field, actual dependent on installation/environment)
• Color
  White
• Included Accessories
  Unit with installed CR2450 batteries (packaging dependent)
• Certifications/Notes
  Designed for security alarm integration; regional SKU/frequencies vary
