Outdoor LoRaWAN gateway DLOS8N-868-EC25-E by Dragino. Bridges LoRaWAN radio networks to IP backhauls via Ethernet, 2.4 GHz Wi‑Fi, and 4G LTE (Quectel EC25 module variant). Open-source OpenWrt-based firmware with web GUI and SSH, supports Semtech packet forwarder and LoRaWAN Station, built-in GPS...
More

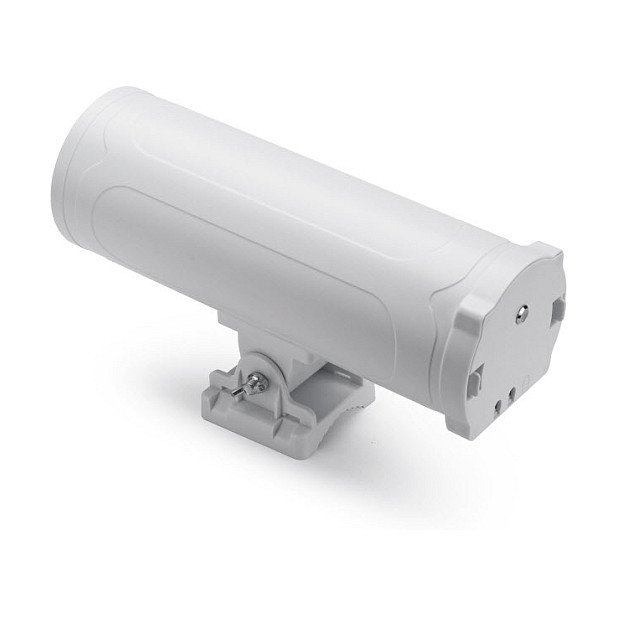

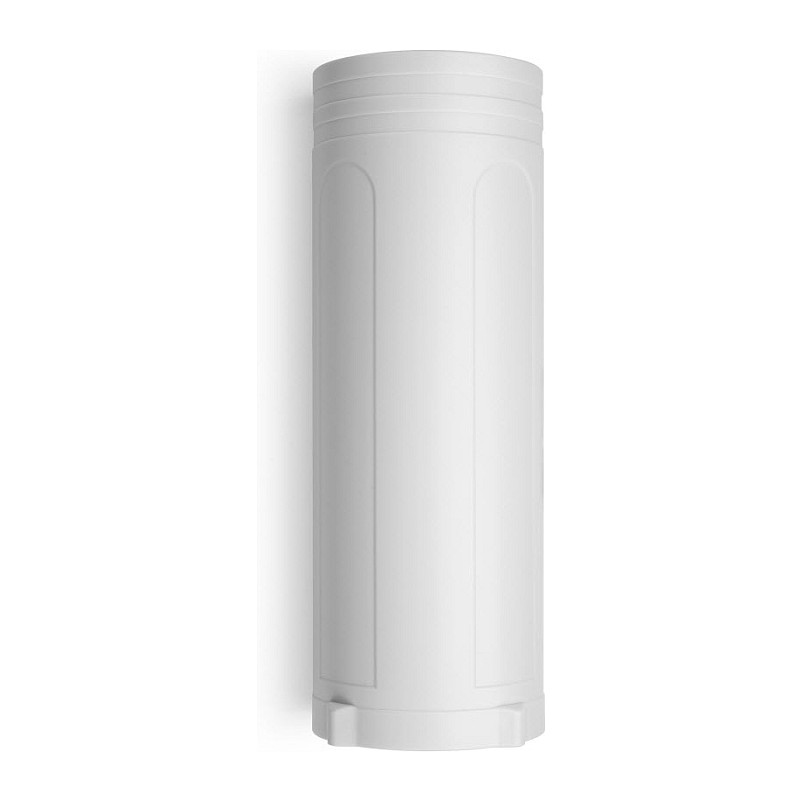

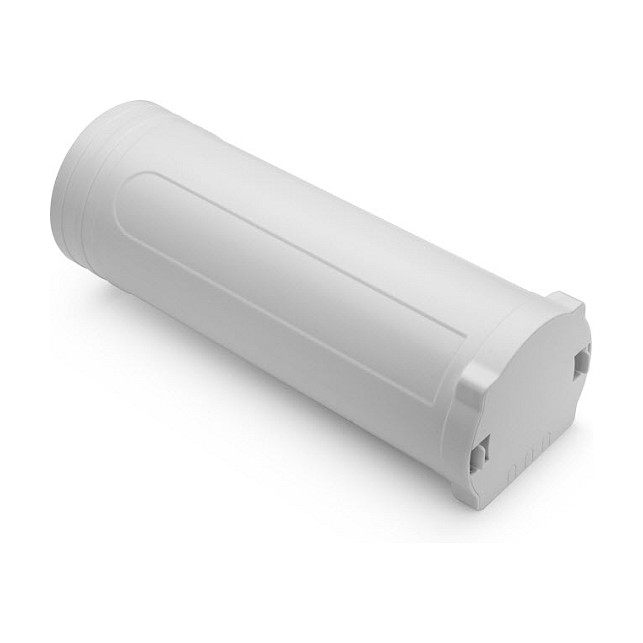

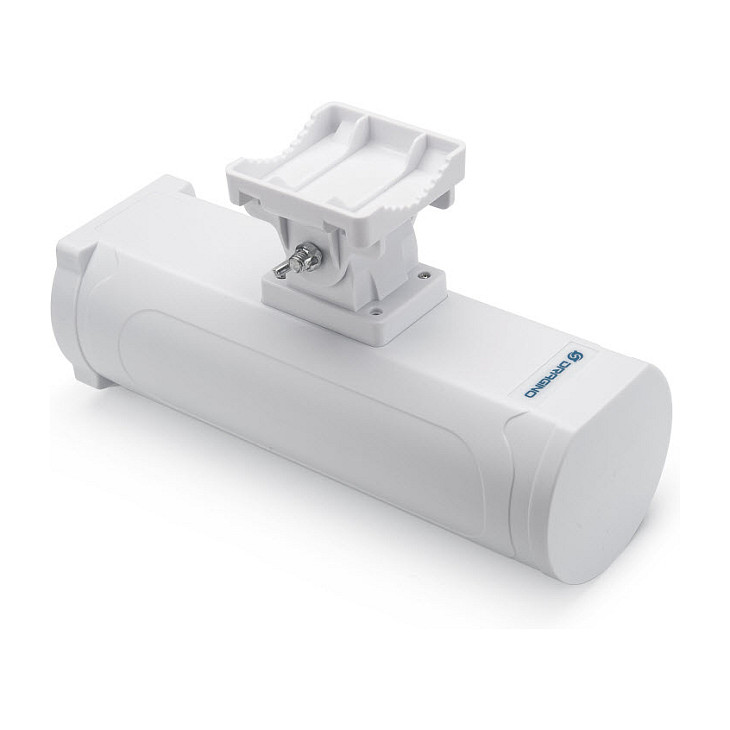

DRAGINO Outdoor LoRaWAN Gateway DLOS8N-868-EC25-E (with 4G)
Product Code: 1173699426
Available in 4 - 6 days
539,57 €
or
16,85€ / month
εως 36 δόσεις με πιστωτική κάρτα
With the purchase of this product you earn 1619 Bytes
Quantity:
Add
Need Help? Fill in your details so we can call you immediately!
Έως 36 Δόσεις. Δείτε το πλάνο δόσεων:
TBI Bank
Buy Now Pay Later.
4 installments 0% επιτόκιο, 20€ έως 300€
3 to 60 installments 300€ έως 100.00€
- 1. Ship with ACS Courier
- 2. Αποστολές με μεταφορικές εταιρίες για ογκώδη αντικείμενα
-
3. Pickup from BoxNow automated machine:
Με την BoxNow μπορείς να παραλάβεις το δέμα σου από Αυτόματο Μηχάνημα Παραλαβής που βρίσκεται κοντά σου, όλες τις ώρες της ημέρας 24/7. Η υπηρεσία έχει χρέωση 3€. Υπάρχει δυνατότητα αντικαταβολής με επιπλέον χρέωση 1€.
-
4. Pickup from the store:
Leof. El. Venizelou 73 (former Theseos), Kallithea
Συμπληρώστε τον ταχυδρομικό κωδικό για να λάβετε εκτίμηση τρόπου και κόστους μεταφορικών.
Outdoor LoRaWAN gateway DLOS8N-868-EC25-E by Dragino. Bridges LoRaWAN radio networks to IP backhauls via Ethernet, 2.4 GHz Wi‑Fi, and 4G LTE (Quectel EC25 module variant). Open-source OpenWrt-based firmware with web GUI and SSH, supports Semtech packet forwarder and LoRaWAN Station, built-in GPS for timing/location, PoE (IEEE 802.3af) and 12–24 V DC power input, IP65-rated enclosure for outdoor deployments. Targeted at smart agriculture, smart cities, industrial IoT and remote monitoring.
-
BrandDragino
-
ModelDLOS8N-868-EC25-E
-
MPNDLOS8N-868-EC25-E
-
SKU457516
-
EAN / Barcode6973956304840
-
Product TypeOutdoor LoRaWAN Gateway (8-channel)
-
LoRa ConcentratorSX1302
-
LoRa Channel Capacity8 channels (EU868 variant)
-
LoRaWAN Protocol SupportSemtech packet forwarder, LoRaWAN Station
-
Regional BandEU868 (868 MHz)
-
Cellular Backhaul4G LTE (Quectel EC25 module variant)
-
Wi‑Fi802.11 b/g/n, 2.4 GHz
-
Ethernet10/100M RJ45 (listings indicate 1 x RJ45; older manual references 2 x RJ45)
-
USBUSB 2.0 host
-
Expansion/SlotsMini‑PCIe slot for cellular module
-
GPSBuilt‑in GPS module for timing and location
-
Operating SystemOpenWrt / embedded Linux (open source)
-
ManagementWeb GUI and SSH; auto‑provisioning for mass deployment
-
SecurityMQTTS support, LoRaWAN packet filtering
-
Power Input12–24 V DC
-
PoEIEEE 802.3af supported
-
Power Consumption~300–500 mA at 12 V (manufacturer manual reference)
-
Ingress ProtectionIP65 (manufacturer listings)
-
Lightning ProtectionListed in product materials
-
AntennaExternal fiberglass antenna (and cellular antenna(s) for 4G)
-
Demodulation Paths10 programmable parallel demodulation paths (manufacturer docs)
-
CompatibilityCompatible with LoRaWAN end nodes; ABP direct communication supported
-
Use CasesSmart agriculture, remote monitoring, industrial IoT, smart cities
-
ColorWhite
-
Product Weight1.34 kg
-
Package Dimensions490 × 190 × 120 mm
-
Package Weight2.5 kg
Ratings
Description
Outdoor LoRaWAN gateway DLOS8N-868-EC25-E by Dragino. Bridges LoRaWAN radio networks to IP backhauls via Ethernet, 2.4 GHz Wi‑Fi, and 4G LTE (Quectel EC25 module variant). Open-source OpenWrt-based firmware with web GUI and SSH, supports Semtech packet forwarder and LoRaWAN Station, built-in GPS for timing/location, PoE (IEEE 802.3af) and 12–24 V DC power input, IP65-rated enclosure for outdoor deployments. Targeted at smart agriculture, smart cities, industrial IoT and remote monitoring.
Technical Specifications
-
BrandDragino
-
ModelDLOS8N-868-EC25-E
-
MPNDLOS8N-868-EC25-E
-
SKU457516
-
EAN / Barcode6973956304840
-
Product TypeOutdoor LoRaWAN Gateway (8-channel)
-
LoRa ConcentratorSX1302
-
LoRa Channel Capacity8 channels (EU868 variant)
-
LoRaWAN Protocol SupportSemtech packet forwarder, LoRaWAN Station
-
Regional BandEU868 (868 MHz)
-
Cellular Backhaul4G LTE (Quectel EC25 module variant)
-
Wi‑Fi802.11 b/g/n, 2.4 GHz
-
Ethernet10/100M RJ45 (listings indicate 1 x RJ45; older manual references 2 x RJ45)
-
USBUSB 2.0 host
-
Expansion/SlotsMini‑PCIe slot for cellular module
-
GPSBuilt‑in GPS module for timing and location
-
Operating SystemOpenWrt / embedded Linux (open source)
-
ManagementWeb GUI and SSH; auto‑provisioning for mass deployment
-
SecurityMQTTS support, LoRaWAN packet filtering
-
Power Input12–24 V DC
-
PoEIEEE 802.3af supported
-
Power Consumption~300–500 mA at 12 V (manufacturer manual reference)
-
Ingress ProtectionIP65 (manufacturer listings)
-
Lightning ProtectionListed in product materials
-

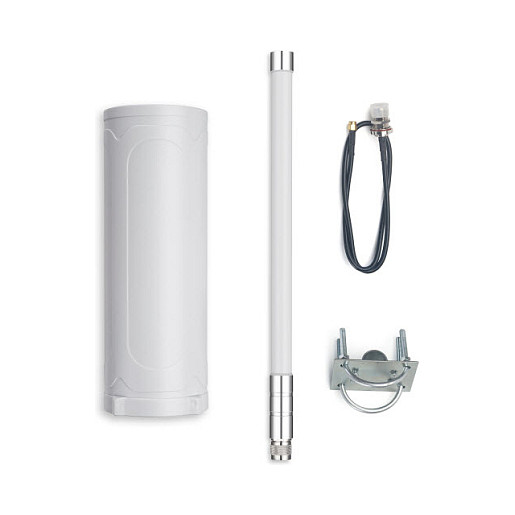

AntennaExternal fiberglass antenna (and cellular antenna(s) for 4G)
-
Demodulation Paths10 programmable parallel demodulation paths (manufacturer docs)
-
CompatibilityCompatible with LoRaWAN end nodes; ABP direct communication supported
-
Use CasesSmart agriculture, remote monitoring, industrial IoT, smart cities
-
ColorWhite
-
Product Weight1.34 kg
-
Package Dimensions490 × 190 × 120 mm
-
Package Weight2.5 kg
