The DRAGINO LHT65S-EU868-E3 is a LoRaWAN temperature and humidity sensor (E3 = external temperature probe variant) with built-in temperature and humidity sensors plus a connector for a flat DS18B20 external probe (typically 2 m cable). It operates on EU868 (868 MHz), LoRaWAN Class A (v1.0.3),...
More
DRAGINO LoRaWAN Temperature & Humidity Sensor LHT65S-EU868-E3
Product Code: 1173699427
Available in 4 - 6 days
73,60 €
or
2,30€ / month
εως 36 δόσεις με πιστωτική κάρτα
With the purchase of this product you earn 221 Bytes
Quantity:
Add
Need Help? Fill in your details so we can call you immediately!
Έως 36 Δόσεις. Δείτε το πλάνο δόσεων:
TBI Bank
Buy Now Pay Later.
4 installments 0% επιτόκιο, 20€ έως 300€
3 to 60 installments 300€ έως 100.00€
- 1. Ship with ACS Courier
- 2. Αποστολές με μεταφορικές εταιρίες για ογκώδη αντικείμενα
-
3. Pickup from BoxNow automated machine:
Με την BoxNow μπορείς να παραλάβεις το δέμα σου από Αυτόματο Μηχάνημα Παραλαβής που βρίσκεται κοντά σου, όλες τις ώρες της ημέρας 24/7. Η υπηρεσία έχει χρέωση 3€. Υπάρχει δυνατότητα αντικαταβολής με επιπλέον χρέωση 1€.
-
4. Pickup from the store:
Leof. El. Venizelou 73 (former Theseos), Kallithea
Συμπληρώστε τον ταχυδρομικό κωδικό για να λάβετε εκτίμηση τρόπου και κόστους μεταφορικών.

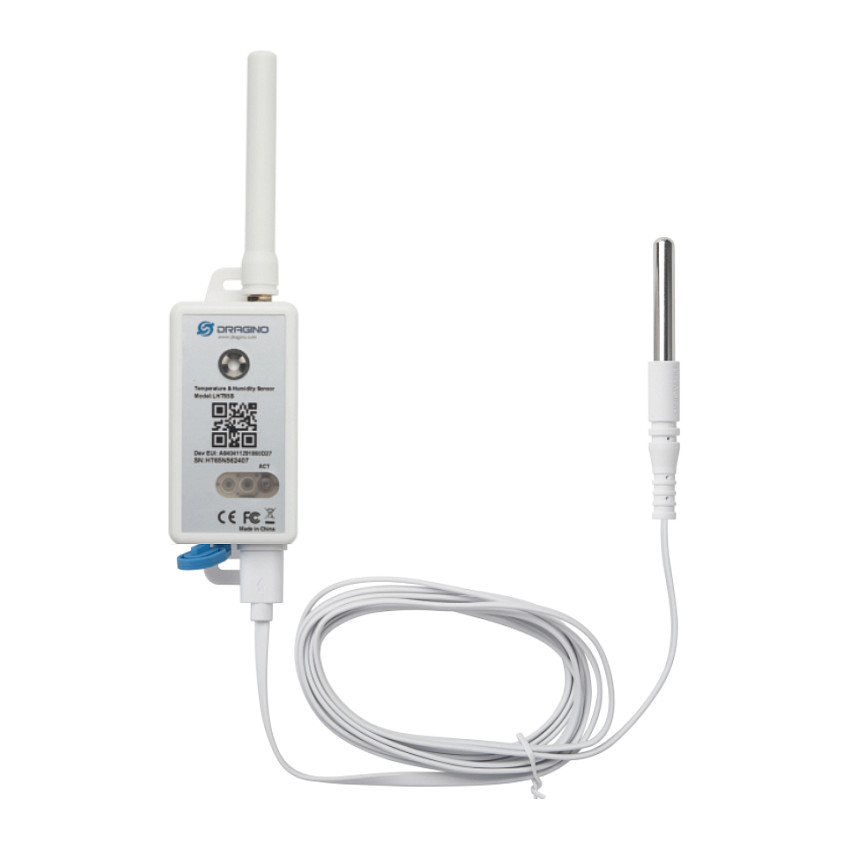

The DRAGINO LHT65S-EU868-E3 is a LoRaWAN temperature and humidity sensor (E3 = external temperature probe variant) with built-in temperature and humidity sensors plus a connector for a flat DS18B20 external probe (typically 2 m cable). It operates on EU868 (868 MHz), LoRaWAN Class A (v1.0.3), supports AT commands and remote configuration, has onboard datalogging for offline storage, and firmware upgrade via the programming port. Power is provided by a 2400 mAh non-rechargeable battery with typical battery life up to 10 years. Compact, wall-mountable enclosure with three-color LED status indicator. Typical applications: building automation, smart metering, smart cities, irrigation and long-range low-power wireless sensing.
-
BrandDragino
-
ModelLHT65S-EU868-E3
-
MPNLHT65S-EU868-E3
-
SKU457558
-
EAN6973956307049
-
CategoryNetzwerk > Internet of Things (IoT)
-
Sensor typesBuilt-in temperature sensor; Built-in humidity sensor; External temperature probe connector (E3 variant)
-
External probe typeFlat DS18B20 probe (E3 variant), typically 2 m cable
-
LoRaWAN classClass A (LoRaWAN v1.0.3)
-
Frequency bandEU868 (868 MHz)
-
Radio featuresLong-range, low-power, high interference immunity
-
Temperature resolution0.01 °C
-
Temperature accuracy±0.3 °C (typical)
-
Temperature operating range-40 to 85 °C (device spec; some LHT65 family docs note up to 125 °C for specific sensors)
-
Temperature long-term drift< 0.02 °C/year
-
Humidity resolution0.04 %RH
-
Humidity accuracy±3 %RH (typical)
-
Humidity operating range0–96 %RH (some docs list up to 100 %RH for family)
-
Humidity long-term drift< 0.02 %RH/year
-
BatteryBuilt-in 2400 mAh non-rechargeable battery
-
Battery lifeUp to 10 years (typical usage)
-
DataloggingOn-device datalog to store readings when network unavailable
-
ConfigurationRemote configuration; AT command support; firmware upgrade via program port
-
LED indicatorThree-color LED status indicator
-
MountingWall mountable
-
Enclosure dimensionsApprox. 95 × 40 × 28 mm (typical LHT65 form factor)
-
Weight~120 g (device)
-
Package dimensions (estimated)12 × 6 × 4 cm
-
Package weight (estimated)~200 g
-
CertificationsFCC report exists for related LHT65 family variants
-
Warranty & supportRefer to Dragino official documentation and reseller for warranty details
Ratings
Description
The DRAGINO LHT65S-EU868-E3 is a LoRaWAN temperature and humidity sensor (E3 = external temperature probe variant) with built-in temperature and humidity sensors plus a connector for a flat DS18B20 external probe (typically 2 m cable). It operates on EU868 (868 MHz), LoRaWAN Class A (v1.0.3), supports AT commands and remote configuration, has onboard datalogging for offline storage, and firmware upgrade via the programming port. Power is provided by a 2400 mAh non-rechargeable battery with typical battery life up to 10 years. Compact, wall-mountable enclosure with three-color LED status indicator. Typical applications: building automation, smart metering, smart cities, irrigation and long-range low-power wireless sensing.
Technical Specifications
-
BrandDragino
-
ModelLHT65S-EU868-E3
-
MPNLHT65S-EU868-E3
-
SKU457558
-
EAN6973956307049
-
CategoryNetzwerk > Internet of Things (IoT)
-
Sensor typesBuilt-in temperature sensor; Built-in humidity sensor; External temperature probe connector (E3 variant)
-
External probe typeFlat DS18B20 probe (E3 variant), typically 2 m cable
-
LoRaWAN classClass A (LoRaWAN v1.0.3)
-
Frequency bandEU868 (868 MHz)
-
Radio featuresLong-range, low-power, high interference immunity
-
Temperature resolution0.01 °C
-
Temperature accuracy±0.3 °C (typical)
-
Temperature operating range-40 to 85 °C (device spec; some LHT65 family docs note up to 125 °C for specific sensors)
-
Temperature long-term drift< 0.02 °C/year
-
Humidity resolution0.04 %RH
-
Humidity accuracy±3 %RH (typical)
-
Humidity operating range0–96 %RH (some docs list up to 100 %RH for family)
-
Humidity long-term drift< 0.02 %RH/year
-
BatteryBuilt-in 2400 mAh non-rechargeable battery
-
Battery lifeUp to 10 years (typical usage)
-
DataloggingOn-device datalog to store readings when network unavailable
-
ConfigurationRemote configuration; AT command support; firmware upgrade via program port
-
LED indicatorThree-color LED status indicator
-
MountingWall mountable
-
Enclosure dimensionsApprox. 95 × 40 × 28 mm (typical LHT65 form factor)
-
Weight~120 g (device)
-
Package dimensions (estimated)12 × 6 × 4 cm
-
Package weight (estimated)~200 g
-
CertificationsFCC report exists for related LHT65 family variants
-
Warranty & supportRefer to Dragino official documentation and reseller for warranty details
