Product Description

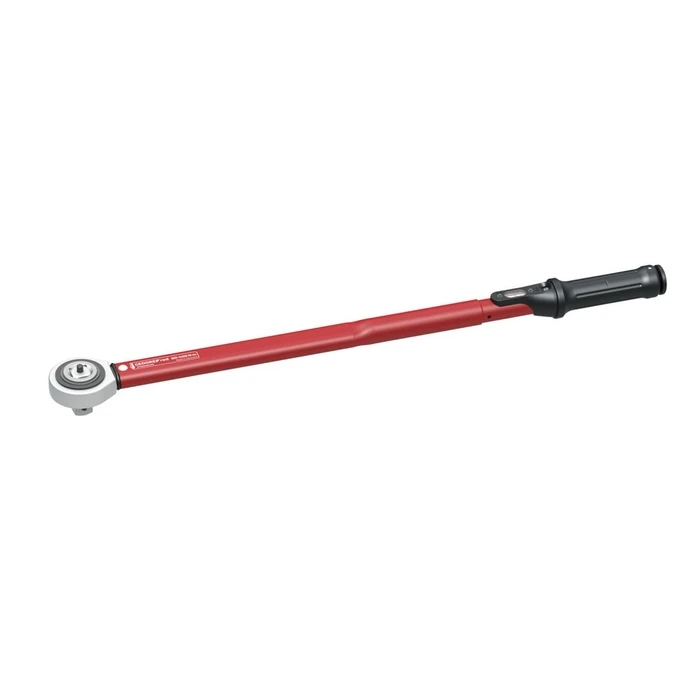

The GEDORE red Torque Wrench 3/4" 80-400 Nm is a precision tool designed for assembly, maintenance, and repair tasks. With its adjustable features, this torque wrench allows for controlled and precise screw tightening.
Key Features
- Socket and Drive: Features a push-through square drive and integrated ratchet for both right-hand and left-hand tightening.
- Torque Setting: Easy-to-read scale with a magnifying glass for measuring torque in Nm.
- Accuracy and Precision: Offers a tripping accuracy of +/-3% tolerance.
- Audible Torque Triggering: Mechanism provides a clear audio and tactile indication when the set torque is achieved.
- Compliance: Includes a test certificate according to DIN EN ISO 6789 for international standard compliance.
Dimensions and Weights
- Total Width: 63 mm
- Total Height: 51 mm
- Total Length: 680 mm
- Net Weight: 2.39 kg
-
Distance Housing - Square Drive31 mm
-
Drive Type/DrivePush-through square with pin
-
Drive Connector Square (Metric)20 mm
-
Drive Square Inch3/4"
-
Number of Teeth36
-
Tightening DirectionBoth directions
-
VersionPush-through square with pin
-
Trigger MechanismShort path triggering
-
Maximum Torque400 Nm
-
Minimum Torque80 Nm
-
Range of ApplicationAssembly, Maintenance, and Repair
-
Calibration Length583.2 mm
-
Width of Head 162.5 mm
-
Head Height 138 mm
-
Vernier Nm1 Nm
-
Precision +/-+/- 3%
-
Test CertificateDIN EN ISO 6789-2:2017
-
Return Angle10°
