Complete pre-assembled FTTX/FTTH installation kit by Digitus (MPN DN-948050-2, EAN 4016032508816). Includes a 50 m pre-assembled 4-fiber singlemode drop cable (G.657A2 bend-optimized, 9/125 µm) terminated on one end with 4 LC/APC connectors (2× LC-APC duplex), a surface-mountable FTTH wall...
More
DIGITUS FTTX Installation Kit LC/APC 50.00 m 4-Fiber (DN-948050-2)
Product Code: 1117715355
Available in 1 - 3 days
65,93 €
or
2,06€ / month
εως 36 δόσεις με πιστωτική κάρτα
With the purchase of this product you earn 198 Bytes
Quantity:
Add
Need Help? Fill in your details so we can call you immediately!
Έως 36 Δόσεις. Δείτε το πλάνο δόσεων:
TBI Bank
Buy Now Pay Later.
4 installments 0% επιτόκιο, 20€ έως 300€
3 to 60 installments 300€ έως 100.00€
- 1. Ship with ACS Courier
- 2. Αποστολές με μεταφορικές εταιρίες για ογκώδη αντικείμενα
-
3. Pickup from BoxNow automated machine:
Με την BoxNow μπορείς να παραλάβεις το δέμα σου από Αυτόματο Μηχάνημα Παραλαβής που βρίσκεται κοντά σου, όλες τις ώρες της ημέρας 24/7. Η υπηρεσία έχει χρέωση 3€. Υπάρχει δυνατότητα αντικαταβολής με επιπλέον χρέωση 1€.
-
4. Pickup from the store:
Leof. El. Venizelou 73 (former Theseos), Kallithea
Συμπληρώστε τον ταχυδρομικό κωδικό για να λάβετε εκτίμηση τρόπου και κόστους μεταφορικών.

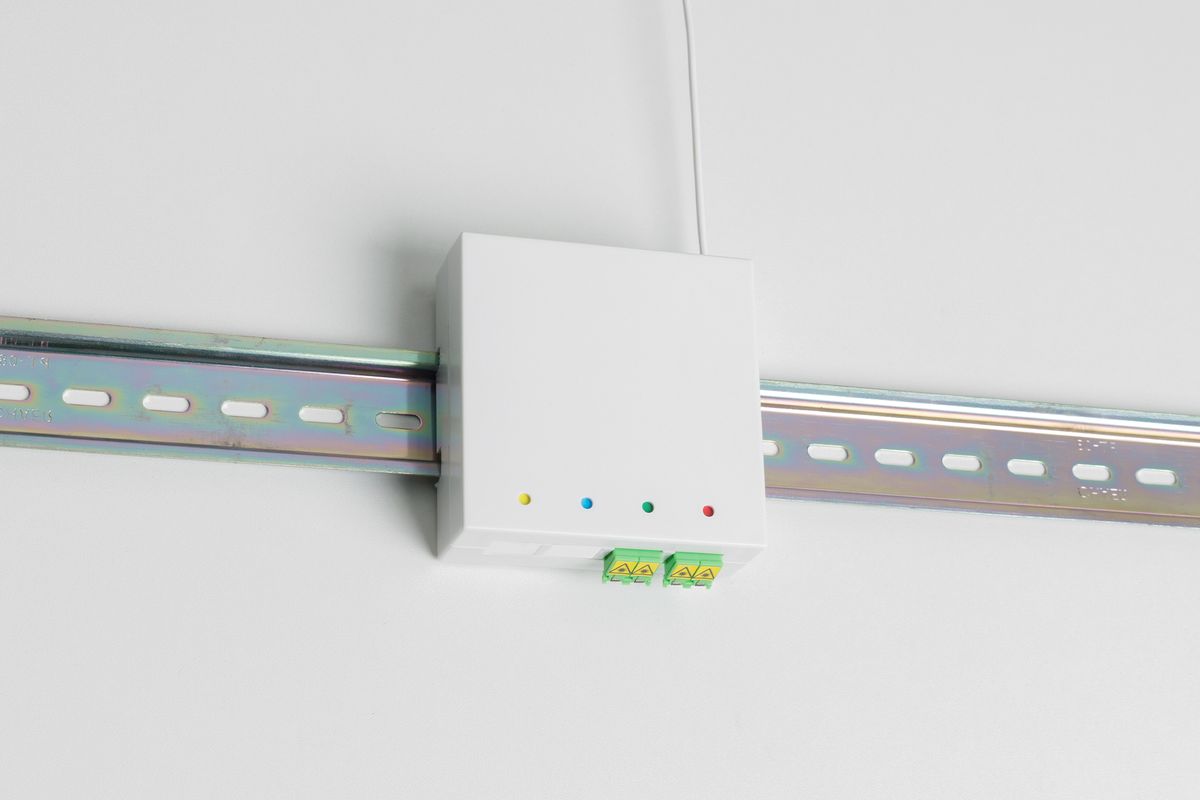

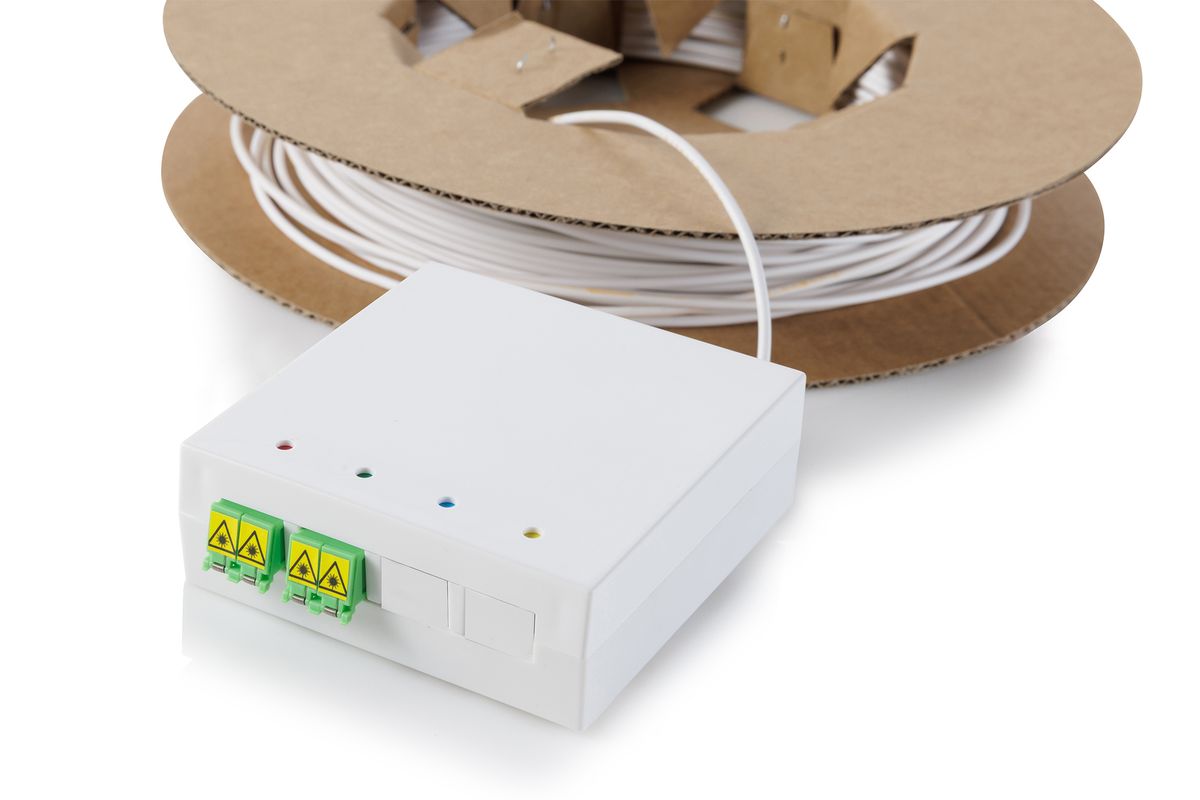

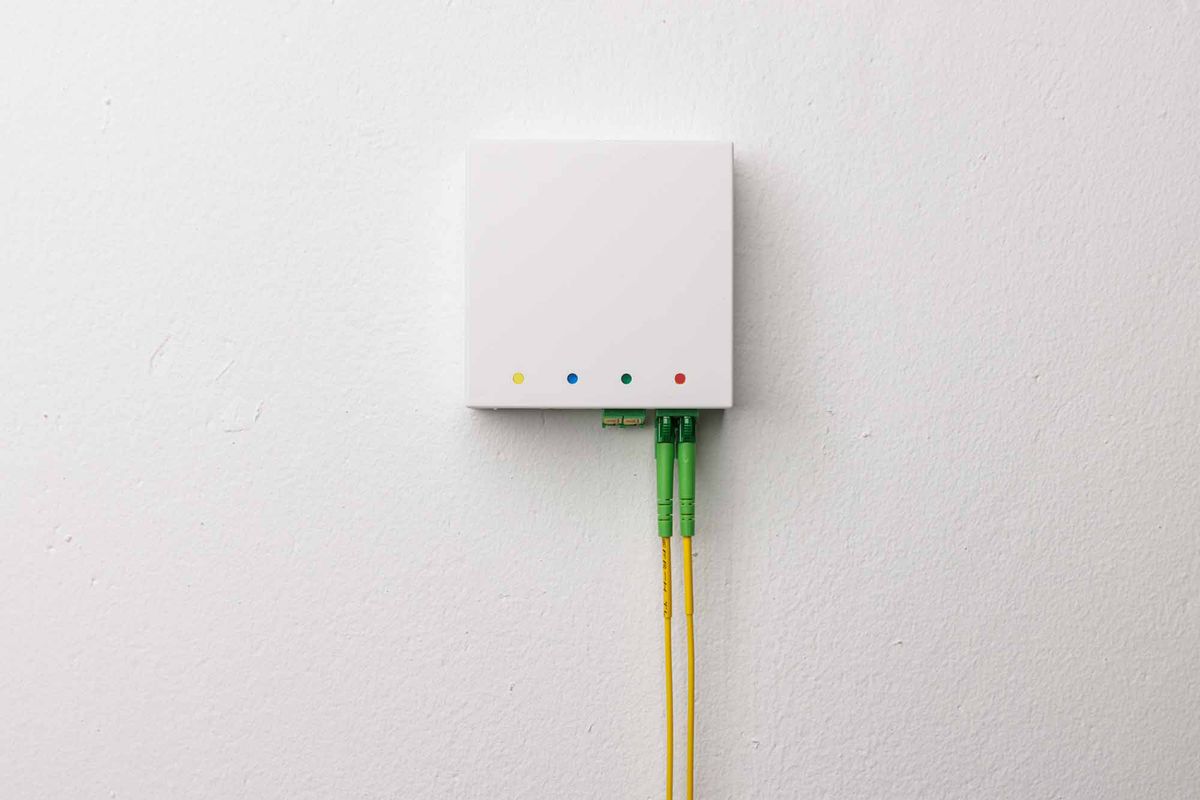

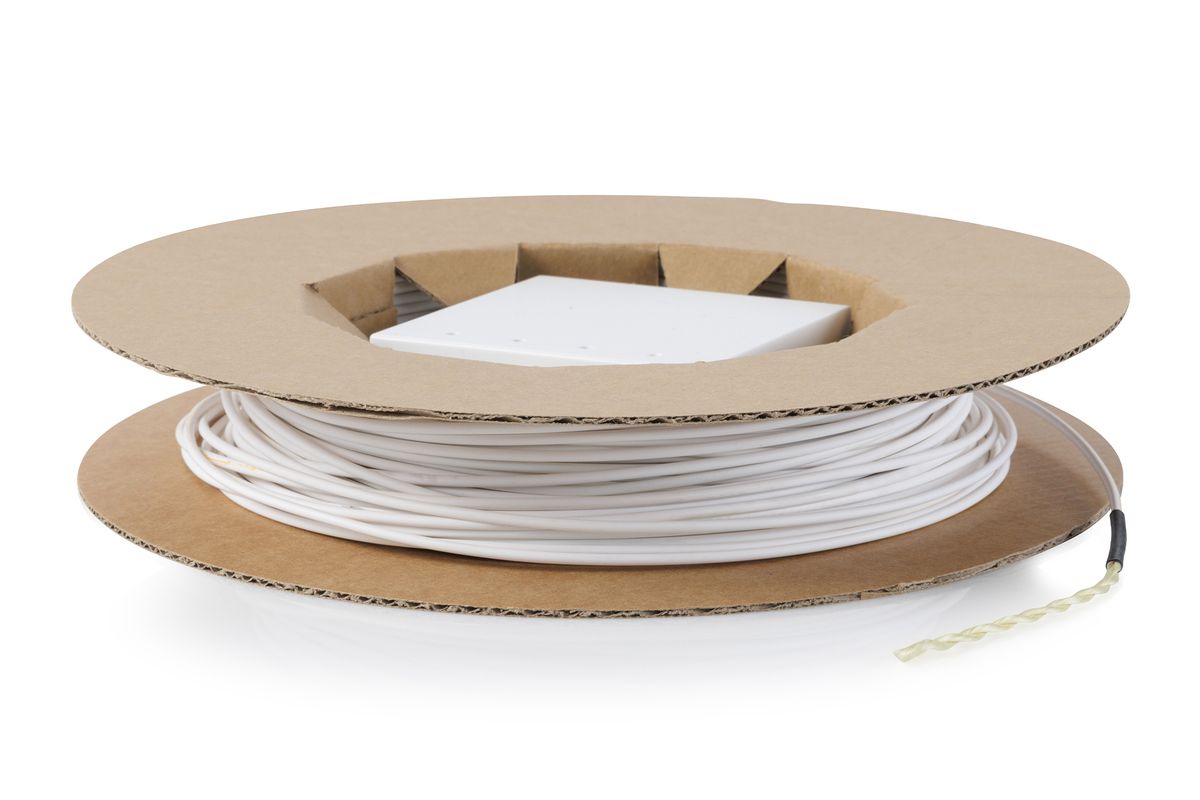

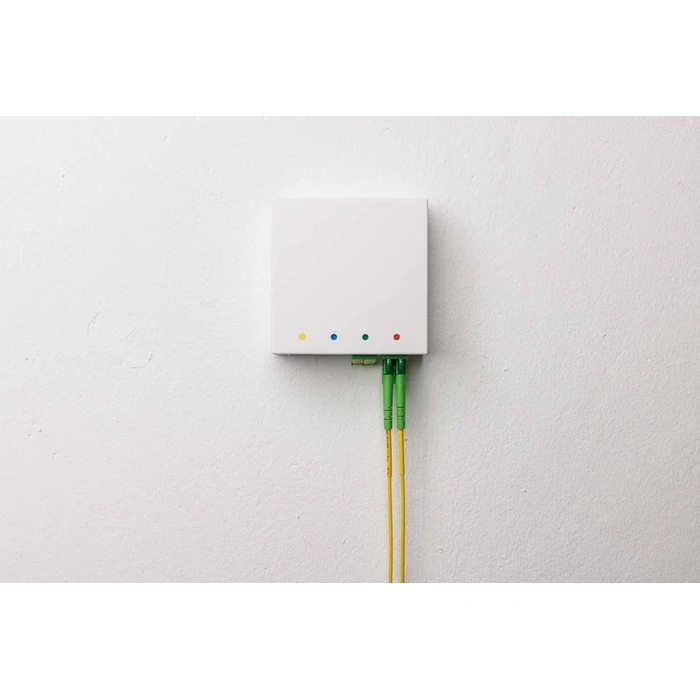

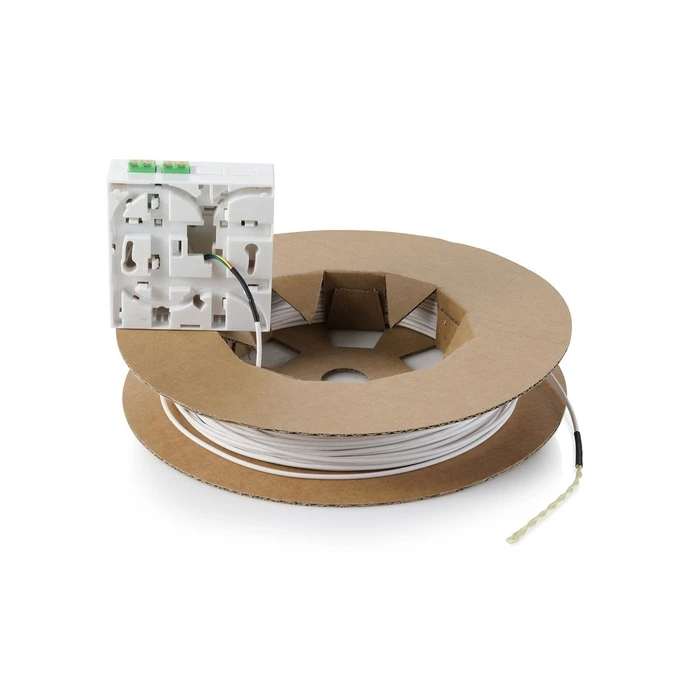

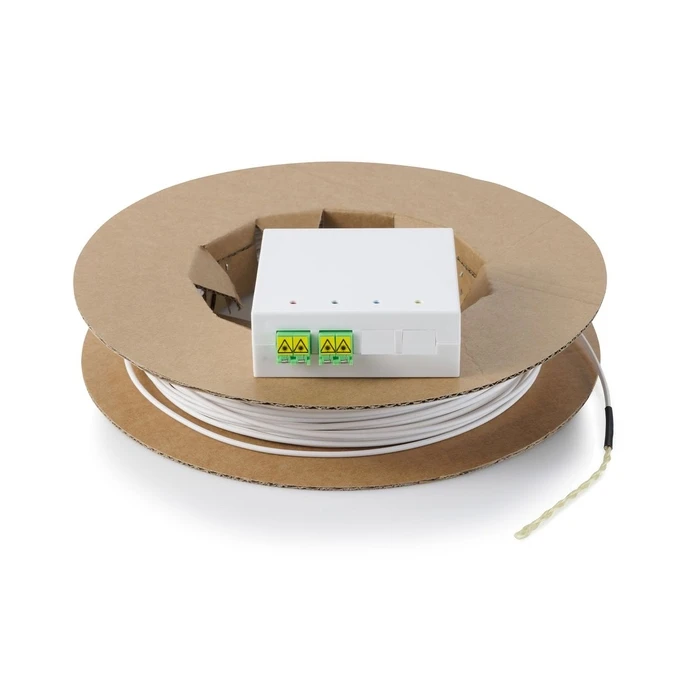

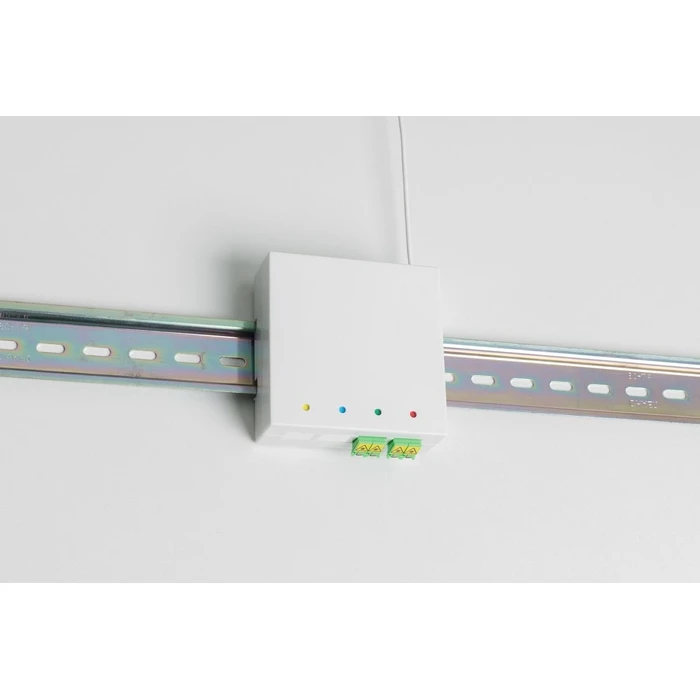

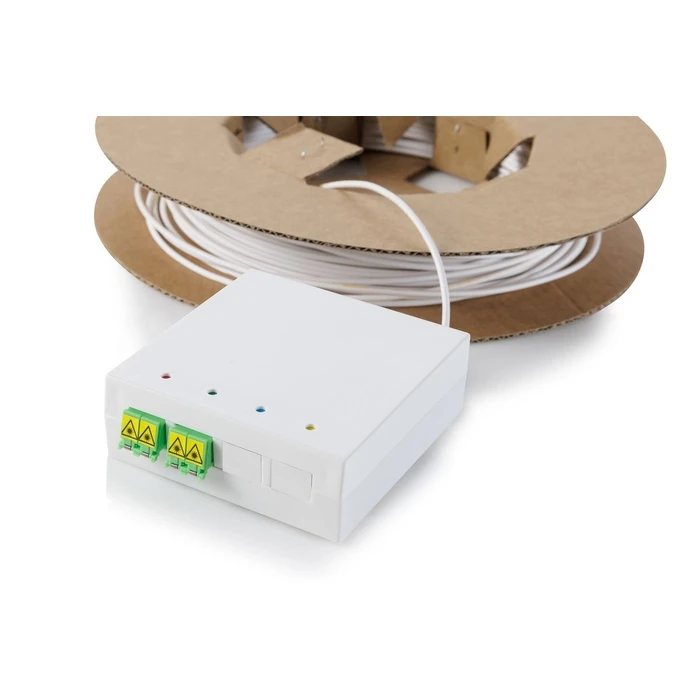

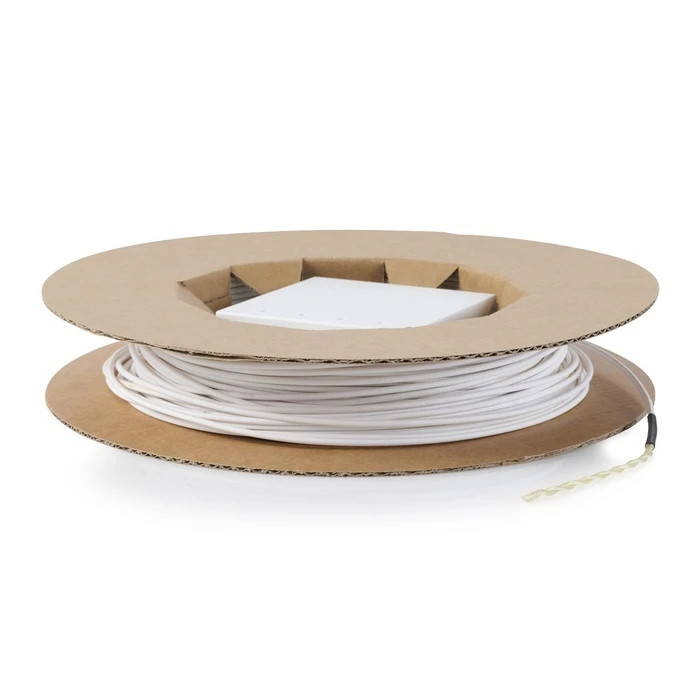

Complete pre-assembled FTTX/FTTH installation kit by Digitus (MPN DN-948050-2, EAN 4016032508816). Includes a 50 m pre-assembled 4-fiber singlemode drop cable (G.657A2 bend-optimized, 9/125 µm) terminated on one end with 4 LC/APC connectors (2× LC-APC duplex), a surface-mountable FTTH wall outlet/termination box (ABS, white) with integrated splice/management area, mounting hardware, and protective shutters with laser & dust protection. The other cable end is open/unterminated for pulling into building distribution. Cable jacket is LSOH (white); tensile strength (short-term) 200 N; operating temperature 0–+70°C, storage/working -40–+65°C. Designed for fast, tool-friendly indoor FTTH drop installations and network level 4.
-
BrandDigitus
-
Model / MPNDN-948050-2
-
EAN4016032508816
-
Product TypeFTTX / FTTH pre-assembled installation kit (4-fiber drop)
-
Cable Length50 m
-
Number of Fibers4
-
Fiber TypeSinglemode 9/125 µm, G.657A2 (bend-optimized)
-
Fiber ColorsBlue, Green, Yellow, Red
-
Connector Type (terminated end)LC/APC (duplex) — 4 LC/APC connectors (2x duplex)
-

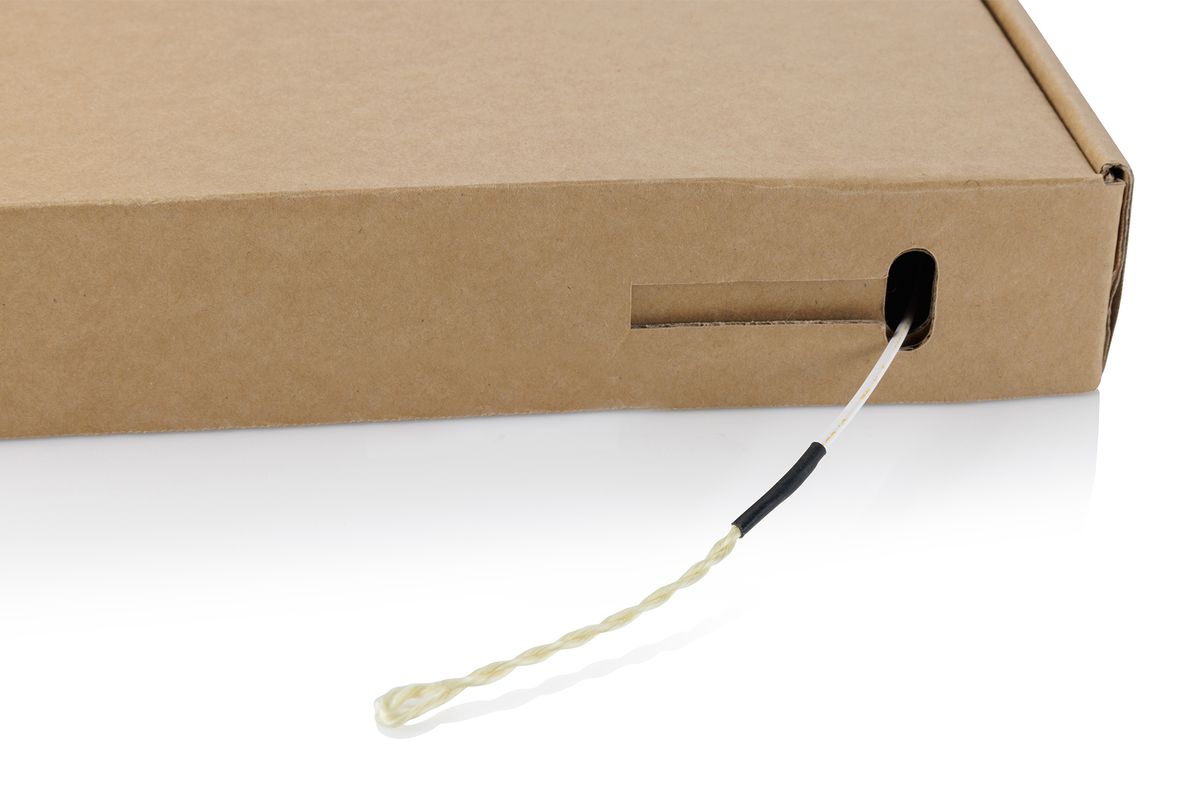

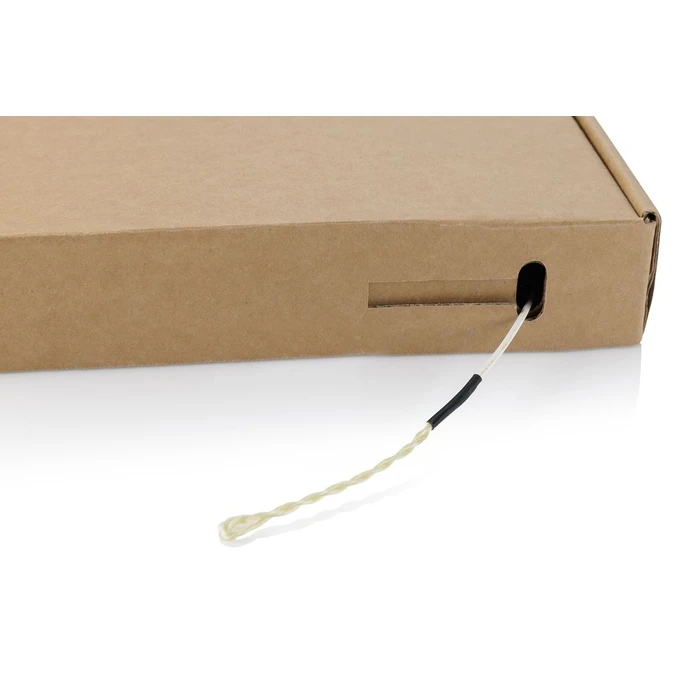

Other Cable EndOpen / unterminated (for pulling into house distribution)
-
Buffer Diameter900 µm (buffered fibers, easily removable)
-
Strain ReliefAramid yarn
-
Outer JacketLSOH (Low Smoke Zero Halogen), white
-
Cable ConstructionI/A-V(Q(ZN)H (manufacturer designation)
-
Short-Term Tensile Strength200 N
-
Operating Temperature0 – +70 °C
-
Working / Storage Temperature-40 – +65 °C
-
Wall Outlet MaterialABS (white)
-
Wall Outlet Dimensions (box)100 × 80 × 30 mm (H×W×D)
-
Wall Outlet Weight (box only)75 g
-
Adapter / Coupler TypeLC-APC duplex couplers with shutter (2× duplex = 4 ports)
-
Shutter / ProtectionIntegrated laser & dust protection (shutters)
-
MountingSurface-mountable; includes screws/mounting accessories
-
Use CaseResidential FTTH drop / network level 4 indoor installations
-
Standards / CompatibilitySinglemode G.657A2 compatible with standard ODF/patching gear
-

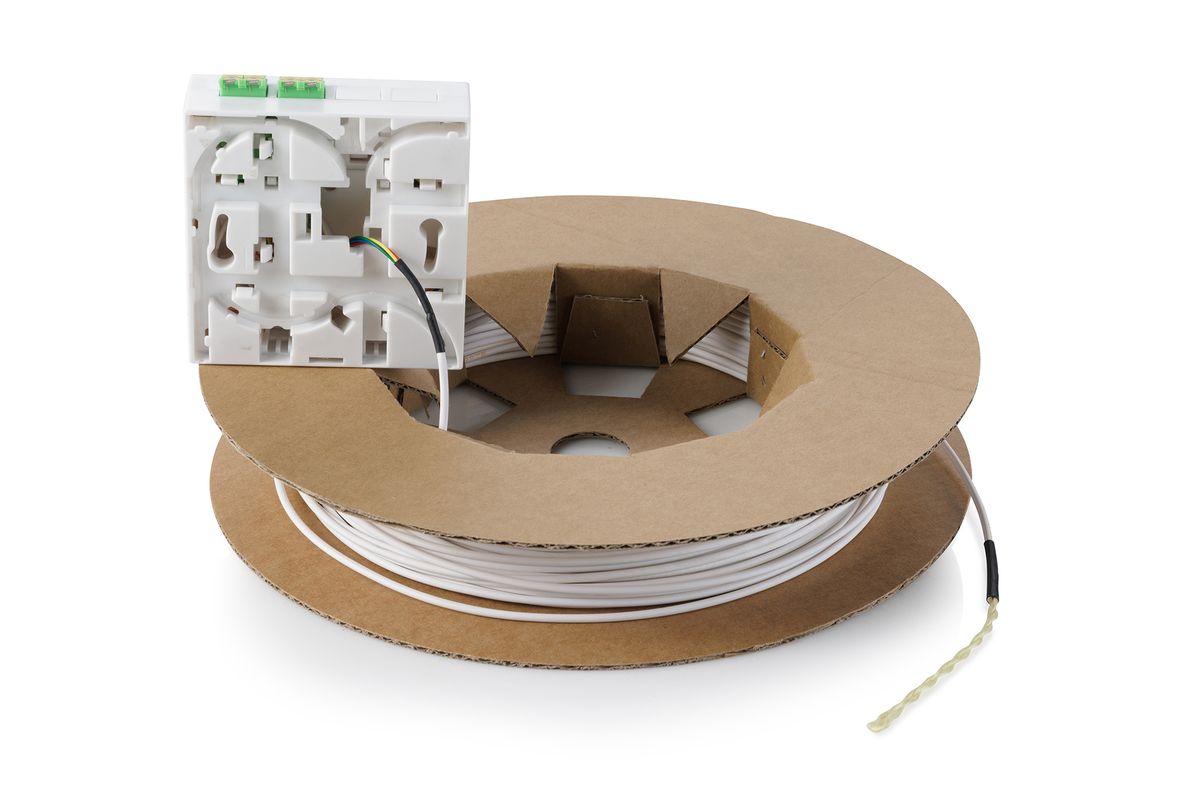

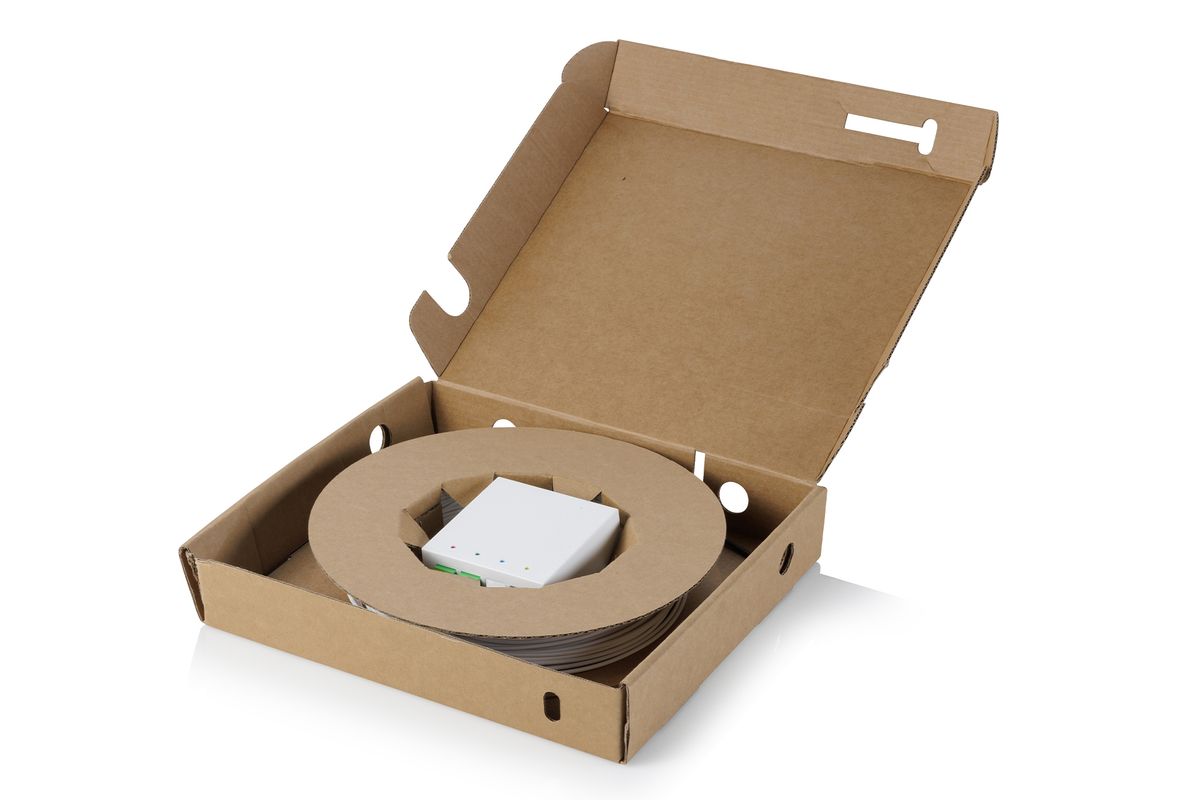

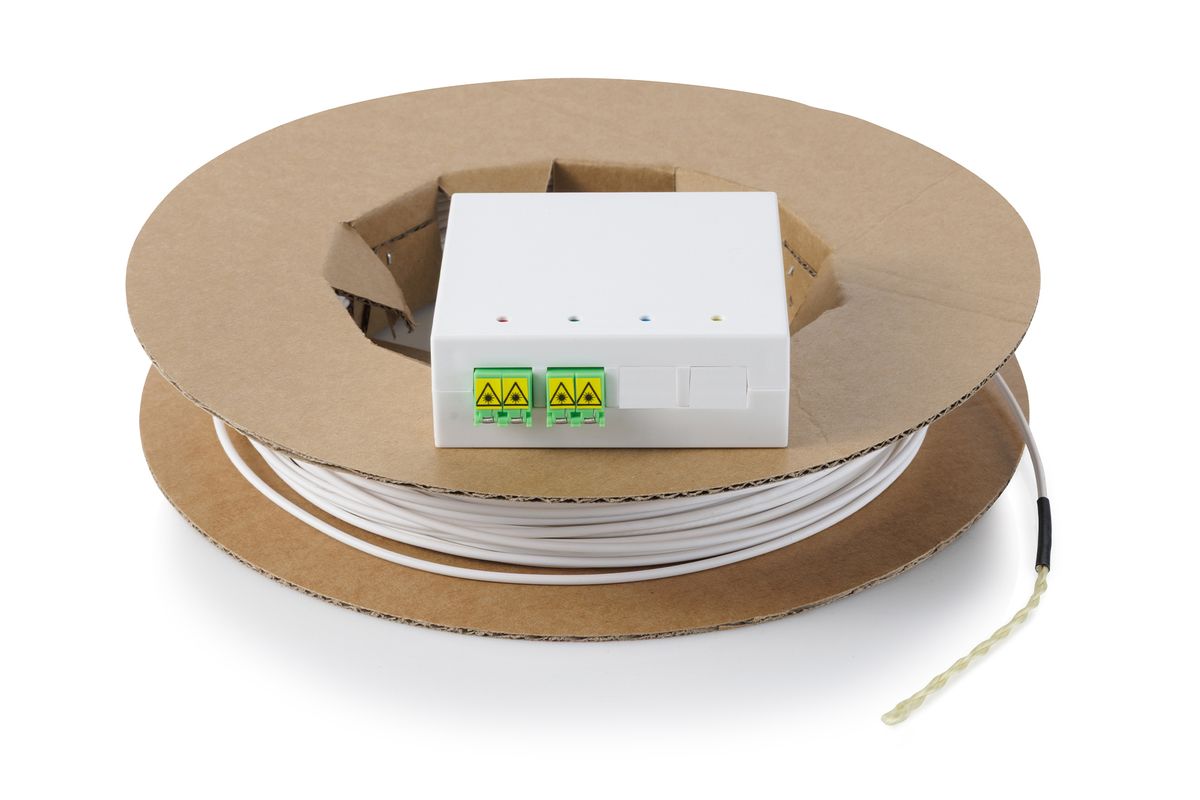

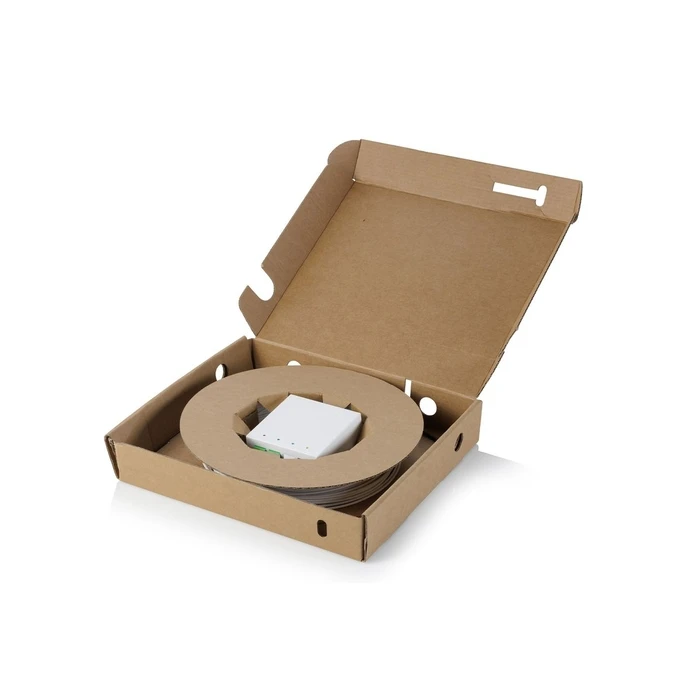

Package ContentsFTTH termination box, 50 m 4-fiber pre-assembled cable, 2× LC-APC duplex couplers with shutters, mounting hardware
-
Box ColorWhite
-
Box MaterialABS
Ratings
Description
Complete pre-assembled FTTX/FTTH installation kit by Digitus (MPN DN-948050-2, EAN 4016032508816). Includes a 50 m pre-assembled 4-fiber singlemode drop cable (G.657A2 bend-optimized, 9/125 µm) terminated on one end with 4 LC/APC connectors (2× LC-APC duplex), a surface-mountable FTTH wall outlet/termination box (ABS, white) with integrated splice/management area, mounting hardware, and protective shutters with laser & dust protection. The other cable end is open/unterminated for pulling into building distribution. Cable jacket is LSOH (white); tensile strength (short-term) 200 N; operating temperature 0–+70°C, storage/working -40–+65°C. Designed for fast, tool-friendly indoor FTTH drop installations and network level 4.
Technical Specifications
-
BrandDigitus
-
Model / MPNDN-948050-2
-
EAN4016032508816
-
Product TypeFTTX / FTTH pre-assembled installation kit (4-fiber drop)
-
Cable Length50 m
-
Number of Fibers4
-
Fiber TypeSinglemode 9/125 µm, G.657A2 (bend-optimized)
-
Fiber ColorsBlue, Green, Yellow, Red
-
Connector Type (terminated end)LC/APC (duplex) — 4 LC/APC connectors (2x duplex)
-
Other Cable EndOpen / unterminated (for pulling into house distribution)
-
Buffer Diameter900 µm (buffered fibers, easily removable)
-
Strain ReliefAramid yarn
-
Outer JacketLSOH (Low Smoke Zero Halogen), white
-
Cable ConstructionI/A-V(Q(ZN)H (manufacturer designation)
-
Short-Term Tensile Strength200 N
-
Operating Temperature0 – +70 °C
-
Working / Storage Temperature-40 – +65 °C
-
Wall Outlet MaterialABS (white)
-
Wall Outlet Dimensions (box)100 × 80 × 30 mm (H×W×D)
-
Wall Outlet Weight (box only)75 g
-
Adapter / Coupler TypeLC-APC duplex couplers with shutter (2× duplex = 4 ports)
-
Shutter / ProtectionIntegrated laser & dust protection (shutters)
-
MountingSurface-mountable; includes screws/mounting accessories
-
Use CaseResidential FTTH drop / network level 4 indoor installations
-
Standards / CompatibilitySinglemode G.657A2 compatible with standard ODF/patching gear
-
Package ContentsFTTH termination box, 50 m 4-fiber pre-assembled cable, 2× LC-APC duplex couplers with shutters, mounting hardware
-
Box ColorWhite
-
Box MaterialABS
