The Digitus DN-PWR-SST-1512 is a compact DIN-rail (TH35) enclosed step power supply ideal for sensors, actuators, IoT devices and small electronics. It delivers 12 V DC at 1.25 A (15 W) with low ripple (120 mVp-p) and tight voltage tolerances (line ±2%, load ±1%). Input range is wide (90–264 V AC /...
More
Digitus DIN-rail Power Supply 12V 1.25A 15W DN-PWR-SST-1512
Product Code: 1156754064
Available in 1 - 3 days
17,39 €
With the purchase of this product you earn 53 Loyalty Points
Quantity:
Add
Need Help? Fill in your details so we can call you immediately!
TBI Bank
Buy Now Pay Later.
4 installments 0% επιτόκιο, 20€ έως 300€
3 to 60 installments 300€ έως 100.00€
- 1. Ship with ACS Courier
- 2. Αποστολές με μεταφορικές εταιρίες για ογκώδη αντικείμενα
-
3. Pickup from BoxNow automated machine:
Με την BoxNow μπορείς να παραλάβεις το δέμα σου από Αυτόματο Μηχάνημα Παραλαβής που βρίσκεται κοντά σου, όλες τις ώρες της ημέρας 24/7. Η υπηρεσία έχει χρέωση 3€. Υπάρχει δυνατότητα αντικαταβολής με επιπλέον χρέωση 1€.
-
4. Pickup from the store:
Leof. El. Venizelou 73 (former Theseos), Kallithea
Συμπληρώστε τον ταχυδρομικό κωδικό για να λάβετε εκτίμηση τρόπου και κόστους μεταφορικών.
The Digitus DN-PWR-SST-1512 is a compact DIN-rail (TH35) enclosed step power supply ideal for sensors, actuators, IoT devices and small electronics. It delivers 12 V DC at 1.25 A (15 W) with low ripple (120 mVp-p) and tight voltage tolerances (line ±2%, load ±1%). Input range is wide (90–264 V AC / 127–370 V DC, 47–63 Hz). Built-in protections include overvoltage protection (14.2–16.2 V), short-circuit and overload protection (hiccup/autorestart), and overcurrent limiting. Efficiency ≈85%. Operating temperature -20 °C to +47 °C; storage -40 °C to +85 °C. Compact dimensions 18 × 90 × 58 mm, weight 78 g, mounting on 35 mm DIN rail. Certified to UL62368-1 and EN62368-1; EMC: EN55032 Class B and immunity EN61000-4-2/3/4/5/6/8/11. Model: DN-PWR-SST-1512, Brand: Digitus, SKU: CS04682, EAN: 4016032508106.
-
Output Voltage12 V DC
-
Output Current1.25 A
-
Output Power15 W
-
Rated Voltage Range10.8–13.8 V
-
Output Ripple (p-p)120 mVp-p
-
Line Regulation±2%
-
Load Regulation (G/M)±1%
-
Load Regulation (Dynamic)±1%
-
Input Voltage90–264 V AC / 127–370 V DC, 47–63 Hz
-
Inrush Current (115 V / 230 V)25 A @115 V / 45 A @230 V
-
AC Fuse Rating0.5 A @115 V / 0.25 A @230 V
-
Efficiency≈85%
-
Overload Capacity110–145% (hiccup mode, auto-recovery)
-
Overvoltage Protection (OVP)14.2–16.2 V
-
Short-circuit / Overcurrent BehaviorYes, with auto-restart (hiccup)
-
Operating Temperature-20 °C to +47 °C
-
Storage Temperature-40 °C to +85 °C
-
Humidity20–90% RH (non-condensing)
-
MTBF> 1,000,000 h (MIL-HDBK-217F)
-
Vibration ResistanceIEC60068-2-6 (10–500 Hz, 2G)
-
Max Operating AltitudeUp to 5000 m
-
Insulation ClassII · Class 2 / LPS
-
ApprovalsUL62368-1, EN62368-1
-
EMC Emission/ImmunityEN55032 Class B / EN61000-4-2/3/4/5/6/8/11
-
Dielectric Strength4 kV AC
-
Dimensions18 × 90 × 58 mm
-
Weight78 g
-

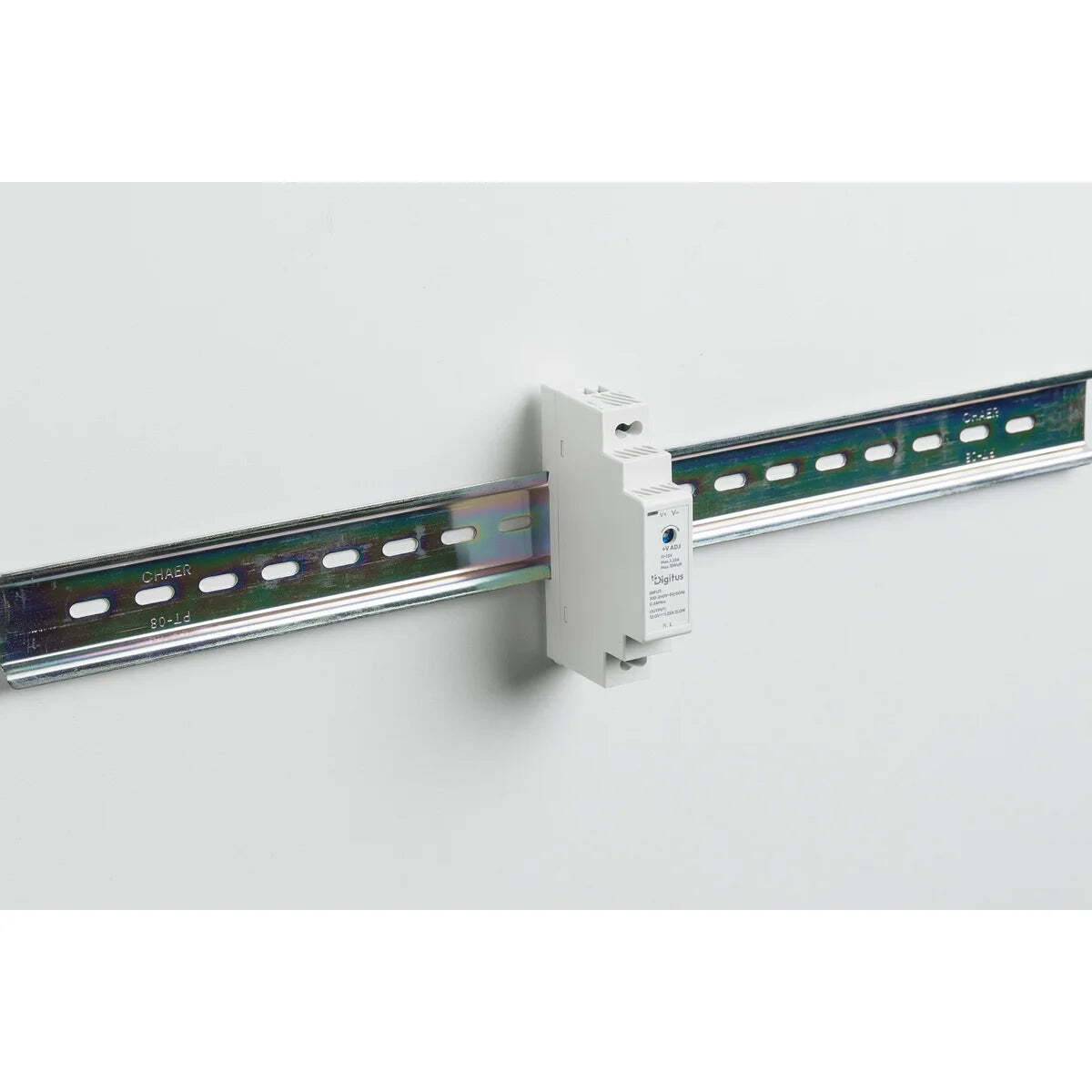

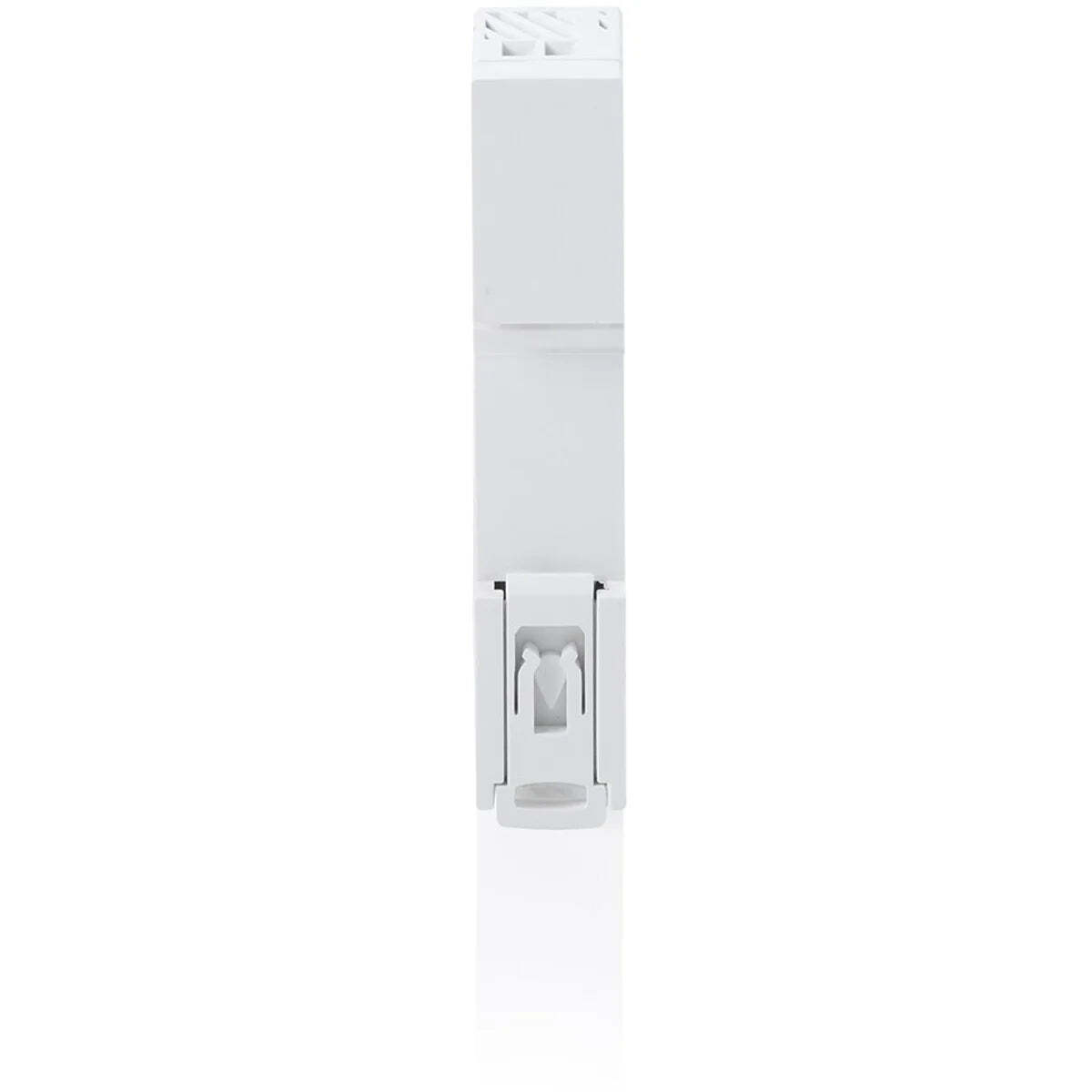

MountingDIN rail TH35
-

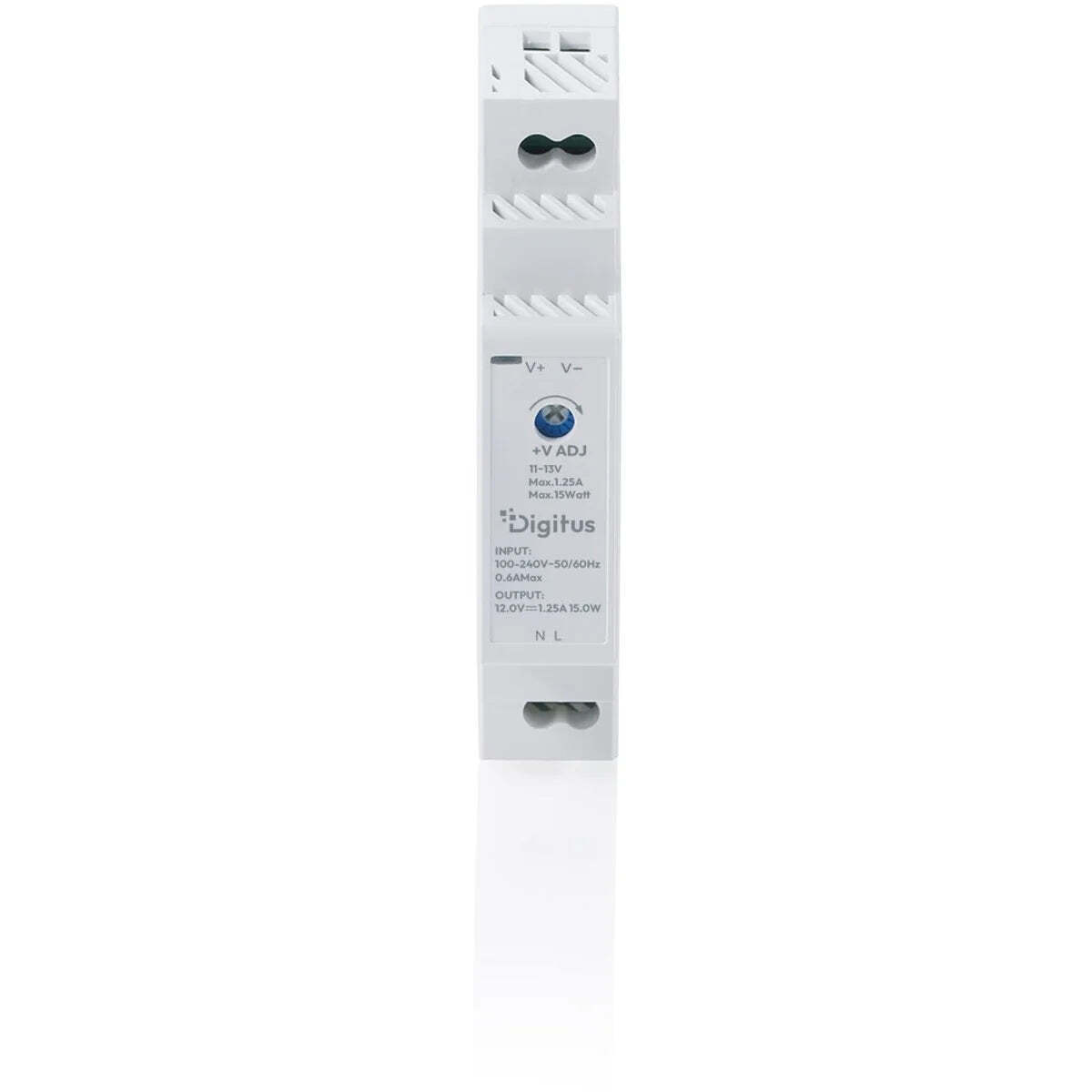

AC TerminalsAC/N (terminal 3), AC/L (terminal 4)
-
DC Terminals+V (1), -V (2)
-
Enclosure TypeEnclosed; ideal for sensors and automation
Ratings
Description
The Digitus DN-PWR-SST-1512 is a compact DIN-rail (TH35) enclosed step power supply ideal for sensors, actuators, IoT devices and small electronics. It delivers 12 V DC at 1.25 A (15 W) with low ripple (120 mVp-p) and tight voltage tolerances (line ±2%, load ±1%). Input range is wide (90–264 V AC / 127–370 V DC, 47–63 Hz). Built-in protections include overvoltage protection (14.2–16.2 V), short-circuit and overload protection (hiccup/autorestart), and overcurrent limiting. Efficiency ≈85%. Operating temperature -20 °C to +47 °C; storage -40 °C to +85 °C. Compact dimensions 18 × 90 × 58 mm, weight 78 g, mounting on 35 mm DIN rail. Certified to UL62368-1 and EN62368-1; EMC: EN55032 Class B and immunity EN61000-4-2/3/4/5/6/8/11. Model: DN-PWR-SST-1512, Brand: Digitus, SKU: CS04682, EAN: 4016032508106.
Technical Specifications
-
Output Voltage12 V DC
-
Output Current1.25 A
-
Output Power15 W
-
Rated Voltage Range10.8–13.8 V
-
Output Ripple (p-p)120 mVp-p
-
Line Regulation±2%
-
Load Regulation (G/M)±1%
-
Load Regulation (Dynamic)±1%
-
Input Voltage90–264 V AC / 127–370 V DC, 47–63 Hz
-
Inrush Current (115 V / 230 V)25 A @115 V / 45 A @230 V
-
AC Fuse Rating0.5 A @115 V / 0.25 A @230 V
-
Efficiency≈85%
-
Overload Capacity110–145% (hiccup mode, auto-recovery)
-
Overvoltage Protection (OVP)14.2–16.2 V
-
Short-circuit / Overcurrent BehaviorYes, with auto-restart (hiccup)
-
Operating Temperature-20 °C to +47 °C
-
Storage Temperature-40 °C to +85 °C
-
Humidity20–90% RH (non-condensing)
-
MTBF> 1,000,000 h (MIL-HDBK-217F)
-
Vibration ResistanceIEC60068-2-6 (10–500 Hz, 2G)
-
Max Operating AltitudeUp to 5000 m
-
Insulation ClassII · Class 2 / LPS
-
ApprovalsUL62368-1, EN62368-1
-
EMC Emission/ImmunityEN55032 Class B / EN61000-4-2/3/4/5/6/8/11
-
Dielectric Strength4 kV AC
-
Dimensions18 × 90 × 58 mm
-
Weight78 g
-
MountingDIN rail TH35
-
AC TerminalsAC/N (terminal 3), AC/L (terminal 4)
-
DC Terminals+V (1), -V (2)
-
Enclosure TypeEnclosed; ideal for sensors and automation
