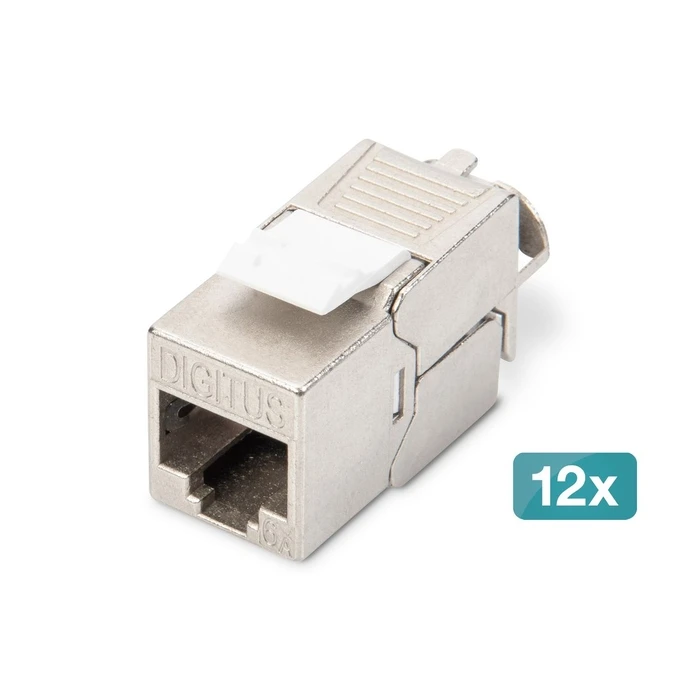

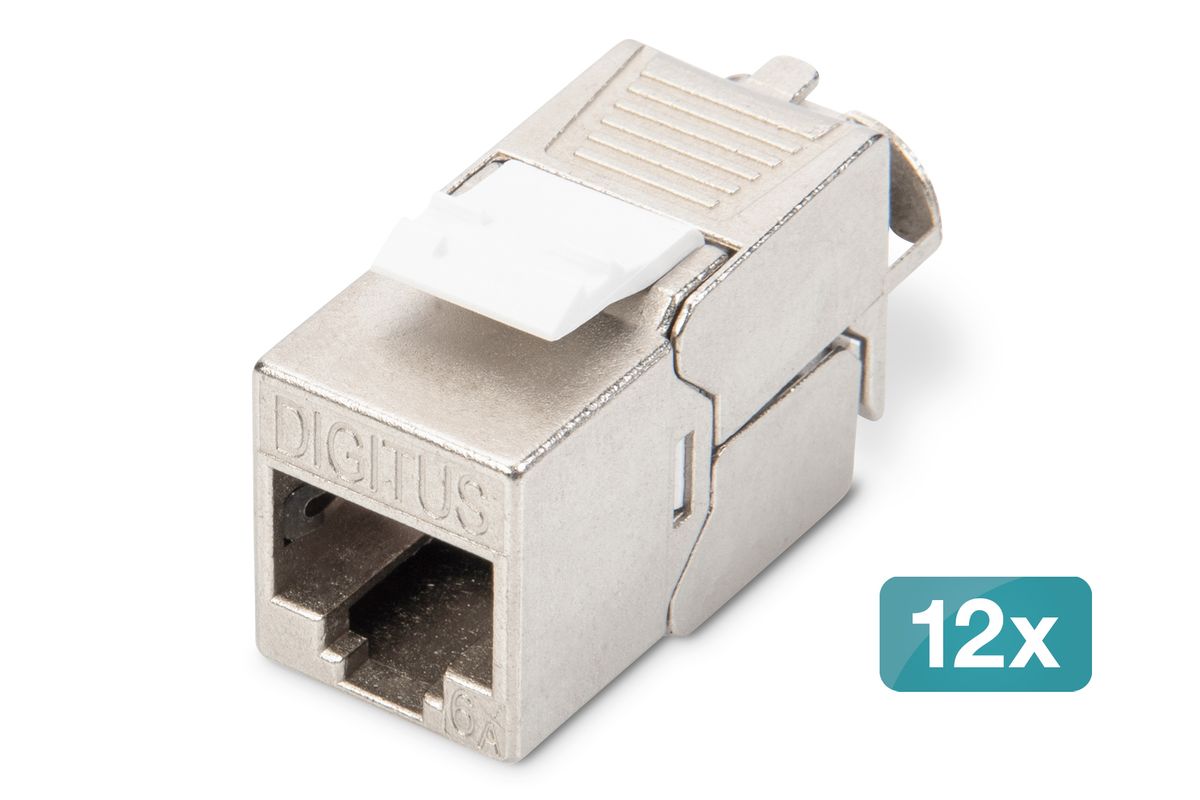

DIGITUS CAT 6A Shielded Tool-Free Keystone Module - 12 pcs (DN-93615-12)

Description

Technical Specifications

• Brand
  Digitus
• MPN
  DN-93615-12
• SKU
  591493
• EAN
  4016032334170
• Product Type
  CAT 6A Shielded Tool-Free Keystone Module
• Pack Quantity
  12 pieces
• Network Standard
  CAT 6A (10GBase-T)
• Frequency
  Up to 500 MHz
• Connector Type
  RJ45 Socket (8P8C)
• Shielding
  360° shield contact (geschirmt)
• Termination
  Tool-free LSA/IDC, color-coded for EIA/TIA 568 A & B
• Cable Compatibility
  AWG 26/7 to 22/1 (stranded & solid); tested with AWG 22/1 solid
• PoE Support
  PoE, PoE+, 4PPoE (IEEE 802.3 af/at/bt)
• Housing Material
  Zinc die-cast, nickel-plated
• Contact Material
  Phosphor bronze; nickel + 0.5 µm gold plating
• Dimensions (HxWxD)
  21.0 × 14.5 × 34.5 mm (per module)
• Weight (per unit)
  19.5 g
• Durability
  ≥750 mating cycles
• Operating Temperature
  -20 °C to +70 °C
• Voltage Rating
  1000 VDC (contact/contact), 1500 VDC (contact/ground)
• Insertion Force
  Max. 30 N
• Tensile (Pull-out) Force
  7.7 kg
• Special Features
  Reusable intelligent cable manager, metal release lever, dust cap included
• Standards & Certification
  ISO/IEC 11801 (3rd ed.), EN 50173-1, ANSI/TIA 568 C.2, GHMT certified
• Mounting Compatibility
  Fits modular junction boxes, 19" 1U panels (series installation)
• Packaging
  Set of 12 keystone modules in retail/package box
