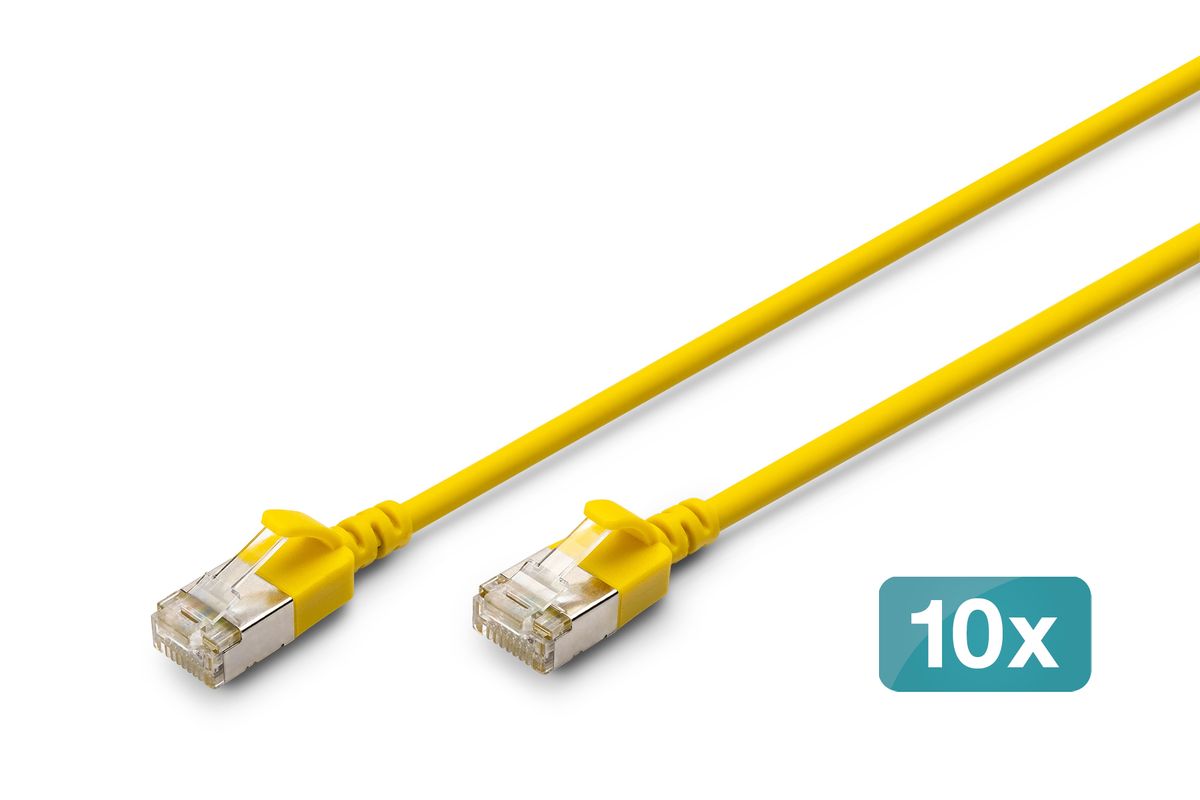

Pack of 10 DIGITUS by ASSMANN CAT 6A F/FTP Slim patch cords, 0.5 m length, yellow. Foil shielded (F/FTP) with individually shielded pairs, stranded bare copper conductors (AWG 32/7), HD-PE insulation and LSZH jacket. Slim 3.8 mm diameter cable designed for high-density installations and...
More
DIGITUS CAT 6A F/FTP Slim patch cord 0.5 m yellow 10-pack (DK-1632-A-005S-Y-10)
Product Code: 1117728638
Available in 1 - 3 days
26,77 €
With the purchase of this product you earn 81 Bytes
Quantity:
Add
Need Help? Fill in your details so we can call you immediately!
TBI Bank
Buy Now Pay Later.
4 installments 0% επιτόκιο, 20€ έως 300€
3 to 60 installments 300€ έως 100.00€
- 1. Ship with ACS Courier
- 2. Αποστολές με μεταφορικές εταιρίες για ογκώδη αντικείμενα
-
3. Pickup from BoxNow automated machine:
Με την BoxNow μπορείς να παραλάβεις το δέμα σου από Αυτόματο Μηχάνημα Παραλαβής που βρίσκεται κοντά σου, όλες τις ώρες της ημέρας 24/7. Η υπηρεσία έχει χρέωση 3€. Υπάρχει δυνατότητα αντικαταβολής με επιπλέον χρέωση 1€.
-
4. Pickup from the store:
Leof. El. Venizelou 73 (former Theseos), Kallithea
Συμπληρώστε τον ταχυδρομικό κωδικό για να λάβετε εκτίμηση τρόπου και κόστους μεταφορικών.
Pack of 10 DIGITUS by ASSMANN CAT 6A F/FTP Slim patch cords, 0.5 m length, yellow. Foil shielded (F/FTP) with individually shielded pairs, stranded bare copper conductors (AWG 32/7), HD-PE insulation and LSZH jacket. Slim 3.8 mm diameter cable designed for high-density installations and datacenters. Rated for 10 Gbit/s up to 500 MHz, PoE+ capable. RJ45 plugs, EIA/TIA 568B wiring, 1:1 pin assignment, compliant to ISO/IEC 11801-1, EN 50173 and ANSI/TIA-568-C.
-
BrandDIGITUS by ASSMANN
-
Model / SKUDK-1632-A-005S-Y-10
-
EAN / Barcode4016032504399
-
MPNDK-1632-A-005S-Y-10
-
Cable categoryCAT 6A
-
ShieldingF/FTP (overall foil + individually foil-shielded pairs)
-
Length0.5 m
-
ColorYellow
-
Pack size10 pieces
-
Conductor materialBare copper (Cu)
-
Conductor constructionAWG 32/7 stranded
-
Conductor diameter0.12 mm ±0.005 mm
-
Insulation materialHD-PE
-
Jacket materialLSZH (Low Smoke Zero Halogen)
-
Cable outer diameter3.8 mm ±0.15 mm
-
Slim versionYes
-
Flat versionNo
-
Transmission speed10 Gbit/s
-
Frequency rating500 MHz
-
PoE supportPoE+ ready
-
Plug typeRJ45 plug
-
Wiring standardEIA/TIA 568B
-
Pin assignment1:1
-
Bending radius15 x outer diameter
-
Operating temperature range-20 °C to +60 °C
-
Flame retardancyIEC 60332-1
-
Smoke emissionIEC 61034
-
Dielectric strengthAC 500 V for 1 minute (no breakdown)
-
Mating cycles / service life750 mating cycles
-
Pair color codeOrange/white, Green/white, Blue/white, Brown/white
-
PackagingDIGITUS polybag
-
Standards and complianceISO/IEC 11801-1; EN 50173; ANSI/TIA-568-C; EN 60603-7-4
Ratings
Description
Pack of 10 DIGITUS by ASSMANN CAT 6A F/FTP Slim patch cords, 0.5 m length, yellow. Foil shielded (F/FTP) with individually shielded pairs, stranded bare copper conductors (AWG 32/7), HD-PE insulation and LSZH jacket. Slim 3.8 mm diameter cable designed for high-density installations and datacenters. Rated for 10 Gbit/s up to 500 MHz, PoE+ capable. RJ45 plugs, EIA/TIA 568B wiring, 1:1 pin assignment, compliant to ISO/IEC 11801-1, EN 50173 and ANSI/TIA-568-C.
Technical Specifications
-
BrandDIGITUS by ASSMANN
-
Model / SKUDK-1632-A-005S-Y-10
-
EAN / Barcode4016032504399
-
MPNDK-1632-A-005S-Y-10
-
Cable categoryCAT 6A
-
ShieldingF/FTP (overall foil + individually foil-shielded pairs)
-
Length0.5 m
-
ColorYellow
-
Pack size10 pieces
-
Conductor materialBare copper (Cu)
-
Conductor constructionAWG 32/7 stranded
-
Conductor diameter0.12 mm ±0.005 mm
-
Insulation materialHD-PE
-
Jacket materialLSZH (Low Smoke Zero Halogen)
-
Cable outer diameter3.8 mm ±0.15 mm
-
Slim versionYes
-
Flat versionNo
-
Transmission speed10 Gbit/s
-
Frequency rating500 MHz
-
PoE supportPoE+ ready
-
Plug typeRJ45 plug
-
Wiring standardEIA/TIA 568B
-
Pin assignment1:1
-
Bending radius15 x outer diameter
-
Operating temperature range-20 °C to +60 °C
-
Flame retardancyIEC 60332-1
-
Smoke emissionIEC 61034
-
Dielectric strengthAC 500 V for 1 minute (no breakdown)
-
Mating cycles / service life750 mating cycles
-
Pair color codeOrange/white, Green/white, Blue/white, Brown/white
-
PackagingDIGITUS polybag
-
Standards and complianceISO/IEC 11801-1; EN 50173; ANSI/TIA-568-C; EN 60603-7-4
