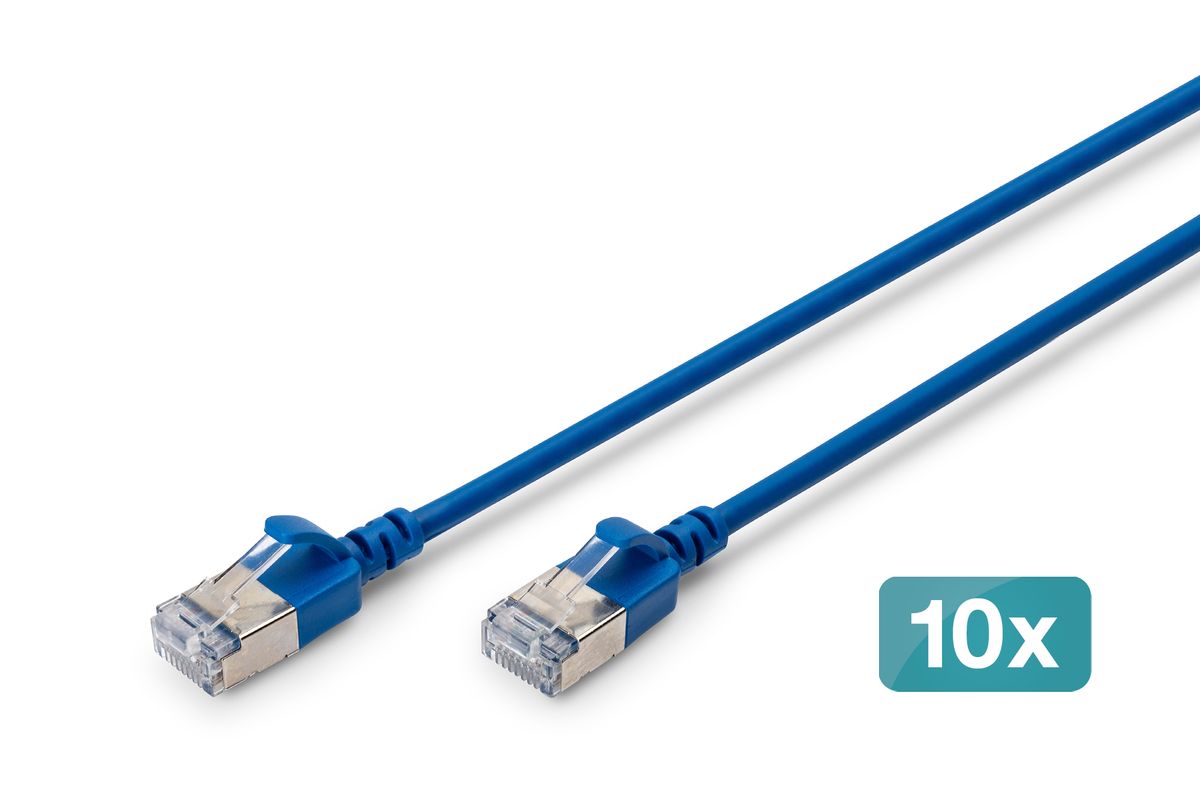

Set of 10 DIGITUS slim shielded CAT 6A (F-FTP) patch cables, 1.5 m length, blue. Stranded copper conductors (AWG 32/7), F-FTP shielding (foil overall + foil around pairs), LSOH/LSZH outer jacket, outer diameter 3.8 mm ±0.15 mm. Rated to 500 MHz and up to 10 Gbit/s. Suitable for...
More
DIGITUS CAT 6A F-FTP Slim Patch Cable 1.5 m Blue - 10 Pack (DK-1632-A-015S-B-10) - SKU 601069
Product Code: 1117728649
Available in 1 - 3 days
43,63 €
or
1,36€ / month
εως 36 δόσεις με πιστωτική κάρτα
With the purchase of this product you earn 131 Bytes
Quantity:
Add
Need Help? Fill in your details so we can call you immediately!
Έως 36 Δόσεις. Δείτε το πλάνο δόσεων:
TBI Bank
Buy Now Pay Later.
4 installments 0% επιτόκιο, 20€ έως 300€
3 to 60 installments 300€ έως 100.00€
- 1. Ship with ACS Courier
- 2. Αποστολές με μεταφορικές εταιρίες για ογκώδη αντικείμενα
-
3. Pickup from BoxNow automated machine:
Με την BoxNow μπορείς να παραλάβεις το δέμα σου από Αυτόματο Μηχάνημα Παραλαβής που βρίσκεται κοντά σου, όλες τις ώρες της ημέρας 24/7. Η υπηρεσία έχει χρέωση 3€. Υπάρχει δυνατότητα αντικαταβολής με επιπλέον χρέωση 1€.
-
4. Pickup from the store:
Leof. El. Venizelou 73 (former Theseos), Kallithea
Συμπληρώστε τον ταχυδρομικό κωδικό για να λάβετε εκτίμηση τρόπου και κόστους μεταφορικών.

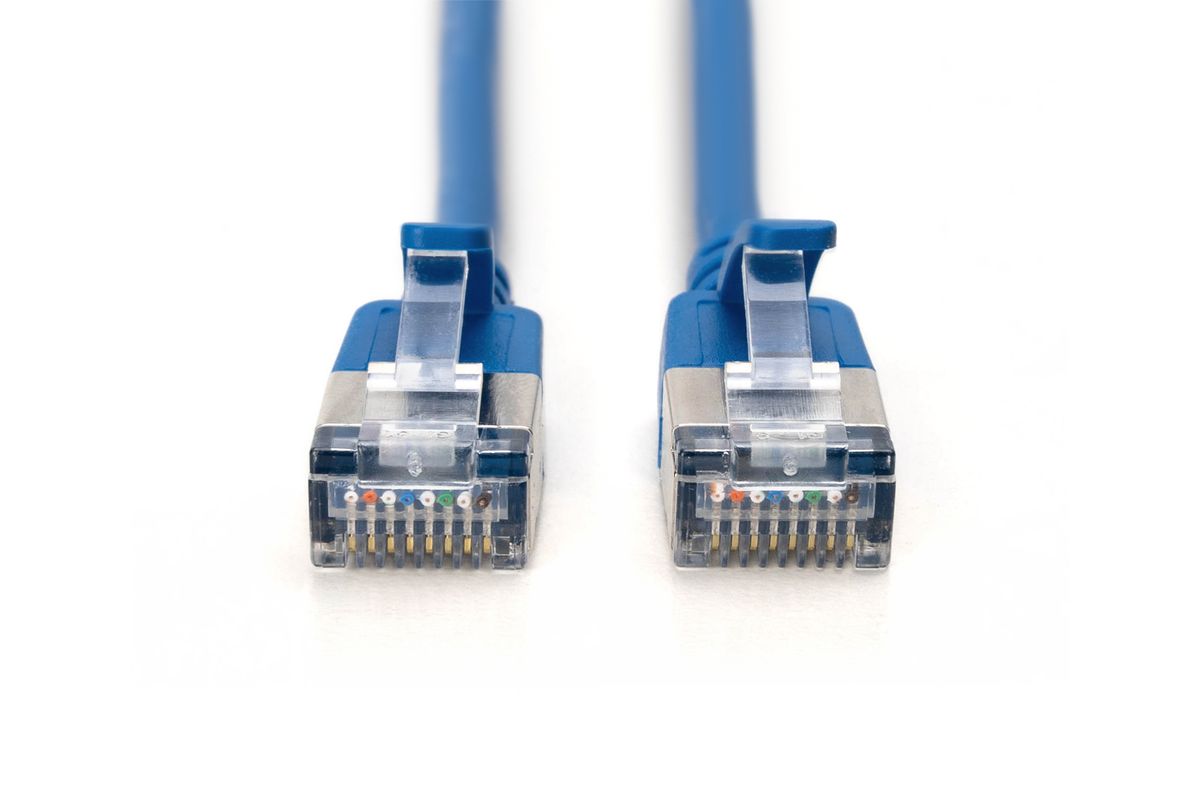

Set of 10 DIGITUS slim shielded CAT 6A (F-FTP) patch cables, 1.5 m length, blue. Stranded copper conductors (AWG 32/7), F-FTP shielding (foil overall + foil around pairs), LSOH/LSZH outer jacket, outer diameter 3.8 mm ±0.15 mm. Rated to 500 MHz and up to 10 Gbit/s. Suitable for 10BASE-T/100BASE-T/1000BASE-T/10GBASE-T and compliant with ISO/IEC 11801-1, EN 50173, ANSI/TIA 568-C. RJ45 connectors on both ends with 1:1 pin assignment (EIA/TIA 568B). Packaged in DIGITUS polybag (10 pcs).
-
BrandDIGITUS / ASSMANN
-
Model / MPNDK-1632-A-015S-B-10
-
SKU / Article number601069
-
EAN4016032504474
-
CategoryCAT 6A patch cable
-
ShieldingF-FTP (foil overall + foil-shielded pairs)
-
Length1.5 m
-
ColorBlue
-
Pack size10 pieces
-
Connector typeRJ45 plug - RJ45 plug
-
Pin assignment1:1 (EIA/TIA 568B)
-
Conductor materialCopper (Cu), stranded AWG 32/7
-
Outer jacketLSZH / LSOH (low smoke zero halogen)
-
Outer diameter3.8 mm ± 0.15 mm
-
Bending radius15 × outer diameter
-
Frequency rating500 MHz
-
Maximum data rateUp to 10 Gbit/s
-
Typical applications10BASE-T, 100BASE-T, 1000BASE-T, 10GBASE-T
-
StandardsISO/IEC 11801-1; EN 50173; ANSI/TIA 568-C; EN 60603-7-4
-
Flame retardancyIEC 60332-1
-
Smoke emissionIEC 61034
-
Dielectric strengthAC 500 V for 1 minute (no breakdown)
-
Contact resistancemax 376.96 Ω/km at 20 °C
-
Imbalance of resistancemax 3%
-
Service lifeApprox. 750 mating cycles
-
Operating temperature range-20 °C to +60 °C
-
PackagingDIGITUS polybag (10 cables)
-
Slim designYes (reduced outer diameter for denser cable management)
-
PoE suitabilitySuitable for PoE / PoE+ (as per related product listings)
Ratings
Description
Set of 10 DIGITUS slim shielded CAT 6A (F-FTP) patch cables, 1.5 m length, blue. Stranded copper conductors (AWG 32/7), F-FTP shielding (foil overall + foil around pairs), LSOH/LSZH outer jacket, outer diameter 3.8 mm ±0.15 mm. Rated to 500 MHz and up to 10 Gbit/s. Suitable for 10BASE-T/100BASE-T/1000BASE-T/10GBASE-T and compliant with ISO/IEC 11801-1, EN 50173, ANSI/TIA 568-C. RJ45 connectors on both ends with 1:1 pin assignment (EIA/TIA 568B). Packaged in DIGITUS polybag (10 pcs).
Technical Specifications
-
BrandDIGITUS / ASSMANN
-
Model / MPNDK-1632-A-015S-B-10
-
SKU / Article number601069
-
EAN4016032504474
-
CategoryCAT 6A patch cable
-
ShieldingF-FTP (foil overall + foil-shielded pairs)
-
Length1.5 m
-
ColorBlue
-
Pack size10 pieces
-
Connector typeRJ45 plug - RJ45 plug
-
Pin assignment1:1 (EIA/TIA 568B)
-
Conductor materialCopper (Cu), stranded AWG 32/7
-
Outer jacketLSZH / LSOH (low smoke zero halogen)
-
Outer diameter3.8 mm ± 0.15 mm
-
Bending radius15 × outer diameter
-
Frequency rating500 MHz
-
Maximum data rateUp to 10 Gbit/s
-
Typical applications10BASE-T, 100BASE-T, 1000BASE-T, 10GBASE-T
-
StandardsISO/IEC 11801-1; EN 50173; ANSI/TIA 568-C; EN 60603-7-4
-
Flame retardancyIEC 60332-1
-
Smoke emissionIEC 61034
-
Dielectric strengthAC 500 V for 1 minute (no breakdown)
-
Contact resistancemax 376.96 Ω/km at 20 °C
-
Imbalance of resistancemax 3%
-
Service lifeApprox. 750 mating cycles
-
Operating temperature range-20 °C to +60 °C
-
PackagingDIGITUS polybag (10 cables)
-
Slim designYes (reduced outer diameter for denser cable management)
-
PoE suitabilitySuitable for PoE / PoE+ (as per related product listings)
