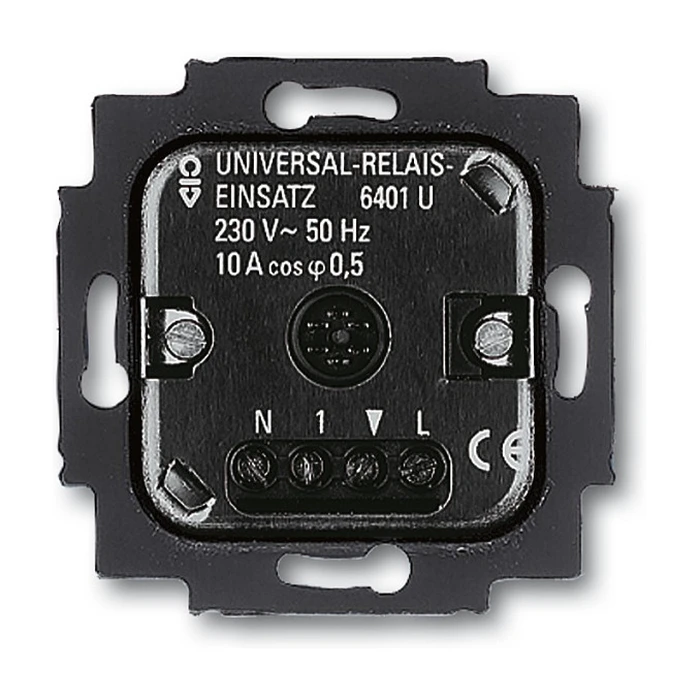

Διακόπτης Τοίχου Busch-Jaeger Insert - Universal Relay Insert - Flush-mounted (UP)
εως 36 δόσεις με πιστωτική κάρτα
Need Help? Fill in your details so we can call you immediately!
Έως 36 Δόσεις. Δείτε το πλάνο δόσεων:
TBI Bank
Buy Now Pay Later.
4 installments 0% επιτόκιο, 20€ έως 300€
3 to 60 installments 300€ έως 100.00€
- 1. Ship with ACS Courier
- 2. Αποστολές με μεταφορικές εταιρίες για ογκώδη αντικείμενα
-
3. Pickup from BoxNow automated machine:
Με την BoxNow μπορείς να παραλάβεις το δέμα σου από Αυτόματο Μηχάνημα Παραλαβής που βρίσκεται κοντά σου, όλες τις ώρες της ημέρας 24/7. Η υπηρεσία έχει χρέωση 3€. Υπάρχει δυνατότητα αντικαταβολής με επιπλέον χρέωση 1€.
-
4. Pickup from the store:
Leof. El. Venizelou 73 (former Theseos), Kallithea
Συμπληρώστε τον ταχυδρομικό κωδικό για να λάβετε εκτίμηση τρόπου και κόστους μεταφορικών.
Related Products
Διακόπτης Merten 536302 flush-mounted room temperature controller insert, off switch BASE
Διακόπτης GIRA 367403 rocker control f. + Symb. Light System 55 ReinWhite
The Busch-Jaeger Universal-Relais-Einsatz (model 6401 U-102) is an underplaster relay insert that seamlessly integrates into standard electrical installation boxes. It offers universal load control compatible with various Busch motion sensors and control elements.
Key Features:
- Universal functionality: Operates as a motion sensor relay, infrared switch, or impulse relay depending on the control element used.
- Compatible Components: Works with Busch motion sensors, pushbuttons, comfort timers, and infrared control elements.
- Installation Type: Designed for underplaster installation, ensuring a clean and professional finish.
Technical Specifications:
| Rated Voltage | 230 V ~ ±10%, 50 Hz |
| Power Consumption | < 1 W max. |
| Switching Voltage | 250 V ~ |
| Max Switching Power | 2300 W / VA |
| Rated Current | 10 A |
| Load Types | Universal and LED retrofit |
-
Rated Voltage230 V ~ ±10%, 50 Hz
-
Power Consumption< 1 W max.
-
Switching Voltage250 V ~
-
Max Switching Power2300 W / VA
-
Rated Current10 A
-
Load TypesUniversal and LED retrofit
-
Connection Type3-wire technology
-
MaterialBlack thermoplastic (RAL 9005)
-
Minimum Installation Box Depth32 mm
-
Maximum Buzzing Voltage at Secondary Connection100 V at 100 m cable length
-
Temperature Range0°C to +35°C
-
Protection ClassIP 20
-
Number of Channels1
Ratings
Description
The Busch-Jaeger Universal-Relais-Einsatz (model 6401 U-102) is an underplaster relay insert that seamlessly integrates into standard electrical installation boxes. It offers universal load control compatible with various Busch motion sensors and control elements.
Key Features:
- Universal functionality: Operates as a motion sensor relay, infrared switch, or impulse relay depending on the control element used.
- Compatible Components: Works with Busch motion sensors, pushbuttons, comfort timers, and infrared control elements.
- Installation Type: Designed for underplaster installation, ensuring a clean and professional finish.
Technical Specifications:
| Rated Voltage | 230 V ~ ±10%, 50 Hz |
| Power Consumption | < 1 W max. |
| Switching Voltage | 250 V ~ |
| Max Switching Power | 2300 W / VA |
| Rated Current | 10 A |
| Load Types | Universal and LED retrofit |
Technical Specifications
-
Rated Voltage230 V ~ ±10%, 50 Hz
-
Power Consumption< 1 W max.
-
Switching Voltage250 V ~
-
Max Switching Power2300 W / VA
-
Rated Current10 A
-
Load TypesUniversal and LED retrofit
-
Connection Type3-wire technology
-
MaterialBlack thermoplastic (RAL 9005)
-
Minimum Installation Box Depth32 mm
-
Maximum Buzzing Voltage at Secondary Connection100 V at 100 m cable length
-
Temperature Range0°C to +35°C
-
Protection ClassIP 20
-
Number of Channels1
