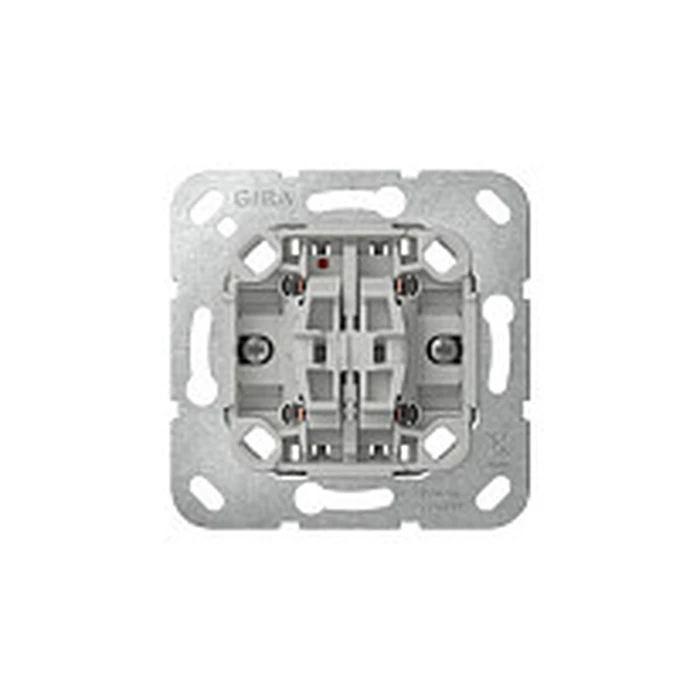

Διακόπτης GIRA 315900 Rocker switch switch insert
εως 36 δόσεις με πιστωτική κάρτα
Need Help? Fill in your details so we can call you immediately!
Έως 36 Δόσεις. Δείτε το πλάνο δόσεων:
TBI Bank
Buy Now Pay Later.
4 installments 0% επιτόκιο, 20€ έως 300€
3 to 60 installments 300€ έως 100.00€
- 1. Ship with ACS Courier
- 2. Αποστολές με μεταφορικές εταιρίες για ογκώδη αντικείμενα
-
3. Pickup from BoxNow automated machine:
Με την BoxNow μπορείς να παραλάβεις το δέμα σου από Αυτόματο Μηχάνημα Παραλαβής που βρίσκεται κοντά σου, όλες τις ώρες της ημέρας 24/7. Η υπηρεσία έχει χρέωση 3€. Υπάρχει δυνατότητα αντικαταβολής με επιπλέον χρέωση 1€.
-
4. Pickup from the store:
Leof. El. Venizelou 73 (former Theseos), Kallithea
Συμπληρώστε τον ταχυδρομικό κωδικό για να λάβετε εκτίμηση τρόπου και κόστους μεταφορικών.
Related Products
Διακόπτης Merten 536302 flush-mounted room temperature controller insert, off switch BASE
Διακόπτης GIRA 367403 rocker control f. + Symb. Light System 55 ReinWhite
The GIRA 315900 Wipp-Jal.schalter Einsatz is an innovative flush-mounted base element for a single-pole rocker blind switch (Jalousieschalter), rated at 10 A / 250 V~. This product is specifically designed for controlling blinds effectively and includes essential features that ensure safe operation.
Key Features:
- Interlocking mechanism: Features a lock against double-sided switching; both electrically and mechanically interlocked for added safety.
- Rocker design: Equipped with a floating switching rocker for automatic, precise positioning within the cover frame; includes 2 rocker buttons.
- Installation efficiencies: Uniform stripping length of 11 mm supports rigid and flexible conductors up to 2.5 mm²; accessible release levers for ease of installation.
- Lighting: Comes with standard front-insertable LED illumination elements and offers a 180° rotation between control and permanent lighting.
- Base material: Constructed from break-resistant thermoplastic material.
- Compatibility note: Suitable as a secondary station for blind control inserts with secondary input.
This insert is part of Gira's standard range, optimized for reliable and efficient electrical installation without smart features.
-
Rated current10 A
-
Rated voltage250 V~
-
Mounting typeFlush (Unterputz)
-
AssemblyBase element
-
OperationRocker (Wippe)
-
Poles1-pole switch
-
ConnectionPush terminals (Steckklemme); up to 2.5 mm² rigid/flexible
-
FasteningClaw/screw
-
IP ratingIP20
-
Modules1 (modular)
-
MaterialOther (thermoplast); not halogen-free
-
Mechanical operationYes; not electronic
-
Blinds/rollers/awningsNo dedicated support listed
-
Smart homeNo (not HomeKit/Google/Alexa/IFTTT)
-
Installation depth32 mm
Ratings
Description
The GIRA 315900 Wipp-Jal.schalter Einsatz is an innovative flush-mounted base element for a single-pole rocker blind switch (Jalousieschalter), rated at 10 A / 250 V~. This product is specifically designed for controlling blinds effectively and includes essential features that ensure safe operation.
Key Features:
- Interlocking mechanism: Features a lock against double-sided switching; both electrically and mechanically interlocked for added safety.
- Rocker design: Equipped with a floating switching rocker for automatic, precise positioning within the cover frame; includes 2 rocker buttons.
- Installation efficiencies: Uniform stripping length of 11 mm supports rigid and flexible conductors up to 2.5 mm²; accessible release levers for ease of installation.
- Lighting: Comes with standard front-insertable LED illumination elements and offers a 180° rotation between control and permanent lighting.
- Base material: Constructed from break-resistant thermoplastic material.
- Compatibility note: Suitable as a secondary station for blind control inserts with secondary input.
This insert is part of Gira's standard range, optimized for reliable and efficient electrical installation without smart features.
Technical Specifications
-
Rated current10 A
-
Rated voltage250 V~
-
Mounting typeFlush (Unterputz)
-
AssemblyBase element
-
OperationRocker (Wippe)
-
Poles1-pole switch
-
ConnectionPush terminals (Steckklemme); up to 2.5 mm² rigid/flexible
-
FasteningClaw/screw
-
IP ratingIP20
-
Modules1 (modular)
-
MaterialOther (thermoplast); not halogen-free
-
Mechanical operationYes; not electronic
-
Blinds/rollers/awningsNo dedicated support listed
-
Smart homeNo (not HomeKit/Google/Alexa/IFTTT)
-
Installation depth32 mm
