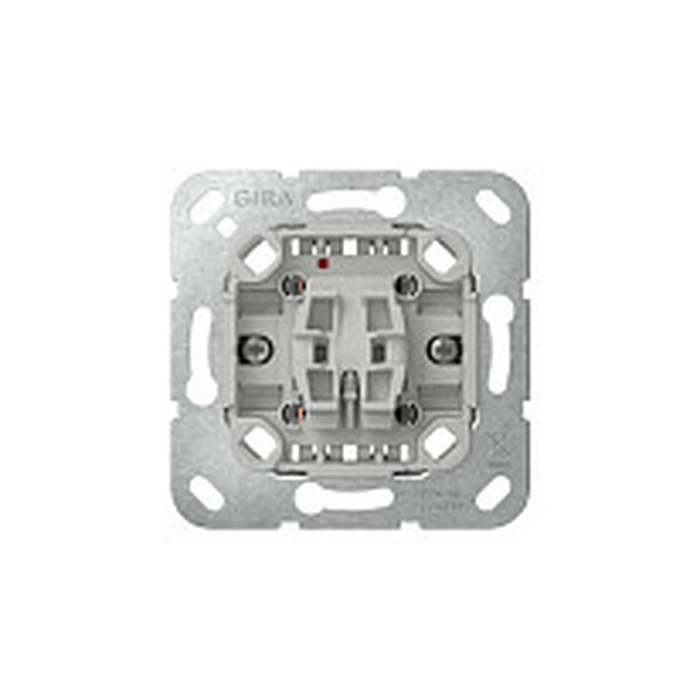

Διακόπτης GIRA 315100 rocker switch closer insert
Need Help? Fill in your details so we can call you immediately!
TBI Bank
Buy Now Pay Later.
4 installments 0% επιτόκιο, 20€ έως 300€
3 to 60 installments 300€ έως 100.00€
- 1. Ship with ACS Courier
- 2. Αποστολές με μεταφορικές εταιρίες για ογκώδη αντικείμενα
-
3. Pickup from BoxNow automated machine:
Με την BoxNow μπορείς να παραλάβεις το δέμα σου από Αυτόματο Μηχάνημα Παραλαβής που βρίσκεται κοντά σου, όλες τις ώρες της ημέρας 24/7. Η υπηρεσία έχει χρέωση 3€. Υπάρχει δυνατότητα αντικαταβολής με επιπλέον χρέωση 1€.
-
4. Pickup from the store:
Leof. El. Venizelou 73 (former Theseos), Kallithea
Συμπληρώστε τον ταχυδρομικό κωδικό για να λάβετε εκτίμηση τρόπου και κόστους μεταφορικών.
Related Products
Διακόπτης Merten 536302 flush-mounted room temperature controller insert, off switch BASE
Διακόπτης GIRA 367403 rocker control f. + Symb. Light System 55 ReinWhite
The GIRA 315100 Wipptaster Schließer Einsatz is a high-quality 1-pole flush-mounted rocker switch insert designed for enhanced functionality in electrical installations. Rated at 10 A / 250 V~, this switch insert is compatible with various GIRA series including Standard 55, E2, and Event.
### Key Features
- Floating switch rocker: Ensures automatic and precise positioning within the cover frame for smooth operation.
- Quick claw fastening: Requires only 3.5 turns per claw for easy installation.
- Steckklemme connections: Supports rigid and flexible conductors up to 2.5 mm².
- Voltage testing: Features front-accessible testing points and robust release levers.
- IP20 protection: Ideal for indoor use with break-resistant thermoplastic base.
This insert does not include a signal lamp or feedback contact, focusing purely on essential functionality.
### Technical Specifications
| Rated Current/Voltage | 10 A / 250 V~ |
| Poles | 1-pole |
| Mounting Type | Flush-mounted |
| Installation Depth | 32 mm |
| Dimensions | 70.9 mm (Width) x 70.9 mm (Height) x 41.8 mm (Depth) |
| Weight | 60 g |
-
Rated Current/Voltage10 A / 250 V~
-
Poles1-polig
-
Mounting TypeFlush-mounted
-
Installation Depth32 mm
-
Weight60 g
-
Conductor Cross-Sectionup to 2.5 mm²
-
CompatibilityNot compatible with pre-August 2024 GIRA switches
Ratings
Description
The GIRA 315100 Wipptaster Schließer Einsatz is a high-quality 1-pole flush-mounted rocker switch insert designed for enhanced functionality in electrical installations. Rated at 10 A / 250 V~, this switch insert is compatible with various GIRA series including Standard 55, E2, and Event.
### Key Features
- Floating switch rocker: Ensures automatic and precise positioning within the cover frame for smooth operation.
- Quick claw fastening: Requires only 3.5 turns per claw for easy installation.
- Steckklemme connections: Supports rigid and flexible conductors up to 2.5 mm².
- Voltage testing: Features front-accessible testing points and robust release levers.
- IP20 protection: Ideal for indoor use with break-resistant thermoplastic base.
This insert does not include a signal lamp or feedback contact, focusing purely on essential functionality.
### Technical Specifications
| Rated Current/Voltage | 10 A / 250 V~ |
| Poles | 1-pole |
| Mounting Type | Flush-mounted |
| Installation Depth | 32 mm |
| Dimensions | 70.9 mm (Width) x 70.9 mm (Height) x 41.8 mm (Depth) |
| Weight | 60 g |
Technical Specifications
-
Rated Current/Voltage10 A / 250 V~
-
Poles1-polig
-
Mounting TypeFlush-mounted
-
Installation Depth32 mm
-
Weight60 g
-
Conductor Cross-Sectionup to 2.5 mm²
-
CompatibilityNot compatible with pre-August 2024 GIRA switches
