DELOCK serial RS-232 cable (Model 87838, SKU 513472) — 2 m long, female D-Sub9 to female D-Sub9, with power connection on pin 9. Intended for POS systems, printers, barcode scanners and other serial devices requiring power via pin 9. Includes a DC 5.5 x 2.1 mm female socket for power input;...
More

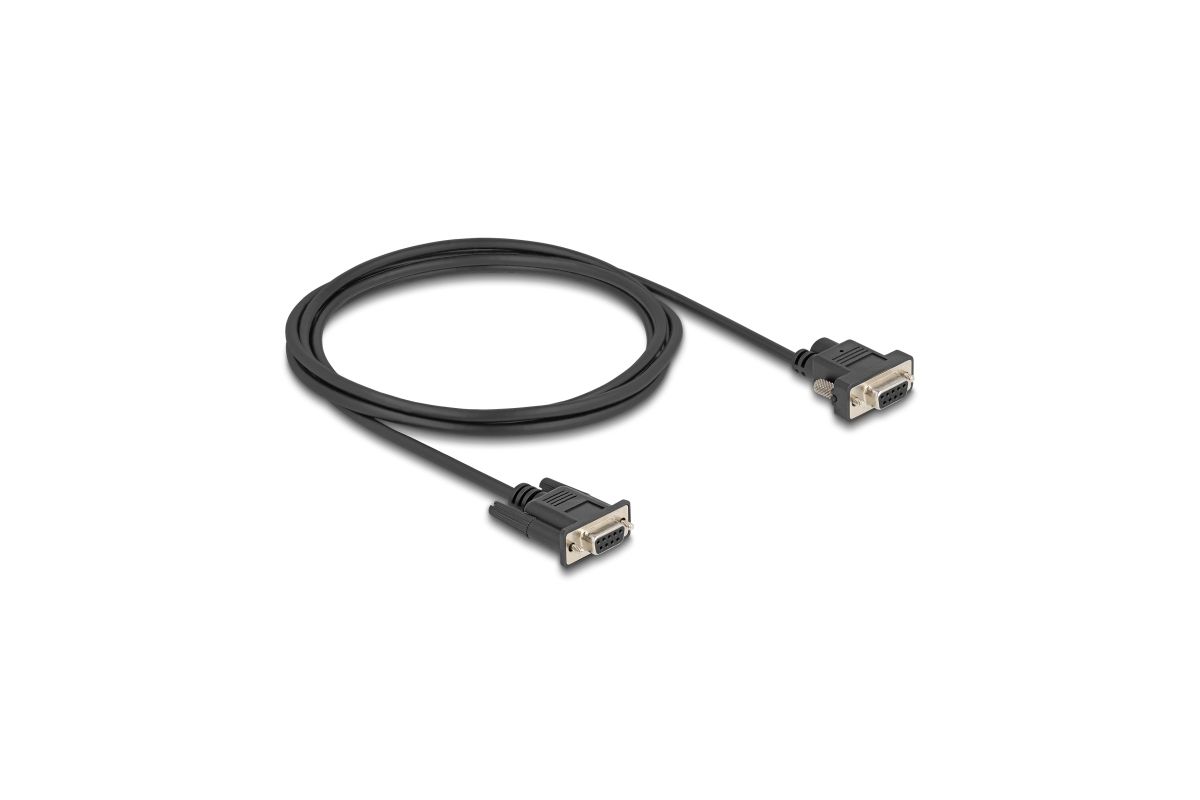

DELOCK Serial Cable RS-232 D-Sub9 F to D-Sub9 F, power on pin 9, 2 m (Model 87838, SKU 513472)
Product Code: 1117728629
Available in 1 - 3 days
15,67 €
With the purchase of this product you earn 48 Bytes
Quantity:
Add
Need Help? Fill in your details so we can call you immediately!
TBI Bank
Buy Now Pay Later.
4 installments 0% επιτόκιο, 20€ έως 300€
3 to 60 installments 300€ έως 100.00€
- 1. Ship with ACS Courier
- 2. Αποστολές με μεταφορικές εταιρίες για ογκώδη αντικείμενα
-
3. Pickup from BoxNow automated machine:
Με την BoxNow μπορείς να παραλάβεις το δέμα σου από Αυτόματο Μηχάνημα Παραλαβής που βρίσκεται κοντά σου, όλες τις ώρες της ημέρας 24/7. Η υπηρεσία έχει χρέωση 3€. Υπάρχει δυνατότητα αντικαταβολής με επιπλέον χρέωση 1€.
-
4. Pickup from the store:
Leof. El. Venizelou 73 (former Theseos), Kallithea
Συμπληρώστε τον ταχυδρομικό κωδικό για να λάβετε εκτίμηση τρόπου και κόστους μεταφορικών.
DELOCK serial RS-232 cable (Model 87838, SKU 513472) — 2 m long, female D-Sub9 to female D-Sub9, with power connection on pin 9. Intended for POS systems, printers, barcode scanners and other serial devices requiring power via pin 9. Includes a DC 5.5 x 2.1 mm female socket for power input; polarity: outer/shield = GND, inner = +. Maximum current on pin 9: 3 A. Supports signals TxD, RxD, RTS, CTS, DTR, DSR, DCD, GND. Pin assignment: 1:1. Data transfer up to 921.6 kbps. Cable: 26 AWG, PVC jacket, approx. Ø 4.5 mm, colour black. Screw type: #4-40 UNC. Packaged in a zip poly bag. Country of origin: China.
-
BrandDelock
-
Model / MPN87838
-
SKU / Item No.513472
-
EAN / Barcode4043619878383
-
Product TypeSerial RS-232 cable with power on pin 9
-
Connector 1D-Sub9 female with screws (standard, pin 9 not tied)
-
Connector 2D-Sub9 female with screws (pin 9 connected to DC power)
-
Additional ConnectorDC female socket 5.5 x 2.1 mm (power input)
-
Pin Assignment1:1
-
Supported SignalsTxD, RxD, RTS, CTS, DTR, DSR, DCD, GND
-
Power on Pin 9Yes, DC output to pin 9
-
Max Current on Pin 93 A
-
Max Data Rateup to 921.6 Kbps
-
Cable Length (incl. connectors)approx. 2 m
-
Cable Gauge26 AWG
-
Cable Diameterapprox. 4.5 mm
-
Insulator / Jacket MaterialPVC
-
ColourBlack
-
Screw Type#4-40 UNC
-
Power Connector PolarityOuter/shield = GND, Inner = +
-
Power Connector DimensionsInner ≈ 2.1 mm, Outer ≈ 5.5 mm
-
PackagingZip poly bag
-
Country of OriginChina
Ratings
Description
DELOCK serial RS-232 cable (Model 87838, SKU 513472) — 2 m long, female D-Sub9 to female D-Sub9, with power connection on pin 9. Intended for POS systems, printers, barcode scanners and other serial devices requiring power via pin 9. Includes a DC 5.5 x 2.1 mm female socket for power input; polarity: outer/shield = GND, inner = +. Maximum current on pin 9: 3 A. Supports signals TxD, RxD, RTS, CTS, DTR, DSR, DCD, GND. Pin assignment: 1:1. Data transfer up to 921.6 kbps. Cable: 26 AWG, PVC jacket, approx. Ø 4.5 mm, colour black. Screw type: #4-40 UNC. Packaged in a zip poly bag. Country of origin: China.
Technical Specifications
-
BrandDelock
-
Model / MPN87838
-
SKU / Item No.513472
-
EAN / Barcode4043619878383
-
Product TypeSerial RS-232 cable with power on pin 9
-
Connector 1D-Sub9 female with screws (standard, pin 9 not tied)
-
Connector 2D-Sub9 female with screws (pin 9 connected to DC power)
-
Additional ConnectorDC female socket 5.5 x 2.1 mm (power input)
-
Pin Assignment1:1
-
Supported SignalsTxD, RxD, RTS, CTS, DTR, DSR, DCD, GND
-
Power on Pin 9Yes, DC output to pin 9
-
Max Current on Pin 93 A
-
Max Data Rateup to 921.6 Kbps
-
Cable Length (incl. connectors)approx. 2 m
-
Cable Gauge26 AWG
-
Cable Diameterapprox. 4.5 mm
-
Insulator / Jacket MaterialPVC
-
ColourBlack
-
Screw Type#4-40 UNC
-
Power Connector PolarityOuter/shield = GND, Inner = +
-
Power Connector DimensionsInner ≈ 2.1 mm, Outer ≈ 5.5 mm
-
PackagingZip poly bag
-
Country of OriginChina
