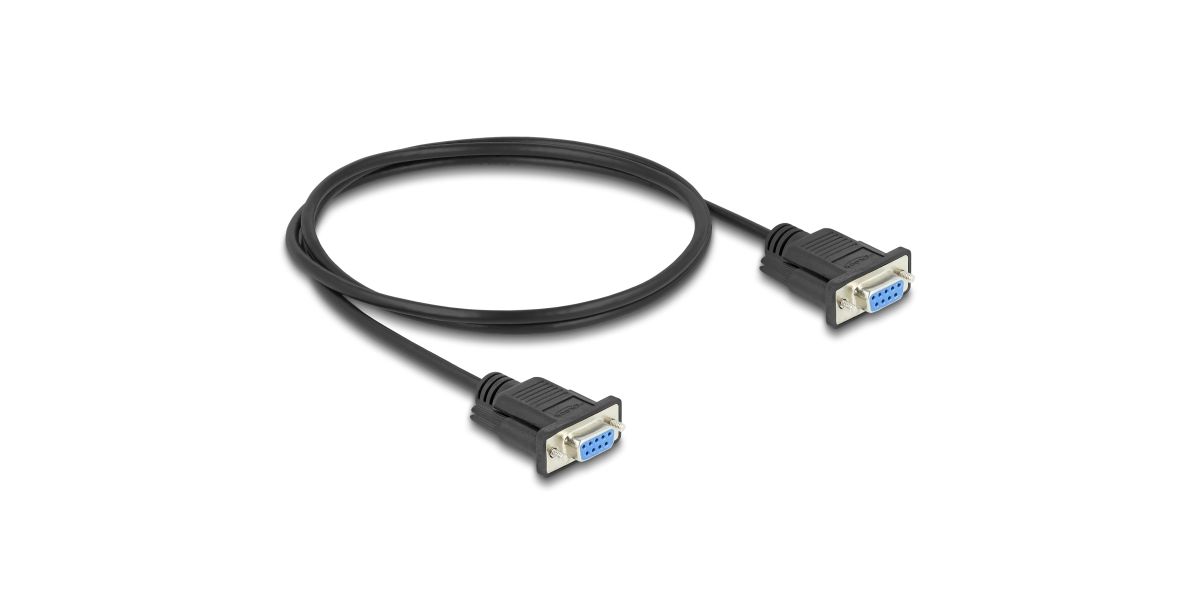

DELOCK Serial Cable D-Sub9 1 m Blue/Blue with slim connector housing (MPN 86823)

Description

Technical Specifications

• Brand
  Delock
• Model / MPN
  86823
• SKU
  510028
• EAN
  4043619868230
• Product type
  Serial cable (RS-232) D-Sub9 extension/connection cable
• Length
  1 m
• Connectors
  1 x D-Sub 9 Male (with #4-40 UNC screws) - 1 x D-Sub 9 Female (with #4-40 UNC nuts)
• Pin assignment
  1:1 (straight-through)
• Signals transmitted
  TxD, RxD, RTS, CTS, DTR, DSR, DCD, RI, GND
• Data transfer rate
  max. 921.6 Kbps
• Conductor
  Copper, tinned
• Cable gauge
  28 AWG (typical for 1 m variants)
• Cable diameter
  approx. 5 mm
• Shielding
  Aluminium foil shielding
• Insulation / Jacket
  PVC
• Cable standard / style
  AWM Style 2464 (28/30 AWG), 80 °C, 300 V, VW-1
• Contact finishing
  Gold-plated contacts
• Connector housing
  Slim / narrow mini D-Sub9 housing (approx. 44 x 33.3 x 15 mm for connector)
• Color
  Black cable, blue connectors (Bu/Bu)
• Screw type
  #4-40 UNC
• Operating temperature range
  typical related Delock spec -20 °C to 70 °C
• Standards compliance
  RS-232 (EIA/TIA)
• Use cases
  Modems, printers, measuring instruments, converters, POS systems, RS-232 hubs, patch panels, industrial equipment
• Package type
  Retail blister or small box (retailer-dependent)
• Package weight (approx.)
  100 g
• Product weight (approx.)
  60 g
