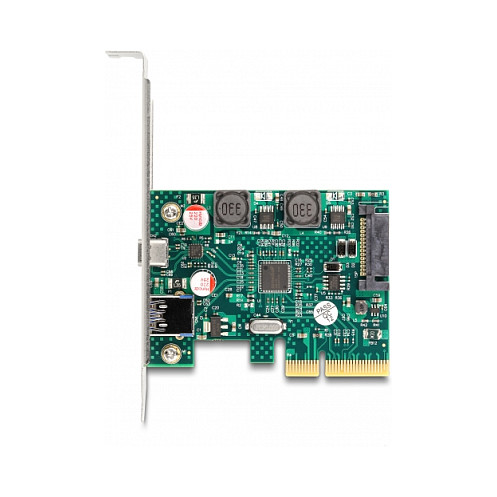

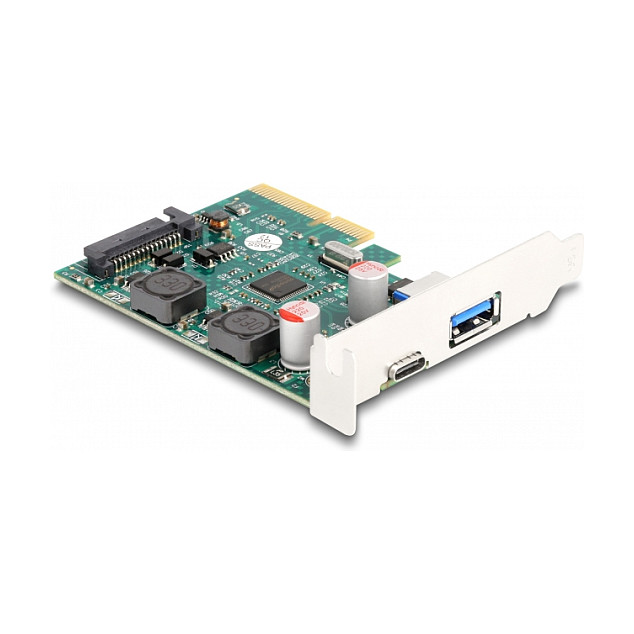

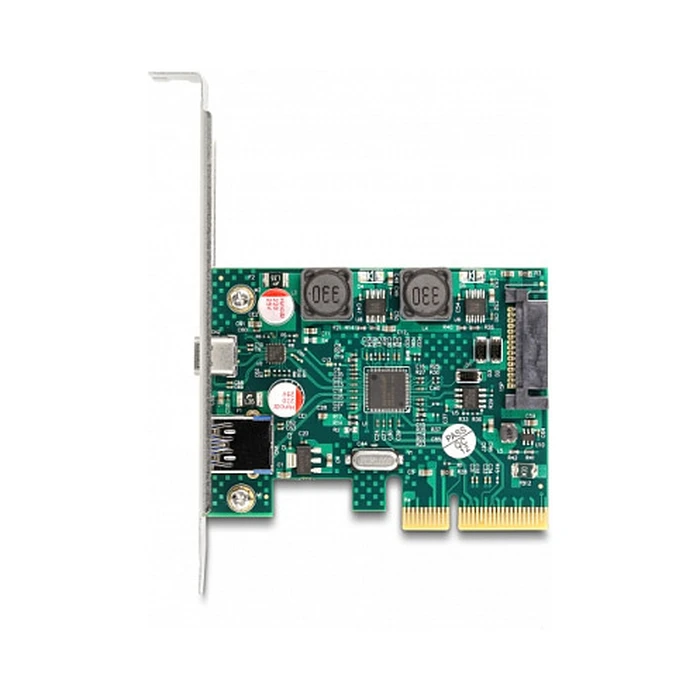

Delock PCI Express x4 Card — 1x external USB 10 Gbps Type-C™ + 1x external USB 10 Gbps Type-A — Low Profile

Description

Technical Specifications

• Brand
  DeLOCK
• Model / MPN
  90107
• Delock Product Number
  90299
• EAN / Barcode
  4043619901074
• Product Type
  PCI Express x4 expansion card (USB host controller)
• Interface (internal)
  PCI Express x4 (PCIe 3.0)
• Internal Power Connector
  SATA 15‑pin (optional additional power)
• Form Factor
  Low Profile (with standard and low-profile bracket)
• External Ports
  1 x USB Type-C (10 Gbps), 1 x USB Type-A (10 Gbps)
• USB Standard
  USB 3.2 Gen 2 (SuperSpeed USB 10 Gbps)
• Maximum Data Rate
  Up to 10 Gbps per port
• Backward Compatibility
  USB 3.0 / USB 2.0 / USB 1.1
• Chipset
  Asmedia ASM3142 and VIA VL822
• Power via PCIe
  Yes (additional SATA power supported)
• Power (USB Type-C)
  Max 5 V / 3 A (15 W)
• Power (USB Type-A)
  Max 5 V / 0.9 A (4.5 W)
• UASP Support
  Yes
• xHCI Support
  xHCI 1.1
• Bootable
  Yes
• Simultaneous Ports at 10Gbps
  Yes (both ports can operate at 10 Gbps simultaneously)
• Typical Use Cases
  External HDD/SSD enclosures, card readers, docking stations, high-speed peripherals
• Materials
  PCB with metal bracket
• Dimensions (card)
  Standard low-profile PCIe card dimensions (approx. full/low-profile compatible)
• Included Accessories
  Low-profile bracket (typically included)
