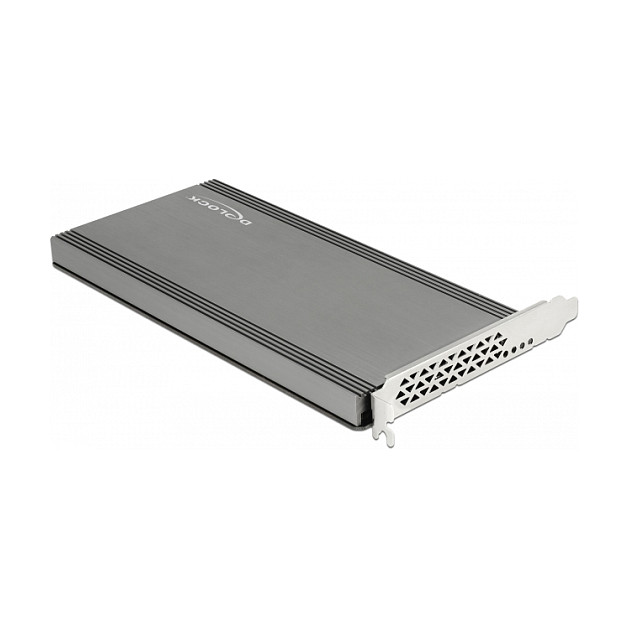

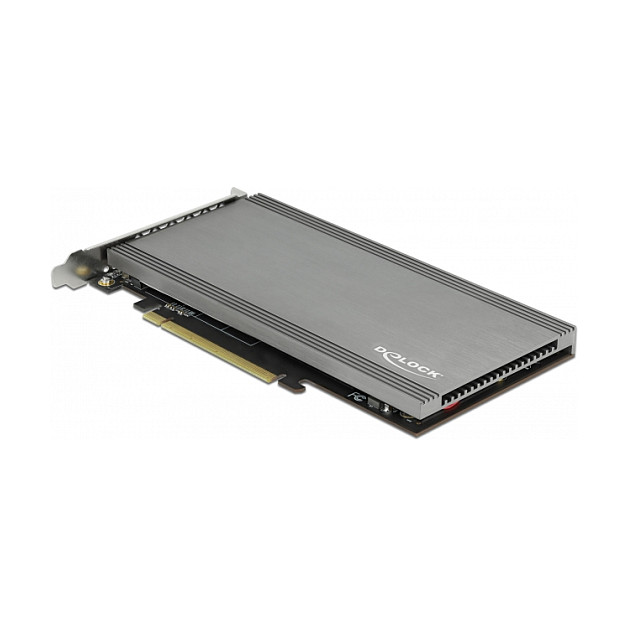

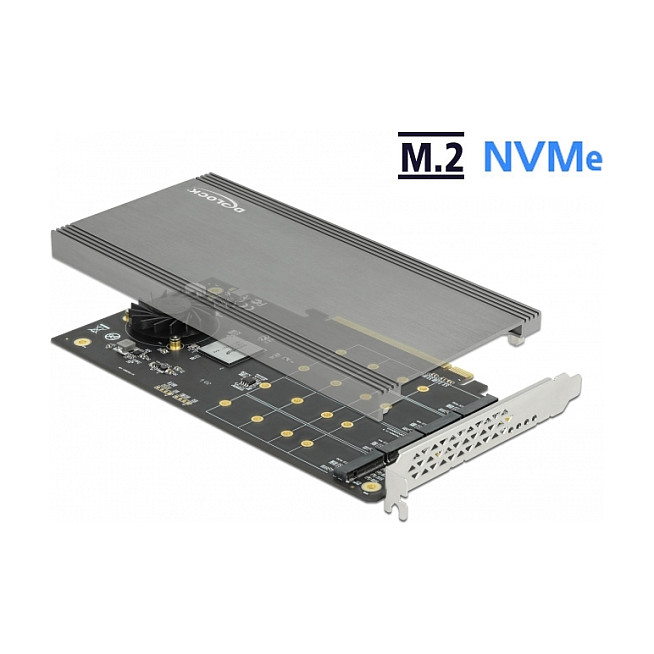

DeLOCK PCI Express x16 card that adds four internal NVMe M.2 Key M slots (2230/2242/2260/2280). Uses the Asmedia ASM2824 chipset, includes a large aluminum heatsink and a 40 mm fan for active cooling, and has 4 status LEDs. Supports boot from NVMe via UEFI (ex UEFI 2.3.1) and S.M.A.R.T. To use all...
More
Delock PCI Express x16 Card to 4 x internal NVMe M.2 Key M (MPN 89044)
Product Code: 1173700184
Available in 4 - 6 days
491,53 €
or
15,35€ / month
εως 36 δόσεις με πιστωτική κάρτα
With the purchase of this product you earn 1475 Bytes
Quantity:
Add
Need Help? Fill in your details so we can call you immediately!
Έως 36 Δόσεις. Δείτε το πλάνο δόσεων:
TBI Bank
Buy Now Pay Later.
4 installments 0% επιτόκιο, 20€ έως 300€
3 to 60 installments 300€ έως 100.00€
- 1. Ship with ACS Courier
- 2. Αποστολές με μεταφορικές εταιρίες για ογκώδη αντικείμενα
-
3. Pickup from BoxNow automated machine:
Με την BoxNow μπορείς να παραλάβεις το δέμα σου από Αυτόματο Μηχάνημα Παραλαβής που βρίσκεται κοντά σου, όλες τις ώρες της ημέρας 24/7. Η υπηρεσία έχει χρέωση 3€. Υπάρχει δυνατότητα αντικαταβολής με επιπλέον χρέωση 1€.
-
4. Pickup from the store:
Leof. El. Venizelou 73 (former Theseos), Kallithea
Συμπληρώστε τον ταχυδρομικό κωδικό για να λάβετε εκτίμηση τρόπου και κόστους μεταφορικών.
DeLOCK PCI Express x16 card that adds four internal NVMe M.2 Key M slots (2230/2242/2260/2280). Uses the Asmedia ASM2824 chipset, includes a large aluminum heatsink and a 40 mm fan for active cooling, and has 4 status LEDs. Supports boot from NVMe via UEFI (ex UEFI 2.3.1) and S.M.A.R.T. To use all four M.2 slots simultaneously the motherboard must support PCIe bifurcation; without bifurcation only the first slot will be usable. Suitable for gaming and server systems to expand NVMe storage.
-
BrandDeLOCK
-
Model / MPN89044
-
SKU21151066
-
EAN / Barcode4043619890446
-
InterfacePCI Express x16 (PCIe x16, v3.0)
-
Controller / ChipsetAsmedia ASM2824
-
Expansion Slots4 x internal M.2 Key M (67-pin)
-
Supported M.2 Sizes2280, 2260, 2242, 2230
-
Supported KeysM (and B+M PCIe-compatible modules)
-
Max component height1.5 mm (supports double-sided modules)
-
Max data transfer rateup to 32 Gbps
-
Simultaneous useAll 4 slots supported with motherboard PCIe bifurcation; otherwise only slot 1 usable
-
BootableYes (UEFI 2.3.1+)
-
S.M.A.R.T.Supported
-
LED indicators4 x status LEDs
-
Cooling1 x 40 mm fan + large aluminum heatsink (active cooling)
-
Heatsink dimensions~202 x 95 x 8 mm (approx.)
-
Supported OSWindows 8.1/10/11 (64-bit), Windows Server 2016, Linux kernel 3.17+/5.4+
-
ColorBlack
-
PCIe requirementMotherboard and BIOS must support PCIe bifurcation for multi-drive operation
-
Use caseAdd four NVMe M.2 SSDs for gaming, workstation, or server storage expansion
-
Product weight (approx.)300 g
-
Package weight (approx.)600 g
Ratings
Description
DeLOCK PCI Express x16 card that adds four internal NVMe M.2 Key M slots (2230/2242/2260/2280). Uses the Asmedia ASM2824 chipset, includes a large aluminum heatsink and a 40 mm fan for active cooling, and has 4 status LEDs. Supports boot from NVMe via UEFI (ex UEFI 2.3.1) and S.M.A.R.T. To use all four M.2 slots simultaneously the motherboard must support PCIe bifurcation; without bifurcation only the first slot will be usable. Suitable for gaming and server systems to expand NVMe storage.
Technical Specifications
-
BrandDeLOCK
-
Model / MPN89044
-
SKU21151066
-
EAN / Barcode4043619890446
-
InterfacePCI Express x16 (PCIe x16, v3.0)
-
Controller / ChipsetAsmedia ASM2824
-
Expansion Slots4 x internal M.2 Key M (67-pin)
-
Supported M.2 Sizes2280, 2260, 2242, 2230
-
Supported KeysM (and B+M PCIe-compatible modules)
-
Max component height1.5 mm (supports double-sided modules)
-
Max data transfer rateup to 32 Gbps
-
Simultaneous useAll 4 slots supported with motherboard PCIe bifurcation; otherwise only slot 1 usable
-
BootableYes (UEFI 2.3.1+)
-
S.M.A.R.T.Supported
-
LED indicators4 x status LEDs
-
Cooling1 x 40 mm fan + large aluminum heatsink (active cooling)
-
Heatsink dimensions~202 x 95 x 8 mm (approx.)
-
Supported OSWindows 8.1/10/11 (64-bit), Windows Server 2016, Linux kernel 3.17+/5.4+
-
ColorBlack
-
PCIe requirementMotherboard and BIOS must support PCIe bifurcation for multi-drive operation
-
Use caseAdd four NVMe M.2 SSDs for gaming, workstation, or server storage expansion
-
Product weight (approx.)300 g
-
Package weight (approx.)600 g
