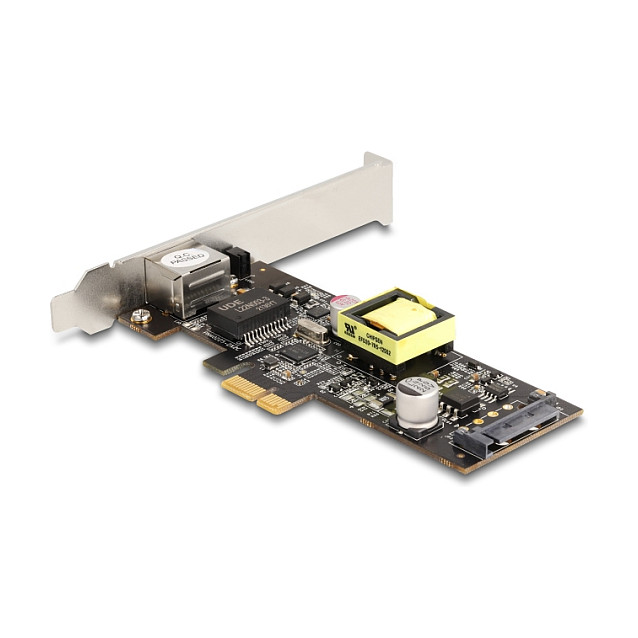

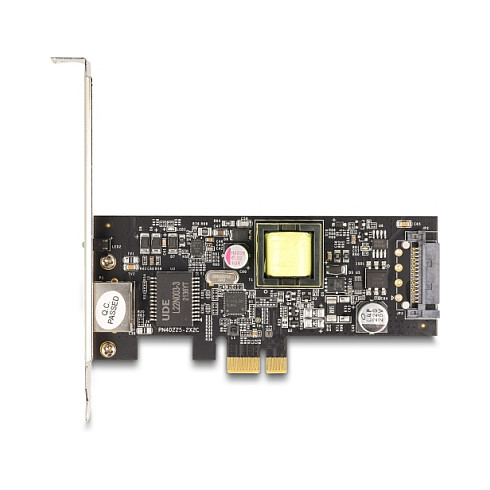

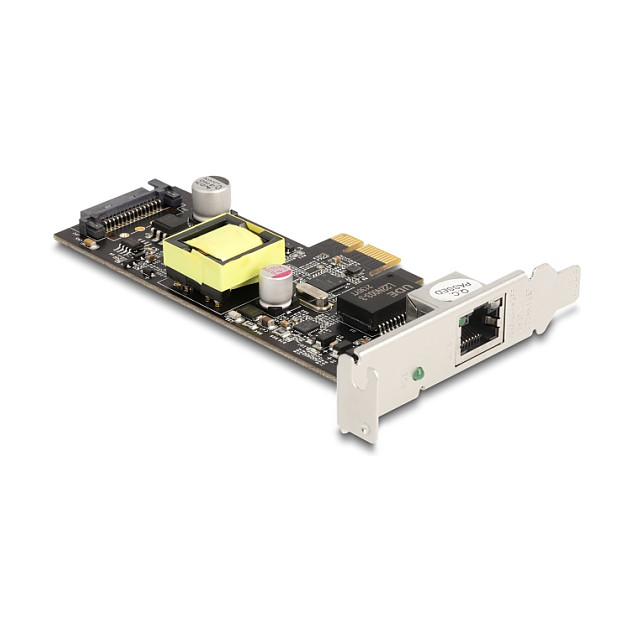

Delock PCI Express x1 Network Card 2.5 Gigabit LAN 1 x RJ45 with PoE+ (Intel i225) MPN 88506

Description

Technical Specifications

• Brand
  DeLOCK
• Model / MPN
  88506
• SKU
  21150935
• EAN
  4043619885060
• Interface (internal)
  PCI Express x1 (PCIe v2.1)
• External Connector
  1 x RJ45 2.5 Gigabit LAN
• Chipset
  Intel i225V
• Maximum Data Rate
  Up to 2.5 Gbps (NBASE-T); also supports 10 Mbps, 100 Mbps and 1 Gbps
• PoE Support
  Power over Ethernet PoE+ (IEEE 802.3af / IEEE 802.3at)
• PoE Power Input
  Internal SATA 15-pin power connector required for PoE operation
• LED Indicators
  Link / Activity (PoE variant: Power and Activity)
• Standards Supported
  IEEE 802.3, 802.3u, 802.3ab, 802.3bz; VLAN 802.1Q; Priority 802.1P; Flow Control 802.3x
• Wake on LAN (WOL)
  Yes
• PXE
  Yes
• Jumbo Frames
  Support for up to 9k frames (PoE variant documentation cites up to 16k in some revisions)
• Form Factor
  Low profile (standard and low-profile bracket included)
• OS Support
  Windows (Windows 10 64-bit commonly cited), Linux (kernel 5.8+ recommended)
• Typical Use Cases
  Upgrade desktop to 2.5GbE; supply PoE+ to edge devices (IP cameras, access points) with internal PSU connection
• Materials
  Printed circuit board (FR-4), metal mounting bracket, RJ45 connector
• Packaging
  Retail box with card, bracket(s) and quick start / datasheet (packaging dimensions estimated)
• Country of Origin
  Not specified
