The DeLOCK PCI Express x1 Card (Model 66324, SKU 21151112, EAN 4043619663248) provides four external RS-232 serial ports (DB9). It uses a Moschip MCS9904 chipset (ASIX/Moschip MCS9904 references appear in sources), is PCIe 1.1 x1 compatible and offers 16C550 UART compatibility with 256-byte FIFO...
More
Delock PCI Express x1 Card to 4 x Serial RS-232 (DB9) - Model 66324 (SKU 21151112)
Product Code: 1173700203
Available in 4 - 6 days
58,56 €
or
1,83€ / month
εως 36 δόσεις με πιστωτική κάρτα
With the purchase of this product you earn 176 Bytes
Quantity:
Add
Need Help? Fill in your details so we can call you immediately!
Έως 36 Δόσεις. Δείτε το πλάνο δόσεων:
TBI Bank
Buy Now Pay Later.
4 installments 0% επιτόκιο, 20€ έως 300€
3 to 60 installments 300€ έως 100.00€
- 1. Ship with ACS Courier
- 2. Αποστολές με μεταφορικές εταιρίες για ογκώδη αντικείμενα
-
3. Pickup from BoxNow automated machine:
Με την BoxNow μπορείς να παραλάβεις το δέμα σου από Αυτόματο Μηχάνημα Παραλαβής που βρίσκεται κοντά σου, όλες τις ώρες της ημέρας 24/7. Η υπηρεσία έχει χρέωση 3€. Υπάρχει δυνατότητα αντικαταβολής με επιπλέον χρέωση 1€.
-
4. Pickup from the store:
Leof. El. Venizelou 73 (former Theseos), Kallithea
Συμπληρώστε τον ταχυδρομικό κωδικό για να λάβετε εκτίμηση τρόπου και κόστους μεταφορικών.

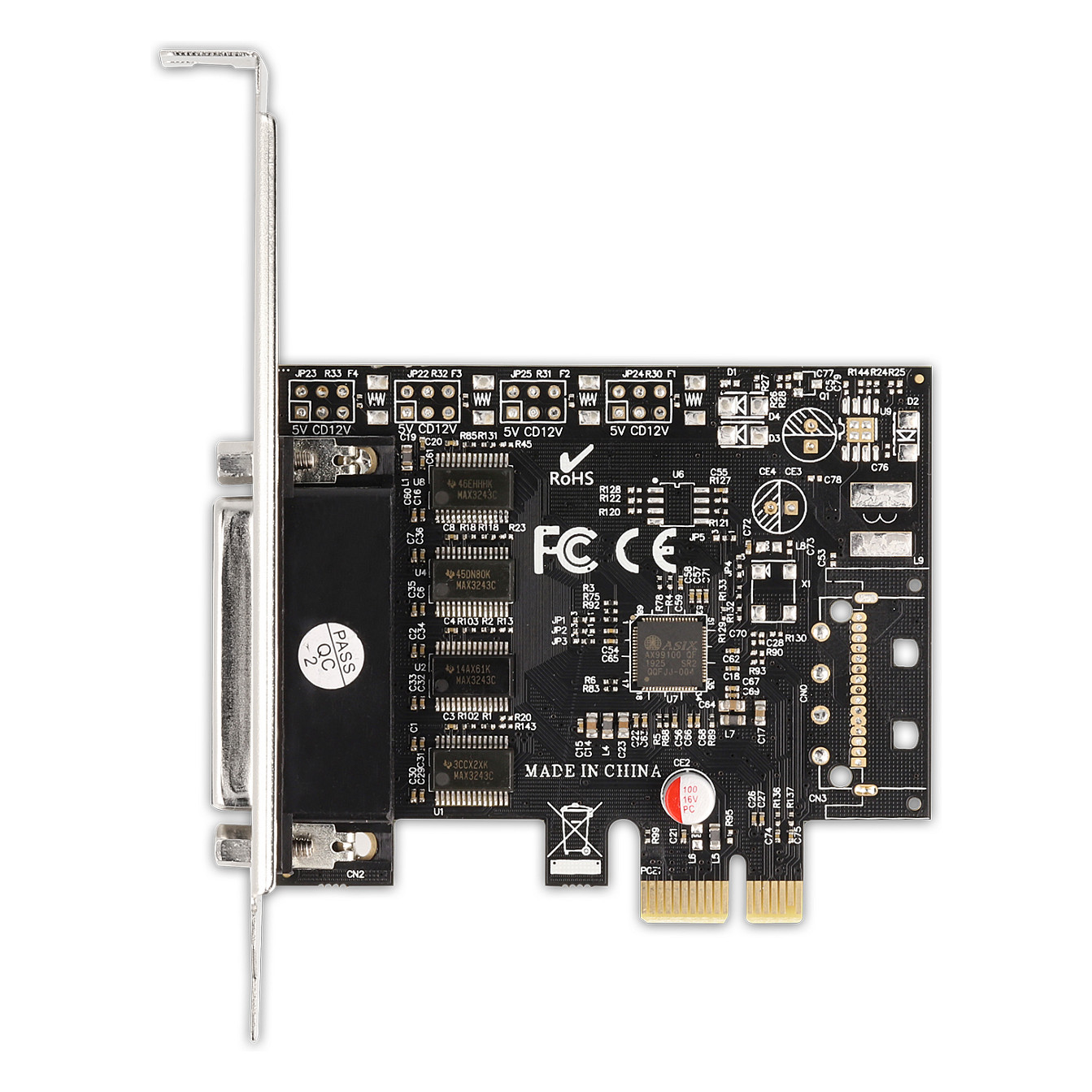

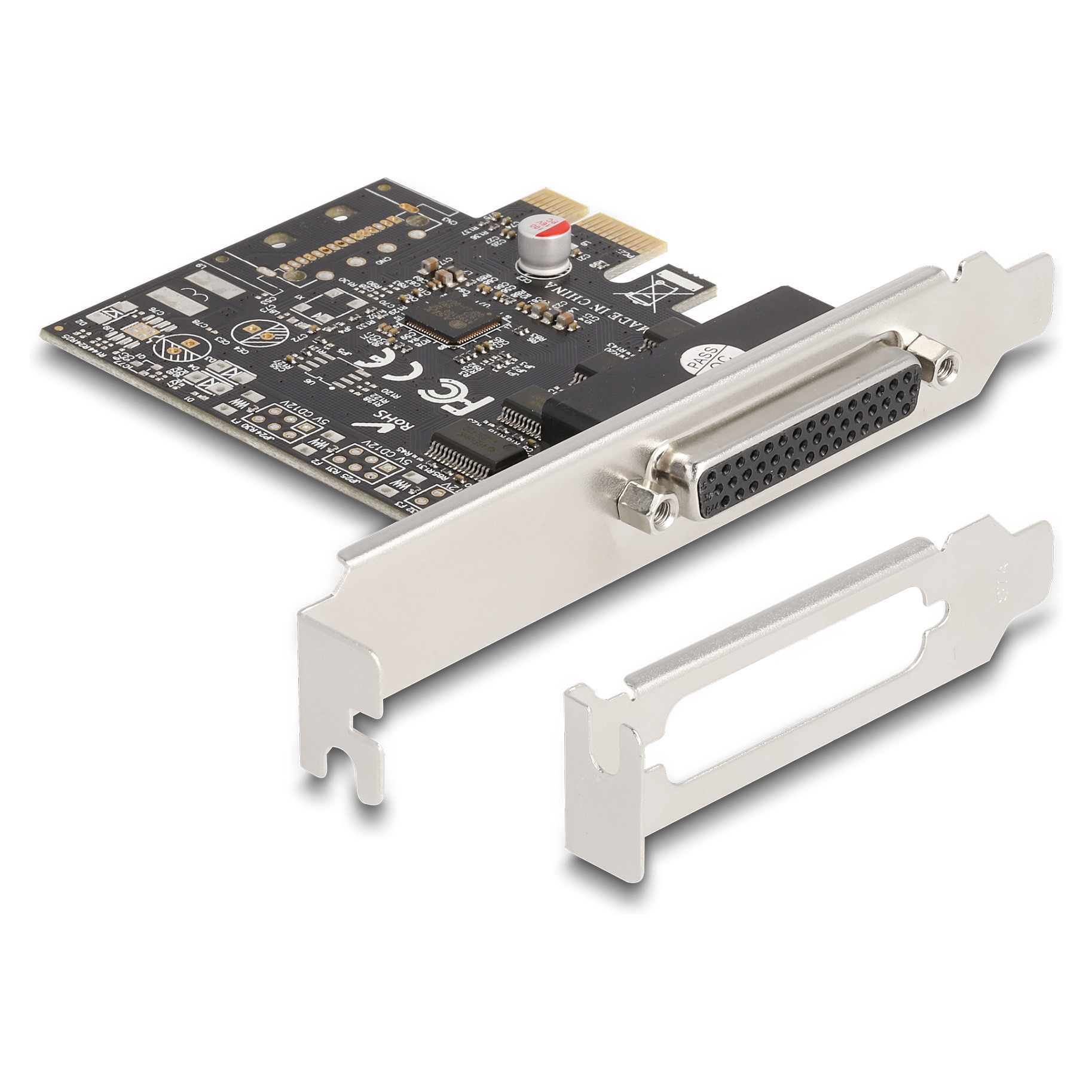

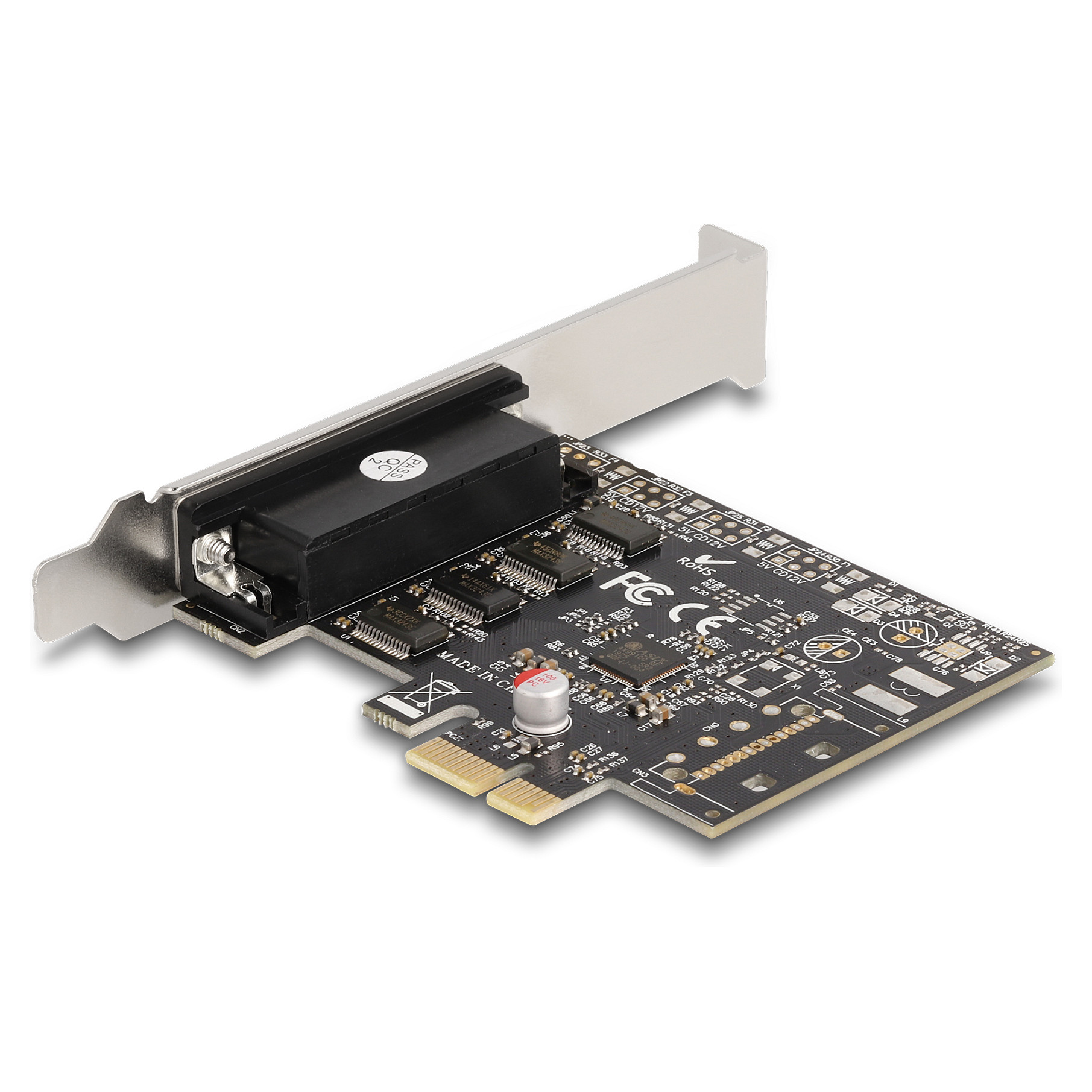

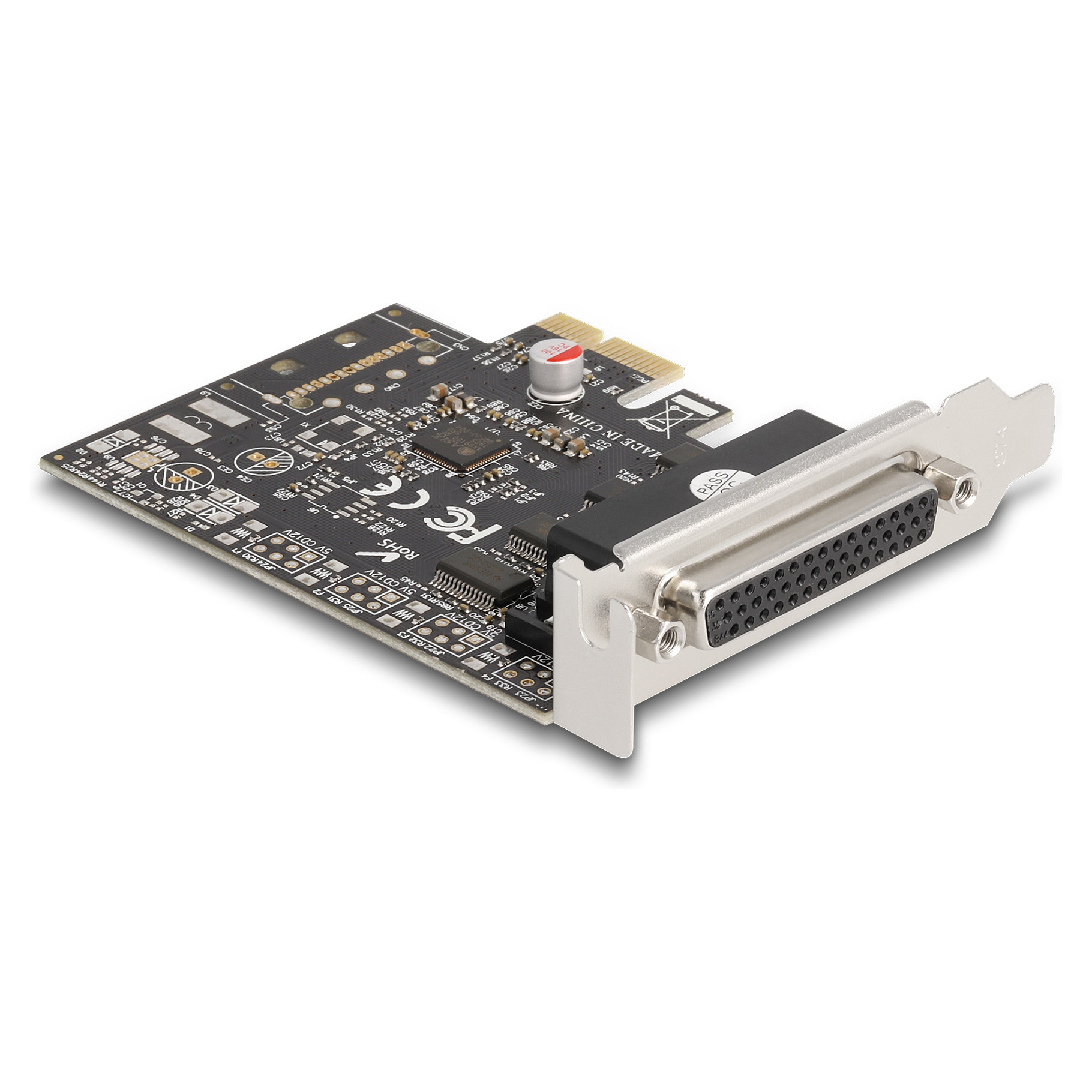

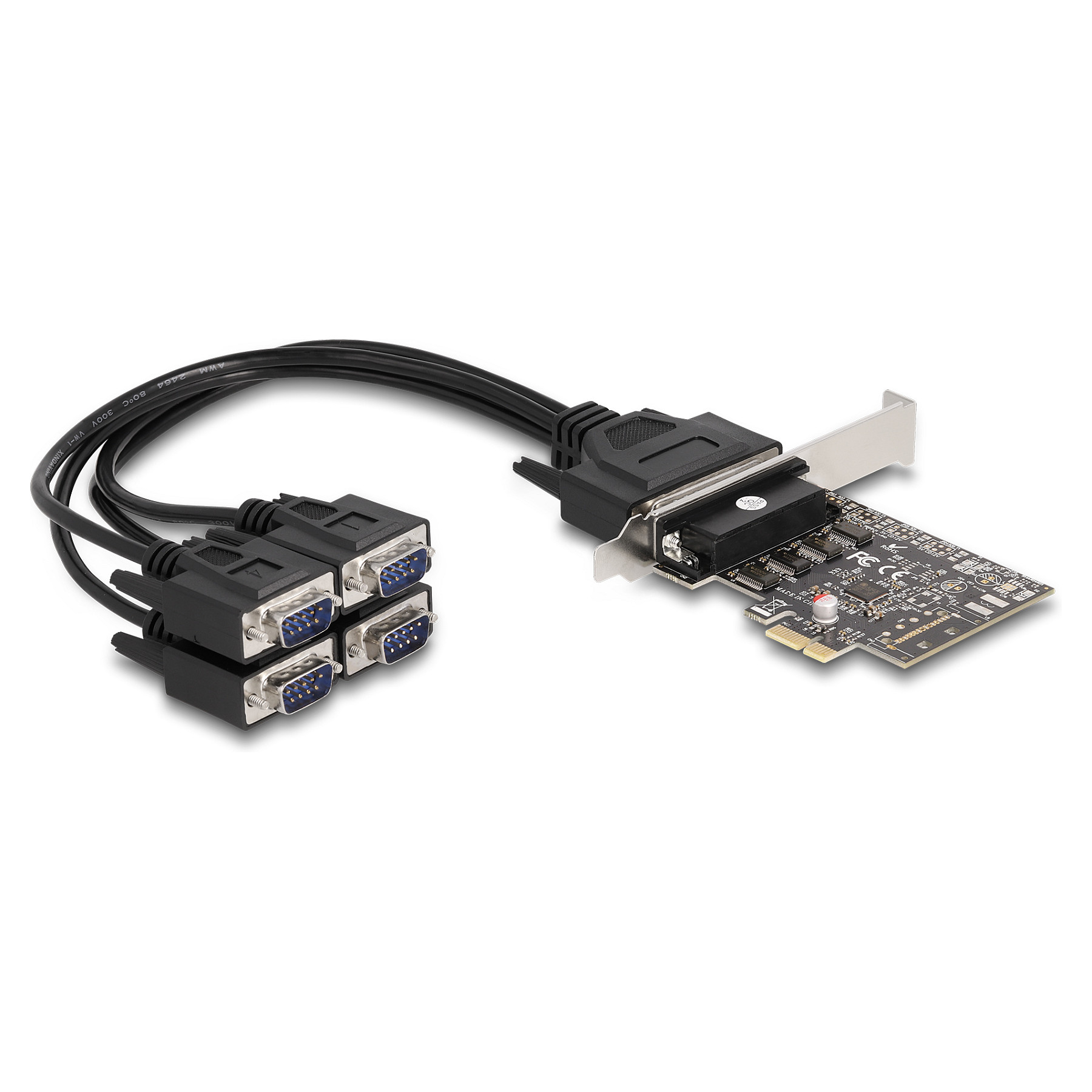

The DeLOCK PCI Express x1 Card (Model 66324, SKU 21151112, EAN 4043619663248) provides four external RS-232 serial ports (DB9). It uses a Moschip MCS9904 chipset (ASIX/Moschip MCS9904 references appear in sources), is PCIe 1.1 x1 compatible and offers 16C550 UART compatibility with 256-byte FIFO per port. Data rates up to 230.4 kbps per port are supported. The card is low-profile (includes low-profile brackets), black PCB, and comes with a full-height slot bracket, 4 low-profile brackets and a driver CD. Supported OS: Windows 7/8/8.1/10/11, Windows Server variants, and Linux kernels (2.6+ / 3.18+ in some listings). Typical use: expand a PC with multiple RS-232 interfaces for industrial devices, POS, instrumentation and legacy equipment.
-
BrandDeLOCK
-
Model / MPN66324
-
SKU21151112
-
EAN / Barcode4043619663248
-
Product TypePCI Express x1 to 4 x Serial RS-232 (DB9) card
-
External Interfaces4 x RS-232 DB9 (male)
-
Internal Interface1 x PCI Express x1 (PCIe 1.1)
-
ChipsetMoschip MCS9904 (ASIX/MCS9904 referenced in sources)
-
UART Compatibility16C550 (also referenced 16C450 / 16C650 in some docs)
-
Max Baud RateUp to 230,400 bps per port
-
FIFO256 bytes per port
-
Signals SupportedTxD, RxD, RTS, CTS, DTR, DSR, DCD, RI, GND
-
Flow ControlHardware (RTS/CTS) and Software (XON/XOFF) supported
-
Data Bits5, 6, 7, 8
-
Stop Bits1, 2 (1.5 referenced on similar models)
-
ParityNone, Even, Odd, Mark, Space
-
Form FactorLow Profile (includes low-profile brackets)
-
ColorBlack
-
Operating Temperature-40 °C to 85 °C
-
Relative Humidity0–95% (non-condensing)
-
Dimensions (card)approx. 82 x 61 x 16 mm
-
Package ContentsPCIe card, full-height slot bracket, 4 x low-profile brackets, driver CD
-
Compliance / StandardRS-232 (EIA/TIA), PCIe 1.1
-
Typical ApplicationsIndustrial control, POS, instrumentation, legacy device connectivity
-
OriginChina
Ratings
Description
The DeLOCK PCI Express x1 Card (Model 66324, SKU 21151112, EAN 4043619663248) provides four external RS-232 serial ports (DB9). It uses a Moschip MCS9904 chipset (ASIX/Moschip MCS9904 references appear in sources), is PCIe 1.1 x1 compatible and offers 16C550 UART compatibility with 256-byte FIFO per port. Data rates up to 230.4 kbps per port are supported. The card is low-profile (includes low-profile brackets), black PCB, and comes with a full-height slot bracket, 4 low-profile brackets and a driver CD. Supported OS: Windows 7/8/8.1/10/11, Windows Server variants, and Linux kernels (2.6+ / 3.18+ in some listings). Typical use: expand a PC with multiple RS-232 interfaces for industrial devices, POS, instrumentation and legacy equipment.
Technical Specifications
-
BrandDeLOCK
-
Model / MPN66324
-
SKU21151112
-
EAN / Barcode4043619663248
-
Product TypePCI Express x1 to 4 x Serial RS-232 (DB9) card
-
External Interfaces4 x RS-232 DB9 (male)
-
Internal Interface1 x PCI Express x1 (PCIe 1.1)
-
ChipsetMoschip MCS9904 (ASIX/MCS9904 referenced in sources)
-
UART Compatibility16C550 (also referenced 16C450 / 16C650 in some docs)
-
Max Baud RateUp to 230,400 bps per port
-
FIFO256 bytes per port
-
Signals SupportedTxD, RxD, RTS, CTS, DTR, DSR, DCD, RI, GND
-
Flow ControlHardware (RTS/CTS) and Software (XON/XOFF) supported
-
Data Bits5, 6, 7, 8
-
Stop Bits1, 2 (1.5 referenced on similar models)
-
ParityNone, Even, Odd, Mark, Space
-
Form FactorLow Profile (includes low-profile brackets)
-
ColorBlack
-
Operating Temperature-40 °C to 85 °C
-
Relative Humidity0–95% (non-condensing)
-
Dimensions (card)approx. 82 x 61 x 16 mm
-
Package ContentsPCIe card, full-height slot bracket, 4 x low-profile brackets, driver CD
-
Compliance / StandardRS-232 (EIA/TIA), PCIe 1.1
-
Typical ApplicationsIndustrial control, POS, instrumentation, legacy device connectivity
-
OriginChina
