Delock MiniPCIe I/O expansion card (full size MiniPCIe) providing 4 × RS-232 serial ports with selectable voltage supply. Uses Exar XR17V354 multi-UART chipset, PCI Express 2.0 interface, up to 921.6 kb/s transfer rate, compatible with 16C550 UART. Module features 4 × 10-pin header; standard...
More

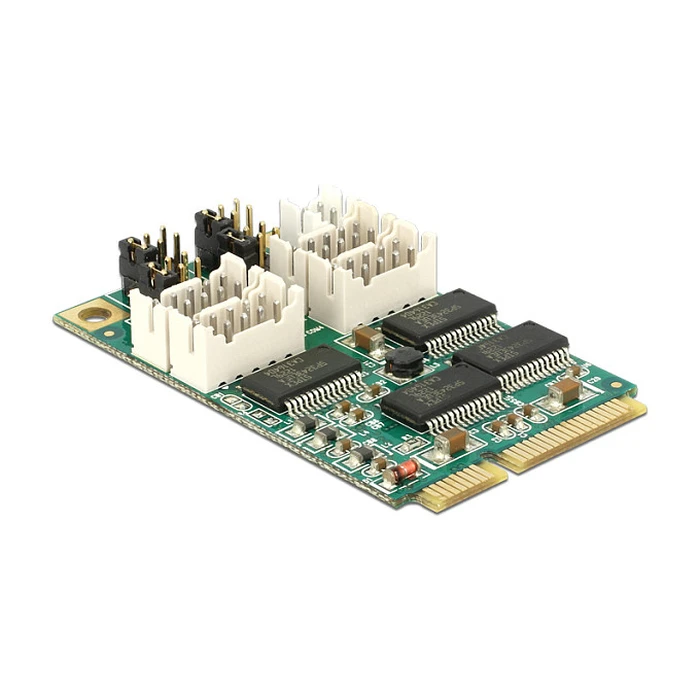

Delock MiniPCIe I/O (PCIe full size) 4 x Serial RS-232 with selectable voltage supply (MPN 95244)
Product Code: 1173700197
Available in 4 - 6 days
151,44 €
or
4,73€ / month
εως 36 δόσεις με πιστωτική κάρτα
With the purchase of this product you earn 455 Bytes
Quantity:
Add
Need Help? Fill in your details so we can call you immediately!
Έως 36 Δόσεις. Δείτε το πλάνο δόσεων:
TBI Bank
Buy Now Pay Later.
4 installments 0% επιτόκιο, 20€ έως 300€
3 to 60 installments 300€ έως 100.00€
- 1. Ship with ACS Courier
- 2. Αποστολές με μεταφορικές εταιρίες για ογκώδη αντικείμενα
-
3. Pickup from BoxNow automated machine:
Με την BoxNow μπορείς να παραλάβεις το δέμα σου από Αυτόματο Μηχάνημα Παραλαβής που βρίσκεται κοντά σου, όλες τις ώρες της ημέρας 24/7. Η υπηρεσία έχει χρέωση 3€. Υπάρχει δυνατότητα αντικαταβολής με επιπλέον χρέωση 1€.
-
4. Pickup from the store:
Leof. El. Venizelou 73 (former Theseos), Kallithea
Συμπληρώστε τον ταχυδρομικό κωδικό για να λάβετε εκτίμηση τρόπου και κόστους μεταφορικών.

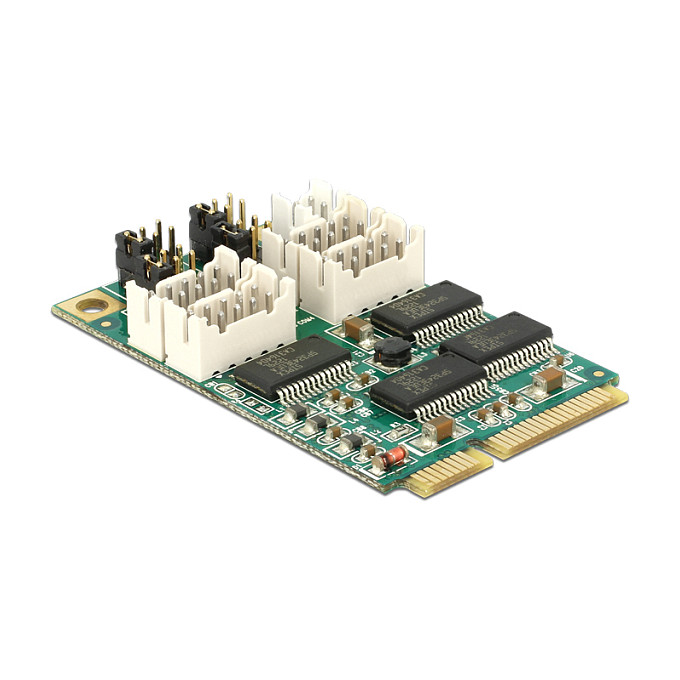

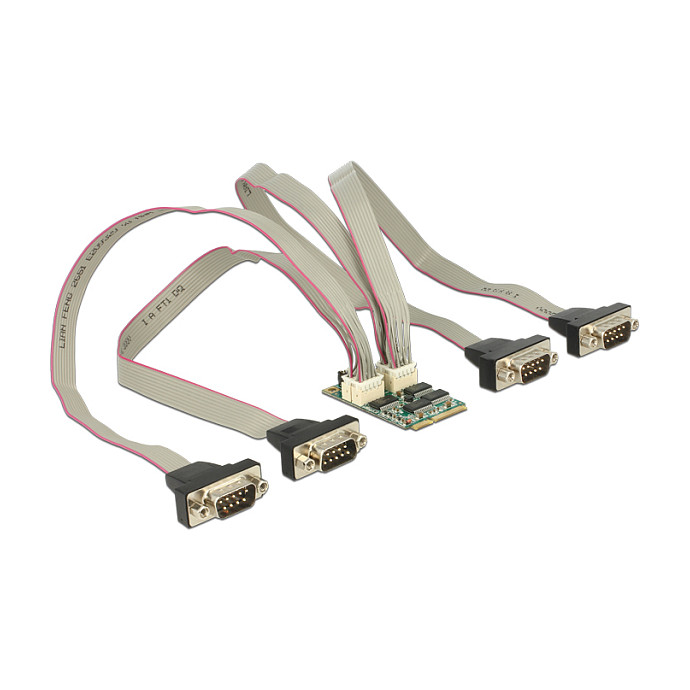

Delock MiniPCIe I/O expansion card (full size MiniPCIe) providing 4 × RS-232 serial ports with selectable voltage supply. Uses Exar XR17V354 multi-UART chipset, PCI Express 2.0 interface, up to 921.6 kb/s transfer rate, compatible with 16C550 UART. Module features 4 × 10-pin header; standard bracket provides 2 × DB9 male (with screws), low-profile bracket option provides 4 × DB9 male. Selectable VCC options: 5 V / 12 V / RI. Operating temperature -30 °C to 75 °C, storage -40 °C to 85 °C, relative humidity 0–95% non-condensing. Typical use: connect printers, scanners, modems and other RS-232 devices. MPN: 95244, EAN: 4043619952441, SKU: 21151093.
-
BrandDelock
-
Model / MPN95244
-
SKU21151093
-
EAN / Barcode4043619952441
-
Product typeMini PCIe serial interface (I/O expansion) card
-
Form factorMiniPCIe full size
-
Host interfacePCI Express (PCIe) version 2.0
-
ChipsetExar XR17V354
-
Serial ports4 × RS-232
-
Module connector4 × 10-pin male header
-

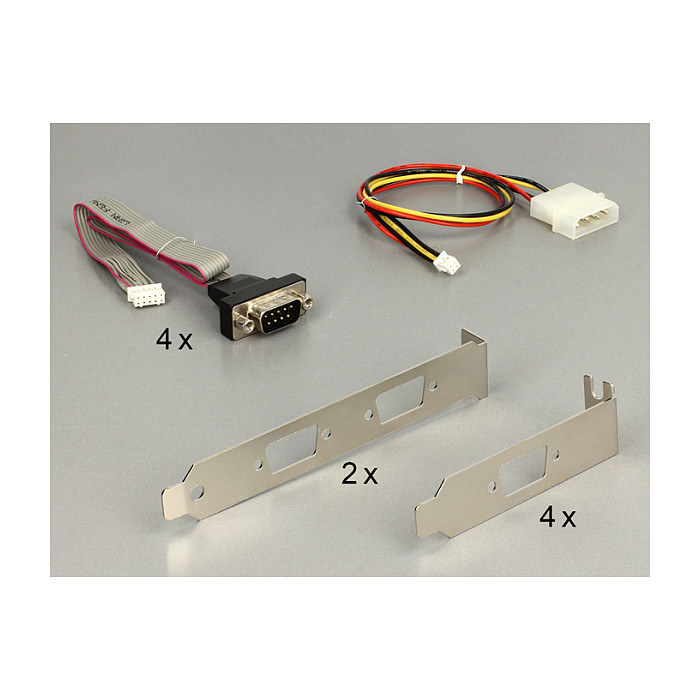

Bracket connector (standard)2 × DB9 male (with screw nuts)
-
Bracket connector (low profile)4 × DB9 male (with screw nuts)
-
Selectable voltage supply5 V / 12 V / RI
-
Supported signalsTxD, RxD, RTS, CTS, DTR, DSR, DCD, GND, 5V/12V/RI
-
UART compatibility16C550-compatible UART
-
Maximum data transfer rateUp to 921.6 kb/s per port
-
Cable lengthApprox. 30 cm (including connectors)
-
Operating temperature-30 °C to 75 °C
-
Storage temperature-40 °C to 85 °C
-
Relative humidity0–95% non-condensing
-
OS compatibilityWindows Vista, 7, 8, 8.1, 10, 11 (including 64-bit variants); Linux (kernel 2.6+)
-
Mainboard requirementFree MiniPCIe slot with PCIe interface
-
Typical applicationsConnecting RS-232 devices (printers, scanners, modems, industrial equipment)
-
Package contentsMiniPCIe module, bracket(s) (standard and/or low-profile), DB9 cable(s) ~30 cm, mounting hardware, documentation
Ratings
Description
Delock MiniPCIe I/O expansion card (full size MiniPCIe) providing 4 × RS-232 serial ports with selectable voltage supply. Uses Exar XR17V354 multi-UART chipset, PCI Express 2.0 interface, up to 921.6 kb/s transfer rate, compatible with 16C550 UART. Module features 4 × 10-pin header; standard bracket provides 2 × DB9 male (with screws), low-profile bracket option provides 4 × DB9 male. Selectable VCC options: 5 V / 12 V / RI. Operating temperature -30 °C to 75 °C, storage -40 °C to 85 °C, relative humidity 0–95% non-condensing. Typical use: connect printers, scanners, modems and other RS-232 devices. MPN: 95244, EAN: 4043619952441, SKU: 21151093.
Technical Specifications
-
BrandDelock
-
Model / MPN95244
-
SKU21151093
-
EAN / Barcode4043619952441
-
Product typeMini PCIe serial interface (I/O expansion) card
-
Form factorMiniPCIe full size
-
Host interfacePCI Express (PCIe) version 2.0
-
ChipsetExar XR17V354
-
Serial ports4 × RS-232
-
Module connector4 × 10-pin male header
-
Bracket connector (standard)2 × DB9 male (with screw nuts)
-
Bracket connector (low profile)4 × DB9 male (with screw nuts)
-
Selectable voltage supply5 V / 12 V / RI
-
Supported signalsTxD, RxD, RTS, CTS, DTR, DSR, DCD, GND, 5V/12V/RI
-
UART compatibility16C550-compatible UART
-
Maximum data transfer rateUp to 921.6 kb/s per port
-
Cable lengthApprox. 30 cm (including connectors)
-
Operating temperature-30 °C to 75 °C
-
Storage temperature-40 °C to 85 °C
-
Relative humidity0–95% non-condensing
-
OS compatibilityWindows Vista, 7, 8, 8.1, 10, 11 (including 64-bit variants); Linux (kernel 2.6+)
-
Mainboard requirementFree MiniPCIe slot with PCIe interface
-
Typical applicationsConnecting RS-232 devices (printers, scanners, modems, industrial equipment)
-
Package contentsMiniPCIe module, bracket(s) (standard and/or low-profile), DB9 cable(s) ~30 cm, mounting hardware, documentation
