Delock M12 adapter (Model 60087) converting an X-coded M12 8-pin female connector to an RJ45 female jack supporting Category 6A performance. Shielded (STP) construction with gold-plated contacts, housing of PBT and metal and a red silicone sealing ring. Straight orientation; suitable for industrial...
More
Delock M12 Adapter X-coded 8-pin female to RJ45 female Cat.6A (Model 60087)
Product Code: 1117796641
Available in 1 - 3 days
56,25 €
or
1,76€ / month
εως 36 δόσεις με πιστωτική κάρτα
Quantity:
Add
Need Help? Fill in your details so we can call you immediately!
Έως 36 Δόσεις. Δείτε το πλάνο δόσεων:
TBI Bank
Buy Now Pay Later.
4 installments 0% επιτόκιο, 20€ έως 300€
3 to 60 installments 300€ έως 100.00€
- 1. Ship with ACS Courier
- 2. Αποστολές με μεταφορικές εταιρίες για ογκώδη αντικείμενα
-
3. Pickup from BoxNow automated machine:
Με την BoxNow μπορείς να παραλάβεις το δέμα σου από Αυτόματο Μηχάνημα Παραλαβής που βρίσκεται κοντά σου, όλες τις ώρες της ημέρας 24/7. Η υπηρεσία έχει χρέωση 3€. Υπάρχει δυνατότητα αντικαταβολής με επιπλέον χρέωση 1€.
-
4. Pickup from the store:
Leof. El. Venizelou 73 (former Theseos), Kallithea
Συμπληρώστε τον ταχυδρομικό κωδικό για να λάβετε εκτίμηση τρόπου και κόστους μεταφορικών.

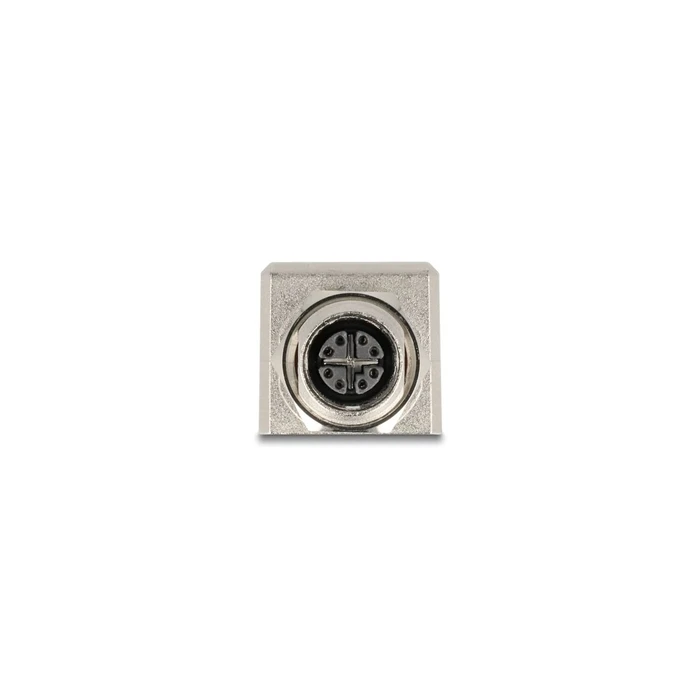

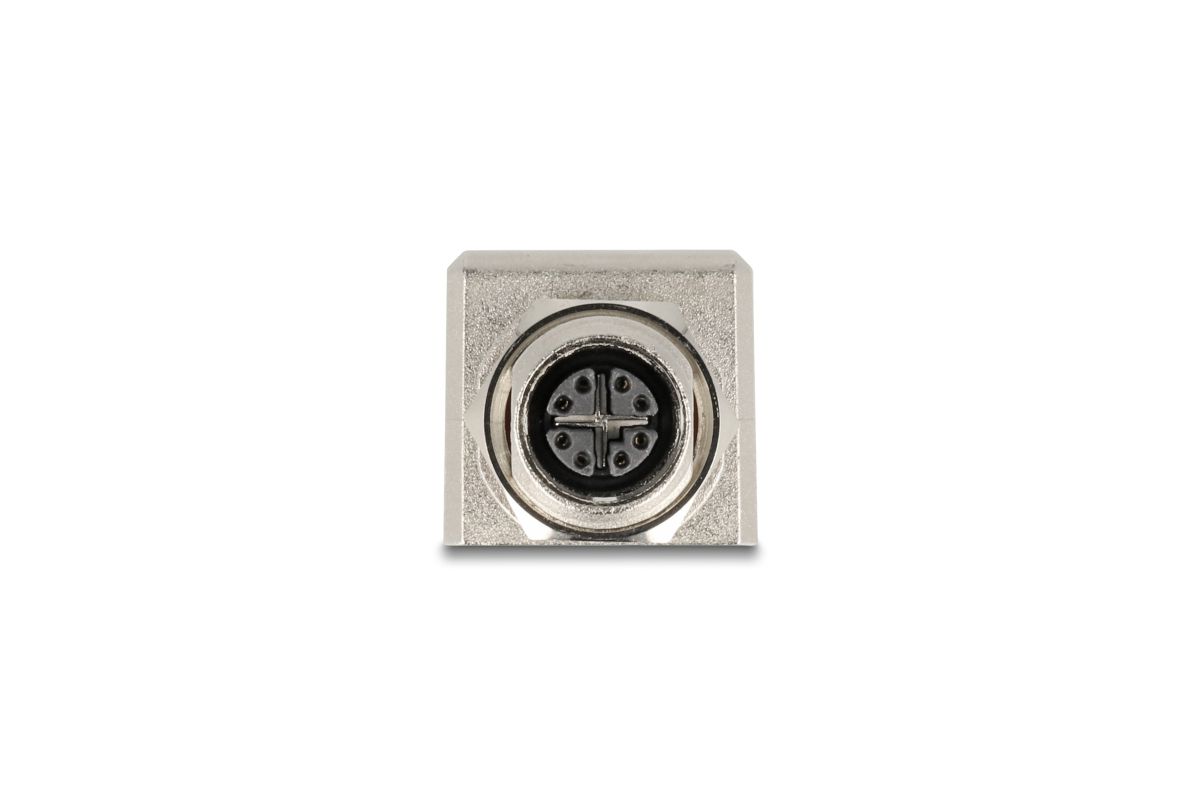

Delock M12 adapter (Model 60087) converting an X-coded M12 8-pin female connector to an RJ45 female jack supporting Category 6A performance. Shielded (STP) construction with gold-plated contacts, housing of PBT and metal and a red silicone sealing ring. Straight orientation; suitable for industrial Ethernet applications to connect M12-equipped devices to standard RJ45 networks. Approx. dimensions 46.3 × 23.9 × 22.4 mm. Operating temperature −10 °C to +60 °C. Protection rating: M12 side IP67 (when mated), RJ45 side IP20. Electrical: max operating voltage 50 V, max M12 current 0.5 A, max RJ45 current 1.5 A. EAN 4043619600878, SKU 487695, MPN 60087.
-
BrandDelock
-
Model / MPN60087
-
SKU487695
-
EAN / Barcode4043619600878
-
Adapter typeM12 (female, X-coded, 8-pin) to RJ45 (female) jack
-
Network CategoryCat.6A
-
ShieldingSTP (shielded twisted pair)
-
Contact finishGold-plated
-
Mounting threadM16 external thread
-
OrientationStraight
-
M12 pins8
-
M12 codingX-coded
-
RJ45 type8P8C female jack
-
Maximum operating voltage50 V
-
Maximum M12 current0.5 A
-
Maximum RJ45 current1.5 A
-
Housing materialsPBT and metal
-
Sealing ringRed silicone
-
ColorsBlack and silver
-
Dimensions (L×W×H mm)46.3 × 23.9 × 22.4
-
Installation dimensions (mm)~16.1 × 13.6
-
Protection rating (M12 side)IP67 (when mated)
-
Protection rating (RJ45 side)IP20
-
Operating temperature range−10 °C to +60 °C
-
Intended applicationIndustrial Ethernet adapter to connect M12-based devices to RJ45 networks
-
Weight (product) g30
-
Package weight g80
-
Package dimensions (cm) L×W×H8 × 6 × 3
-
Certifications / StandardsCat.6A performance (industrial Ethernet)
-
Use caseMachine control, automation, switch cabinets, industrial network transitions
Ratings
Description
Delock M12 adapter (Model 60087) converting an X-coded M12 8-pin female connector to an RJ45 female jack supporting Category 6A performance. Shielded (STP) construction with gold-plated contacts, housing of PBT and metal and a red silicone sealing ring. Straight orientation; suitable for industrial Ethernet applications to connect M12-equipped devices to standard RJ45 networks. Approx. dimensions 46.3 × 23.9 × 22.4 mm. Operating temperature −10 °C to +60 °C. Protection rating: M12 side IP67 (when mated), RJ45 side IP20. Electrical: max operating voltage 50 V, max M12 current 0.5 A, max RJ45 current 1.5 A. EAN 4043619600878, SKU 487695, MPN 60087.
Technical Specifications
-
BrandDelock
-
Model / MPN60087
-
SKU487695
-
EAN / Barcode4043619600878
-
Adapter typeM12 (female, X-coded, 8-pin) to RJ45 (female) jack
-
Network CategoryCat.6A
-
ShieldingSTP (shielded twisted pair)
-
Contact finishGold-plated
-
Mounting threadM16 external thread
-
OrientationStraight
-
M12 pins8
-
M12 codingX-coded
-
RJ45 type8P8C female jack
-
Maximum operating voltage50 V
-
Maximum M12 current0.5 A
-
Maximum RJ45 current1.5 A
-
Housing materialsPBT and metal
-
Sealing ringRed silicone
-
ColorsBlack and silver
-
Dimensions (L×W×H mm)46.3 × 23.9 × 22.4
-

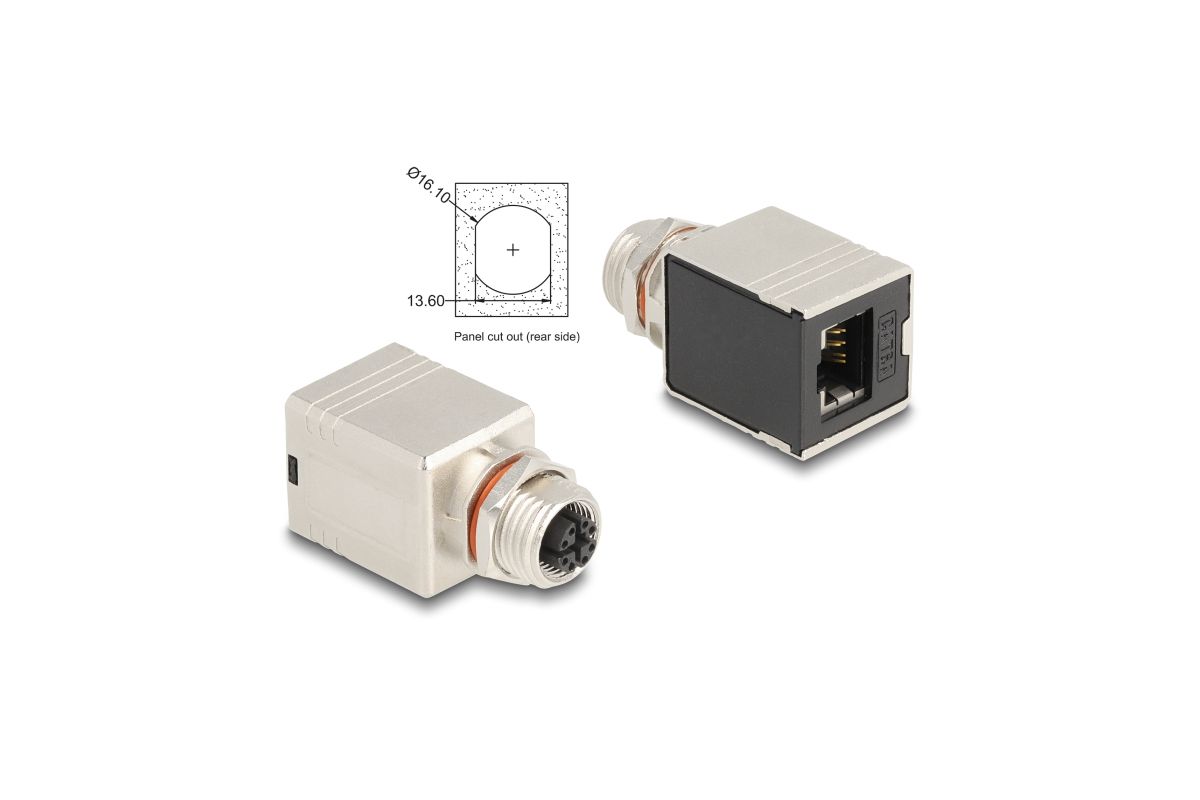

Installation dimensions (mm)~16.1 × 13.6
-
Protection rating (M12 side)IP67 (when mated)
-
Protection rating (RJ45 side)IP20
-
Operating temperature range−10 °C to +60 °C
-
Intended applicationIndustrial Ethernet adapter to connect M12-based devices to RJ45 networks
-
Weight (product) g30
-
Package weight g80
-
Package dimensions (cm) L×W×H8 × 6 × 3
-
Certifications / StandardsCat.6A performance (industrial Ethernet)
-
Use caseMachine control, automation, switch cabinets, industrial network transitions
