Delock adapter: D-Sub15 male to 16-pin terminal block with plastic enclosure (Item No. 66566, EAN 4043619665662). Designed to connect bare wires (26–18 AWG) to a free D-Sub15 female port. Features a screw-on strain relief, included locking screws, and a plastic housing to protect the PCB from dirt...
More
DELOCK D-Sub15 male to 16-pin Terminal Block Adapter with Enclosure (Item No. 66566)
Product Code: 1117728601
Available in 1 - 3 days
17,09 €
With the purchase of this product you earn 52 Bytes
Quantity:
Add
Need Help? Fill in your details so we can call you immediately!
TBI Bank
Buy Now Pay Later.
4 installments 0% επιτόκιο, 20€ έως 300€
3 to 60 installments 300€ έως 100.00€
- 1. Ship with ACS Courier
- 2. Αποστολές με μεταφορικές εταιρίες για ογκώδη αντικείμενα
-
3. Pickup from BoxNow automated machine:
Με την BoxNow μπορείς να παραλάβεις το δέμα σου από Αυτόματο Μηχάνημα Παραλαβής που βρίσκεται κοντά σου, όλες τις ώρες της ημέρας 24/7. Η υπηρεσία έχει χρέωση 3€. Υπάρχει δυνατότητα αντικαταβολής με επιπλέον χρέωση 1€.
-
4. Pickup from the store:
Leof. El. Venizelou 73 (former Theseos), Kallithea
Συμπληρώστε τον ταχυδρομικό κωδικό για να λάβετε εκτίμηση τρόπου και κόστους μεταφορικών.

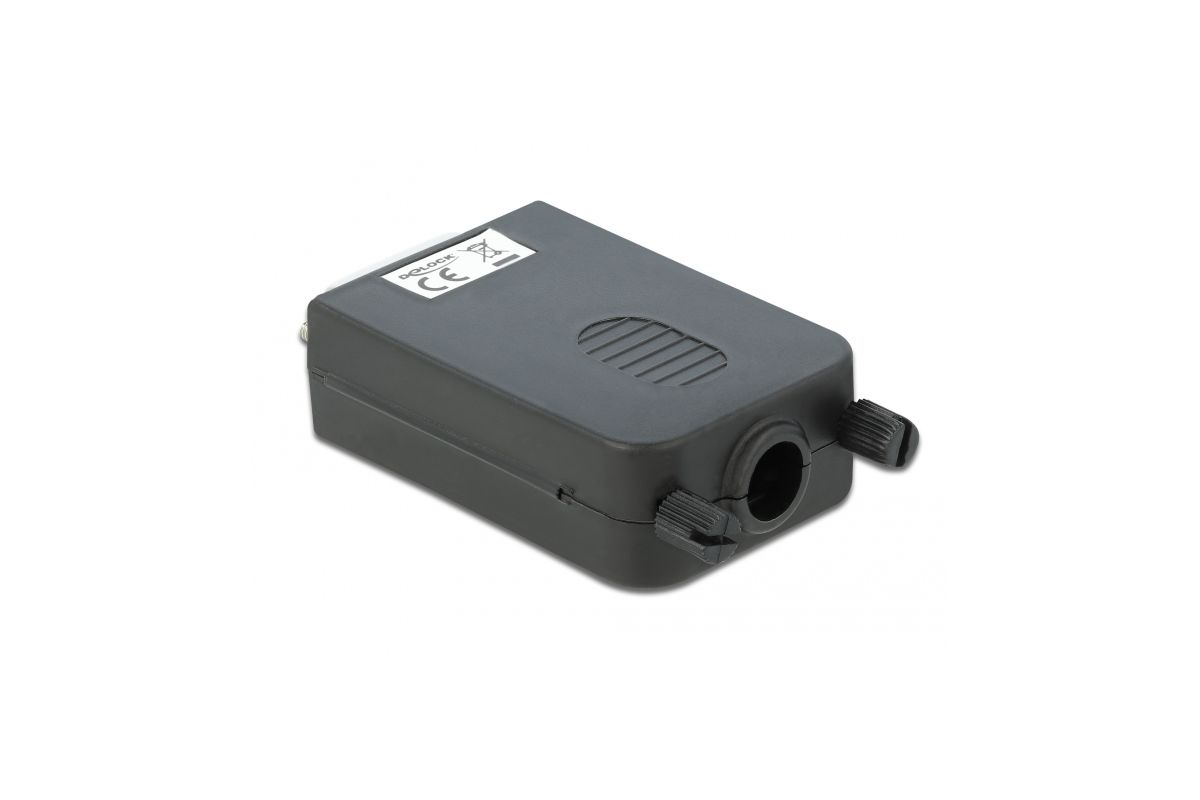

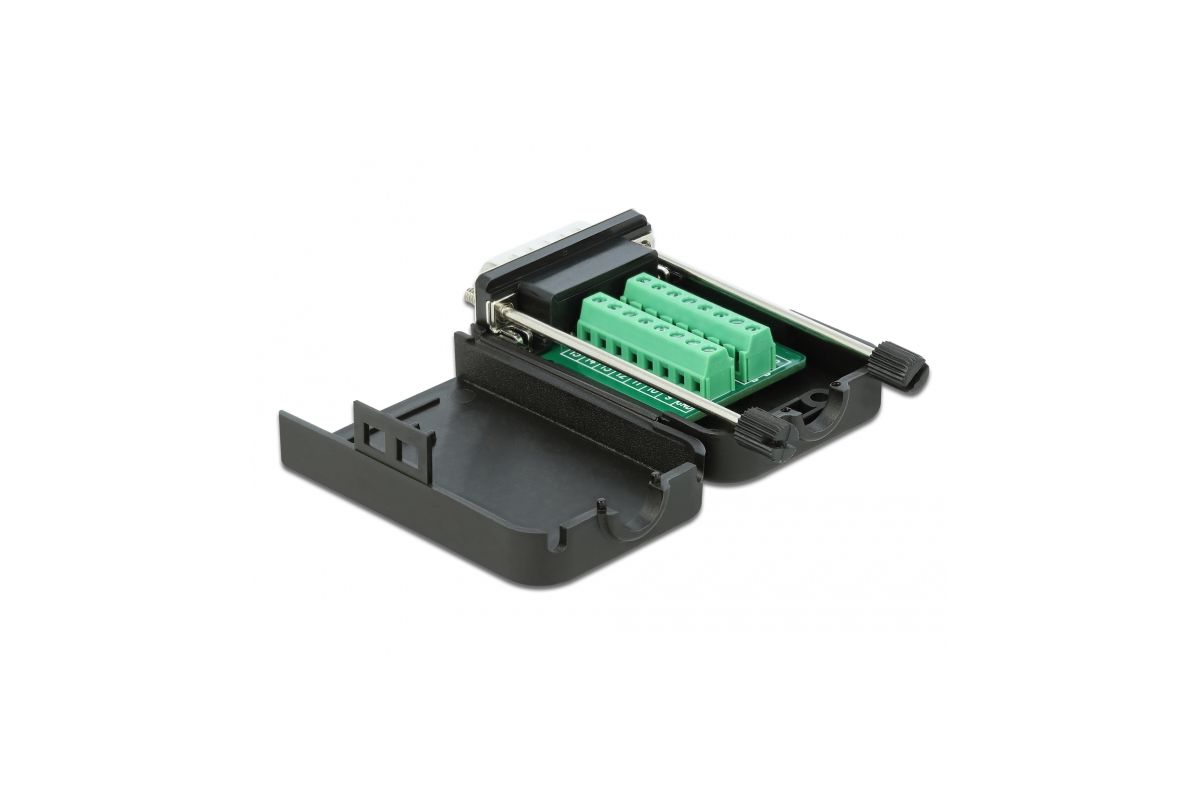

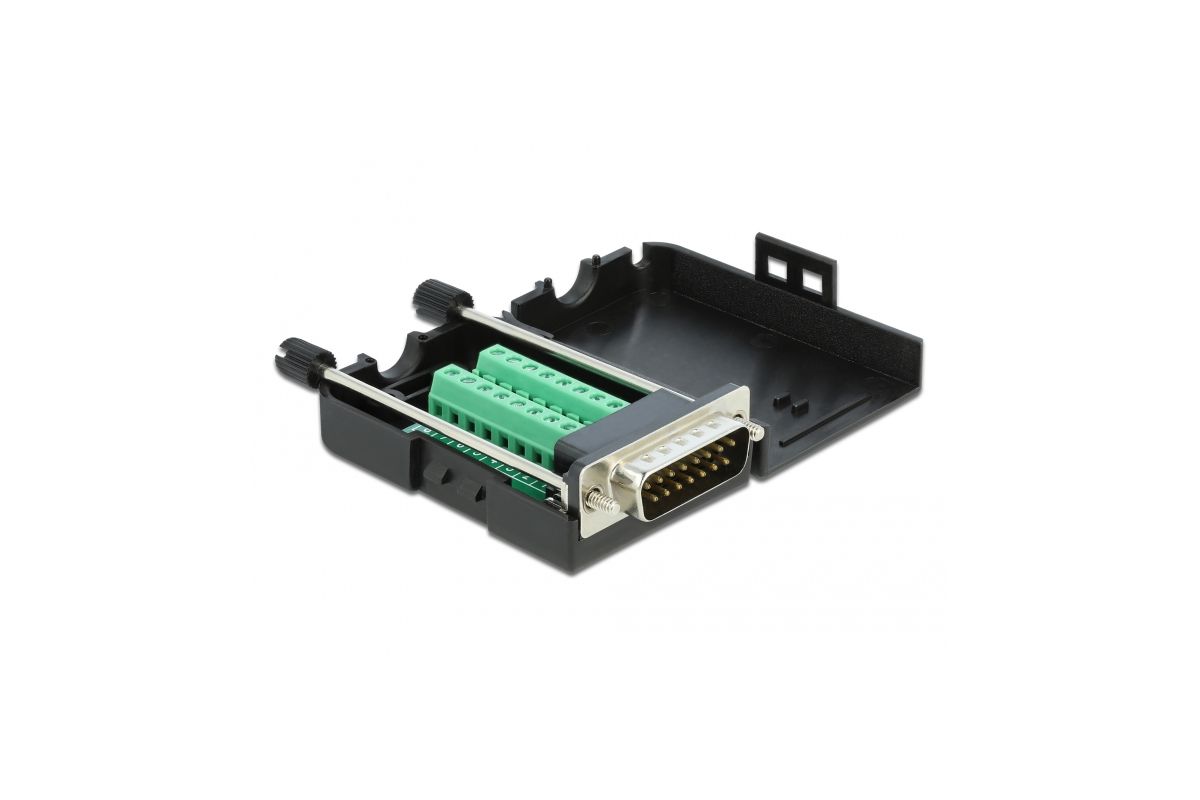

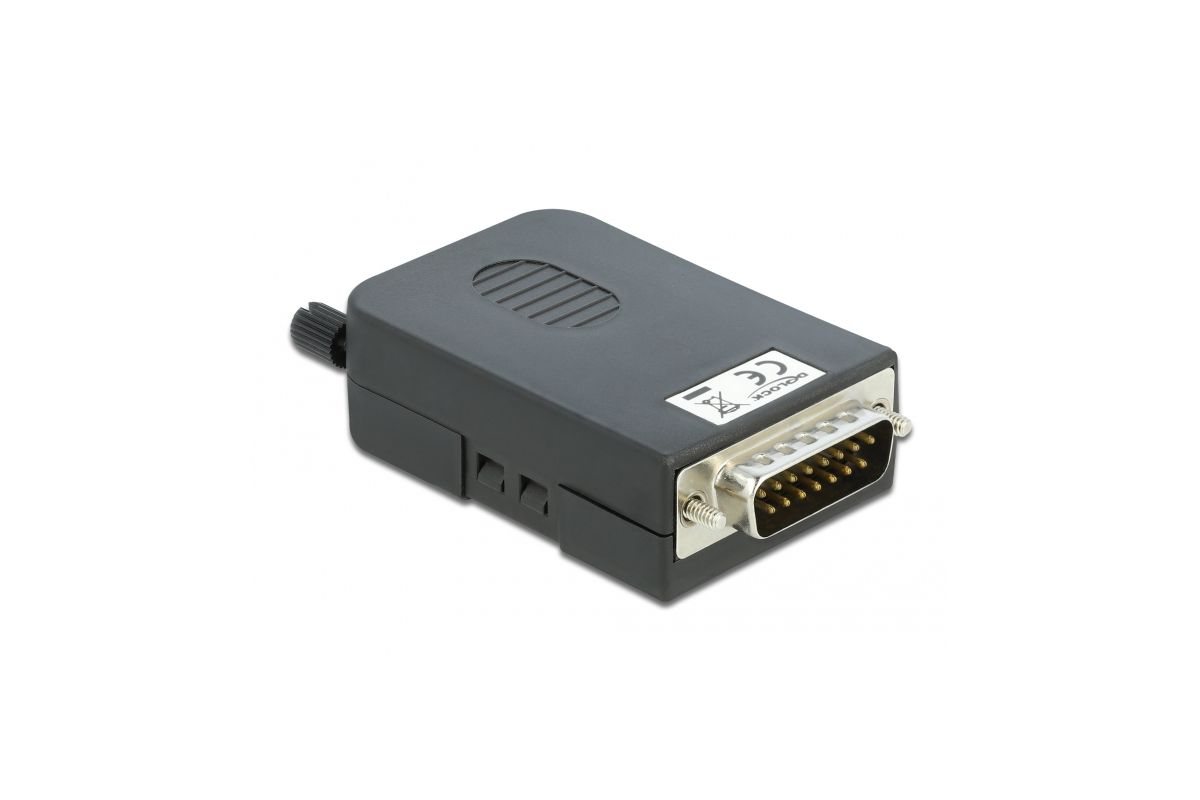

Delock adapter: D-Sub15 male to 16-pin terminal block with plastic enclosure (Item No. 66566, EAN 4043619665662). Designed to connect bare wires (26–18 AWG) to a free D-Sub15 female port. Features a screw-on strain relief, included locking screws, and a plastic housing to protect the PCB from dirt and damage. Typical uses include industrial connections and hobby applications such as model railways. Operating temperature -20 °C to 105 °C. Dimensions approx. 78 x 42 x 21 mm.
-
BrandDelock
-
Model / Item No.66566
-
MPN66566
-
EAN / Barcode4043619665662
-
CategoryAdapter
-
Connector 11 x D-Sub 15 pin male (2 rows) with screws
-
Connector 21 x 16-pin terminal block
-
Pin assignment1:1
-
Pitch3.81 mm
-
Cable gauge (supported)26 to 18 AWG
-
Operating temperature-20 °C to 105 °C
-
Dimensions (L x W x H)approx. 78 x 42 x 21 mm
-
Material (housing)Plastic enclosure, PCB inside
-
Weight (product, approx.)40 g
-
Package contentsAdapter, 1 x strain relief, 2 x locking screws
-
PackagingZip poly bag
-
FeaturesPlastic enclosure protects PCB from dirt and damage; screw-on strain relief; D-Sub connector includes screws; suitable for bare wire terminations
-
Intended useConnect bare wires to D-Sub15 female ports; industrial and hobby applications
Ratings
Description
Delock adapter: D-Sub15 male to 16-pin terminal block with plastic enclosure (Item No. 66566, EAN 4043619665662). Designed to connect bare wires (26–18 AWG) to a free D-Sub15 female port. Features a screw-on strain relief, included locking screws, and a plastic housing to protect the PCB from dirt and damage. Typical uses include industrial connections and hobby applications such as model railways. Operating temperature -20 °C to 105 °C. Dimensions approx. 78 x 42 x 21 mm.
Technical Specifications
-
BrandDelock
-
Model / Item No.66566
-
MPN66566
-
EAN / Barcode4043619665662
-
CategoryAdapter
-
Connector 11 x D-Sub 15 pin male (2 rows) with screws
-
Connector 21 x 16-pin terminal block
-
Pin assignment1:1
-
Pitch3.81 mm
-
Cable gauge (supported)26 to 18 AWG
-
Operating temperature-20 °C to 105 °C
-
Dimensions (L x W x H)approx. 78 x 42 x 21 mm
-
Material (housing)Plastic enclosure, PCB inside
-
Weight (product, approx.)40 g
-
Package contentsAdapter, 1 x strain relief, 2 x locking screws
-
PackagingZip poly bag
-
FeaturesPlastic enclosure protects PCB from dirt and damage; screw-on strain relief; D-Sub connector includes screws; suitable for bare wire terminations
-
Intended useConnect bare wires to D-Sub15 female ports; industrial and hobby applications
