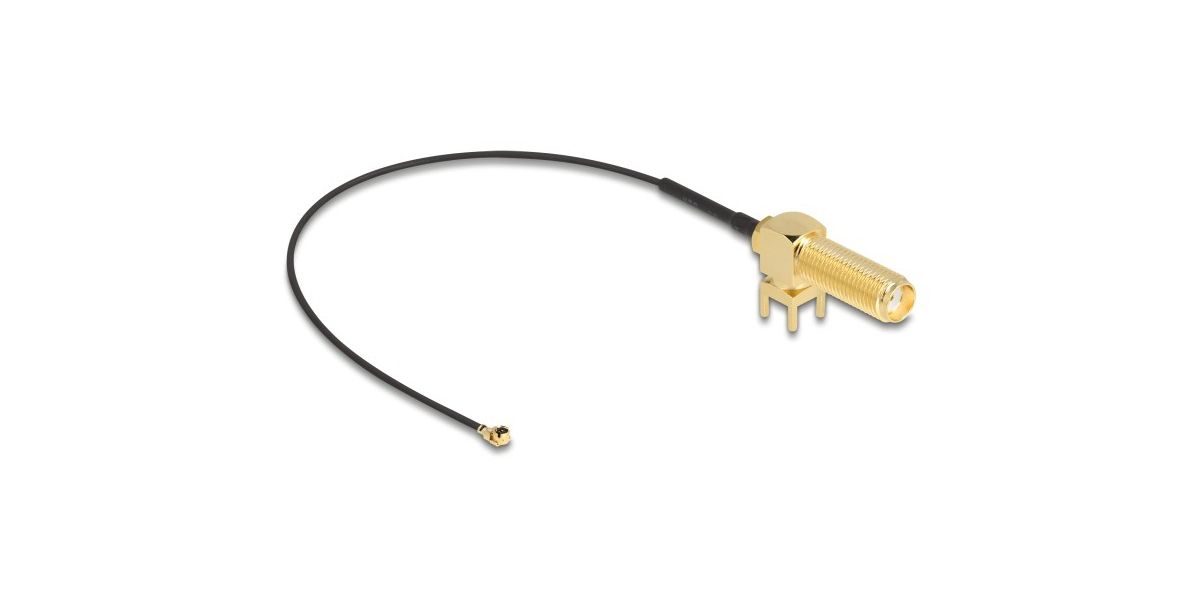

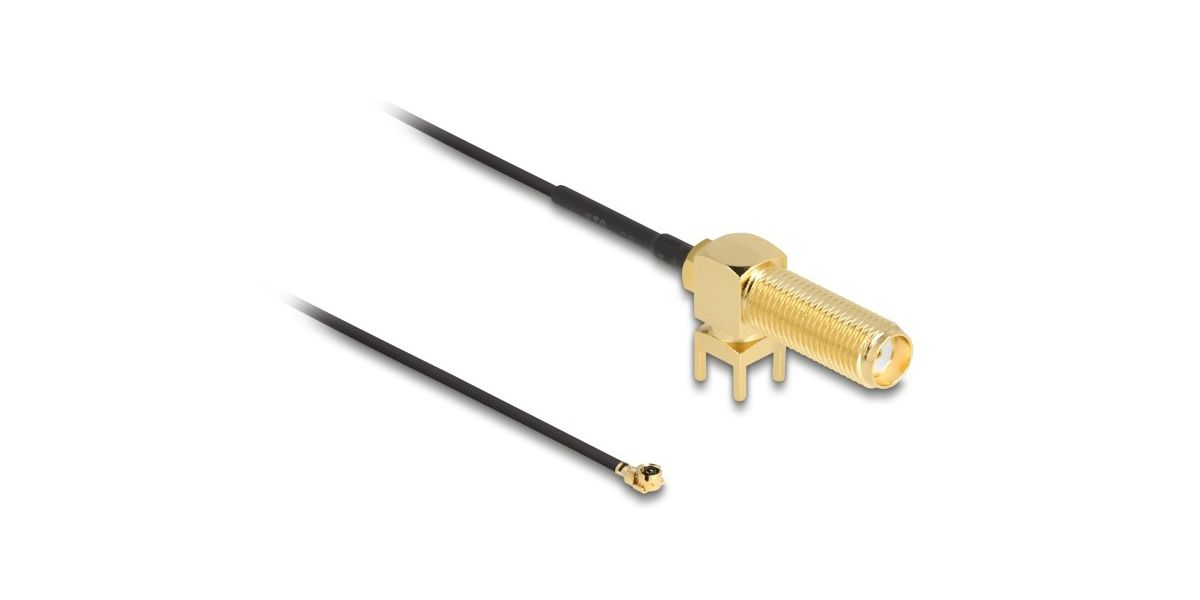

Delock high-frequency antenna cable featuring a 90° angled SMA PCB bulkhead jack (female) with 15 mm thread length to an I-PEX Inc. MHF® I plug (1.13 mm coax). Cable length 15 cm, 50 Ω impedance, designed for Wi‑Fi, GPS, LTE and other RF module connections. Supplied single piece in a resealable bag...
More
Delock Antenna Cable SMA 90° PCB Jack (bulkhead) to I-PEX Inc. MHF® I Plug 1.13, 15 cm, Thread Length 15 mm (MPN 12034)
Product Code: 1117549573
Available in 1 - 3 days
14,07 €
Quantity:
Add
Need Help? Fill in your details so we can call you immediately!
TBI Bank
Buy Now Pay Later.
4 installments 0% επιτόκιο, 20€ έως 300€
3 to 60 installments 300€ έως 100.00€
- 1. Ship with ACS Courier
- 2. Αποστολές με μεταφορικές εταιρίες για ογκώδη αντικείμενα
-
3. Pickup from BoxNow automated machine:
Με την BoxNow μπορείς να παραλάβεις το δέμα σου από Αυτόματο Μηχάνημα Παραλαβής που βρίσκεται κοντά σου, όλες τις ώρες της ημέρας 24/7. Η υπηρεσία έχει χρέωση 3€. Υπάρχει δυνατότητα αντικαταβολής με επιπλέον χρέωση 1€.
-
4. Pickup from the store:
Leof. El. Venizelou 73 (former Theseos), Kallithea
Συμπληρώστε τον ταχυδρομικό κωδικό για να λάβετε εκτίμηση τρόπου και κόστους μεταφορικών.
Delock high-frequency antenna cable featuring a 90° angled SMA PCB bulkhead jack (female) with 15 mm thread length to an I-PEX Inc. MHF® I plug (1.13 mm coax). Cable length 15 cm, 50 Ω impedance, designed for Wi‑Fi, GPS, LTE and other RF module connections. Supplied single piece in a resealable bag with mounting nut and washer.
-
BrandDelock
-
MPN12034
-
SKU (retailer)549573
-
EAN4043619120345
-
Connector 1SMA 90° PCB Buchse (female) bulkhead jack, threaded mounting (15 mm thread length)
-
Connector 2I-PEX Inc. MHF® I plug (1.13 mm coax compatible; MHF type for mini RF modules)
-
Cable length15 cm
-
Cable typeCoaxial, 1.13 mm diameter
-
Impedance50 Ω
-
Typical attenuation~3.20 dB/m @ 2.4 GHz (typical for 1.13 mm cable)
-
Minimum bend radius~4.5 mm (typical for 1.13 mm coax)
-
ColorBlack
-
Mounting hardwareNut and washer included for bulkhead mounting
-
Thread length15 mm
-
PackagingResealable bag; quantity: 1 piece
-
ApplicationConnects PCB-mounted RF modules (I-PEX) to external SMA antennas for Wi‑Fi/GPS/LTE and other HF uses
-
Weight (product)~10 g
Ratings
Description
Delock high-frequency antenna cable featuring a 90° angled SMA PCB bulkhead jack (female) with 15 mm thread length to an I-PEX Inc. MHF® I plug (1.13 mm coax). Cable length 15 cm, 50 Ω impedance, designed for Wi‑Fi, GPS, LTE and other RF module connections. Supplied single piece in a resealable bag with mounting nut and washer.
Technical Specifications
-
BrandDelock
-
MPN12034
-
SKU (retailer)549573
-
EAN4043619120345
-
Connector 1SMA 90° PCB Buchse (female) bulkhead jack, threaded mounting (15 mm thread length)
-
Connector 2I-PEX Inc. MHF® I plug (1.13 mm coax compatible; MHF type for mini RF modules)
-
Cable length15 cm
-
Cable typeCoaxial, 1.13 mm diameter
-
Impedance50 Ω
-
Typical attenuation~3.20 dB/m @ 2.4 GHz (typical for 1.13 mm cable)
-
Minimum bend radius~4.5 mm (typical for 1.13 mm coax)
-
ColorBlack
-
Mounting hardwareNut and washer included for bulkhead mounting
-
Thread length15 mm
-
PackagingResealable bag; quantity: 1 piece
-
ApplicationConnects PCB-mounted RF modules (I-PEX) to external SMA antennas for Wi‑Fi/GPS/LTE and other HF uses
-
Weight (product)~10 g
