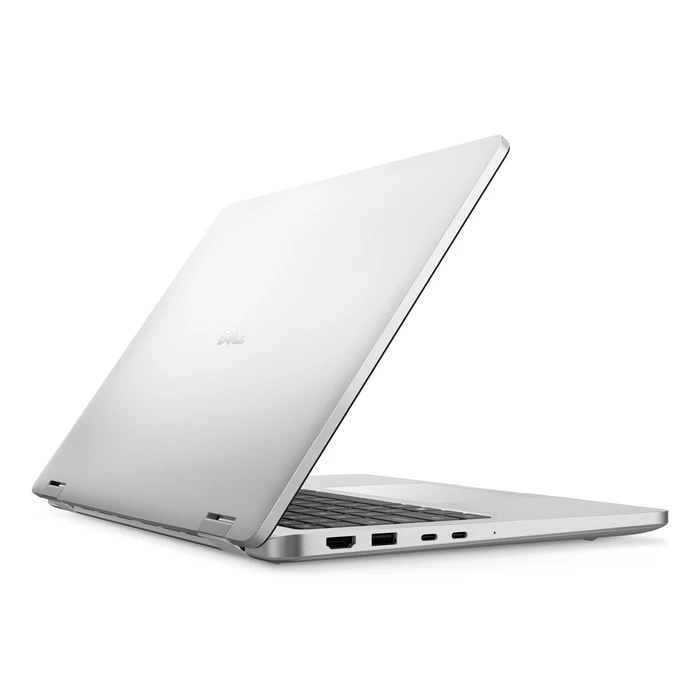

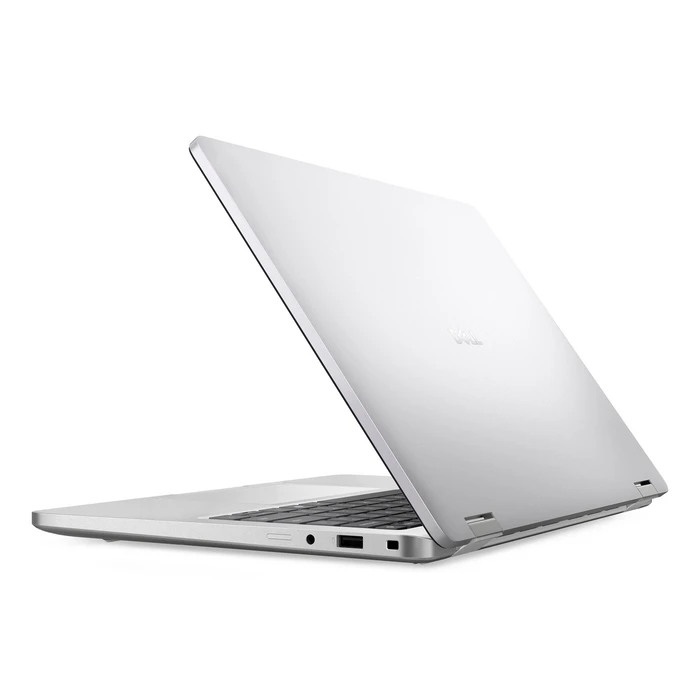

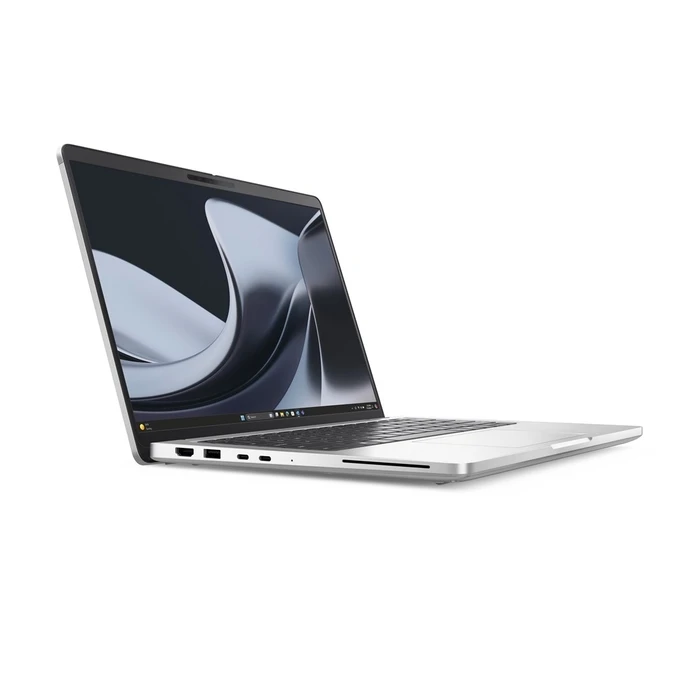

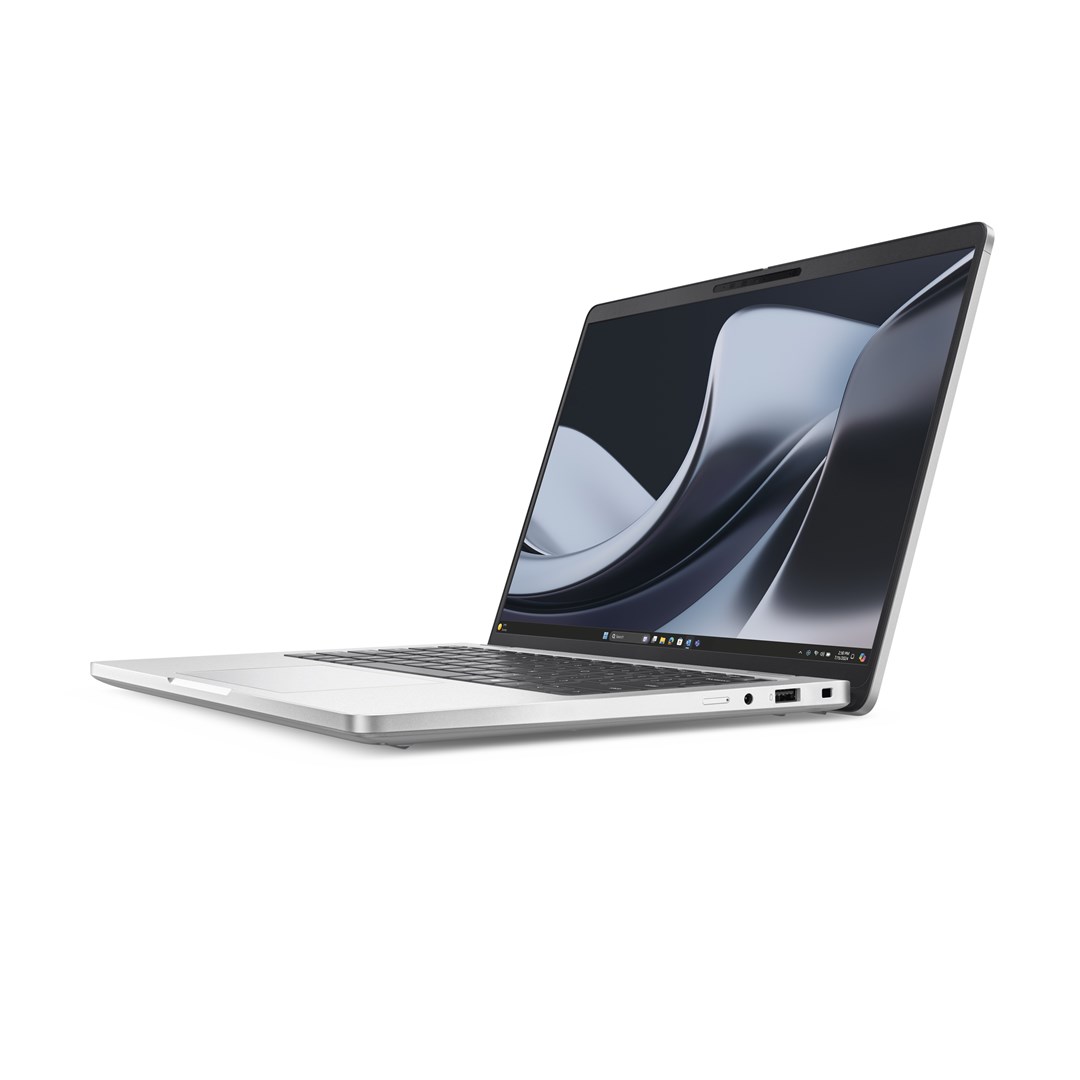

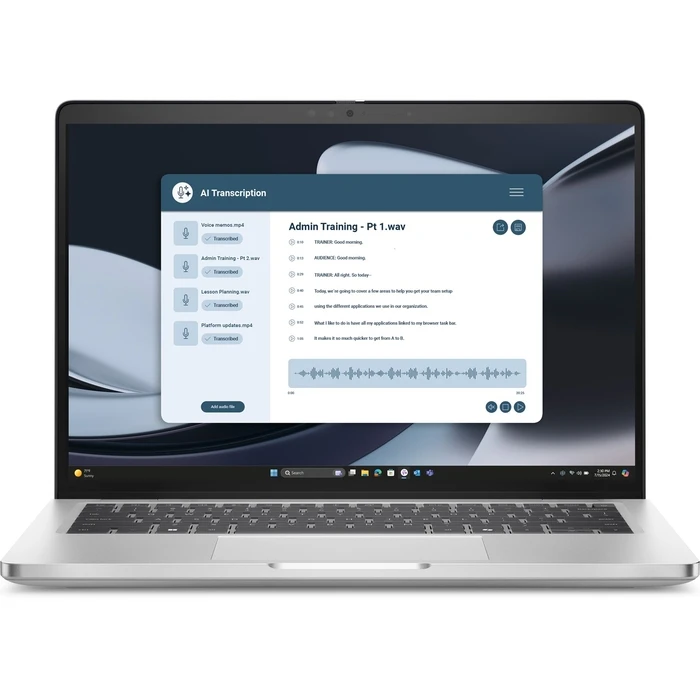

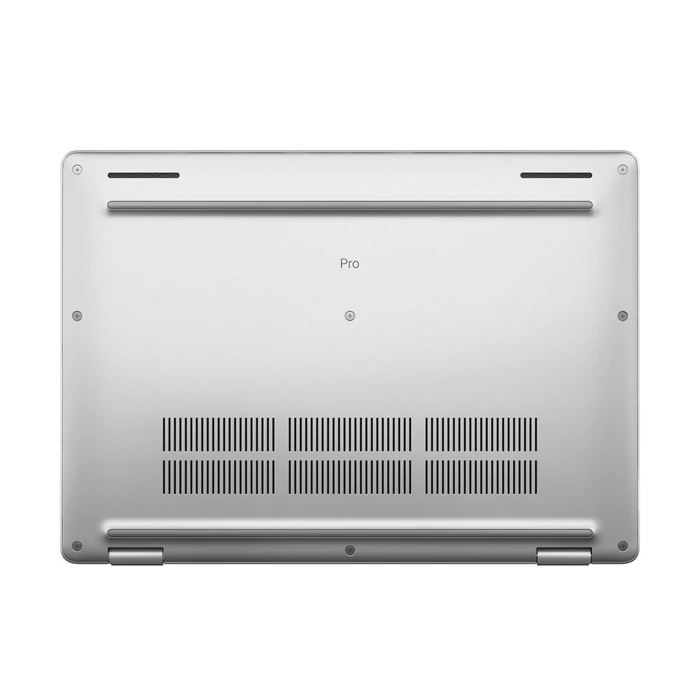

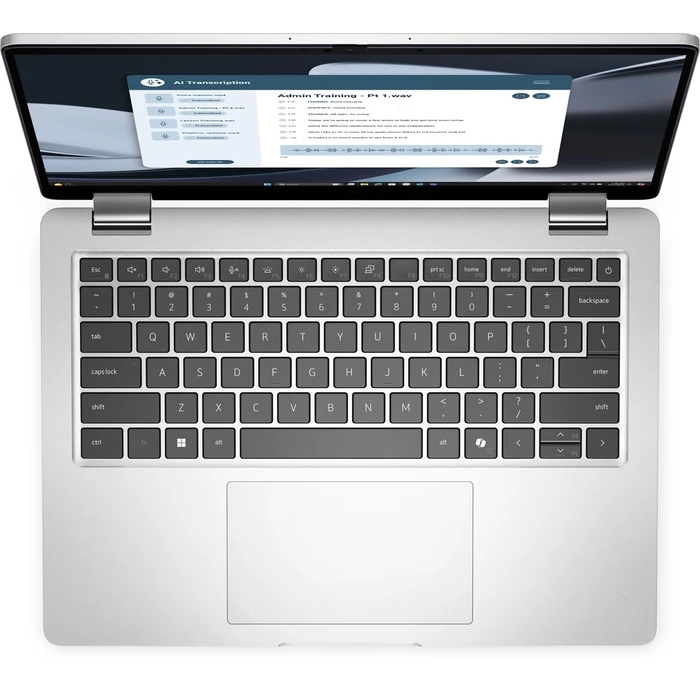

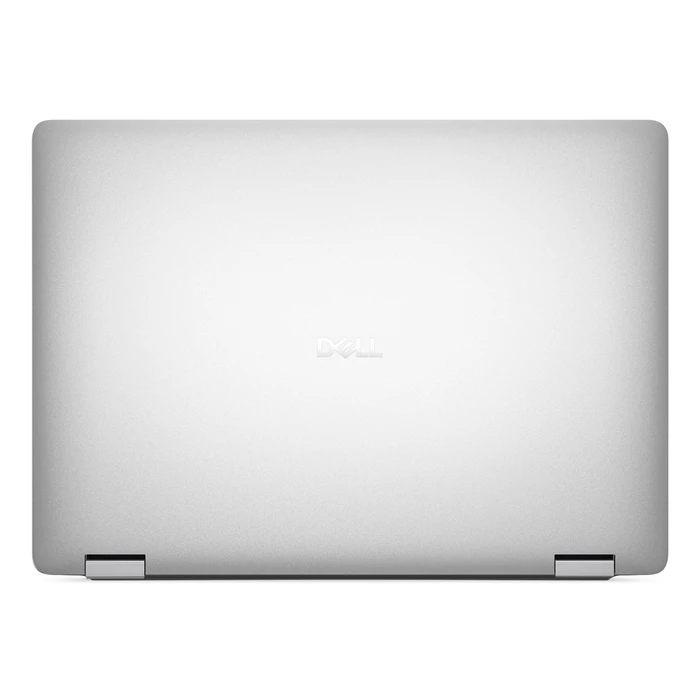

DELL Pro 14 Plus PB14255 — 14" Full HD+ Laptop, AMD Ryzen 5 PRO 230, 16GB LPDDR5x, 512GB NVMe, Wi‑Fi 7, Windows 11 Pro (International English Keyboard)

Description

Technical Specifications

• Product Type
  Laptop
• Brand
  DELL
• Model
  Pro 14 Plus PB14255
• SKU
  WLONONWCRU969
• MPN
  BTO504_PB14255_EMEA
• EAN
  0662919123357
• Processor Manufacturer
  AMD
• Processor Family
  Ryzen 5 PRO
• Processor Model
  230
• Processor Cores
  6
• Processor Threads
  12
• Processor Base Frequency
  3.5 GHz
• Processor Boost Frequency
  4.9 GHz
• Processor Cache
  22 MB (L2 & L3)
• Processor Base Power (TDP)
  15 W
• Maximum Turbo Power
  30 W
• Neural Processor Unit (NPU)
  AMD Ryzen AI (NPU up to 16 TOPs, total processor performance up to 31 TOPs)
• Integrated Graphics
  AMD Radeon 760M
• Discrete Graphics
  No
• Memory Type
  LPDDR5x-SDRAM (on-board)
• Installed Memory
  16 GB
• Maximum Memory
  16 GB
• Memory Speed
  7500 MT/s
• Storage Type
  SSD NVMe PCIe 4.0
• Installed Storage
  512 GB (M.2)
• Number of SSDs
  1
• Display Size
  14" (35.6 cm)
• Display Aspect Ratio
  16:10
• Display Resolution
  1920 x 1200 (Full HD+)
• Panel Type
  WVA
• Display Brightness
  300 cd/m²
• Colour Gamut
  45%
• Contrast Ratio (typical)
  800:1
• Refresh Rate
  60 Hz
• Touchscreen
  No
• Camera (Front)
  2.07 MP (1920 x 1080) Full HD, IR camera, privacy shutter, 30 fps
• Microphones
  2
• Speakers
  2 (total 2.5 W each)
• Audio Chip
  Realtek ALC3329
• Operating System Installed
  Windows 11 Pro (64-bit)
• Battery Capacity
  55 Wh
• Battery Cells
  3
• Battery Recharge Time
  ~4 h
• Fast Charging
  Yes
• AC Adapter Power
  65 W (included)

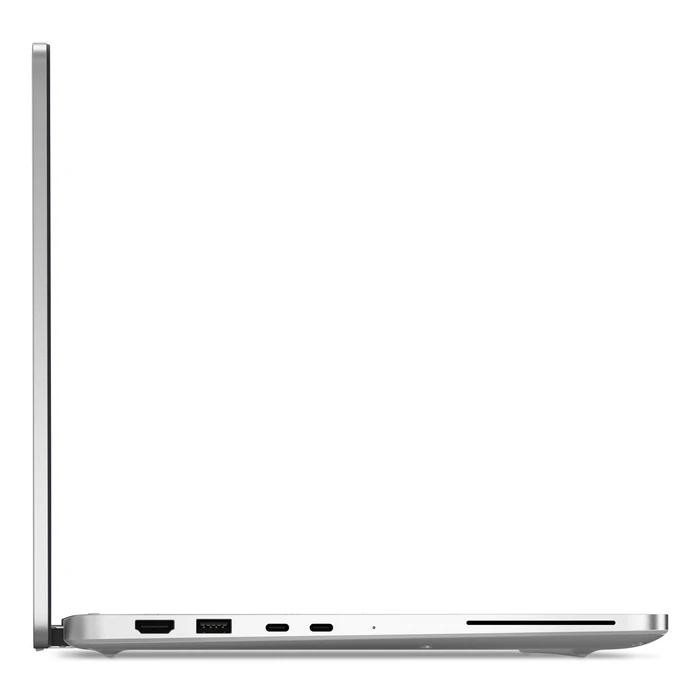

• USB Type-C Ports
  Yes (2x USB4 Gen 3x2)
• USB Type-C PD
  Yes (45–65 W)
• USB Type-A Ports
  2 x USB 3.2 Gen1 (3.1 Gen1) Type-A
• HDMI
  1 x HDMI 2.1

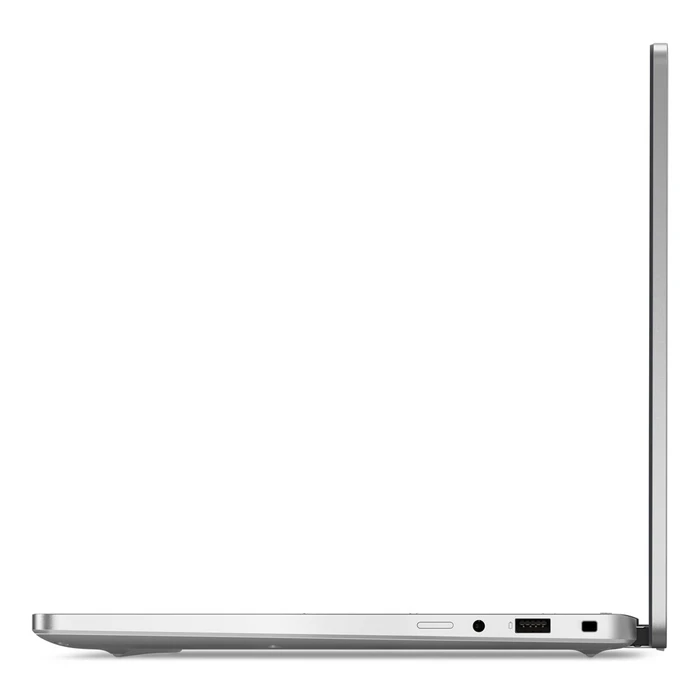

• Combo Headphone/Mic
  Yes
• PowerShare
  Yes (1 port)
• Wireless LAN
  Wi‑Fi 7 (802.11be) supported, tri-band 2.4/5/6 GHz
• WLAN Controller
  MediaTek (model MT7925)
• Wi‑Fi Max Data Rate
  2882 Mbit/s
• Bluetooth
  Yes
• Mobile Network Connection
  No
• Security Features
  TPM 2.0, fingerprint reader, smart card reader, privacy camera shutter
• Physical Material
  Aluminium housing
• Product Colour
  Aluminium
• Form Factor
  Clamshell
• Dimensions (W x D x H)
  313.5 x 224 x 21.2 mm
• Weight
  1.56 kg
• Antenna Type
  2x2
• Environmental - Operating Temp
  0 - 35 °C
• Environmental - Storage Temp
  -40 - 65 °C
• Operating Humidity
  10 - 90%
• Storage Humidity
  0 - 95%
• Operating Altitude
  -15.2 - 3048 m
• Non-operating Altitude
  -15.2 - 10668 m
• Operating Shock
  110 G
• Non-operating Shock
  160 G
• Operating Vibration
  0.66 G
• Non-operating Vibration
  1.3 G
• Keyboard
  Backlit
• Pointing Device
  Touchpad
• Privacy Camera
  Yes (privacy shutter)
• Trial Software
  McAfee Business Protection 1-year, Microsoft Office Trial
• Total Carbon Footprint
  113 kg CO2e
• Carbon Emissions - Manufacturing
  85.77 kg CO2e
• Carbon Emissions - Energy Usage
  20.68 kg CO2e
• Carbon Emissions - Logistics
  4.52 kg CO2e
• Carbon Emissions - End of Life
  2.03 kg CO2e
