DEHNcube YPV SCI 1000 1M is a 3-pole Type 2 surge protective device for photovoltaic systems up to 1000 V DC. It protects one MPP input string, uses SCI (short-circuit interrupter) technology for safe DC switching, is compact for direct mounting without additional enclosure and rated IP65 for...
More

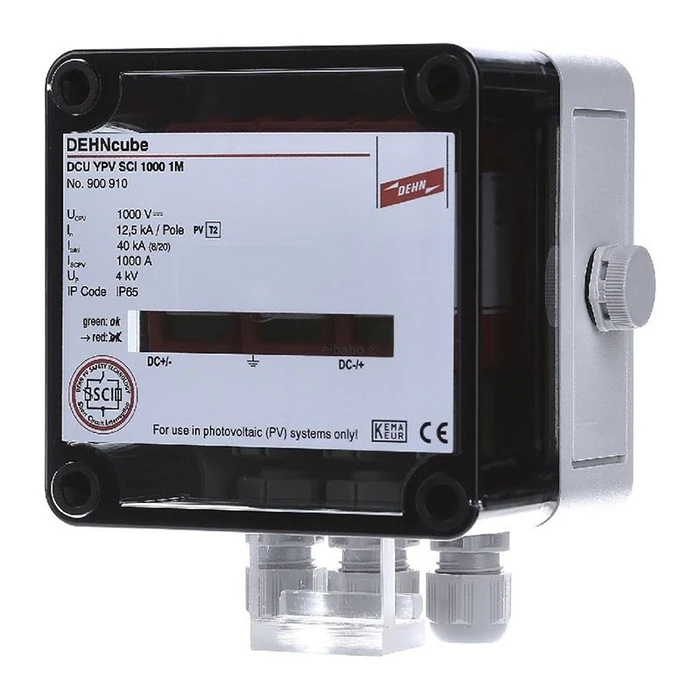

DEHNcube YPV SCI 1000 1M Type 2 Surge Protective Device for PV (1000 V DC) - single MPP
Product Code: 1127721644
Available in 4 - 6 days
245,82 €
or
7,68€ / month
εως 36 δόσεις με πιστωτική κάρτα
Quantity:
Add
Need Help? Fill in your details so we can call you immediately!
Έως 36 Δόσεις. Δείτε το πλάνο δόσεων:
TBI Bank
Buy Now Pay Later.
4 installments 0% επιτόκιο, 20€ έως 300€
3 to 60 installments 300€ έως 100.00€
- 1. Ship with ACS Courier
- 2. Αποστολές με μεταφορικές εταιρίες για ογκώδη αντικείμενα
-
3. Pickup from BoxNow automated machine:
Με την BoxNow μπορείς να παραλάβεις το δέμα σου από Αυτόματο Μηχάνημα Παραλαβής που βρίσκεται κοντά σου, όλες τις ώρες της ημέρας 24/7. Η υπηρεσία έχει χρέωση 3€. Υπάρχει δυνατότητα αντικαταβολής με επιπλέον χρέωση 1€.
-
4. Pickup from the store:
Leof. El. Venizelou 73 (former Theseos), Kallithea
Συμπληρώστε τον ταχυδρομικό κωδικό για να λάβετε εκτίμηση τρόπου και κόστους μεταφορικών.
DEHNcube YPV SCI 1000 1M is a 3-pole Type 2 surge protective device for photovoltaic systems up to 1000 V DC. It protects one MPP input string, uses SCI (short-circuit interrupter) technology for safe DC switching, is compact for direct mounting without additional enclosure and rated IP65 for outdoor use.
-
BrandDEHN
-
ModelDEHNcube YPV SCI 1000 1M
-
MPN2627832
-
EAN4013364155046
-
SKUWLONONWCRGHGP
-
TypeType 2 surge protective device (SPD)
-
ApplicationPhotovoltaic installations (PV) - protects one MPP string
-
Poles3-pole (trójbiegunowy)
-
Max System Voltage (DC)1000 V
-
Nominal Discharge Current (In)15 kA (8/20 µs)
-
Short-Circuit Current Rating1000 A
-
Protection RatingIP65
-
Dimensions (W×D×H)94 × 94 × 81 mm
-
Product Weight426 g
-
Cable Connection Size3 × Ø3–7 mm
-
Connection SideDC
-
SCI TechnologyYes (Short-Circuit Interrupter for DC currents)
-
MountingDirect mounting next to protected devices (no additional enclosure required)
-
Standards ComplianceEN 50539-11, HD 60364-7-712 (PN-EN 50539-11, PN-HD 60364-7-712)
-
Ambient/UseOutdoor-capable / PV generator circuits
-
Variant Notes1M = single MPP string. Related 2M variant protects two MPP strings (5-pole).
Ratings
Description
DEHNcube YPV SCI 1000 1M is a 3-pole Type 2 surge protective device for photovoltaic systems up to 1000 V DC. It protects one MPP input string, uses SCI (short-circuit interrupter) technology for safe DC switching, is compact for direct mounting without additional enclosure and rated IP65 for outdoor use.
Technical Specifications
-
BrandDEHN
-
ModelDEHNcube YPV SCI 1000 1M
-
MPN2627832
-
EAN4013364155046
-
SKUWLONONWCRGHGP
-
TypeType 2 surge protective device (SPD)
-
ApplicationPhotovoltaic installations (PV) - protects one MPP string
-
Poles3-pole (trójbiegunowy)
-
Max System Voltage (DC)1000 V
-
Nominal Discharge Current (In)15 kA (8/20 µs)
-
Short-Circuit Current Rating1000 A
-
Protection RatingIP65
-
Dimensions (W×D×H)94 × 94 × 81 mm
-
Product Weight426 g
-
Cable Connection Size3 × Ø3–7 mm
-
Connection SideDC
-
SCI TechnologyYes (Short-Circuit Interrupter for DC currents)
-
MountingDirect mounting next to protected devices (no additional enclosure required)
-
Standards ComplianceEN 50539-11, HD 60364-7-712 (PN-EN 50539-11, PN-HD 60364-7-712)
-
Ambient/UseOutdoor-capable / PV generator circuits
-
Variant Notes1M = single MPP string. Related 2M variant protects two MPP strings (5-pole).
