DEHN DSH TNC 255 (941300) — Connection-ready base combination surge arrester designed for TN-C systems. Type: T1 (lightning/current arrester). 3-pole device. Nominal AC voltage: 230 V. Maximum continuous operating voltage (Uc): 255 V. Protection level (Up): 1.5 kV. Impulse current (10/350 µs): 37.5...
More

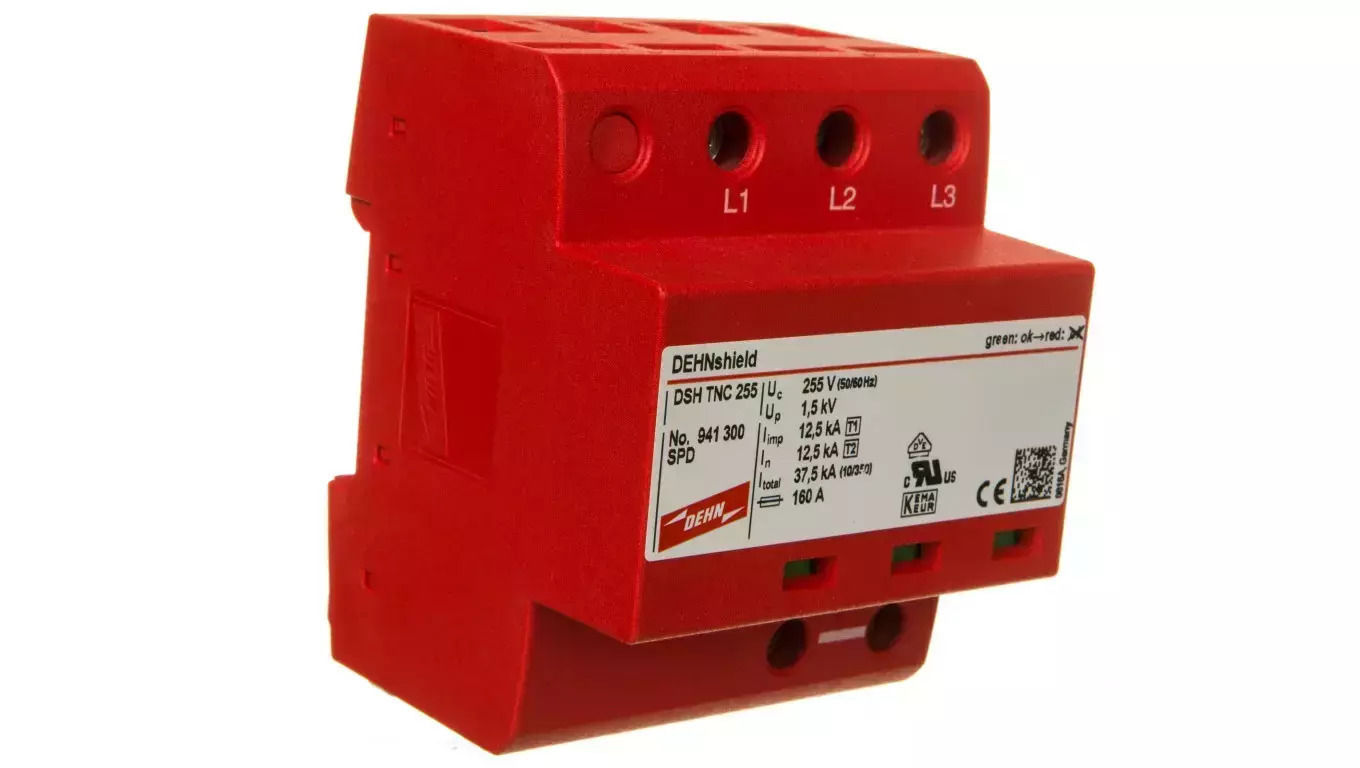

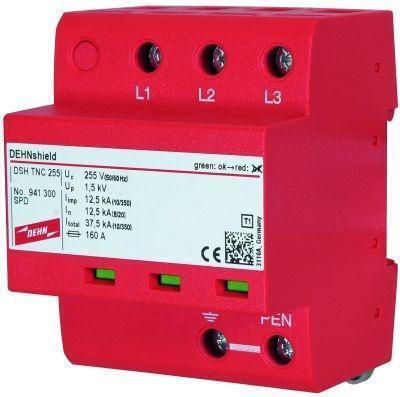

DEHN DEHNSHIELD DSH TNC 255 Surge Arrester Type 1, 3-pole (Model 941300)
Product Code: 1173749816
Available in 4 - 6 days
542,60 €
or
16,94€ / month
εως 36 δόσεις με πιστωτική κάρτα
With the purchase of this product you earn 1628 Loyalty Points
Quantity:
Add
Need Help? Fill in your details so we can call you immediately!
Έως 36 Δόσεις. Δείτε το πλάνο δόσεων:
TBI Bank
Buy Now Pay Later.
4 installments 0% επιτόκιο, 20€ έως 300€
3 to 60 installments 300€ έως 100.00€
- 1. Ship with ACS Courier
- 2. Αποστολές με μεταφορικές εταιρίες για ογκώδη αντικείμενα
-
3. Pickup from BoxNow automated machine:
Με την BoxNow μπορείς να παραλάβεις το δέμα σου από Αυτόματο Μηχάνημα Παραλαβής που βρίσκεται κοντά σου, όλες τις ώρες της ημέρας 24/7. Η υπηρεσία έχει χρέωση 3€. Υπάρχει δυνατότητα αντικαταβολής με επιπλέον χρέωση 1€.
-
4. Pickup from the store:
Leof. El. Venizelou 73 (former Theseos), Kallithea
Συμπληρώστε τον ταχυδρομικό κωδικό για να λάβετε εκτίμηση τρόπου και κόστους μεταφορικών.
DEHN DSH TNC 255 (941300) — Connection-ready base combination surge arrester designed for TN-C systems. Type: T1 (lightning/current arrester). 3-pole device. Nominal AC voltage: 230 V. Maximum continuous operating voltage (Uc): 255 V. Protection level (Up): 1.5 kV. Impulse current (10/350 µs): 37.5 kA. Discharge capacity rating referenced: 25.0 kA. Conductor cross-section (max): 25.0 mm² (single/multiple: 35.0 mm²). Unit width: 4 module units (4 TE). Mounting: DIN-rail 35 mm. Visual failure/actuation indicator. Intended for TN-C networks. Brand: DEHN.
-
BrandDEHN
-
Model / Code941300 (DSH TNC 255)
-
TypeSurge arrester (Type 1 / DEHNSHIELD)
-
Number of poles3 (three-pole)
-
Nominal AC voltage (Un)230 V
-
Max continuous operating voltage (Uc)255 V
-
Protection level (Up)1.5 kV
-
Impulse current (10/350 µs)37.5 kA
-
Discharge capacity (reference)25.0 kA
-
Conductor cross-section (max)25.0 mm²
-
Conductor cross-section (single/multiple)35.0 mm²
-
Number of module units4 TE (4 modules)
-
MountingDIN-rail 35 mm
-
IndicatorVisual activation/failure indicator
-
Network typeTN-C
-
ApplicationConnection-ready base-combination arrester for building electrical installations
-
CategoryΑντικεραυνικά Πίνακα / Surge protection device
Ratings
Description
DEHN DSH TNC 255 (941300) — Connection-ready base combination surge arrester designed for TN-C systems. Type: T1 (lightning/current arrester). 3-pole device. Nominal AC voltage: 230 V. Maximum continuous operating voltage (Uc): 255 V. Protection level (Up): 1.5 kV. Impulse current (10/350 µs): 37.5 kA. Discharge capacity rating referenced: 25.0 kA. Conductor cross-section (max): 25.0 mm² (single/multiple: 35.0 mm²). Unit width: 4 module units (4 TE). Mounting: DIN-rail 35 mm. Visual failure/actuation indicator. Intended for TN-C networks. Brand: DEHN.
Technical Specifications
-
BrandDEHN
-
Model / Code941300 (DSH TNC 255)
-
TypeSurge arrester (Type 1 / DEHNSHIELD)
-
Number of poles3 (three-pole)
-
Nominal AC voltage (Un)230 V
-
Max continuous operating voltage (Uc)255 V
-
Protection level (Up)1.5 kV
-
Impulse current (10/350 µs)37.5 kA
-
Discharge capacity (reference)25.0 kA
-
Conductor cross-section (max)25.0 mm²
-
Conductor cross-section (single/multiple)35.0 mm²
-
Number of module units4 TE (4 modules)
-
MountingDIN-rail 35 mm
-
IndicatorVisual activation/failure indicator
-
Network typeTN-C
-
ApplicationConnection-ready base-combination arrester for building electrical installations
-
CategoryΑντικεραυνικά Πίνακα / Surge protection device
