DEHN DEHNshield B (DSH B TNS 255 FM) combined Type 1+2 surge arrester, four-pole. Designed for TN systems. Nominal AC voltage: 230 V. Maximum continuous operating voltage (Uc): 255 V. Lightning current (10/350): 30 kA. Protection level (impulse voltage): 1.5 kV. L-PE / N-PE protection level: 1.5...
More

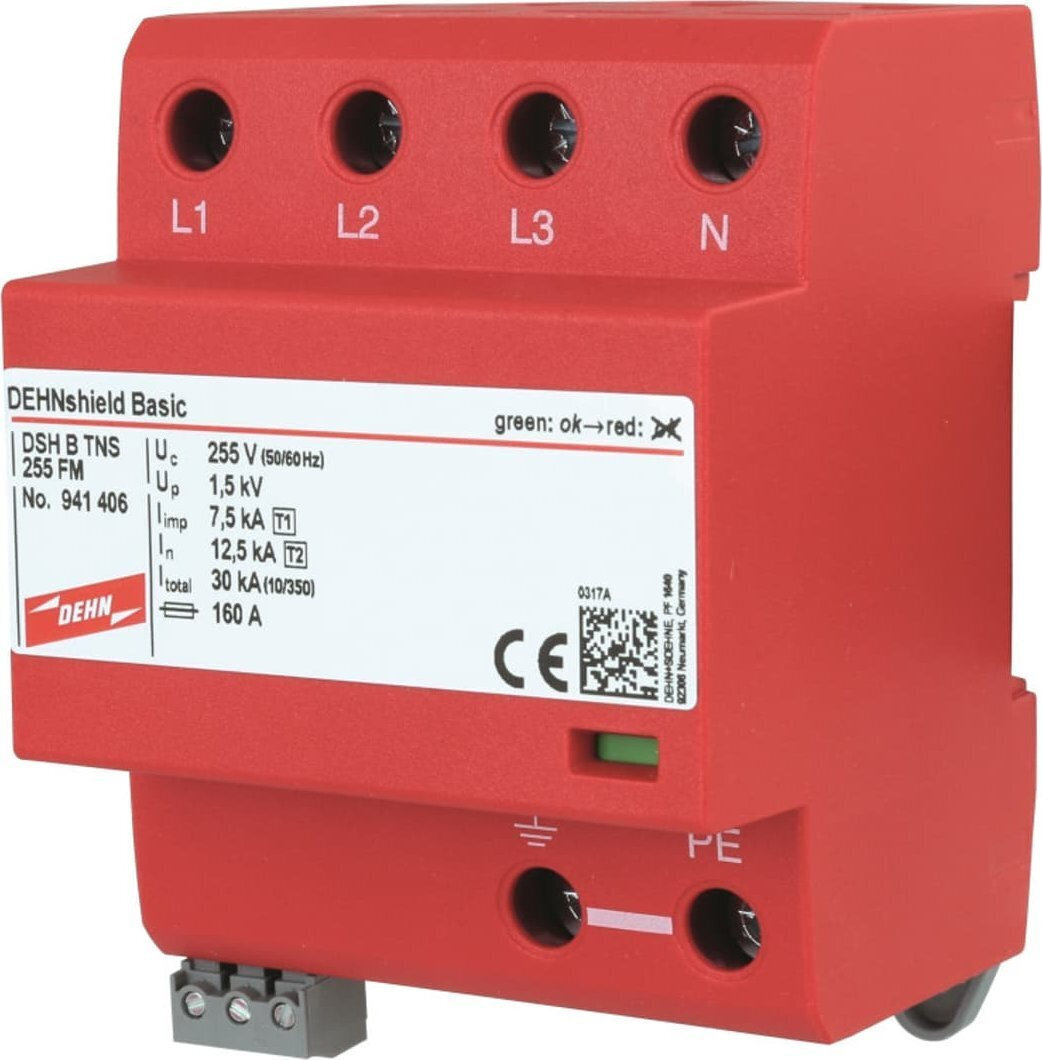

DEHN DEHNshield B DSH B TNS 255 FM Type 1+2 - Four-pole Surge Arrester (AC 230 V, Uc 255 V, 30 kA)
Product Code: 1173749912
Available in 4 - 6 days
403,10 €
or
12,59€ / month
εως 36 δόσεις με πιστωτική κάρτα
With the purchase of this product you earn 1210 Loyalty Points
Quantity:
Add
Need Help? Fill in your details so we can call you immediately!
Έως 36 Δόσεις. Δείτε το πλάνο δόσεων:
TBI Bank
Buy Now Pay Later.
4 installments 0% επιτόκιο, 20€ έως 300€
3 to 60 installments 300€ έως 100.00€
- 1. Ship with ACS Courier
- 2. Αποστολές με μεταφορικές εταιρίες για ογκώδη αντικείμενα
-
3. Pickup from BoxNow automated machine:
Με την BoxNow μπορείς να παραλάβεις το δέμα σου από Αυτόματο Μηχάνημα Παραλαβής που βρίσκεται κοντά σου, όλες τις ώρες της ημέρας 24/7. Η υπηρεσία έχει χρέωση 3€. Υπάρχει δυνατότητα αντικαταβολής με επιπλέον χρέωση 1€.
-
4. Pickup from the store:
Leof. El. Venizelou 73 (former Theseos), Kallithea
Συμπληρώστε τον ταχυδρομικό κωδικό για να λάβετε εκτίμηση τρόπου και κόστους μεταφορικών.
DEHN DEHNshield B (DSH B TNS 255 FM) combined Type 1+2 surge arrester, four-pole. Designed for TN systems. Nominal AC voltage: 230 V. Maximum continuous operating voltage (Uc): 255 V. Lightning current (10/350): 30 kA. Protection level (impulse voltage): 1.5 kV. L-PE / N-PE protection level: 1.5 kV. Number of modules: 4. DIN-rail (35 mm) mounting. Operating/fault indication: Yes. Remote signaling contact: Yes. Conductor cross-section (solid): 1.5–35 mm2. Conductor cross-section (stranded with ferrules): 1.5–25 mm2. Color: white. Suitable for main incoming protection and distribution board protection in TN systems.
-
BrandDEHN
-
ModelDSH B TNS 255 FM
-
TypeType 1+2 combined surge arrester
-
Poles4 (four-pole)
-
Nominal AC Voltage230 V
-
Maximum Continuous Operating Voltage (Uc)255 V
-
Lightning Current (10/350)30 kA
-
Protection Level (impulse voltage)1.5 kV
-
L-PE / N-PE Protection Level1.5 kV
-
Number of Modules4
-
MountingDIN-rail 35 mm
-
System TypeTN
-
Operating IndicationYes
-
Remote Signalling ContactYes
-
Conductor Cross-section (solid)1.5–35 mm²
-
Conductor Cross-section (stranded with ferrules)1.5–25 mm²
-
ColorWhite
-
Material (housing)Thermoplastic (polymer) - typical for DIN-rail arresters
-
Typical ApplicationIncoming/main surge protection for distribution boards and TN systems
-
SKU21371886
-
EAN4013364328082
-
MPN941406
Ratings
Description
DEHN DEHNshield B (DSH B TNS 255 FM) combined Type 1+2 surge arrester, four-pole. Designed for TN systems. Nominal AC voltage: 230 V. Maximum continuous operating voltage (Uc): 255 V. Lightning current (10/350): 30 kA. Protection level (impulse voltage): 1.5 kV. L-PE / N-PE protection level: 1.5 kV. Number of modules: 4. DIN-rail (35 mm) mounting. Operating/fault indication: Yes. Remote signaling contact: Yes. Conductor cross-section (solid): 1.5–35 mm2. Conductor cross-section (stranded with ferrules): 1.5–25 mm2. Color: white. Suitable for main incoming protection and distribution board protection in TN systems.
Technical Specifications
-
BrandDEHN
-
ModelDSH B TNS 255 FM
-
TypeType 1+2 combined surge arrester
-
Poles4 (four-pole)
-
Nominal AC Voltage230 V
-
Maximum Continuous Operating Voltage (Uc)255 V
-
Lightning Current (10/350)30 kA
-
Protection Level (impulse voltage)1.5 kV
-
L-PE / N-PE Protection Level1.5 kV
-
Number of Modules4
-
MountingDIN-rail 35 mm
-
System TypeTN
-
Operating IndicationYes
-
Remote Signalling ContactYes
-
Conductor Cross-section (solid)1.5–35 mm²
-
Conductor Cross-section (stranded with ferrules)1.5–25 mm²
-
ColorWhite
-
Material (housing)Thermoplastic (polymer) - typical for DIN-rail arresters
-
Typical ApplicationIncoming/main surge protection for distribution boards and TN systems
-
SKU21371886
-
EAN4013364328082
-
MPN941406
