The Axis Communications Power Supply DIN PS56 240W is an industrial DIN-rail mountable power supply designed for professional networking and surveillance installations. It delivers 240W output power with a nominal 56V DC output and an adjustable output range from 30V to 56V via potentiometer. It...
More

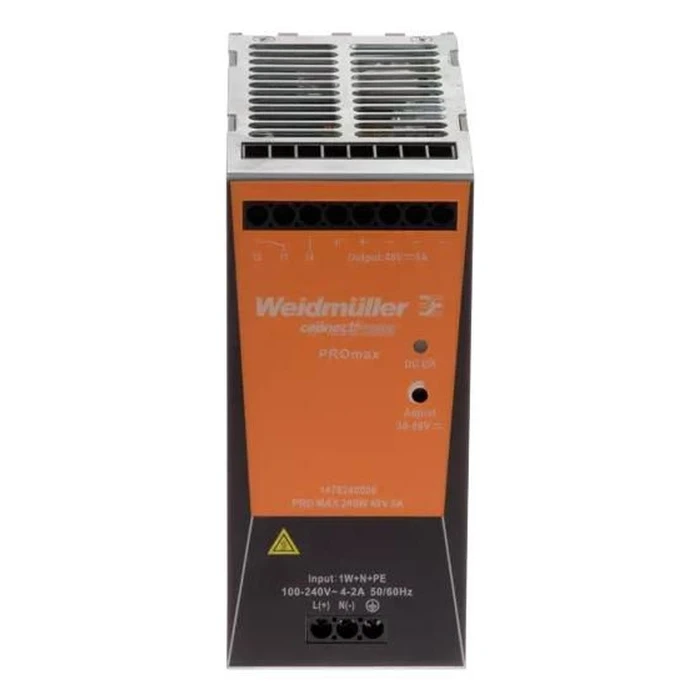

Default Axis Communications Power Supply DIN PS56 240W 56V DC
Product Code: 1200660084
Available in 4 - 10 days
481,50 €
or
15,04€ / month
εως 36 δόσεις με πιστωτική κάρτα
Quantity:
Add
Need Help? Fill in your details so we can call you immediately!
Έως 36 Δόσεις. Δείτε το πλάνο δόσεων:
TBI Bank
Buy Now Pay Later.
4 installments 0% επιτόκιο, 20€ έως 300€
3 to 60 installments 300€ έως 100.00€
- 1. Ship with ACS Courier
- 2. Αποστολές με μεταφορικές εταιρίες για ογκώδη αντικείμενα
-
3. Pickup from BoxNow automated machine:
Με την BoxNow μπορείς να παραλάβεις το δέμα σου από Αυτόματο Μηχάνημα Παραλαβής που βρίσκεται κοντά σου, όλες τις ώρες της ημέρας 24/7. Η υπηρεσία έχει χρέωση 3€. Υπάρχει δυνατότητα αντικαταβολής με επιπλέον χρέωση 1€.
-
4. Pickup from the store:
Leof. El. Venizelou 73 (former Theseos), Kallithea
Συμπληρώστε τον ταχυδρομικό κωδικό για να λάβετε εκτίμηση τρόπου και κόστους μεταφορικών.
The Axis Communications Power Supply DIN PS56 240W is an industrial DIN-rail mountable power supply designed for professional networking and surveillance installations. It delivers 240W output power with a nominal 56V DC output and an adjustable output range from 30V to 56V via potentiometer. It supports a wide input range of 100-240V AC and 80-370V DC, with 45-65Hz input frequency. Built for reliable operation in demanding environments, it operates from -25°C to 70°C and measures 130 x 125 x 60 mm with a weight of 1050 g. The unit is intended for powering PoE switches and extenders, including the AXIS T8504-R Industrial PoE Switch and AXIS Long Range PoE Extender Kit. It is UL certified, NDAA compliant, and rated IP20.
-
BrandAxis Communications
-
ModelPower Supply DIN PS56 240W
-
MPN01726-001
-
SKU01726-001
-
EAN7331021066991
-
Product TypePower Supply
-
Mounting TypeDIN rail
-
Output Power240 W
-
Output Voltage56 V DC
-
Adjustable Output Voltage30 V to 56 V DC
-
Output Current5 A at 56 V
-
Rated Input Voltage100-240 V AC
-
AC Input Voltage Range85-277 V AC
-
DC Input Voltage Range80-370 V DC
-
Input Frequency45-65 Hz
-
AC Current Consumption1.5 A at 230 V AC / 3 A at 115 V AC
-
DC Current Consumption1.5 A at 370 V DC / 3 A at 120 V DC
-
Operating Temperature-25 °C to 70 °C
-
Dimensions130 x 125 x 60 mm
-
Weight1050 g
-
Ingress ProtectionIP20
-
CertificationsUL certified
-
ComplianceNDAA compliant
-
Compatible ProductsAXIS T8504-R Industrial PoE Switch, AXIS Long Range PoE Extender Kit, AXIS TQ1808-VE Cabinet
-
Warranty5 years
-
Alternative SKUsPOWER SUPPLY DIN PS56 240, Z4-01726001
Ratings
Description
The Axis Communications Power Supply DIN PS56 240W is an industrial DIN-rail mountable power supply designed for professional networking and surveillance installations. It delivers 240W output power with a nominal 56V DC output and an adjustable output range from 30V to 56V via potentiometer. It supports a wide input range of 100-240V AC and 80-370V DC, with 45-65Hz input frequency. Built for reliable operation in demanding environments, it operates from -25°C to 70°C and measures 130 x 125 x 60 mm with a weight of 1050 g. The unit is intended for powering PoE switches and extenders, including the AXIS T8504-R Industrial PoE Switch and AXIS Long Range PoE Extender Kit. It is UL certified, NDAA compliant, and rated IP20.
Technical Specifications
-
BrandAxis Communications
-
ModelPower Supply DIN PS56 240W
-
MPN01726-001
-
SKU01726-001
-
EAN7331021066991
-
Product TypePower Supply
-
Mounting TypeDIN rail
-
Output Power240 W
-
Output Voltage56 V DC
-
Adjustable Output Voltage30 V to 56 V DC
-
Output Current5 A at 56 V
-
Rated Input Voltage100-240 V AC
-
AC Input Voltage Range85-277 V AC
-
DC Input Voltage Range80-370 V DC
-
Input Frequency45-65 Hz
-
AC Current Consumption1.5 A at 230 V AC / 3 A at 115 V AC
-
DC Current Consumption1.5 A at 370 V DC / 3 A at 120 V DC
-
Operating Temperature-25 °C to 70 °C
-
Dimensions130 x 125 x 60 mm
-
Weight1050 g
-
Ingress ProtectionIP20
-
CertificationsUL certified
-
ComplianceNDAA compliant
-
Compatible ProductsAXIS T8504-R Industrial PoE Switch, AXIS Long Range PoE Extender Kit, AXIS TQ1808-VE Cabinet
-
Warranty5 years
-
Alternative SKUsPOWER SUPPLY DIN PS56 240, Z4-01726001
