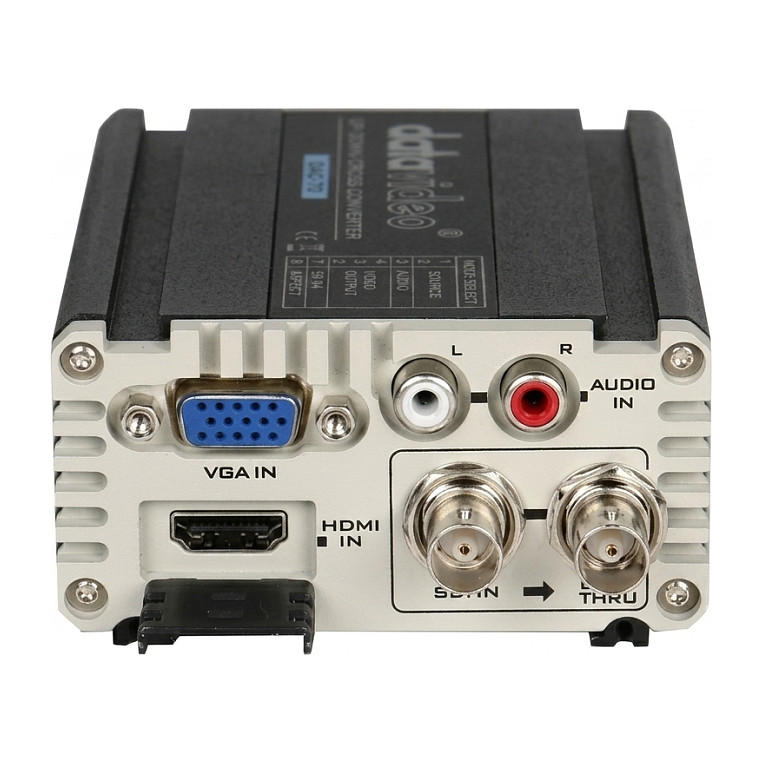

DataVideo DAC-70 (3G/HD/SD-SDI Up/Down/Cross Converter; VGA & HDMI inputs; SDI & HDMI outputs)

Description

Technical Specifications

• Brand
  DataVideo
• Model
  DAC-70
• MPN
  2000-2270
• EAN/UPC
  0672255004326 / 672255004326
• SKU
  21334309
• Product Type
  3G/HD/SD-SDI Up/Down/Cross Converter (also accepts VGA & HDMI)
• Video Inputs
  1x 3G/HD/SD-SDI (Level A & Level B), 1x HDMI, 1x VGA
• Video Outputs
  2x 3G/HD/SD-SDI (embedded audio), 1x HDMI
• Loop Through
  Yes (SDI loop-through)
• Supported Input Formats
  3G-SDI: 1080p 50/59.94/60; HD-SDI: 1080p 23.98/24/25/29.97/30, 1080i 50/59.94/60, 720p 50/59.94/60; SD-SDI: NTSC 525i, PAL 625i; VGA/computer: 800x600@60, 1024x768@60, 1280x1024@60, 1366x768@60, 1400x1050@60, 1600x1200@60; HDMI: up to 1080p60
• Supported Output Formats
  3G/HD/SD-SDI and HDMI (scales/cross-converts)
• Video Processing
  10-bit processing with high-quality video filtering
• Audio
  Up to 8 channels embedded audio on SDI/HDMI; 2x RCA stereo analog audio input
• Power
  12V DC, 1A (power supply included)
• Firmware
  Upgradeable via mini-USB
• Accessories Compatibility
  RMK-2, MB-4, MB-5 (mounting options)
• Use Case
  Professional video production, broadcast, AV integration
• Low SDI jitter
  Yes (designed for long cable runs)
• Package Contents
  DAC-70 unit, 12V/1A power supply (per vendor listings)
• Dimensions
  Not specified in provided sources
• Weight
  Not specified in provided sources
