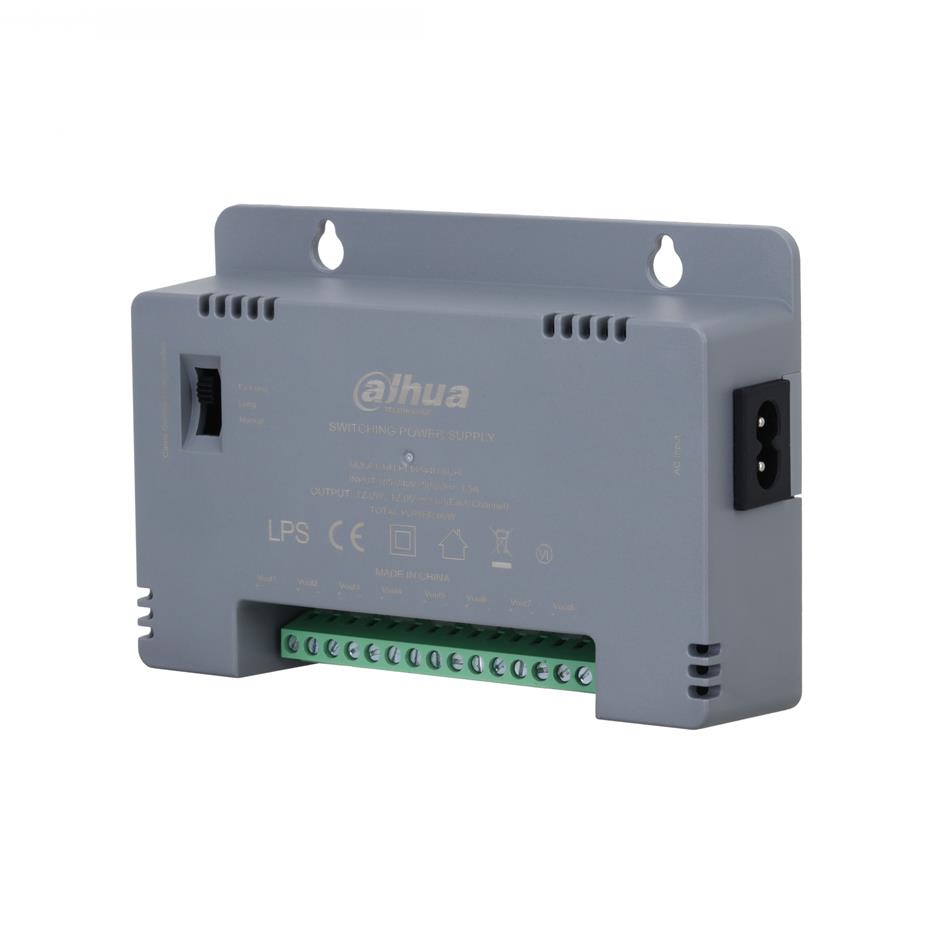

Dahua POWER SUPPLY 12V 5A / PFM344D-8CH-EN (8-channel)

Description

Technical Specifications

• Brand
  Dahua
• Model
  PFM344D-8CH-EN
• SKU
  1466800
• MPN
  PFM344D-8CH-EN
• EAN / Barcode
  6937552425590
• Category
  CCTV camera accessories / Power supply
• Input Voltage
  100 VAC–240 VAC
• Output Voltage (normal)
  12 V DC
• Rated Output Current (normal)
  5 A
• Number of Output Channels
  8
• Per-channel Rated Output Power
  12 W (per channel, typical)
• Total Output Power
  60 W (12 V × 5 A in normal mode)
• Selectable Output Modes
  Normal 12 VDC / 5 A; Long 13.5 VDC / 4.5 A; Extra-long 15 VDC / 4 A
• Protections
  Overload, Overvoltage, Short-circuit
• Surge Protection
  Common mode ±4 kV, Differential mode ±2 kV
• ESD Protection
  Air discharge ±8 kV, Contact discharge ±6 kV
• Efficiency Level
  VI
• Flame Resistance
  V-0
• Operating Frequency
  50 Hz–60 Hz
• Mounting
  Wall-mount
• Dimensions
  140.1 mm × 94.5 mm × 34.2 mm
• Product Weight
  230 g
• Color
  White (variant listed by resellers)
• Certifications
  CE; standards include EN 55032:2015, EN 55035:2017, EN 61000-3-2:2014, EN 61000-3-3:2013, EN 62368-1:2014+A11:2017
• Warranty
  Typically 36 months (listed by distributors)
• Intended Use
  Powering multiple CCTV cameras or similar low-voltage security devices
• Package Contents
  Power supply unit, power cable / cord (varies by distributor)
