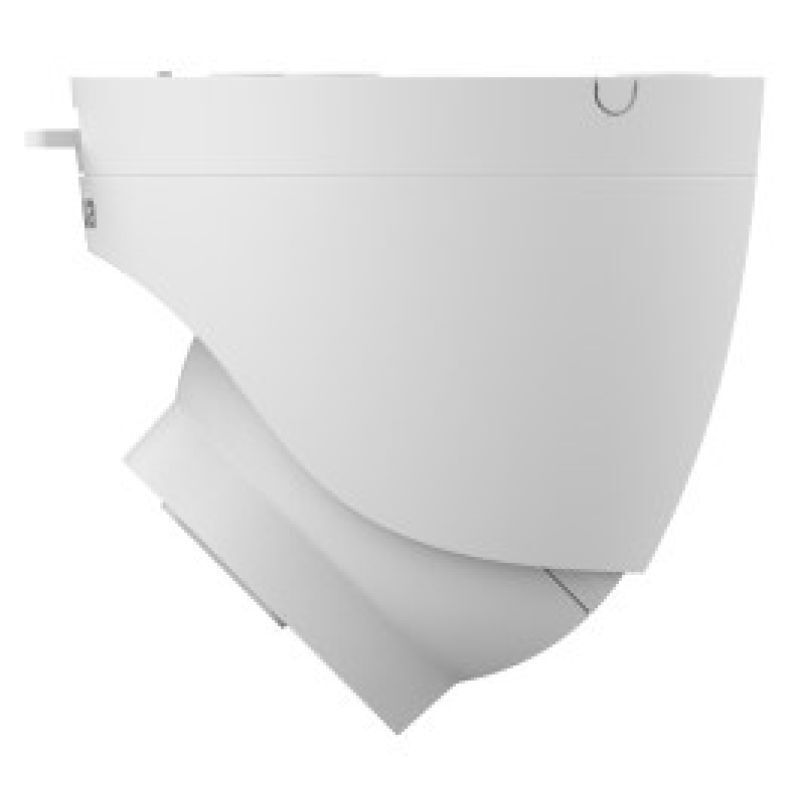

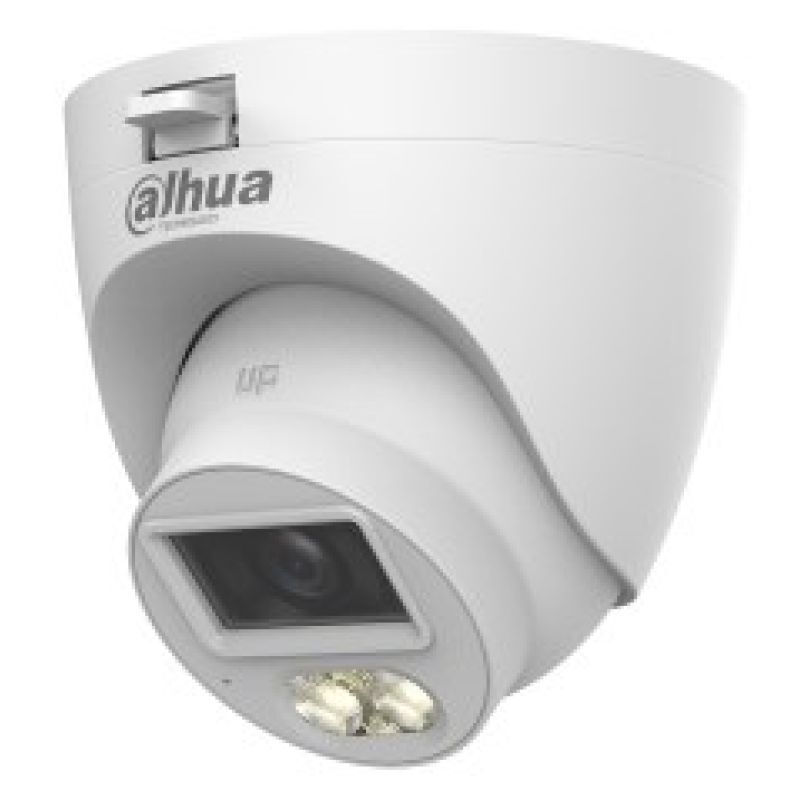

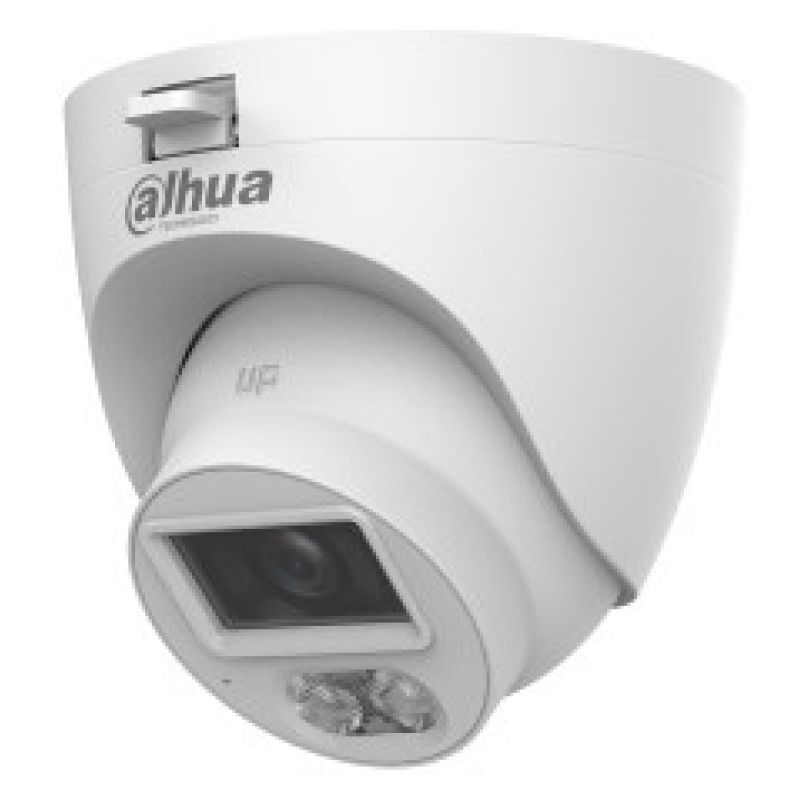

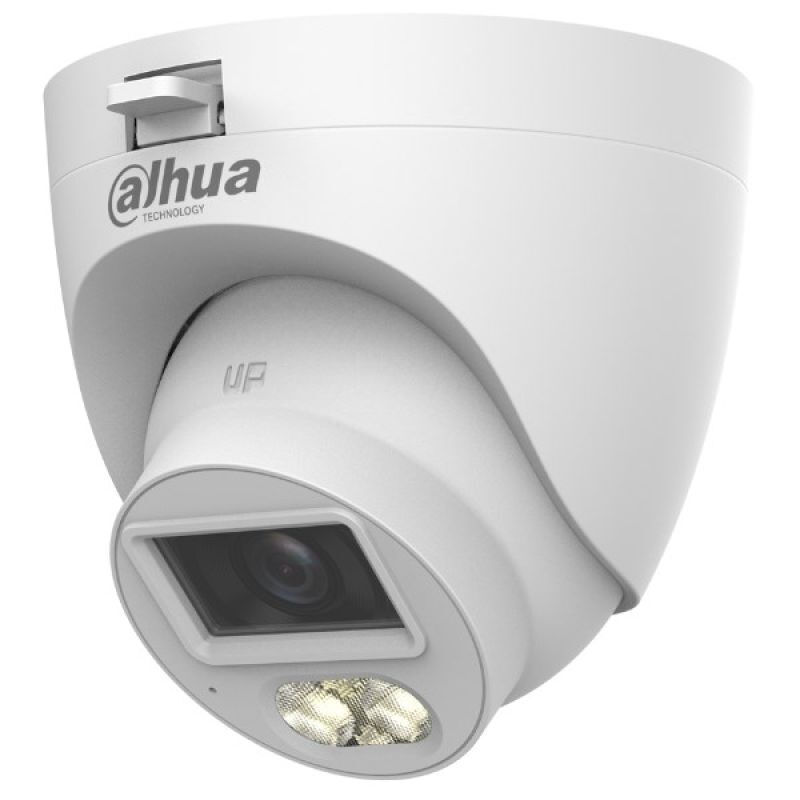

Dahua HAC-HDW1801CLQ-IL-A-0280B-S3-DIP 4K Waterproof CCTV Dome Camera with Microphone

Description

Technical Specifications

• Model
  HAC-HDW1801CLQ-IL-A-0280B-S3-DIP
• Brand
  Dahua
• Product Type
  CCTV Dome Security Camera (4K)
• Sensor Type
  CMOS
• Total Megapixels
  8 MP
• Maximum Resolution
  3840 x 2160 (4K)
• Frame Rate
  15 fps
• Lens Fixed Focal Length
  2.8 mm
• Maximum Aperture Number
  2
• Focus
  Fixed focus (focus control: Motorized/Manual listed)
• Field of View (Diagonal)
  125.3°
• Field of View (Horizontal)
  105.5°
• Field of View (Vertical)
  56.5°
• Night Vision
  Yes
• Night Vision Distance
  30 m
• Number of IR/Illumination LEDs
  2
• Built-in Microphone
  Yes
• Audio
  Built-in microphone
• Wide Dynamic Range (WDR)
  Yes
• Digital WDR (DWDR)
  Yes
• Back Light Compensation (BLC)
  Yes
• Highlight Compensation (HLC)
  Yes
• Noise Reduction
  3D noise reduction
• Signal-to-Noise Ratio (SNR)
  65 dB
• Minimum Illumination
  0.01 lx
• Smart IR
  Yes
• Video Motion Detection
  Yes
• Privacy Masking Areas
  8
• Progressive Scan
  Yes
• Shutter Speed
  1/100000 s
• Shutter Type
  Electronic
• Number of Sensors
  1
• Detect Distance
  88 m
• Observe Distance
  35.2 m
• Recognize Distance
  17.6 m
• Identify Distance
  8.8 m
• PTZ
  No
• Pan Range
  0 - 360°
• Tilt Angle Range
  0 - 78°
• Angle of Rotation
  360°
• Form Factor
  Dome
• Mounting Type
  Ceiling / Wall
• Housing Material
  Plastic
• Product Colour
  White
• International Protection (IP) Code
  IP67
• Placement Supported
  Indoor & outdoor
• Connectivity Technology
  Wired
• Remote Viewing
  Yes
• Mobile App
  No
• Wi‑Fi
  No
• 4G
  No
• Built-in Light
  Yes
• Alarm Input/Output
  Yes
• Built-in HDD
  No
• Power Source Type
  DC
• DC Output Voltage
  12 V
• Power Consumption (Max)
  4.1 W
• Operating Temperature
  -40 - 60 °C
• Storage Temperature
  -40 - 60 °C
• Operating Relative Humidity
  0 - 95%
• Storage Relative Humidity
  0 - 95%
• Weight
  190 g
• Height
  92.9 mm
• Diameter
  97.4 mm
• Package Weight
  260 g
• Number of Cameras in Package
  1
• Manual Included
  Yes
• Supported Resolutions
  3840 x 2160, 960 x 576, 960 x 480
• White Balance
  Area white balance, Auto
• Gain Control
  Auto/Manual
• Noise Reduction Technology
  3D DNR
• Back Light Compensation (BLC)
  Yes
