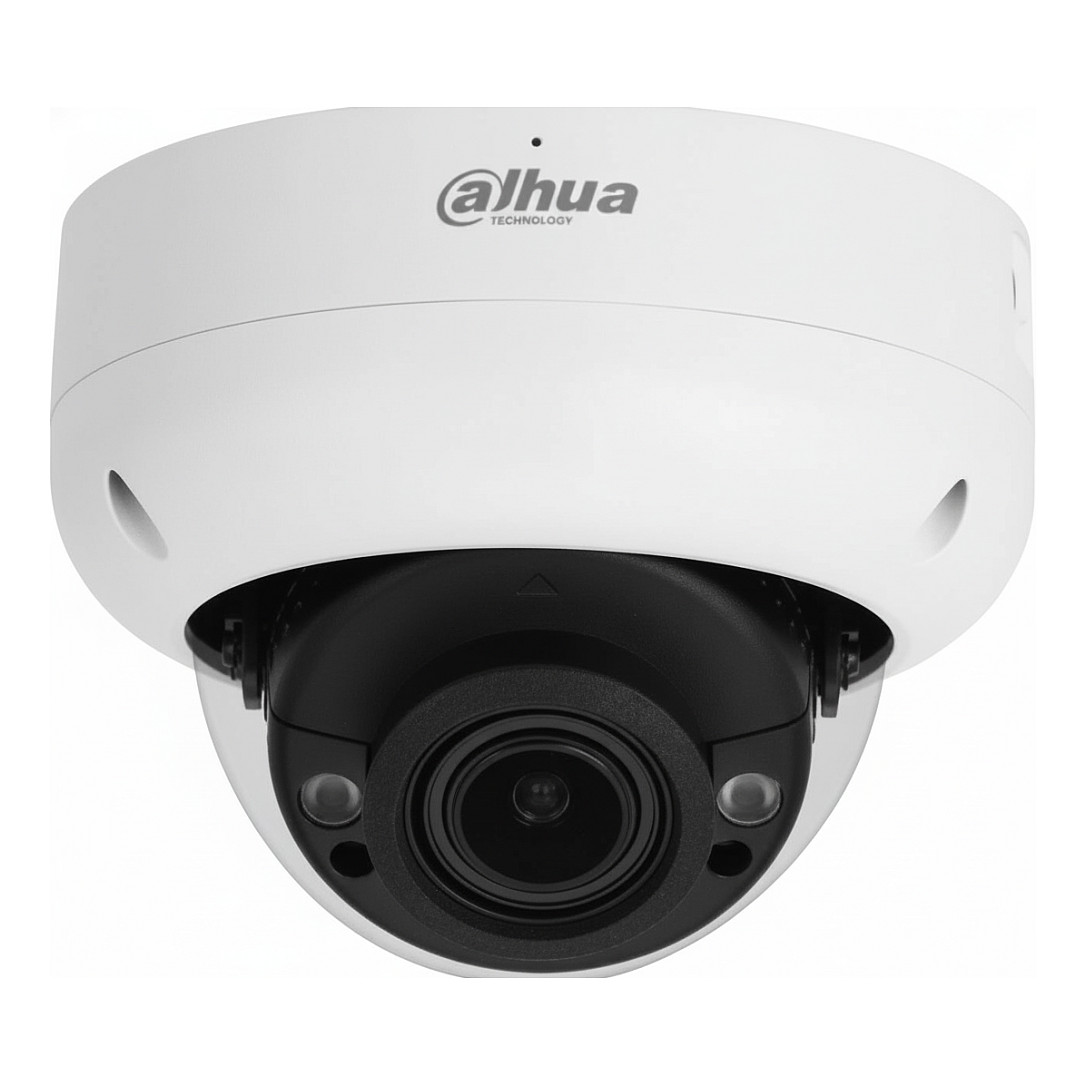

DAHUA DH-IPC-HDBW3241R-ZS-S2 2MP IR Vari-focal Dome WizSense Network Camera

Description

Technical Specifications

• Brand
  Dahua Technology
• Model
  DH-IPC-HDBW3241R-ZS-S2
• Series
  WizSense
• Sensor
  1/2.8" progressive CMOS (2 MP)
• Max resolution
  1920 × 1080 (2 MP, Full HD)
• Frame rate
  Up to 25/30 fps at 2 MP (region/version dependent)
• Lens type
  Motorized vari-focal
• Focal length
  2.7 mm – 13.5 mm
• Aperture
  F1.5
• Field of view (H × V × D)
  108°–28° × 57°–16° × 130°–33°
• IR (night vision)
  Built-in IR LEDs, up to 40 m
• Minimum illumination
  0.002 lux @ F1.5 (color, 30 IRE); 0.0002 lux @ F1.5 (B/W, 30 IRE); 0 lux with IR
• Video codec
  H.265 / H.264 (Smart H.264+ / H.265+ supported)
• AI features
  Perimeter protection (intrusion, tripwire) with human/vehicle classification; SMD 4.0 / SMD Plus / AI SSA
• Image enhancement
  WDR, 3D DNR, HLC, BLC, digital watermark
• Storage
  microSD up to 256 GB (local); network storage supported
• Audio
  Built-in microphone (some versions support audio in/out)
• Alarm I/O
  Some regional versions support 1 in / 1 out
• Network
  Ethernet (PoE supported)
• Power
  12 VDC ±25%, PoE (802.3af)
• Protection rating
  IP67 ingress protection, IK10 vandal resistance
• Material / Housing
  Die-cast metal body with plastic dome cover (typical)
• Operating temperature
  Varies by datasheet/region (consult local datasheet)
• Onboard memory
  ROM 128 MB; RAM commonly 256 MB (regional variations reported)
• Dimensions (approx.)
  Diameter ≈122 mm × Height ≈89 mm (typical for this model family)
• Weight (product)
  Approximately 550 g (estimate / version dependent)
• Certifications & Compliance
  Refer to regional datasheet for standards and approvals
• Package contents (typical)
  Camera, quick start guide, mounting template, screws and anchors, optional Sun-shield / mounting accessories depending on bundle
